Beamz Tiger 7R 230W Beam/Spot Moving Head

SKU TIGER7R-2 Categories , ,
Find A Dealer
Key Features:
  • Hybrid beam/spot moving head
  • 230W 7R high intensity discharge bulb included
  • DMX and stand-alone modes with master/slave connectivity
  • Dual gobo wheel, one rotating and one fixed
  • Dual rotating prisms for enahnced morphing effects
  • Motorised focus
  • Mechanical shutter and dimmer
  • Transport lock for pan and tilt

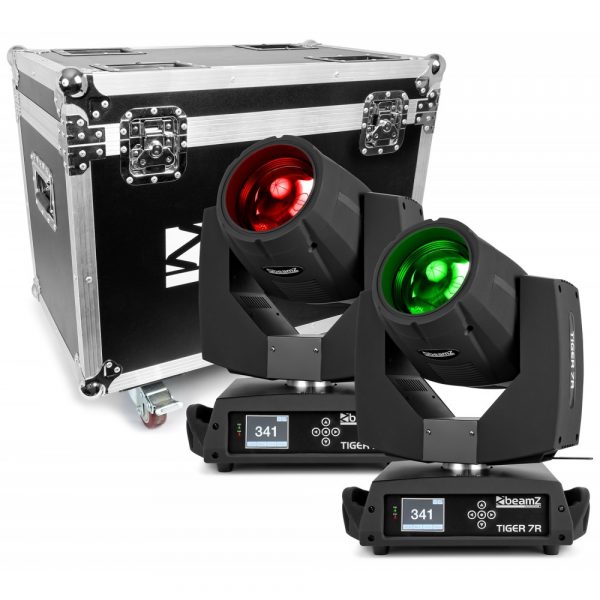

  • Supplied as 2 moving head with roadcase

The Tiger 7R moving head is a hybrid moving head with a special built-in lens to swap between spot and beam mode. The moving head is equipped with 2 individual gobo wheels allowing you to overlap gobos. A grand total of 23 different gobos give you enough possibilities to create astonishing aerial effects. If that is not enough, gobo wheel 1 has interchangeable gobos.

Technical Data

Colour temperature 8000K
Light source MSD 7R 230W bulb
Colour wheel 14 colours + open
Dispersion: Beam
Dispersion: Spot 13°
Illuminance 69.000lx@10m
Pan Range 540°
Tilt Range 270°
Static gobo: Quantity 16
Rotating gobos: Quantity 7
Gobo shake Yes
Interchangeable gobos Yes
Gobo dimensions 24.73mm
Prisma 1 8 Facet
Frost filter Yes
Flash rate per second 0 – 10Hz
Modes Automatic programs, DMX, Manual
Sound to light mode Yes
DMX channels 16, 20
DMX connector 3-pin XLR
Display LCD
IP rating IP20
Cooling Temperature controlled fan
Power Plug Power-connector
Power consumption 0.6 – 1.1A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 395 x 330 x 510mm
Weight 51kg
Weight (Each Head) 16.5kg
Accessories DMX cable, Mounting bracket, Power cable

Related Documents

Tiger 7R MANUAL V1.3
Tiger 7R MANUAL V1.2
