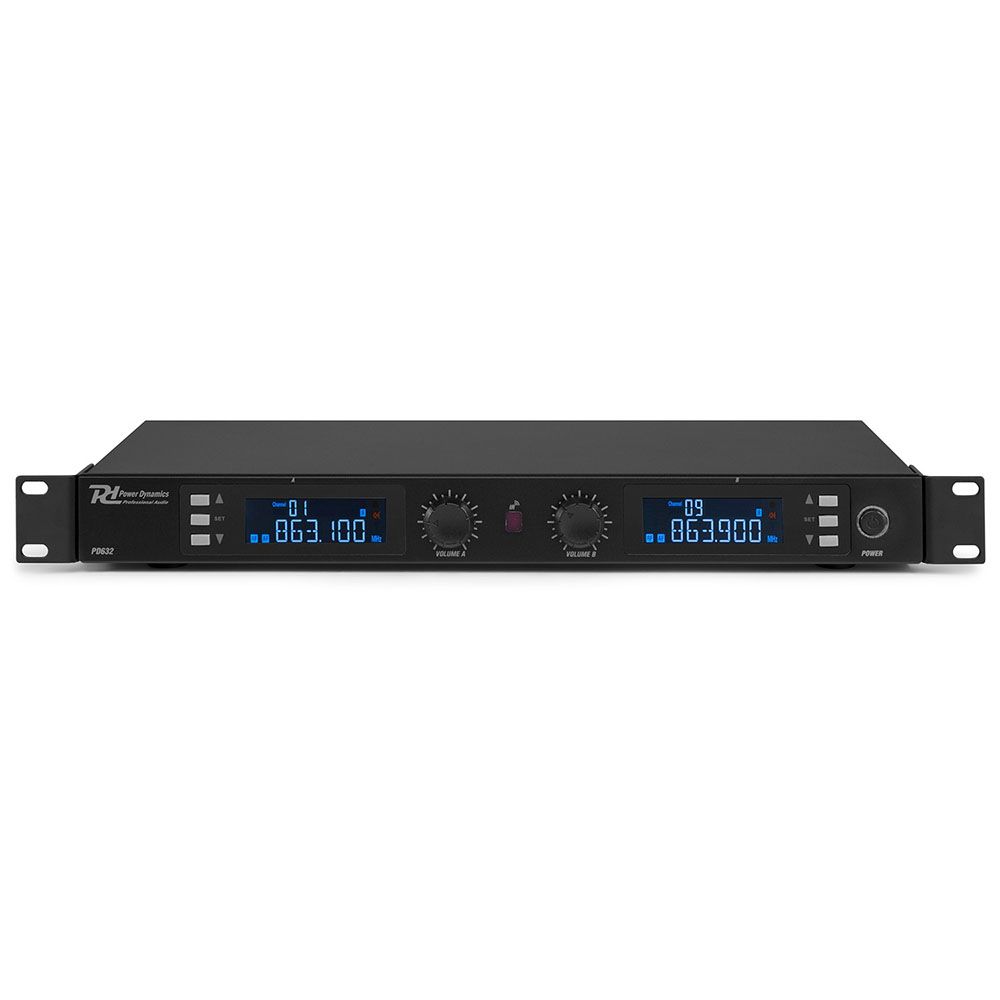

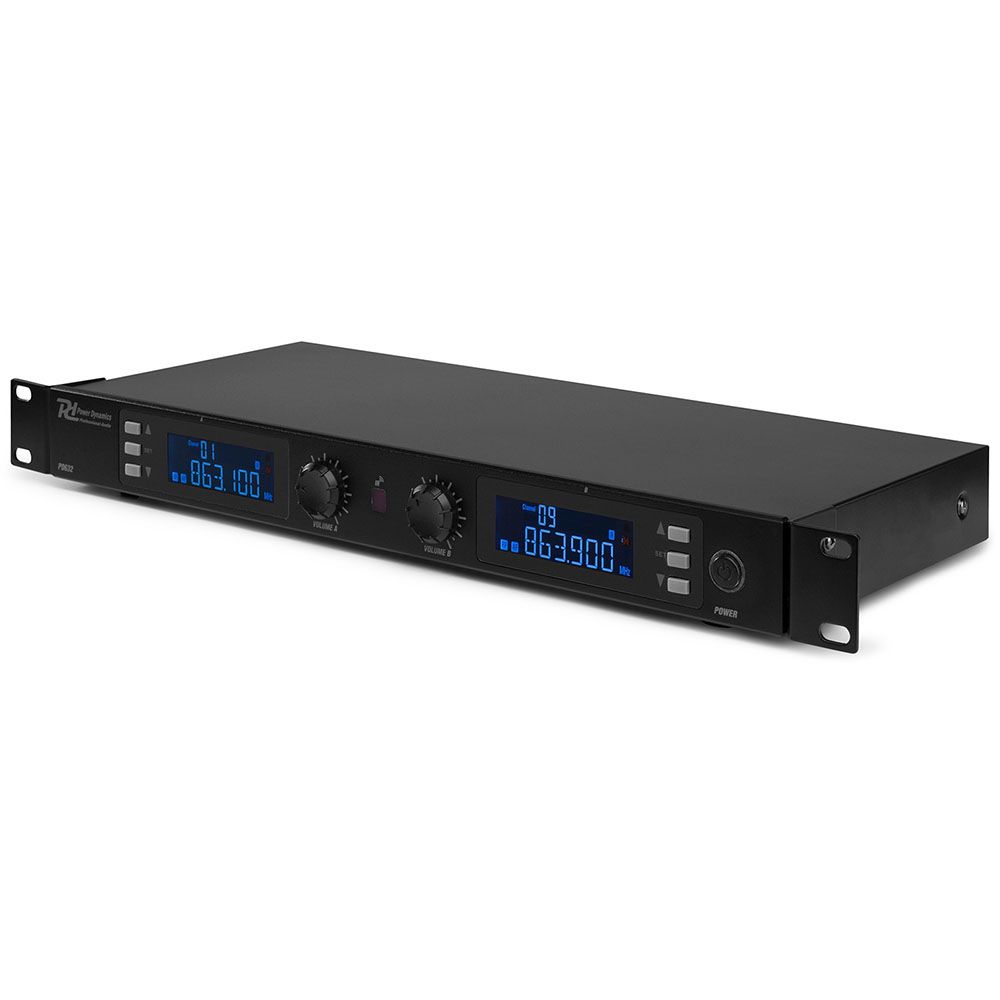

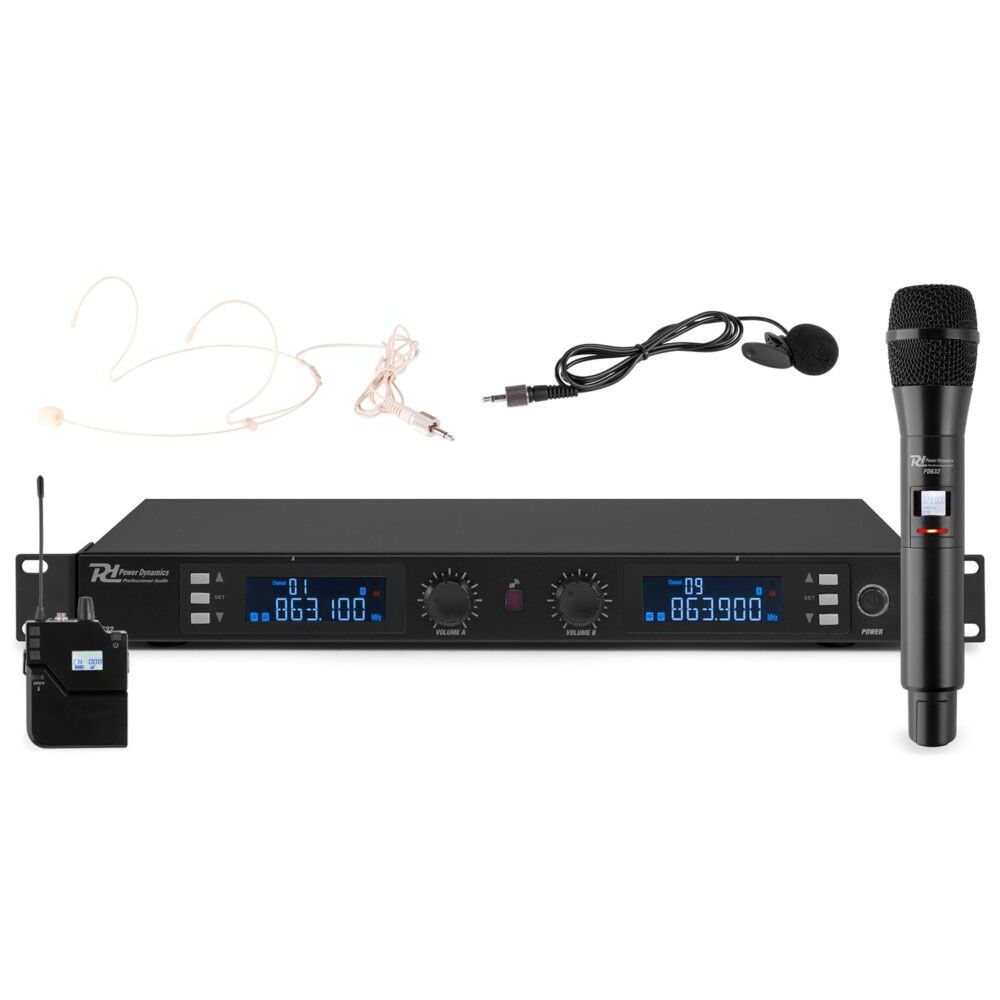

The Power Dynamics PD632C is a 2x 20-Channel UHF wireless microphone system with one handheld microphone and one bodypack with mute. It is suitable for vocals, presentations, training and other hands-free activities. The receiver provides a dynamic LCD display, volume control, two balanced XLR outputs and a single mix unbalanced 6.3mm output. IR data transmission supports channel selection, and the system is suitable for a 19 “ rack with supplied brackets.
Power Dynamics PD632C 2x 20-Channel Digital UHF Wireless Microphone System Combi
RRP: $349.00 ex. GST
Key Features:
- 2x 20 Selectable UHF channels

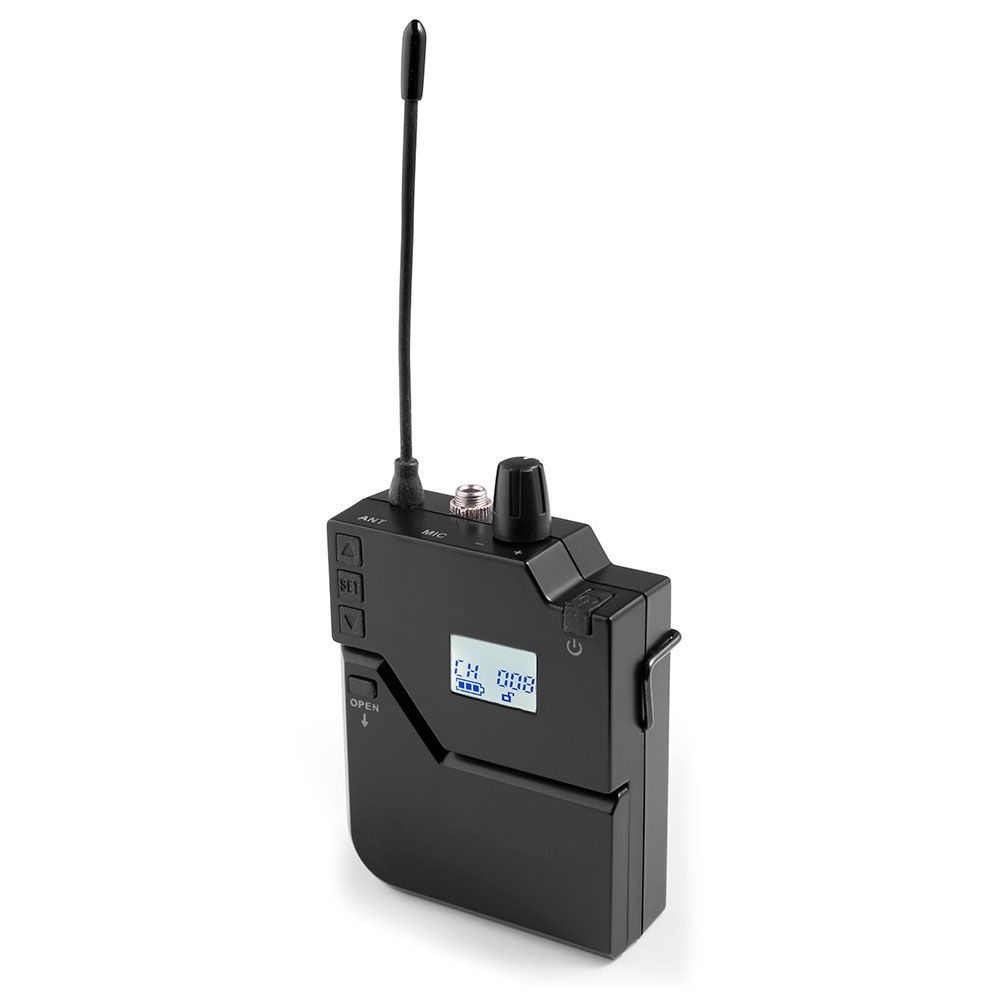

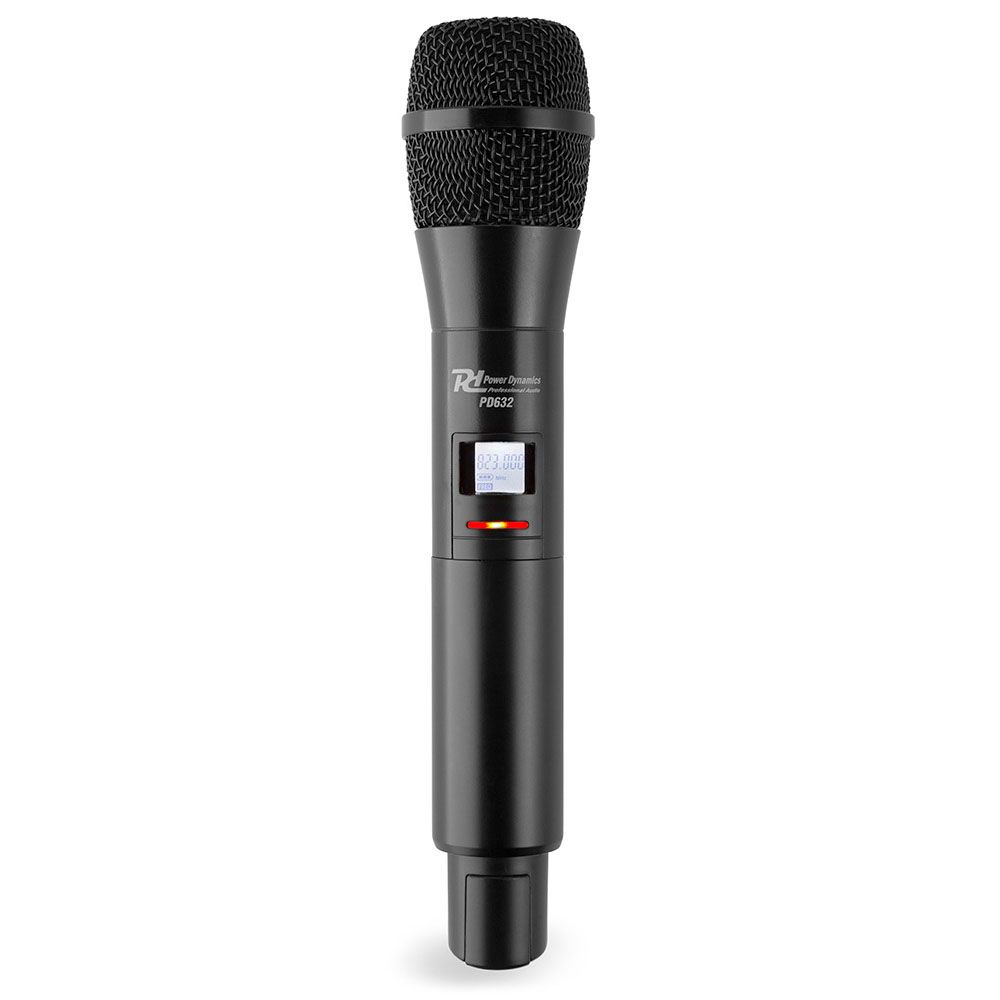

- 1x Handheld microphone and 1x bodypack with mute
- IR data transmission for channel selection

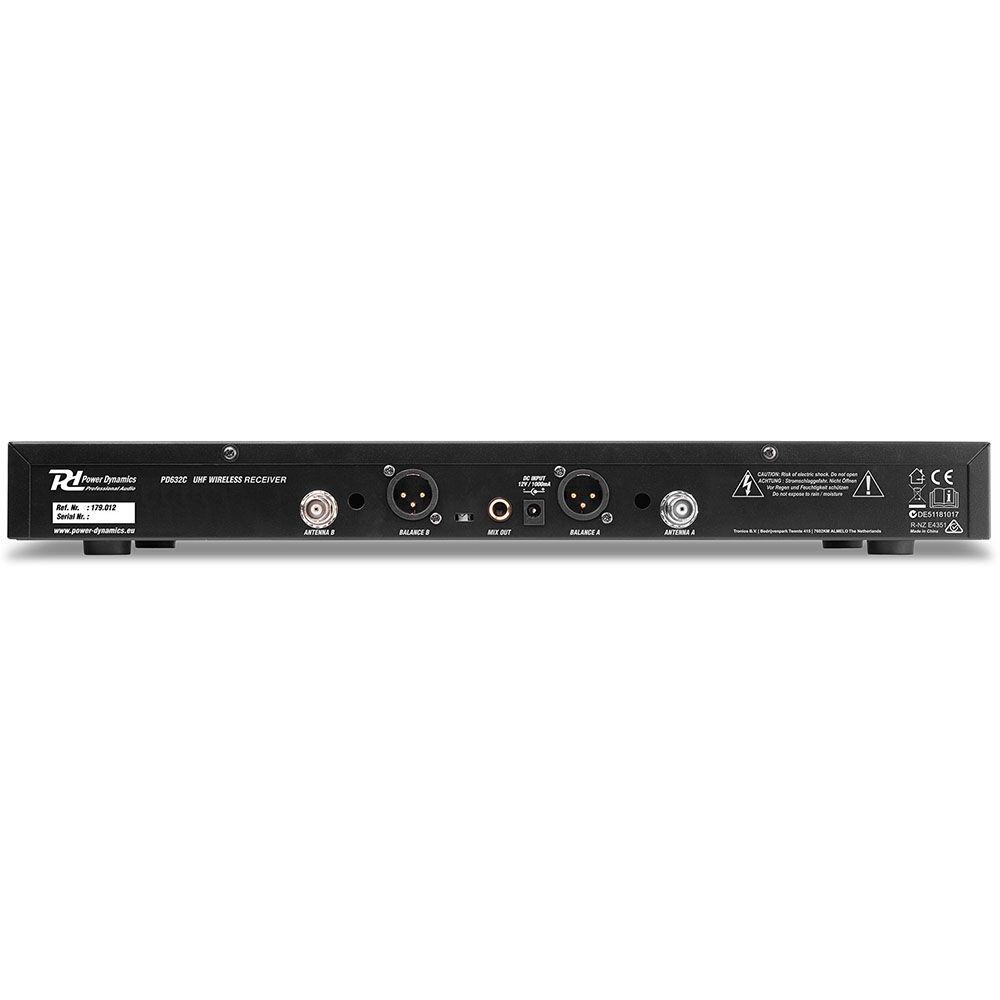

- 2x balanced XLR outputs and a single mix unbalanced 6.3mm output
- Transmitters with display showing the frequency and battery low indication
- Equipped with dynamic LCD

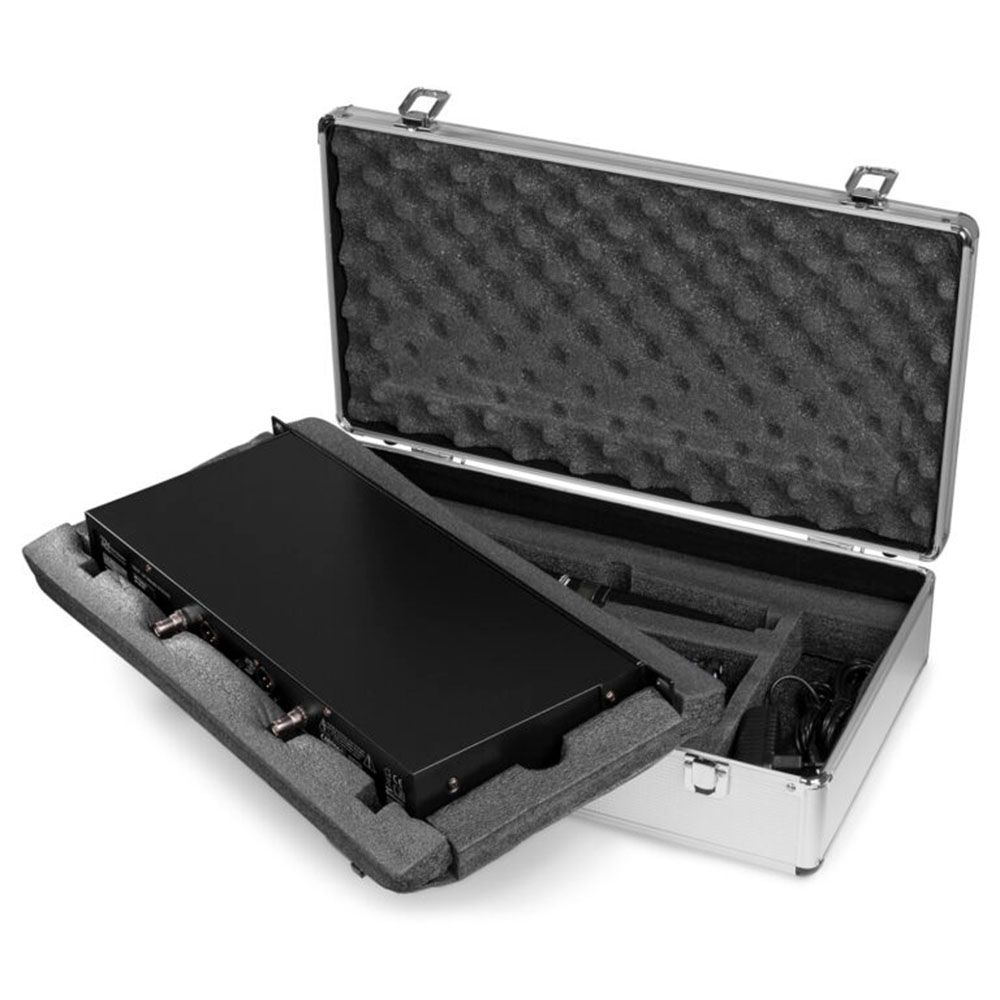

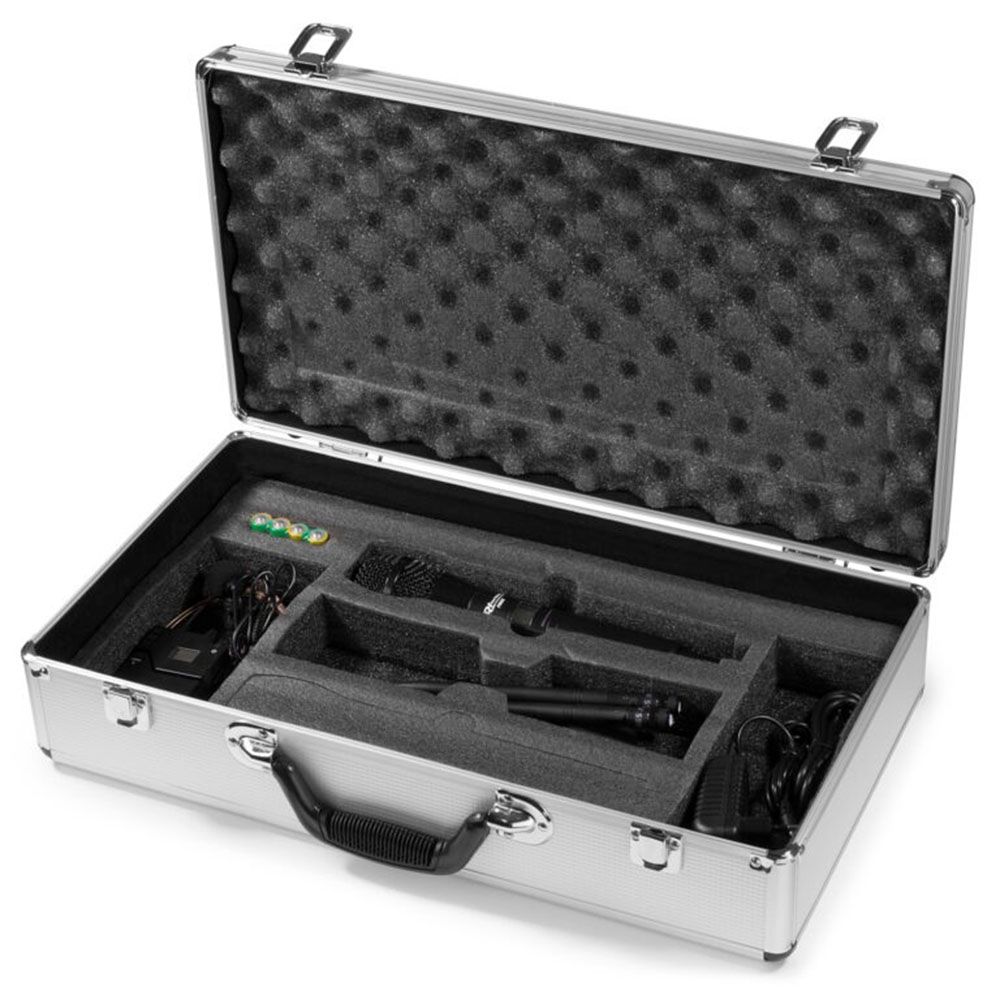

- Supplied in aluminium carrying case
- Suitable for 19 “ rack (supplied brackets)
Technical Data
| Product colour | Black |
| Output connections | XLR (3-pin) |
| Microphone channels | 20 channels |
| Frequency | 863.000 – 865.000 MHz |
| Frequency response | 60 – 18.000 Hz |
| Frequency stability | 0.0015% |
| RF output | <10mW |
| Signal-to-noise ratio | >97dB |
| THD | <1% |
| Batteries | 3V (2x AA) |
| Power supply | 100-240VAC 50/60Hz (12V Adapter) |
| Dimensions: Receiver | 220 x 420 x 44mm |
| Dimensions: Microphone | 51 x 250mm |
| Dimensions: Body pack | 75 x 60 x 23mm |
| Weight (kg) | 4.5 |
| Weight: Receiver | 1.46 |
| Weight: Microphone | 0.4 |
| Weight: Bodypack | 0.2 |
