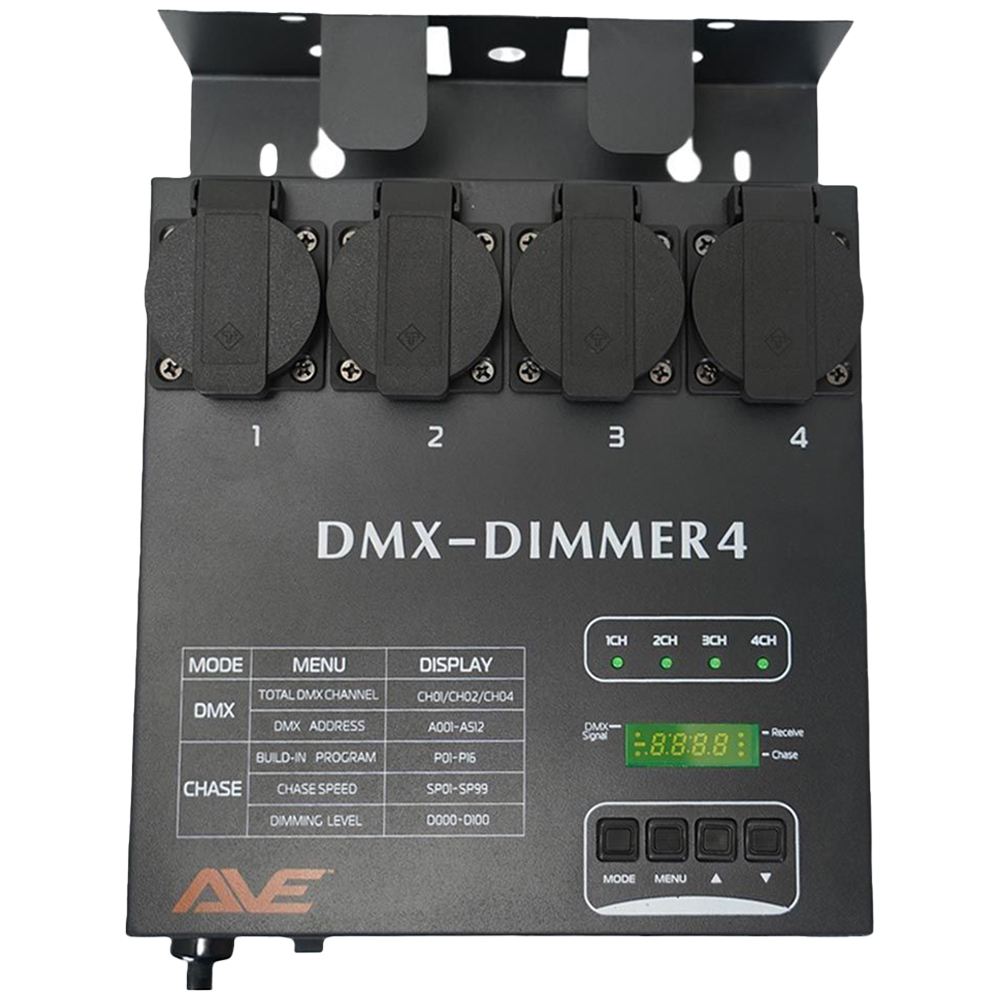

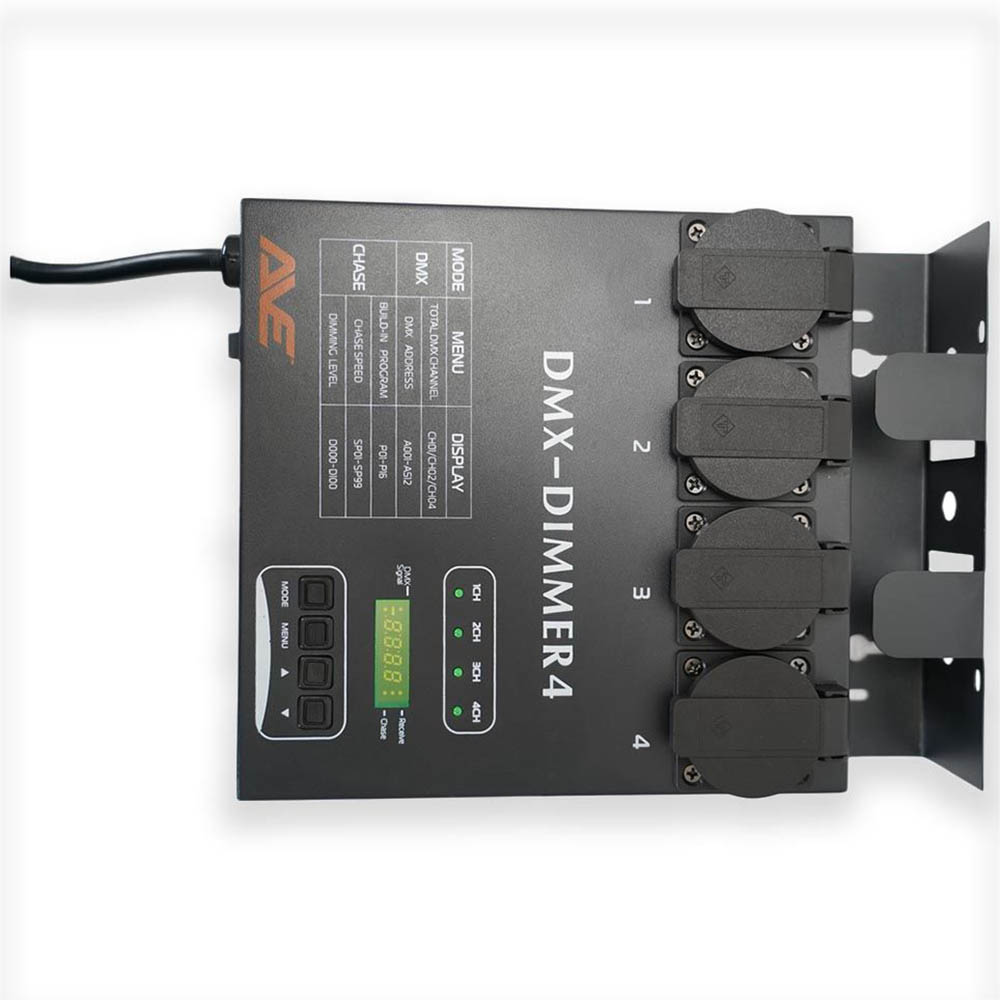

The AVE DMX-DIMMER4 is a lighting control device that provides four channels with independent power outputs and fuse protection. It features DMX input and output via 3-pin XLR connectors and a multifunction LCD for setting adjustments. The unit supports two operating modes—DMX mode for standard channel addressing and Chase mode for built-in chase sequences. Channel activity is visually indicated by green LEDs, with settings configurable through dedicated control buttons. It is suitable for managing lighting fixtures in professional staging and event environments.
AVE (DMX-DIMMER4) Chaser Box 4-Channel Switcher with Built-in Chase Programs
RRP: $199.00 ex. GST
Key Features:
- MODE switch toggles between DMX and Chase operation modes
- 4 Australian-type power outlet sockets for connecting lighting fixtures
- Multifunction LCD display for setting monitoring and adjustments
- MENU button cycles through address, channel count, program, speed, and dimming level settings
- Channel LEDs illuminate to indicate active channels
- Individual 6.3A fuses per channel provide overload protection

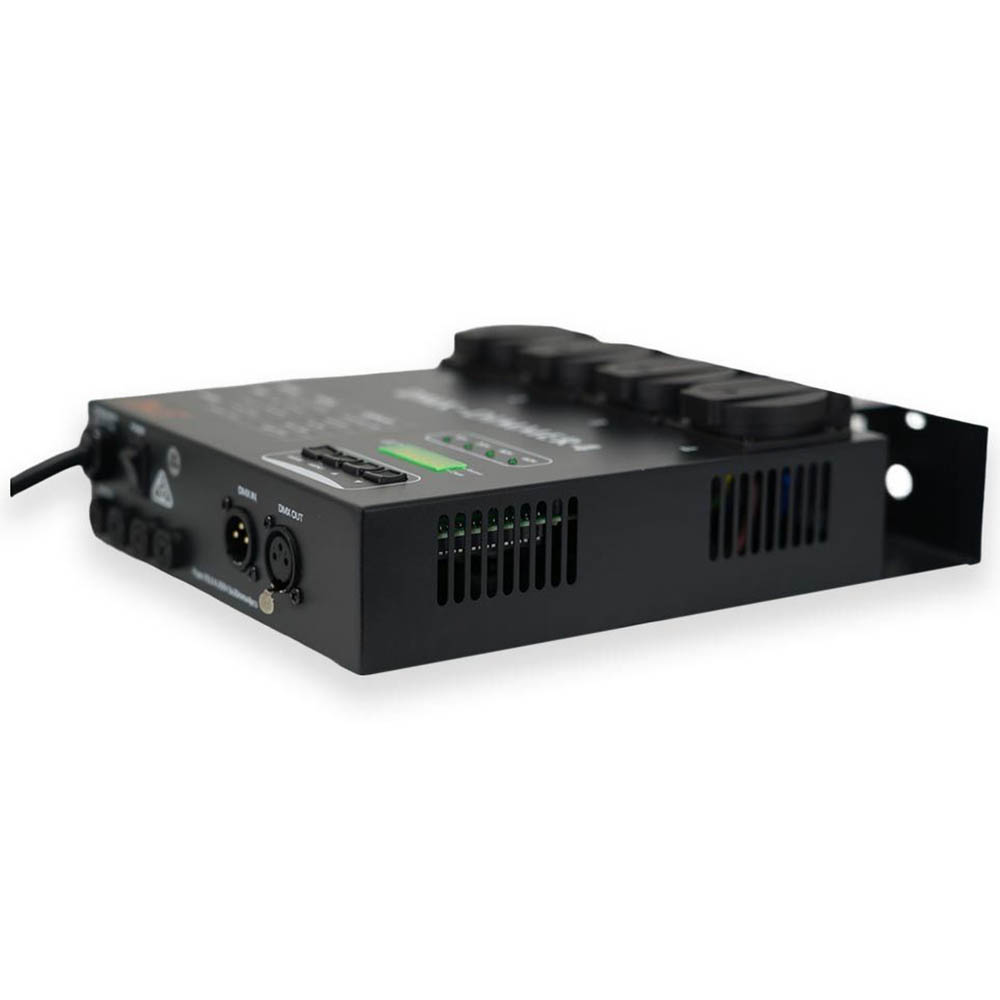

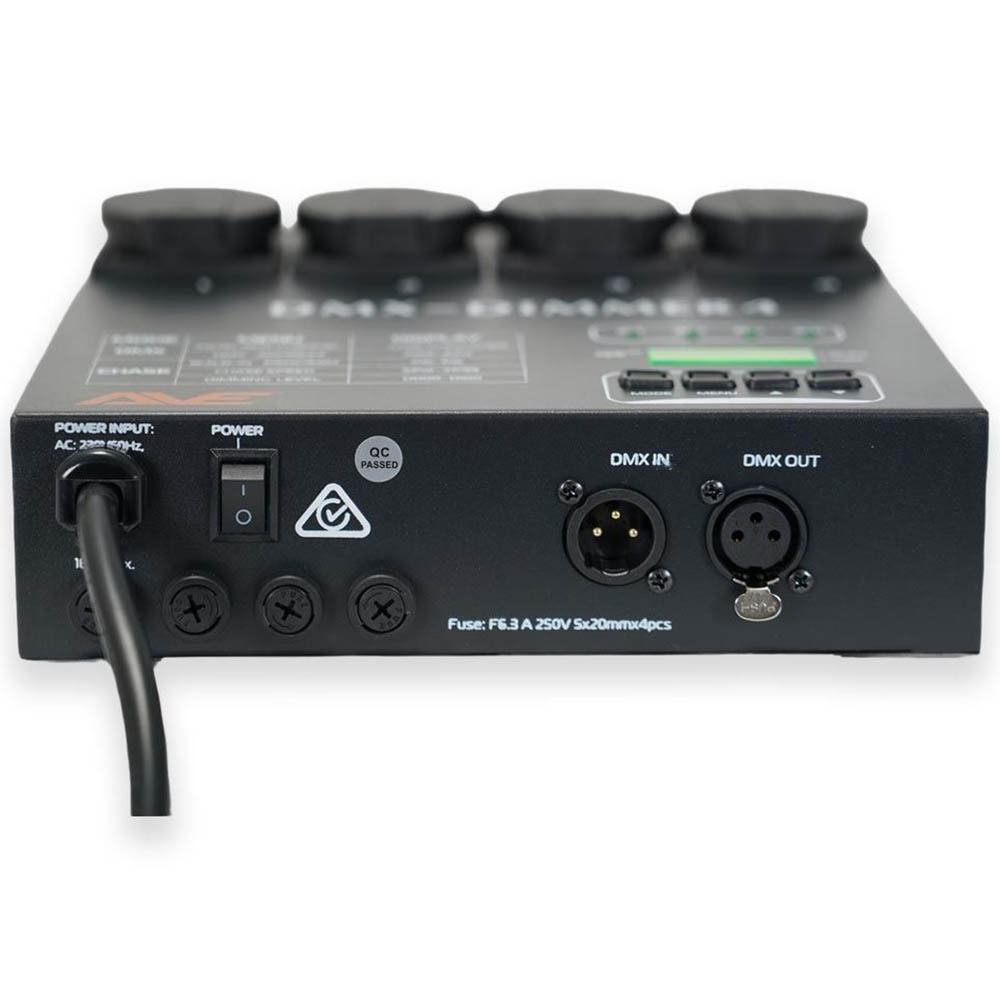

- DMX input and output via 3-pin XLR connectors for signal chaining
- Main power on/off switch and mains power cord included
Technical Data
| Power Input | AC 220–240V, 50Hz |
| Output Rating | 6.3A per channel, 16A maximum total |
| Output Sockets | 4× Australian-type power outlets |
| DMX Input | 3-pin XLR (female) |
| DMX Output | 3-pin XLR (male) |
| Fuse Protection | 4× F6.3A 250V (5×20mm) |
| Dimensions | 260 × 190 × 75mm |
| Weight | 2.7kg |
