The AVE DMX-SPLIT6 is engineered to provide stable and interference-free DMX512 signal distribution in complex lighting setups. It features six electrically isolated buffered outputs with individual signal amplifiers and status LEDs, plus a seventh direct pass-through output. Electrical isolation prevents ground loops and signal interference, critical for large installations where multiple fixture chains share a DMX source. Each output supports up to 64 fixtures, and the final buffered output includes a termination resistor to minimize signal reflections.
AVE DMX-SPLIT6 6 Channel DMX Splitter
RRP: $199.00 ex. GST
Key Features:
- 6-channel buffered DMX512 signal splitter with electrical isolation for each output
- Single DMX512 input distributed across six isolated outputs each with signal amplifier and status LED
- Seventh direct pass-through DMX output provided on front panel
- Prevents ground loops and signal interference in larger lighting setups
- Each buffered output supports up to 64 fixtures
- Built-in termination resistor on final output to suppress signal reflections
Technical Data

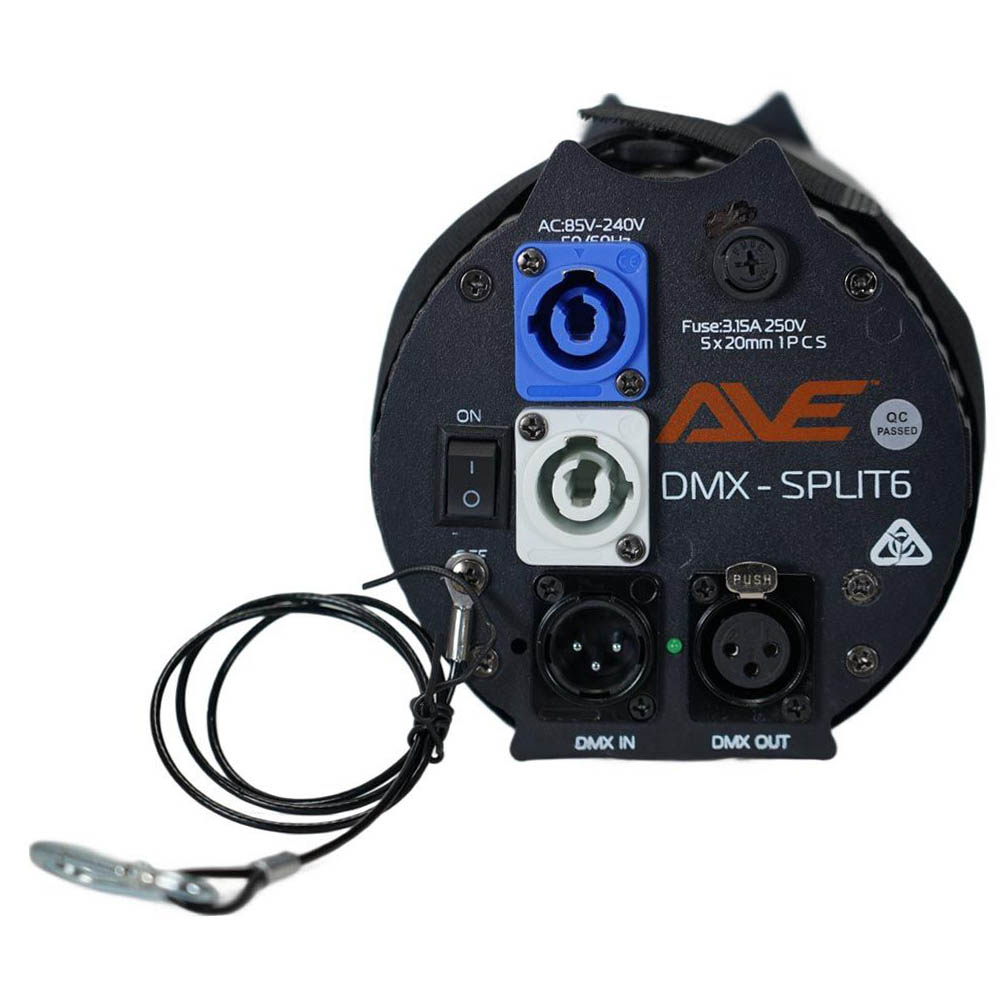

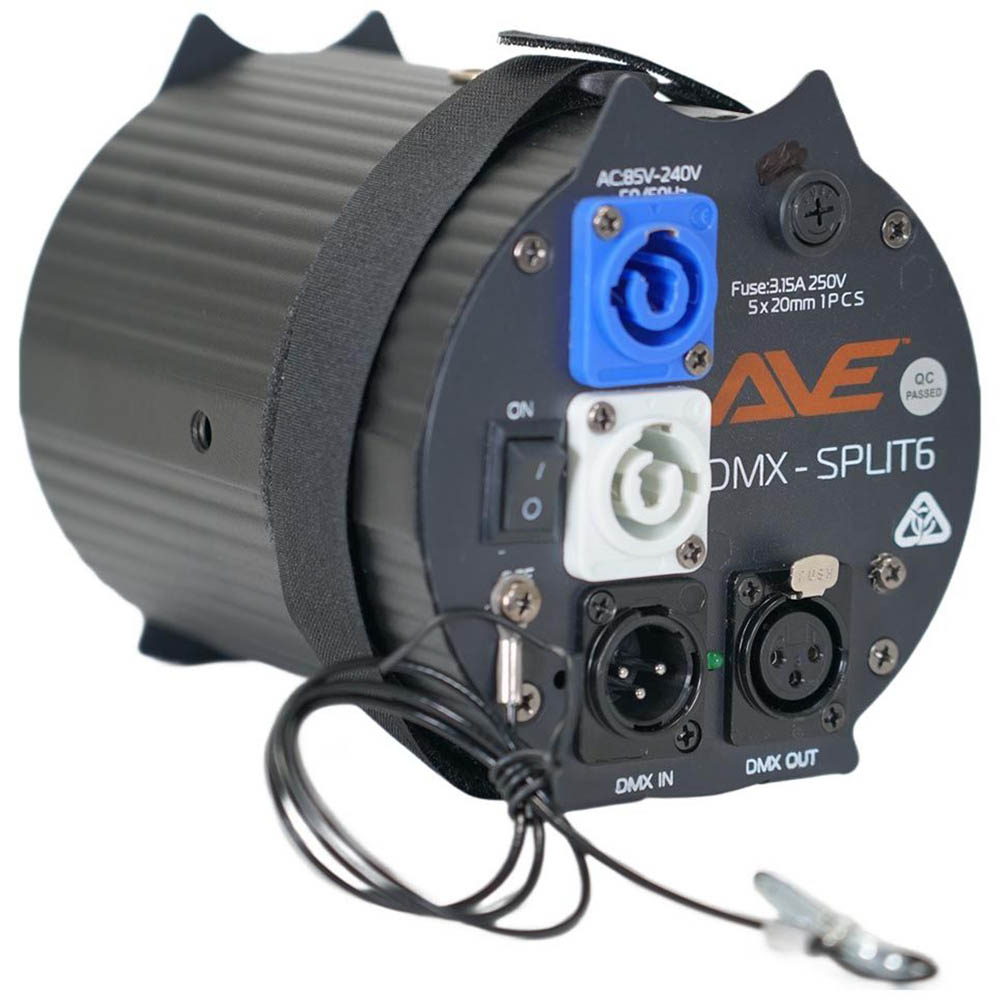

| Power Input | AC 85–240V, 50/60Hz |
| Internal Fuse | F3.15A 250V (5×20mm) |
| DMX Input | 3-pin XLR (male) |
| DMX Output (Direct) | 3-pin XLR (female) — direct pass-through |

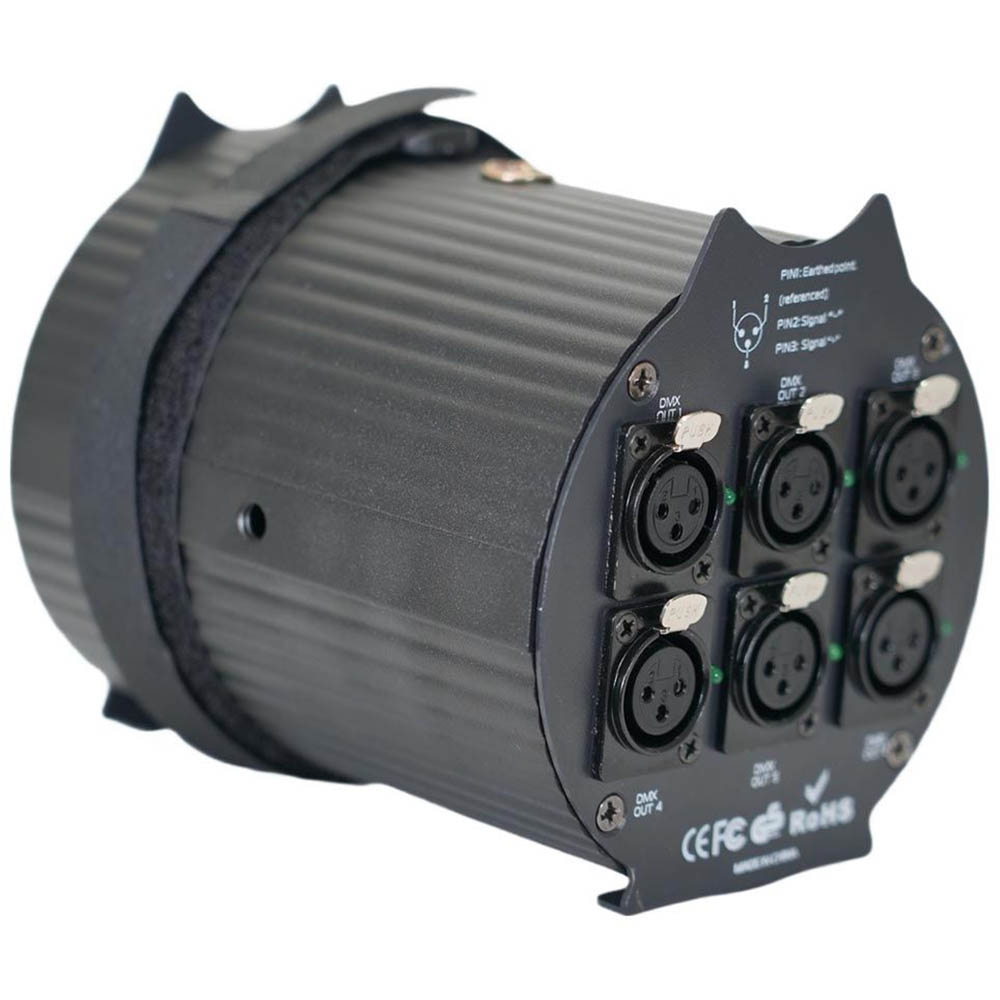

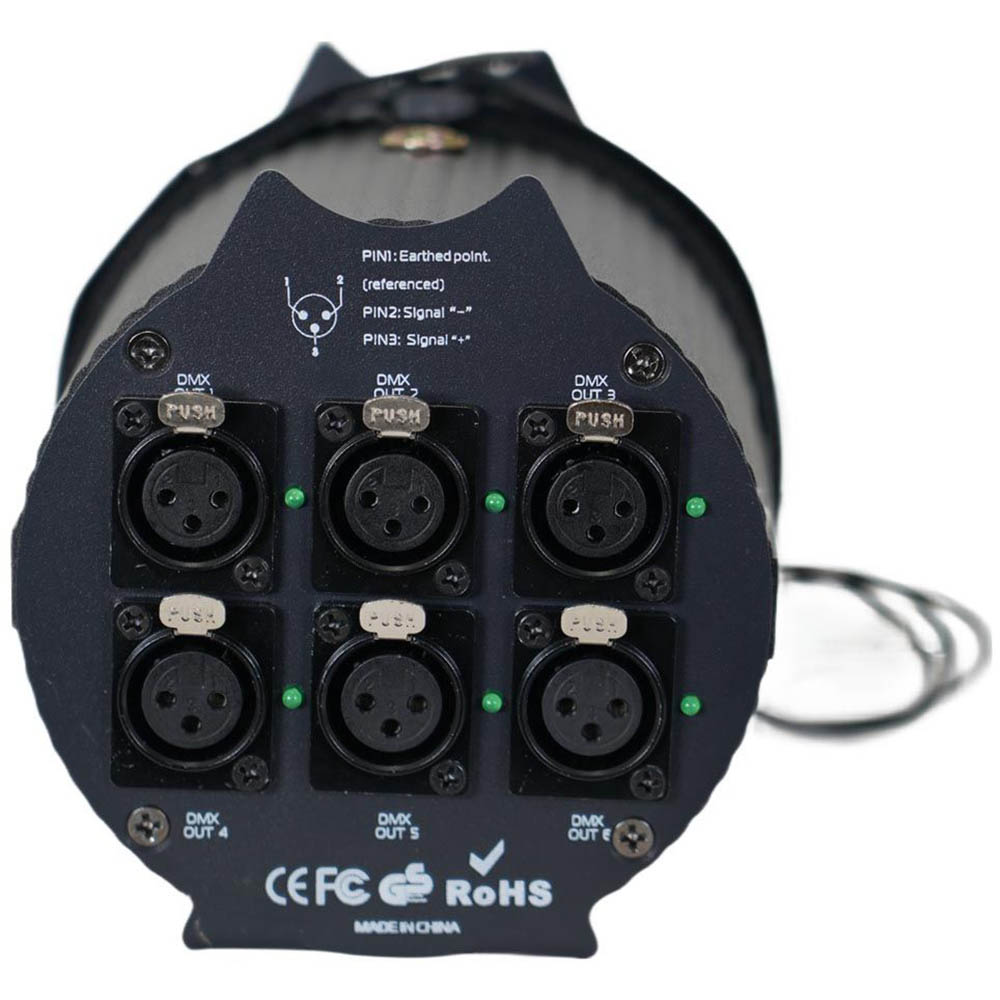

| DMX Outputs (Buffered) | 6× 3-pin XLR (female) — electrically isolated |
| Max Fixtures per Output | 64 |
| Dimensions | 116 × 204mm |
| Weight | 2.5kg |
