The AVE DMX-STATIONW Wireless DMX512 Transmitter / Receiver transmits DMX512 lighting control data between a lighting console and fixtures, or between fixtures, without cable runs. It uses W-DMX open ISM-band technology with GFSK modulation, 79-channel frequency hopping and 1,100 hops per second for interference-resistant, real-time transmission. The system uses standard 3-pin XLR DMX512 connectors and supports applications including live shows, architectural lighting, stadiums, TV studios, conference centres, theatres, theme parks, clubs and temporary stage setups. Communication range is up to 500 m in open space, with multiple wireless groups able to coexist within 500 m without mutual interference.

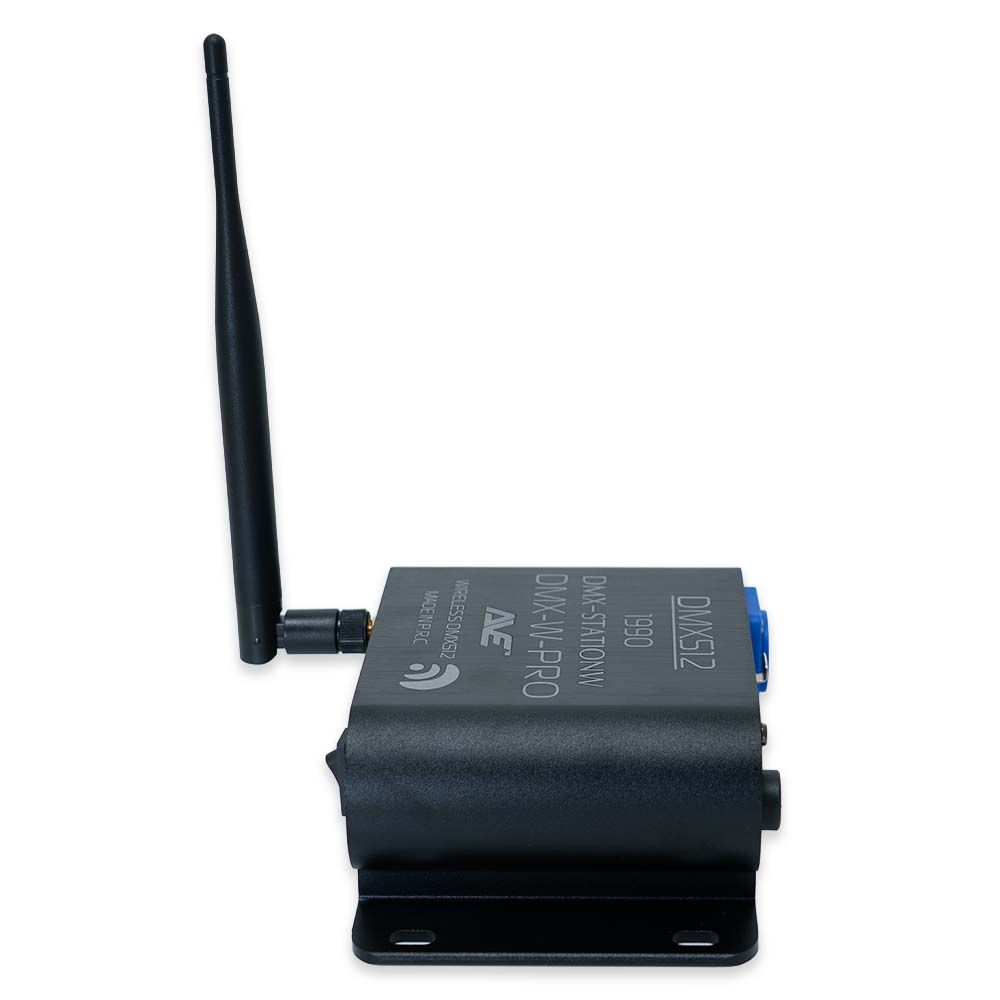

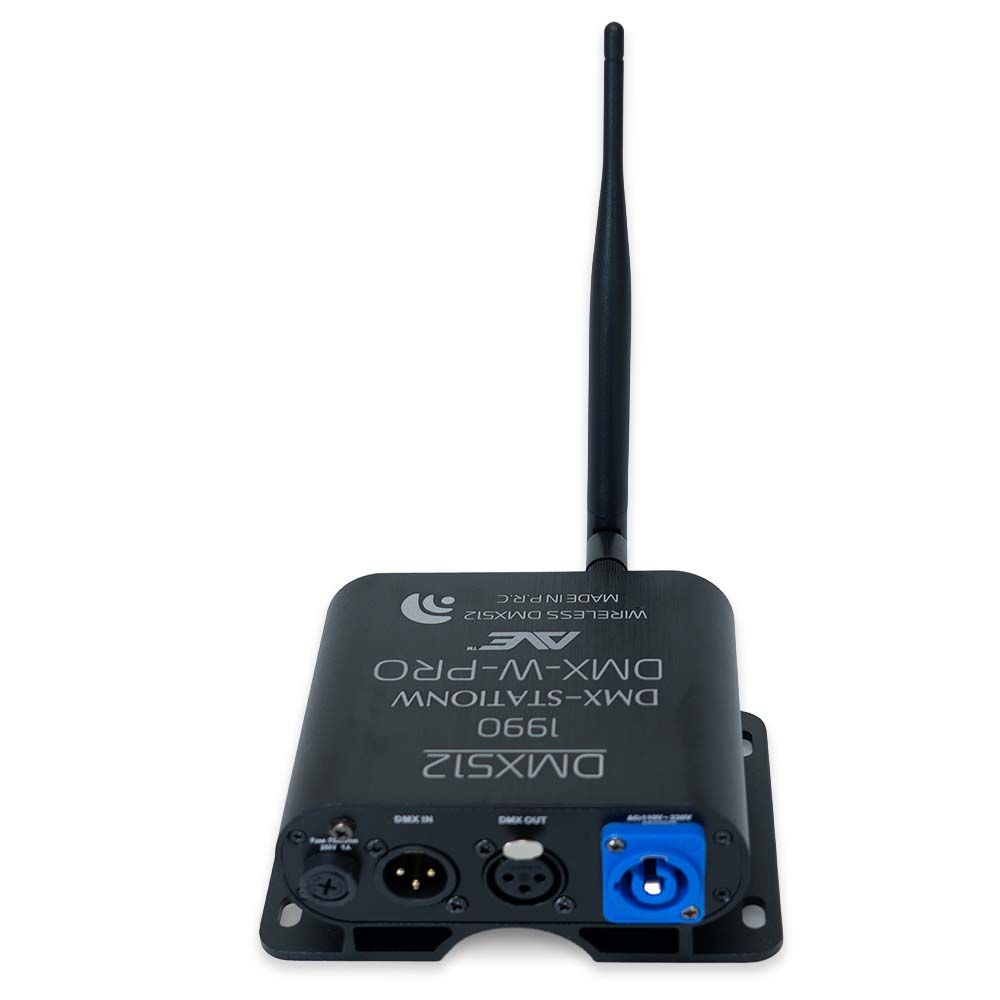

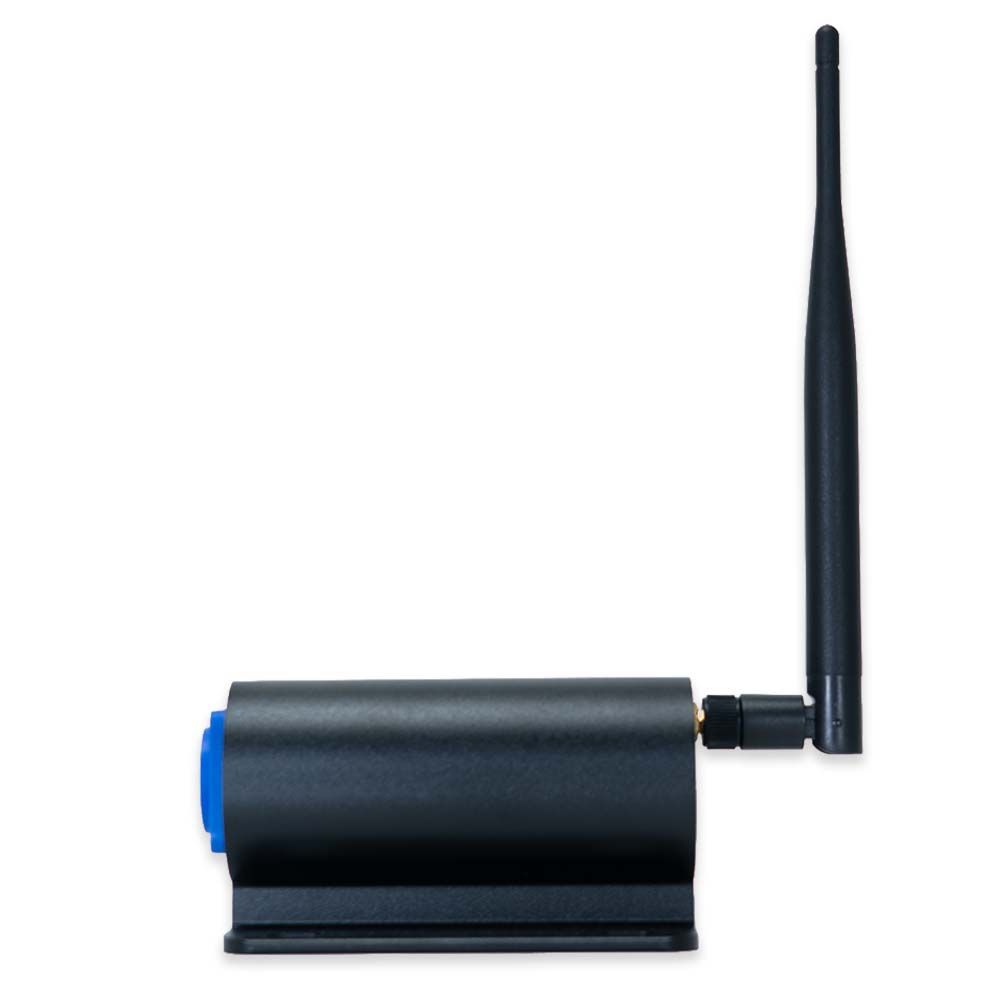

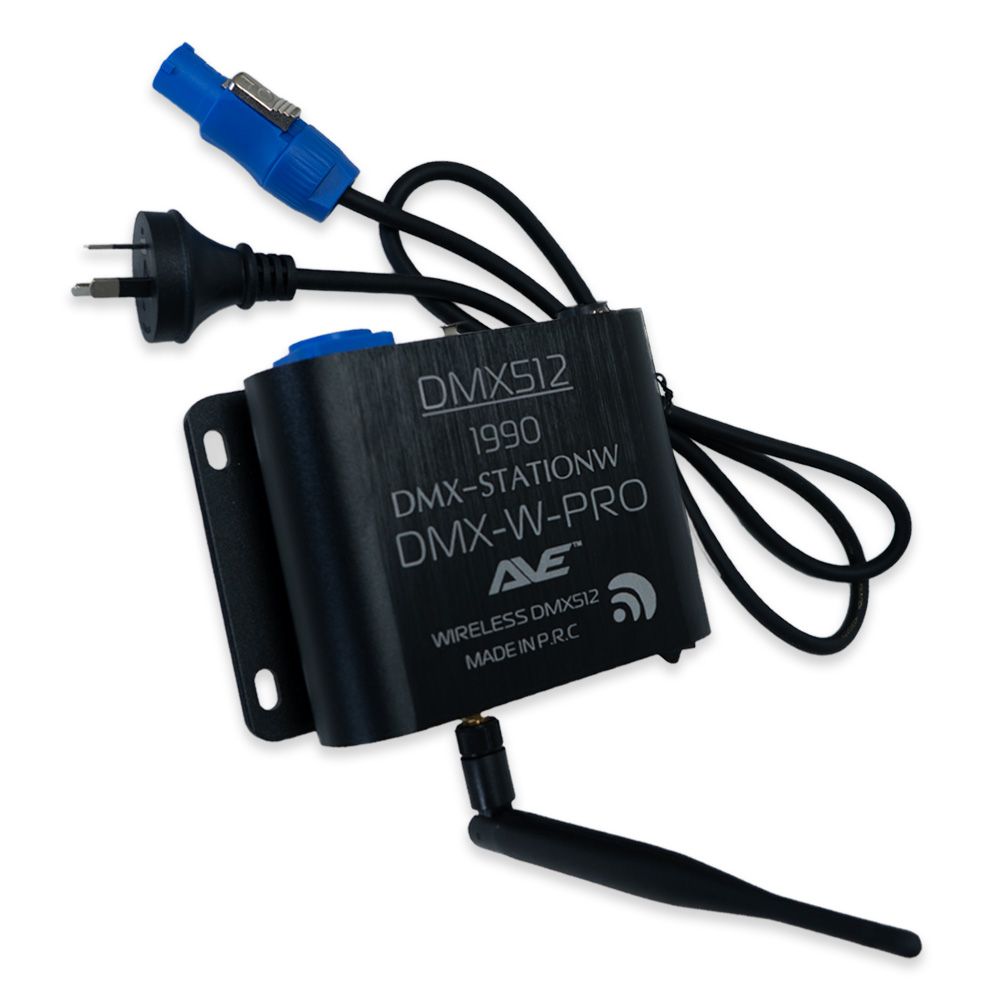

AVE DMX-STATIONW Wireless DMX512 Transmitter / Receiver
RRP: $469.00 ex. GST
Key Features:
- W-DMX open ISM-band technology with GFSK modulation
- 79-channel frequency hopping at 1,100 hops/sec
- 32-bit ARM (DMA real-time transfer)

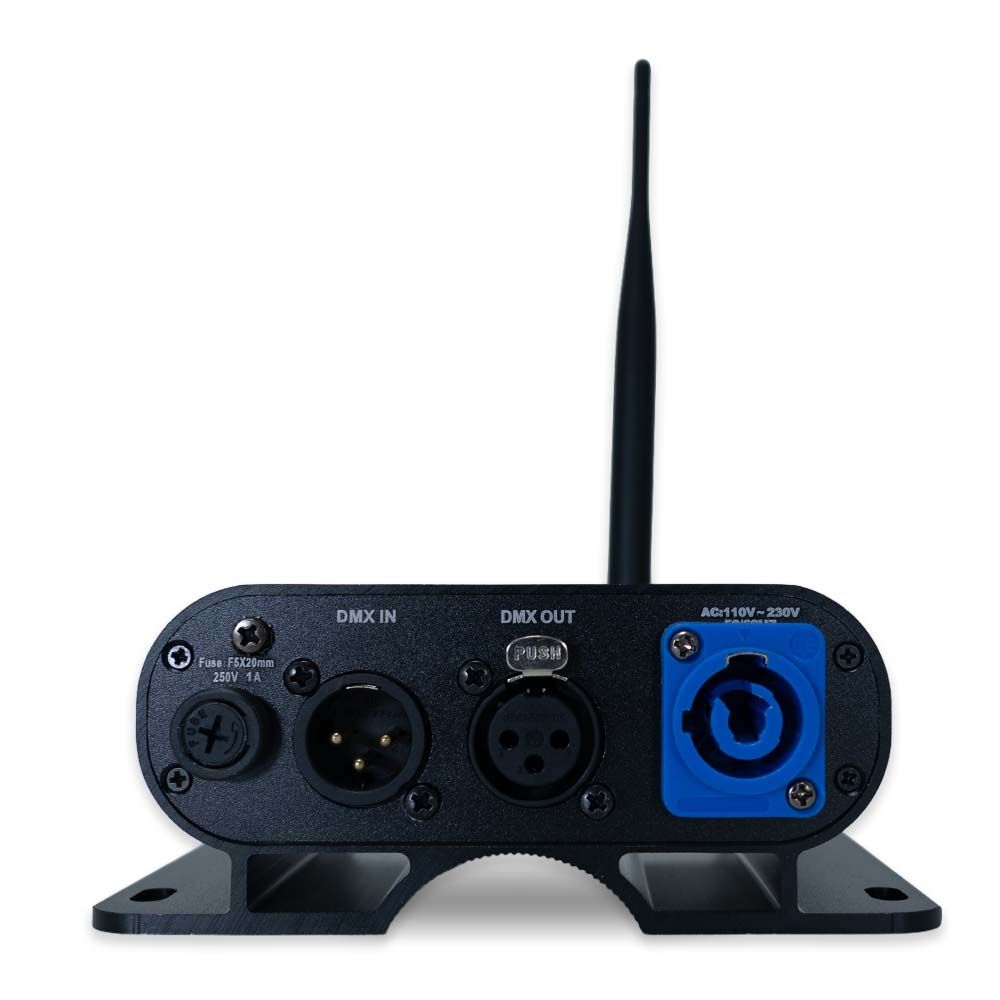

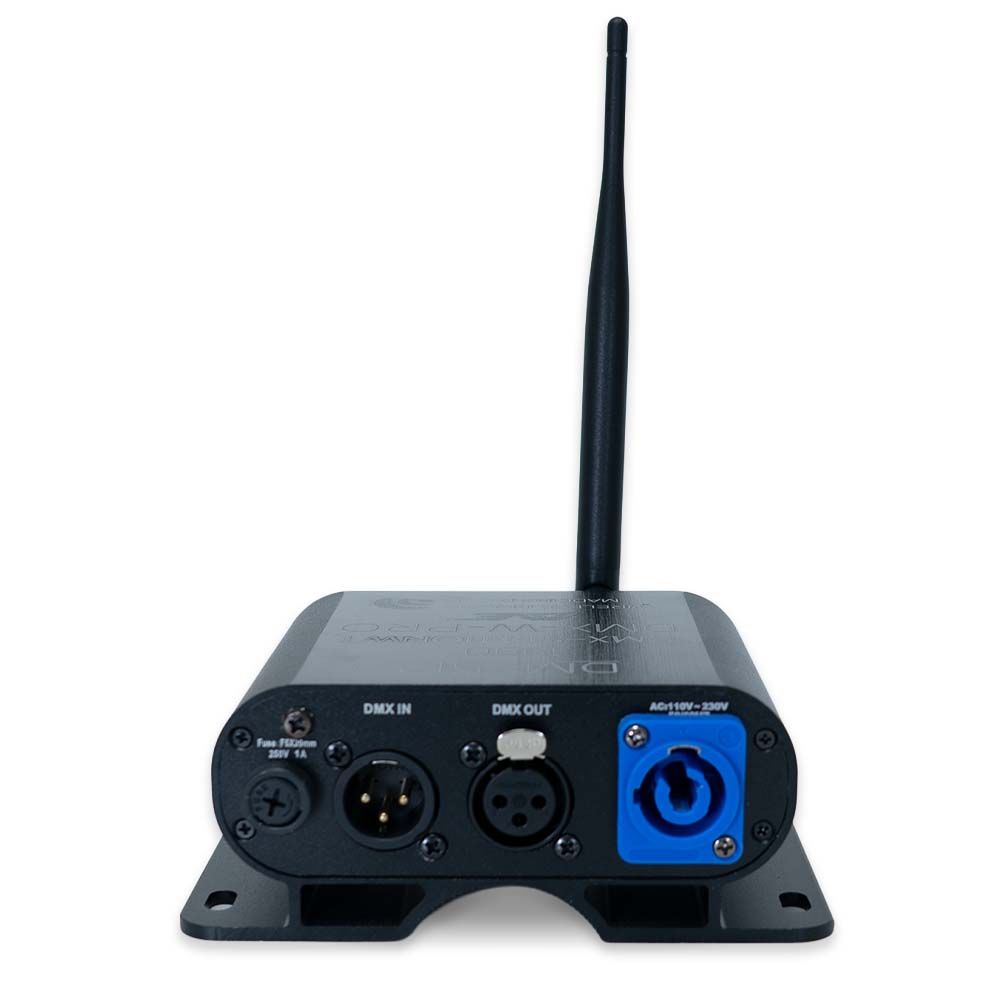

- Standard 3-pin XLR DMX512 connectors (male transmitter / female receiver)
- Effective communication range of up to 500 m in open, line-of-sight conditions
- Multiple wireless networks can coexist within a 500 m range without mutual interference
- Interoperable with Swedish wireless DMX solutions
Technical Data
| Frequency hopping | 79 channels, 1,100 hops/sec |
| Processor | 32-bit ARM (DMA real-time transfer) |
| Connector type | 3-pin XLR (male transmitter / female receiver) |
| Communication range | Up to 500 m (open space; varies with environment) |
| Coexisting networks | Multiple groups within 500 m, no mutual interference |
| Power input | AC 100V–230V |
