The AVE DMX-WIR is a compact 2.4GHz wireless DMX512 receiver designed to provide reliable cable-free DMX control for lighting systems and fixtures. Receiving wireless DMX512 signals from a paired DMX-WIT transmitter, the DMX-WIR outputs standard wired DMX512 directly to connected fixtures with virtually no perceptible delay. Operating across 126 automatic frequency-hopping RF channels within the 2.4GHz ISM band, the receiver maintains stable communication while minimising interference in busy wireless environments. Supporting up to 7 selectable ID groups, multiple wireless DMX networks can run simultaneously without cross-talk. The compact plug-in design, tri-colour LED status indicator, and long-range operation of up to 700m line-of-sight make the DMX-WIR ideal for professional stage productions, event lighting, installations, and mobile lighting applications.

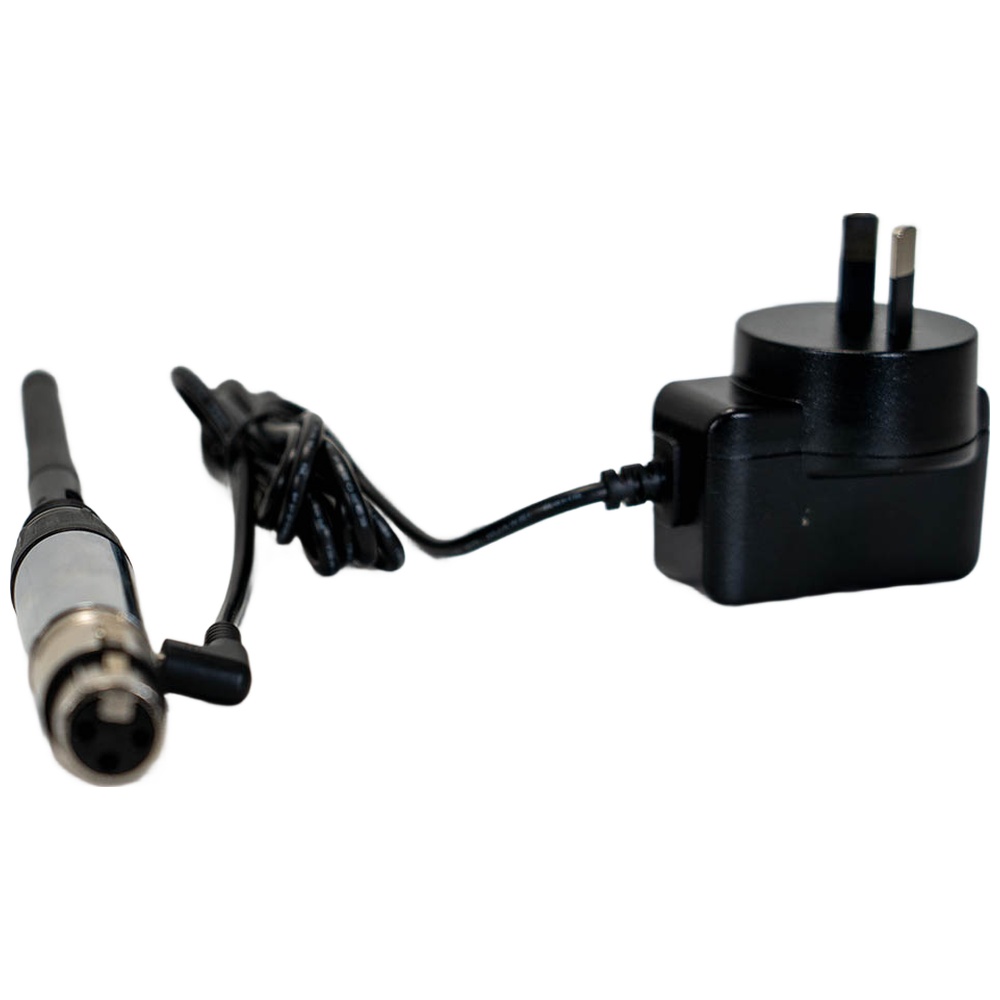

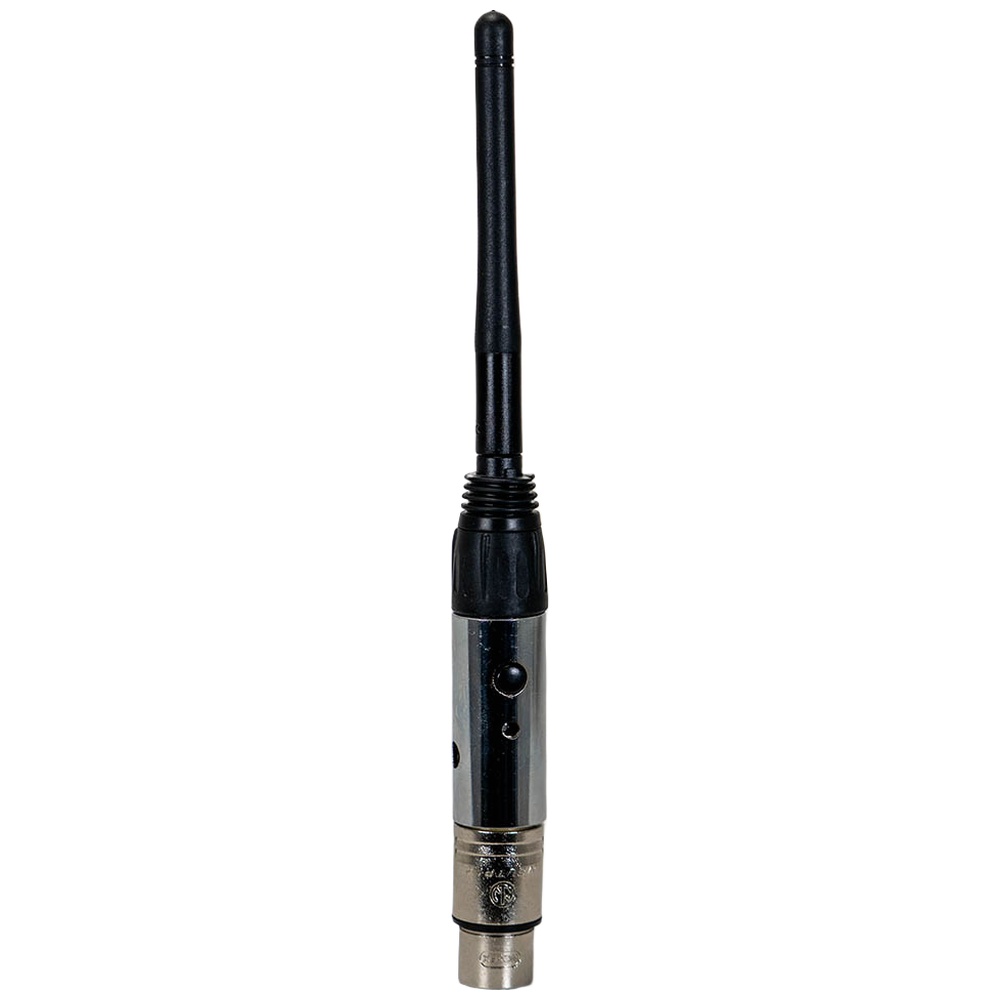

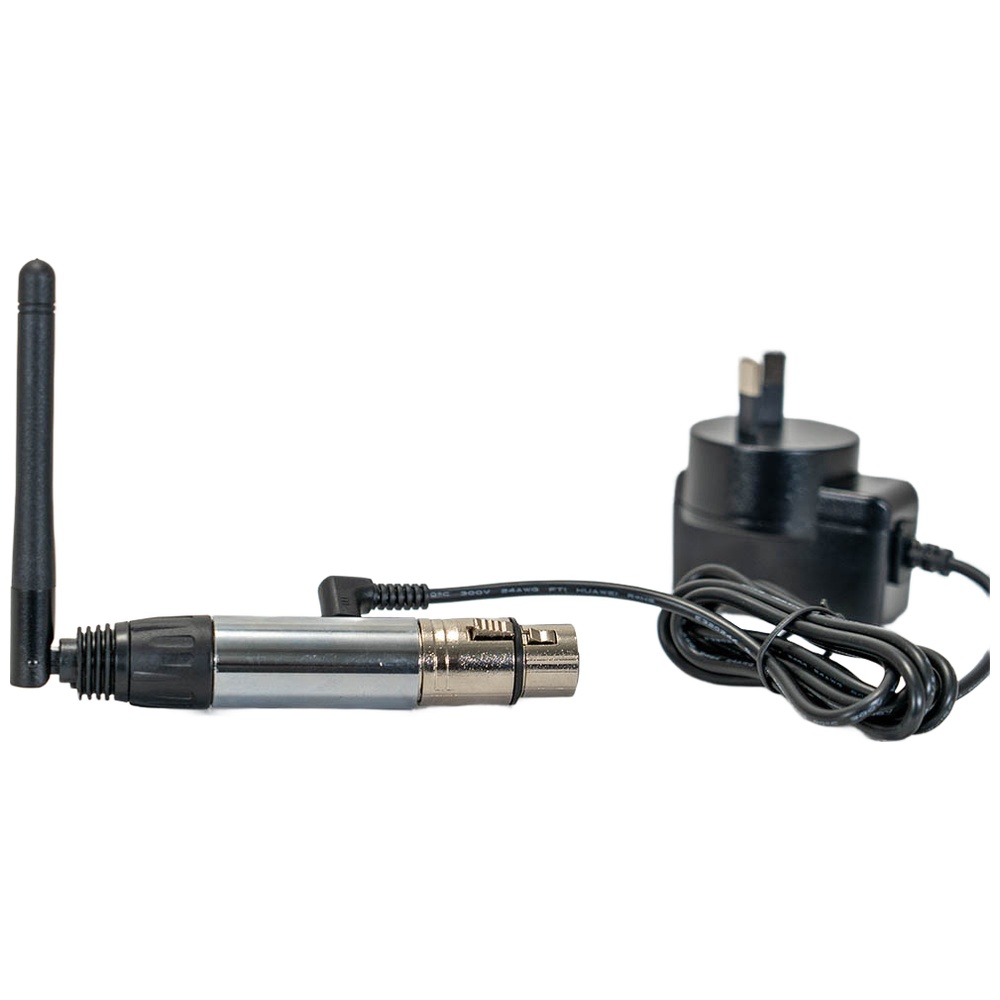

AVE DMX-WIR 2.4GHz Wireless DMX512 Receiver
RRP: $69.00 ex. GST
Key Features:
- Compact 2.4GHz wireless DMX512 receiver
- Outputs standard wired DMX512 to fixtures
- Compatible with AVE DMX-WIT transmitters
- Automatic frequency-hopping across 126 channels
- Supports up to 7 selectable ID groups
- Up to 700m communication range (line-of-sight)
- Tri-colour LED status indication
- Plug-and-play operation
- Minimal signal delay for professional lighting control
- Suitable for stage, event, and installation lighting systems
Technical Data
| Input Voltage | 5V DC, 500mA minimum |
|---|---|
| DMX Connector | 3-pin female XLR |
| Frequency Band | 2.4GHz ISM Band |
| RF Channels | 126 (automatic frequency-hopping) |
| Communication Distance | Up to 700m (line of sight) |
| Receiver Sensitivity | −106 dBm |
| ID Groups | 7 selectable groups |
| LED Indicator | Single tri-colour status LED |
| Operating Temperature | −20°C to +45°C |
| Humidity | 10% – 90% RH (non-condensing) |
