The AVE DMX-WIRBA is a portable wireless DMX512 receiver operating on the 2.4GHz ISM band. It receives DMX512 signals from a paired DMX-WIT transmitter and outputs standard wired DMX512 directly to connected fixtures. This receiver includes a built-in rechargeable lithium battery allowing independent operation without power from the lighting fixture and supports use while charging. It features 7 user-selectable ID groups for simultaneous use of multiple wireless networks without interference and automatically scans 126 RF channels for clear signal acquisition up to 500 meters line of sight.

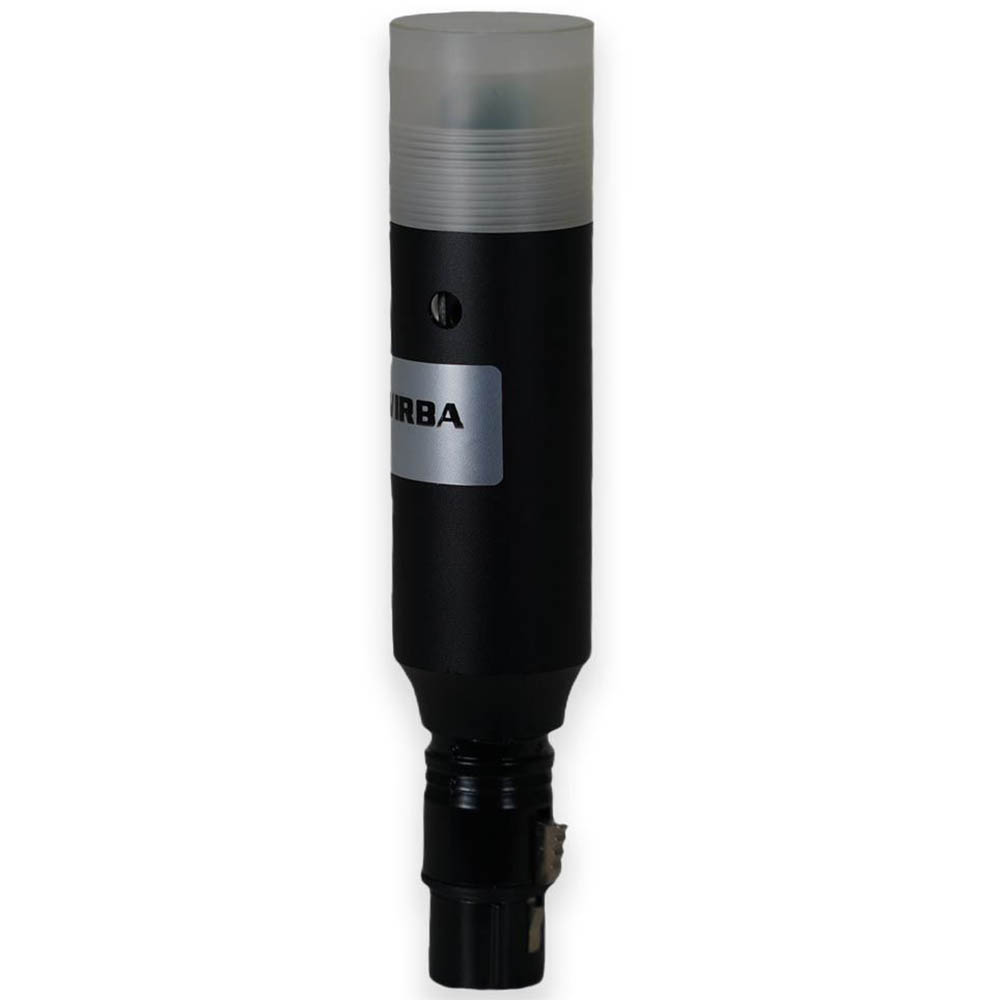

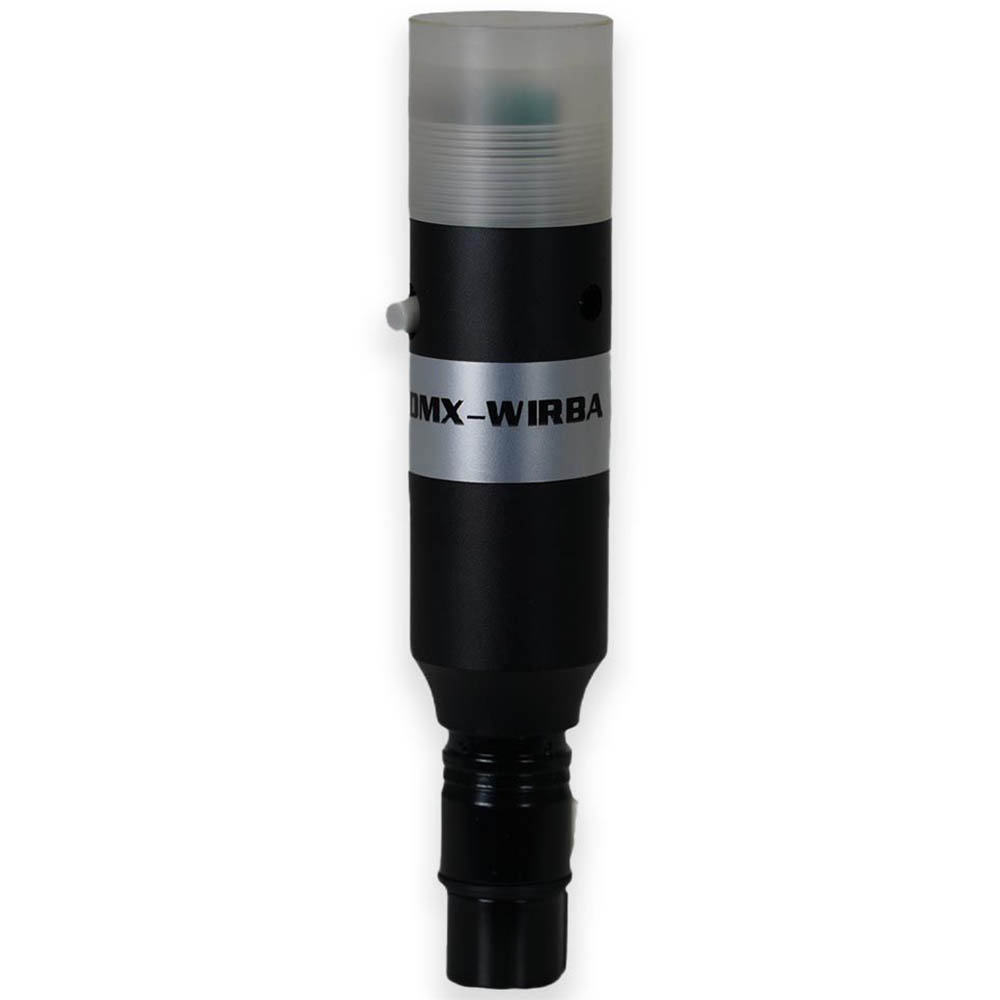

AVE DMX-WIRBA Portable Wireless DMX512 Receiver
RRP: $89.00 ex. GST
Key Features:
- Compact battery-powered 2.4GHz wireless DMX512 receiver for cable-free lighting control
- Built-in rechargeable 3.7V 16340 lithium battery with approx. 10 hours of use per full charge
- Operates independently without power from the connected fixture and supports use while charging
- 3-pin female XLR DMX output connector for direct fixture connection
- 7 user-selectable ID groups to prevent wireless interference in multi-network setups
- Automatic frequency-hopping across 126 RF channels within 2.4GHz ISM band
- Up to 500m communication distance line of sight with stable signal and LED status indicators
- Tri-colour LED for group status and charge status LED for battery monitoring
Technical Data
| Input Voltage (Charging) | 5V DC, 500mA minimum |
| Battery | 3.7V 16340 rechargeable lithium, 650mAh |
| Charge Time | Approx. 2 hours (full charge) |
| Battery Life | Approx. 10 hours (fully charged) |
| DMX Connector | 3-pin female XLR |
| Frequency Band | 2.4GHz ISM Band |
| RF Channels | 126 (automatic frequency-hopping) |
| Communication Distance | Up to 500m (line of sight) |
| ID Groups | 7 (user-selectable) |
| LED Indicators | Tri-colour status LED, charge status LED |
