The AVE-Karaoke Digital Audio Processor brings professional-grade audio processing to your karaoke setup, combining advanced EQ capabilities with intelligent anti-feedback technology to ensure crystal-clear vocals and perfectly balanced music reproduction for every performance. Furthermore, this versatile unit features comprehensive audio control with 15-segment parametric EQ for music and dual-channel 15-segment PEQ for microphones, along with 7-segment stereo digital modulation control, adjustable noise gate functionality, and a built-in 4-level anti-howling system that effectively eliminates feedback. Additionally, the processor offers ultimate flexibility with multiple input options including 3 sets of RCA, optical, and coaxial connections, plus free-drive USB connection and wireless WiFi debugging capabilities that allow you to control every parameter via iPhone, iPad, or computer software from anywhere in the venue. Moreover, the high-quality multi-mode reverberation and echo technology adds depth and dimension to your vocals, while the VOD computer number remote control interface and password-protected settings with engineering-level security deliver professional studio-quality effects with the reliability needed for commercial installations. Built for professional use, this processor includes boot mode lock and volume lock functions to prevent unauthorized changes, manual and automatic signal source input selection for seamless operation during performances, and superior S/N ratio greater than 80dB, making it ideal for karaoke bars, entertainment venues, and home studios alike.

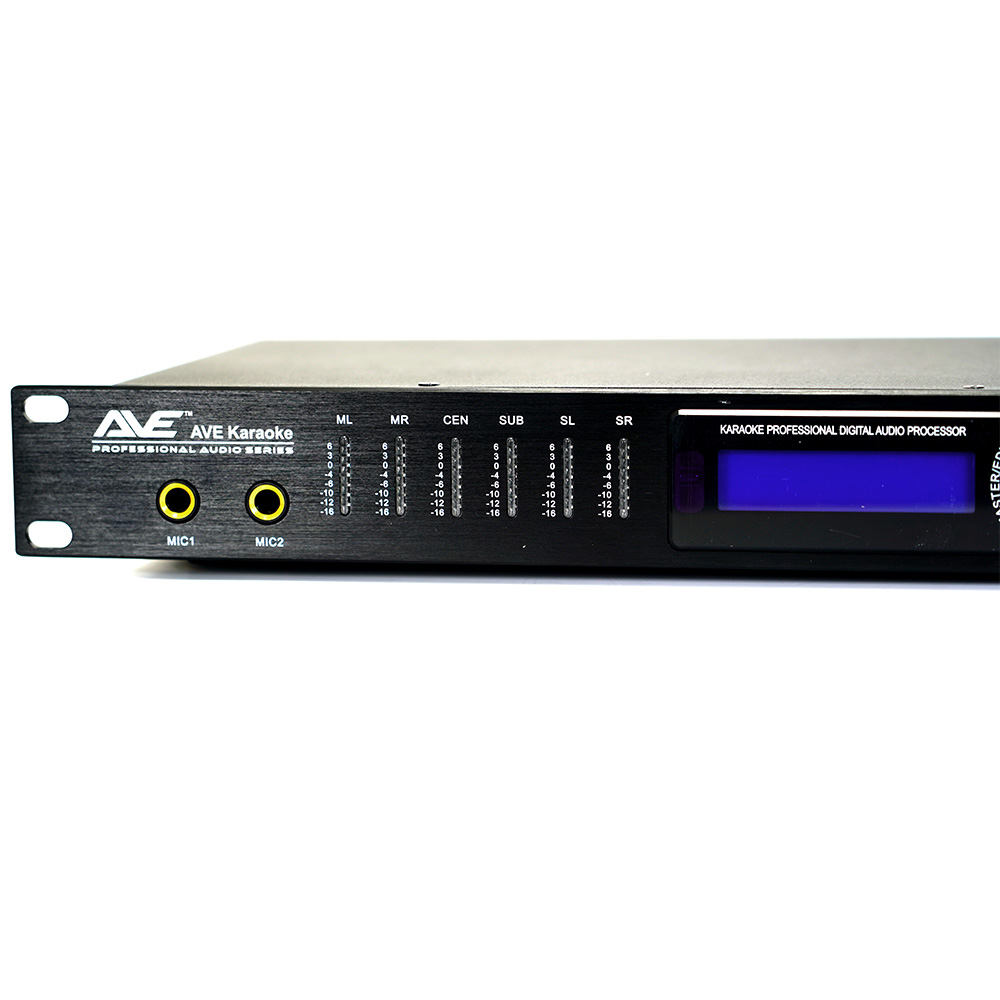

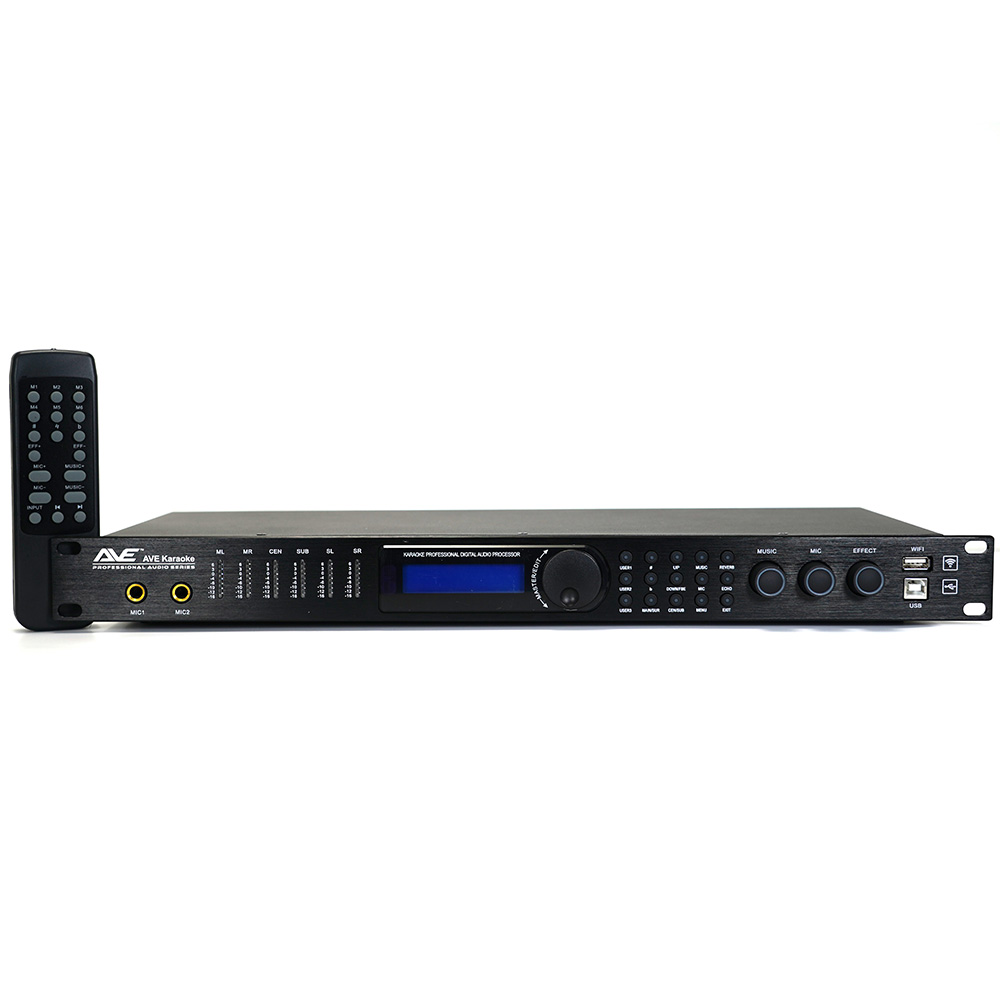

AVE Karaoke Digital Audio Processor with WIFI Adaptor
RRP: $399.00 ex. GST
Key Features:
- Professional digital audio processor designed specifically for karaoke applications
- 15-segment parametric equalizer for music with 7-segment stereo digital modulation
- Dual-channel 15-segment PEQ for microphones with intelligent anti-howling

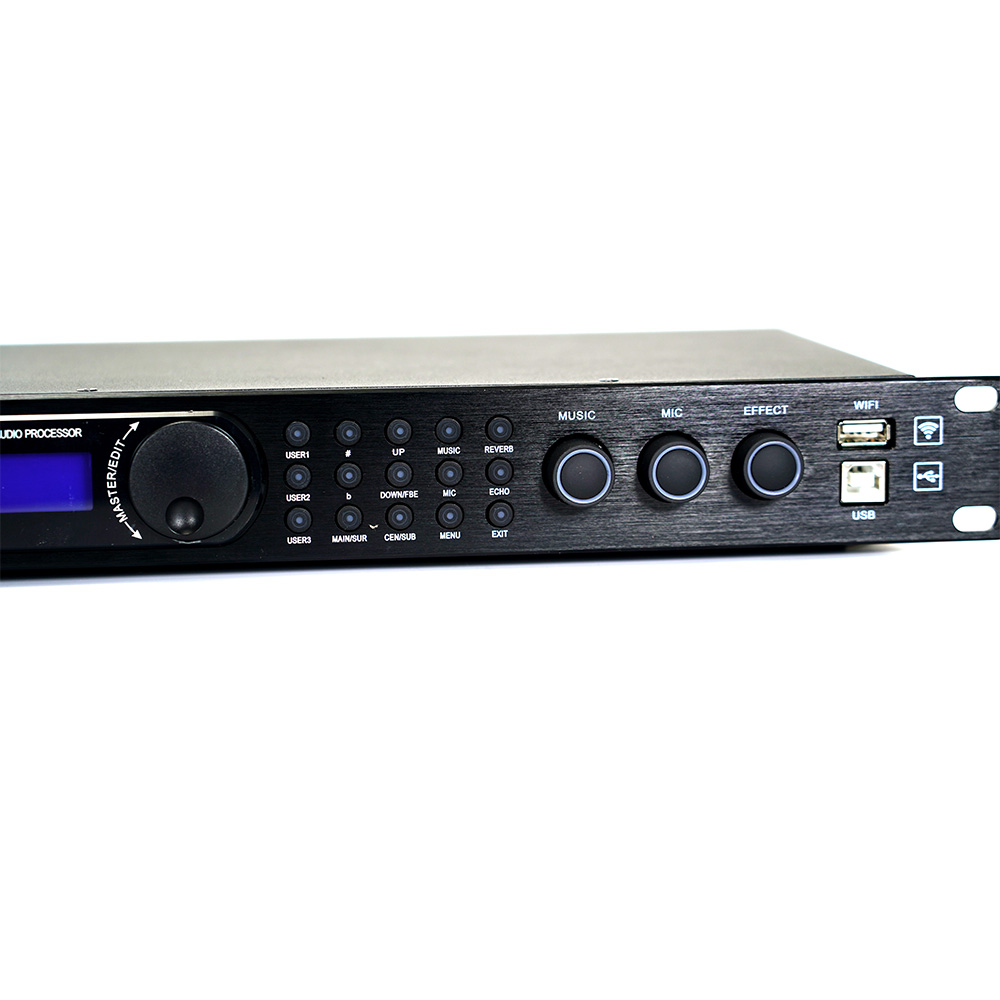

- Wireless WiFi and USB connectivity for flexible control options
- Compatible with iPhone, iPad, and computer software control

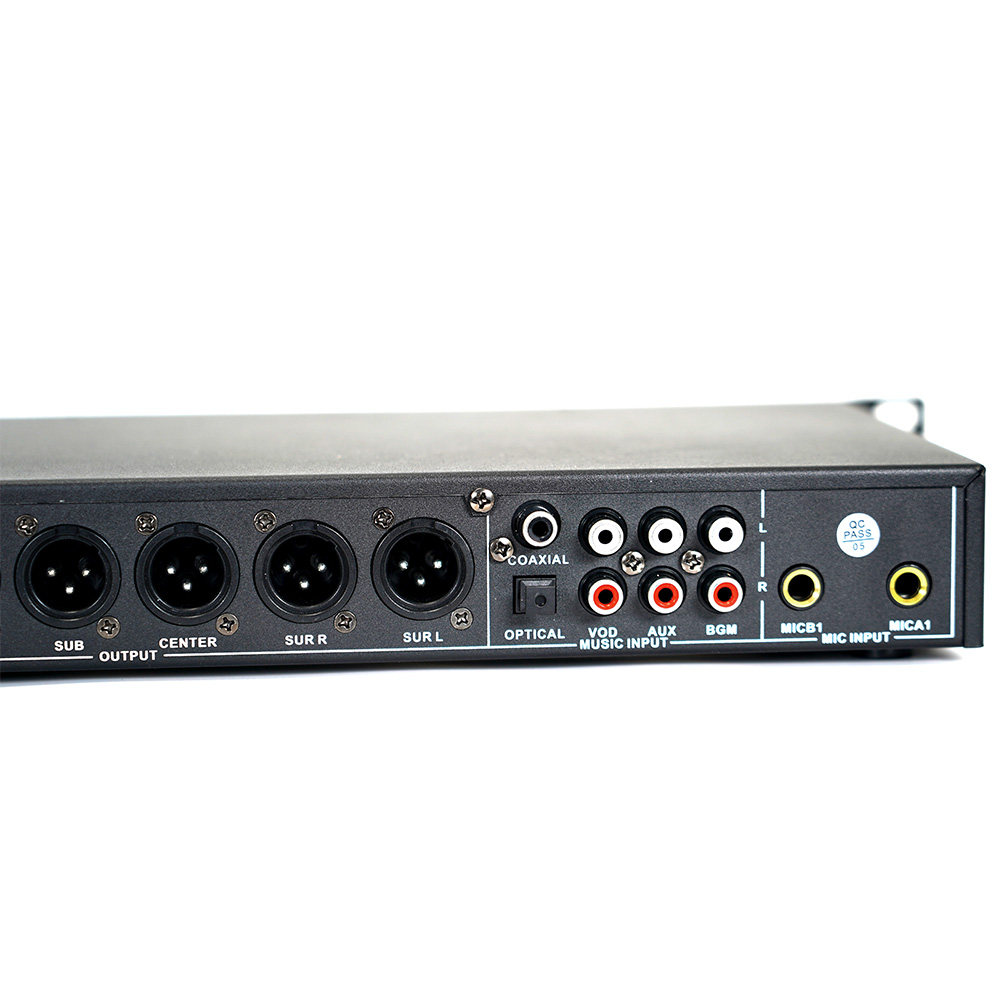

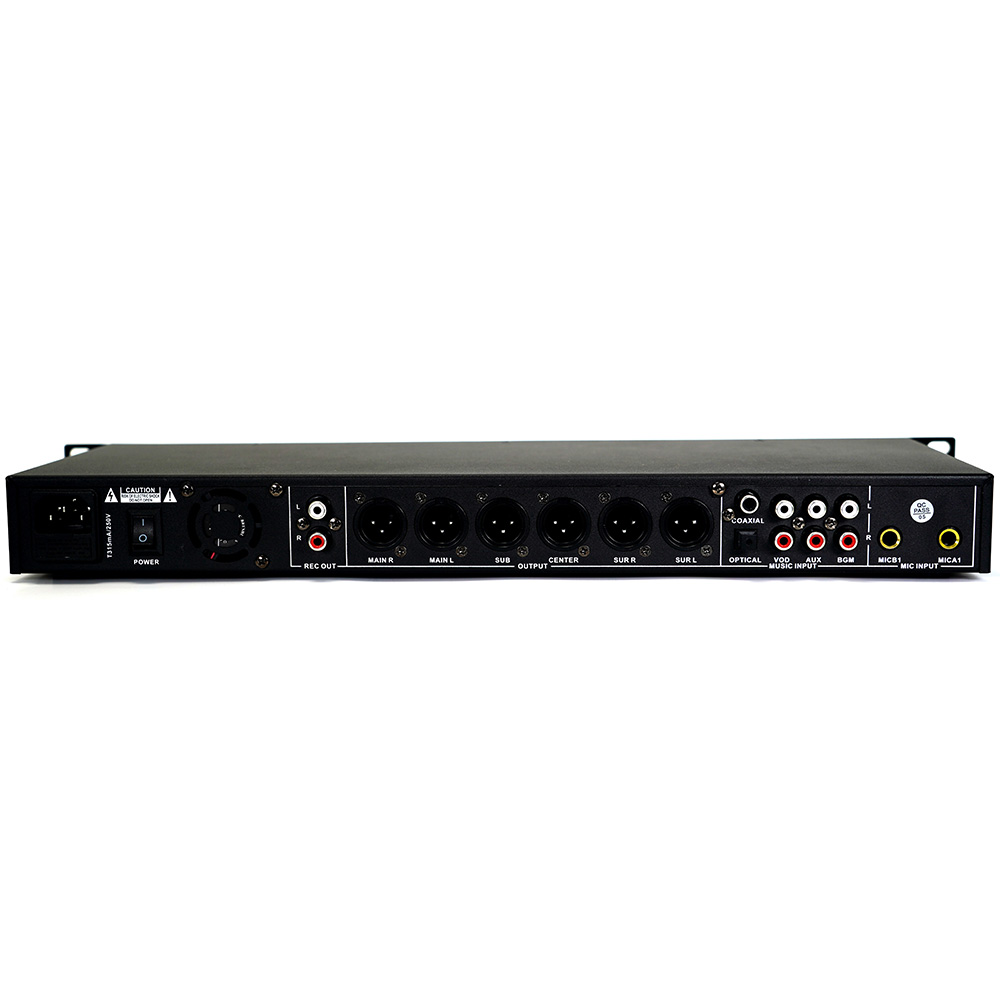

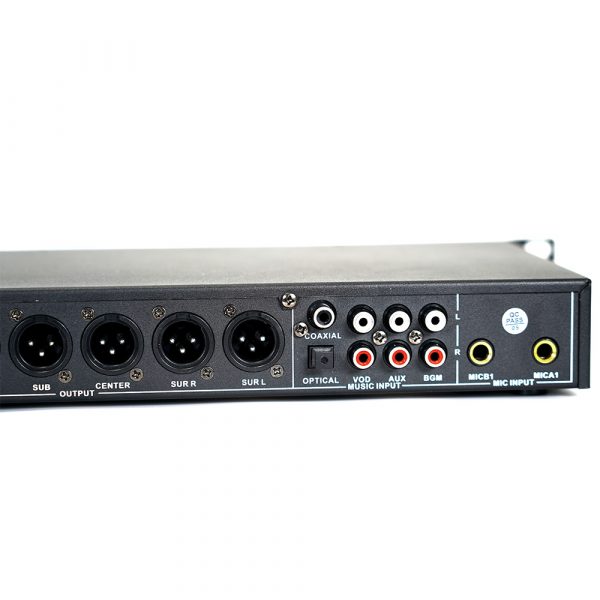

- Triple input connectivity: RCA, optical, and coaxial
- High-quality multi-mode reverberation and echo effects
- Adjustable noise gate control for clean audio reproduction
- Boot mode lock and volume lock for secure operation
- VOD computer number remote control interface
- Engineering-grade password protection system
- Manual and automatic signal source selection
- Professional-grade S/N ratio exceeding 80dB
- Compact rack-mountable design

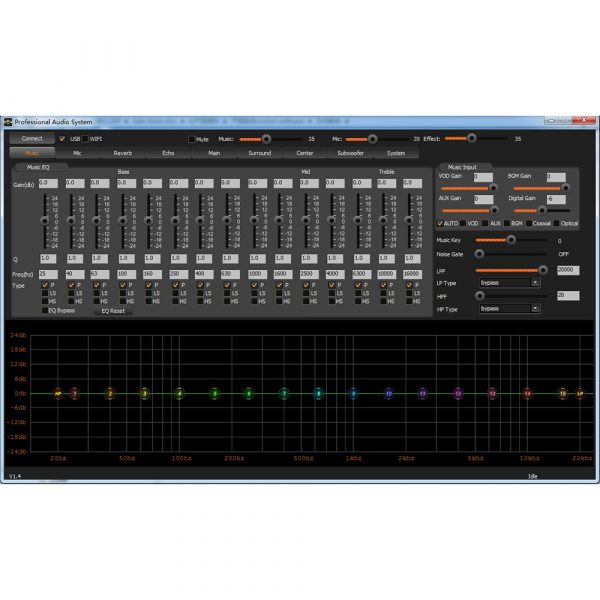

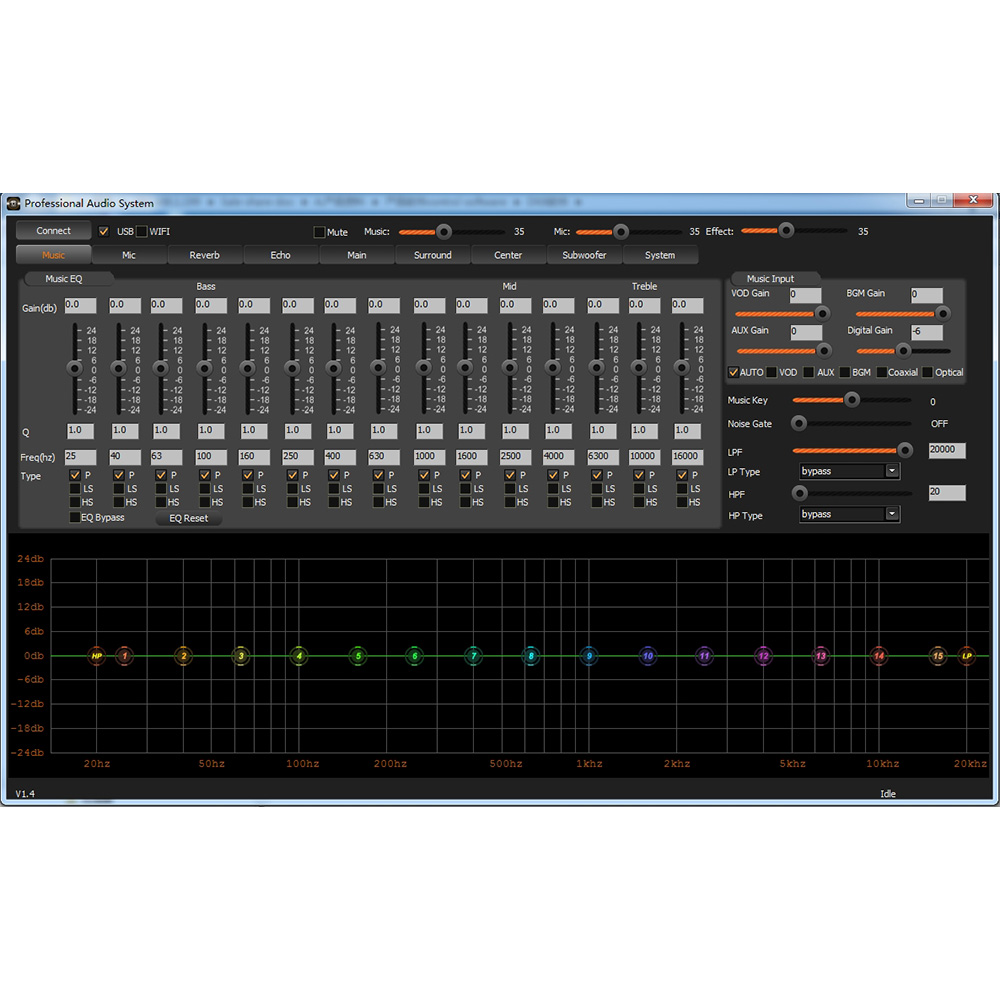

- Comprehensive software interface for precise control
Technical Data
|
Maximum Input Level: |
4V (RMS) |
|---|---|
|
Maximum Output Level: |
4V (RMS) |
|
Music Channel Gain: |
MAX 12dB |
|
Microphone Sensitivity: |
64mV (Out: 4V) |
|
Signal-to-Noise Ratio: |
>80dB |
|
Frequency Range: |
±1dB 20Hz~20kHz |
|

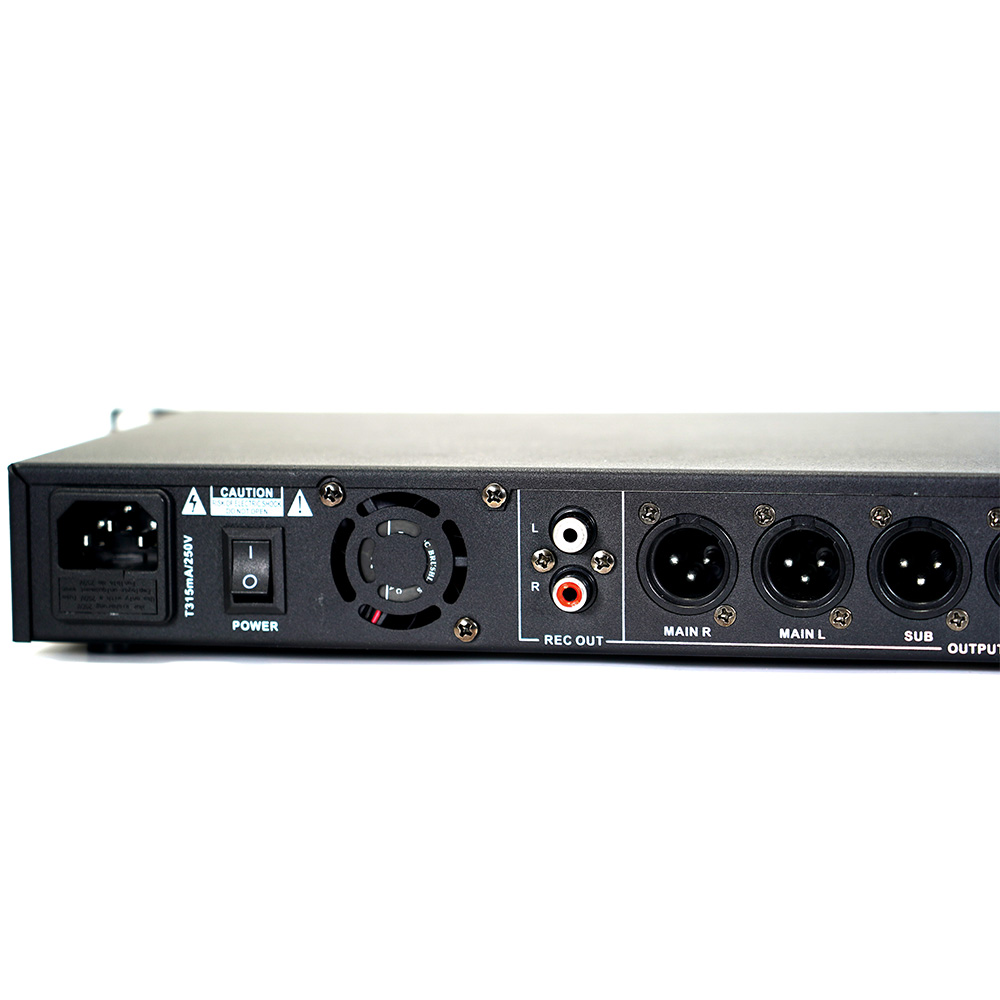

Input Voltage: |
220V 50Hz |
|
Dimensions (L×W×H): |
430mm × 185mm × 50mm |
|
Net Weight: |
2.3kg |
|
Gross Weight: |
2.8kg |
|
Connectivity: |
3× RCA, Optical, Coaxial, USB, WiFi |
|
Control Options: |
iPhone, iPad, Computer Software |
|
EQ Sections: |
15-segment (Music), 15-segment dual-channel (Mic) |
|
Anti-Howling Levels: |
4 levels |
|
Additional Features: |
Boot mode lock, Volume lock, Password protection |
