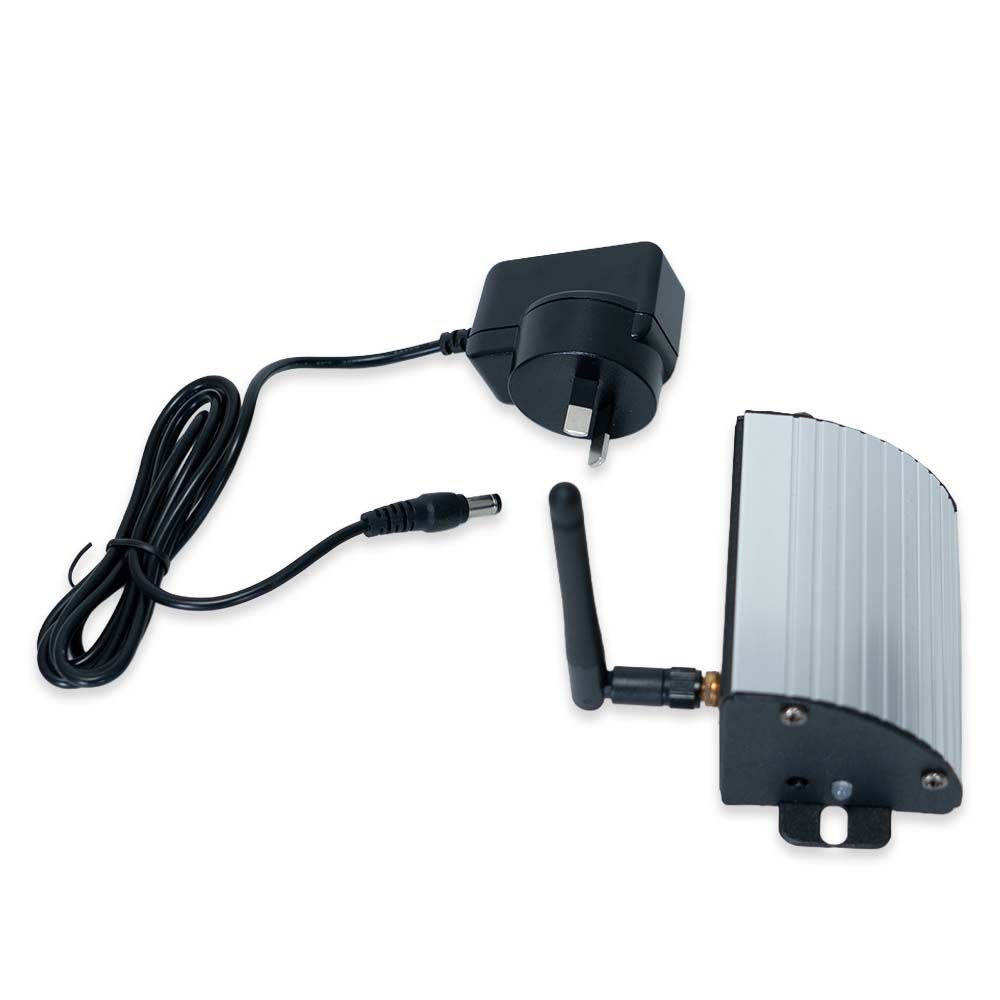

The AVE Wireless DMX 512 Transmitter accepts a standard wired DMX512 signal from a lighting console or source and broadcasts it over the 2.4 GHz ISM band to a paired Wi D Pen wireless receiver. It provides a plug-and-play wireless link with automatic radio channel switching on demand if interference occurs. The transmitter uses a bicolor red/green LED to show power and DMX512 signal status. It is powered by the included 9 Vdc / 650 mA power supply.
AVE Wireless DMX 512 Transmitter
RRP: $59.00 ex. GST
Key Features:

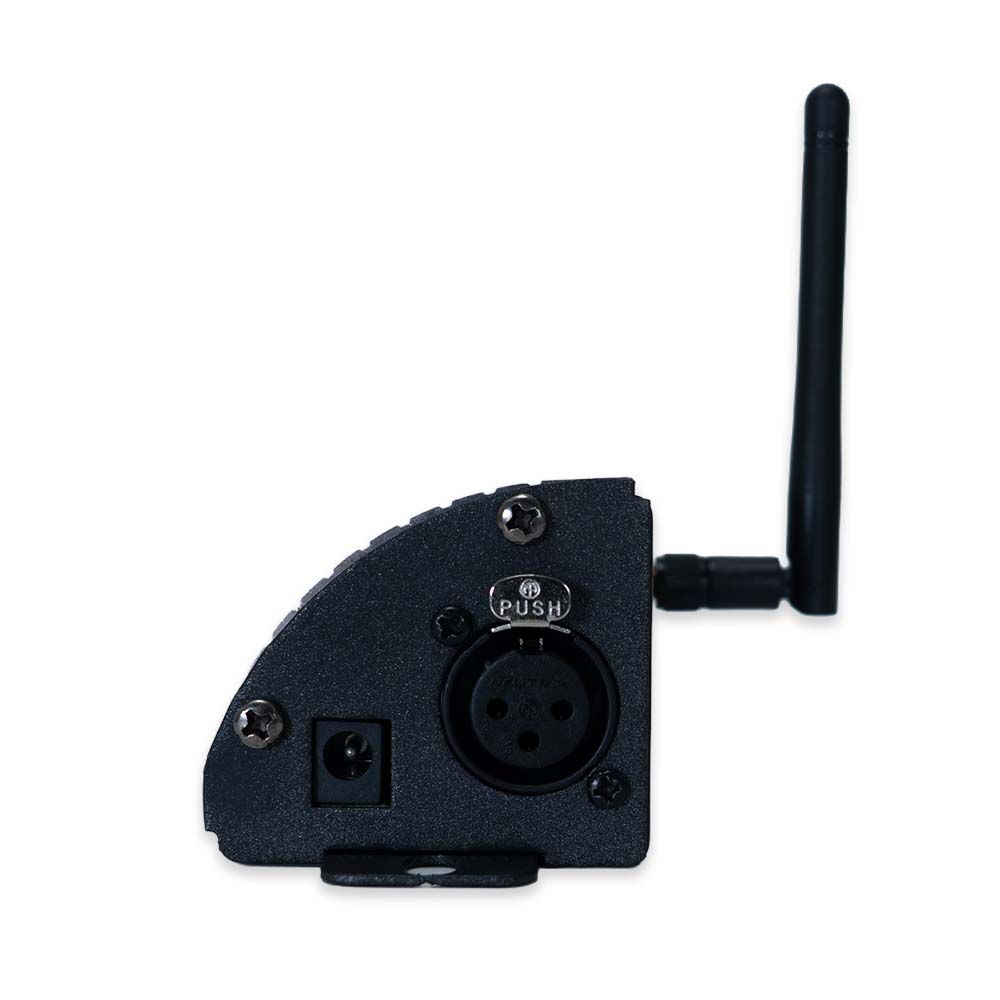

- Standard DMX512 signal input via 3-pin or 5-pin XLR connector
- Broadcasts DMX512 over the 2.4 GHz ISM band to a paired Wi D Pen receiver
- 20 radio channels with automatic radio channel change on demand
- Single red button for channel switching and receiver pairing
- Bicolor red/green LED status indicator
- Powered by an included 9 Vdc / 650 mA power supply
Technical Data
| Frequency range | 2.4 GHz – 2.483 GHz (ISM band) |
| Number of channels | 20 |
| Transmission range | 1000 m / 3280 ft (open air) |
| Power input | 9 Vdc / 650 mA (power supply included) |
| Signal input connector | 3-pin or 5-pin XLR (DMX512) |
| Status indicator | Bicolor red/green LED |
