The AVE DMX-DISPLAYWIT Wireless DMX Transmitter with Display Screen offers a reliable and cable-free solution for transmitting DMX512 signals across your lighting setup. Operating on the globally accepted 2.4GHz ISM band, this unit ensures stable, real-time signal transmission with no noticeable delay, making it ideal for professional lighting control environments. Its advanced GFSK modulation and automatic frequency-hopping technology across 126 channels help minimize interference and maintain consistent performance. The built-in LCD display provides clear monitoring of working status, frequency, power output, and ID settings, allowing for easy configuration. With up to 700 meters of line-of-sight range and 16 selectable ID groups, users can run multiple independent wireless DMX systems simultaneously. Compact and efficient, the DMX-DISPLAYWIT is perfect for streamlining setups while maintaining dependable control.

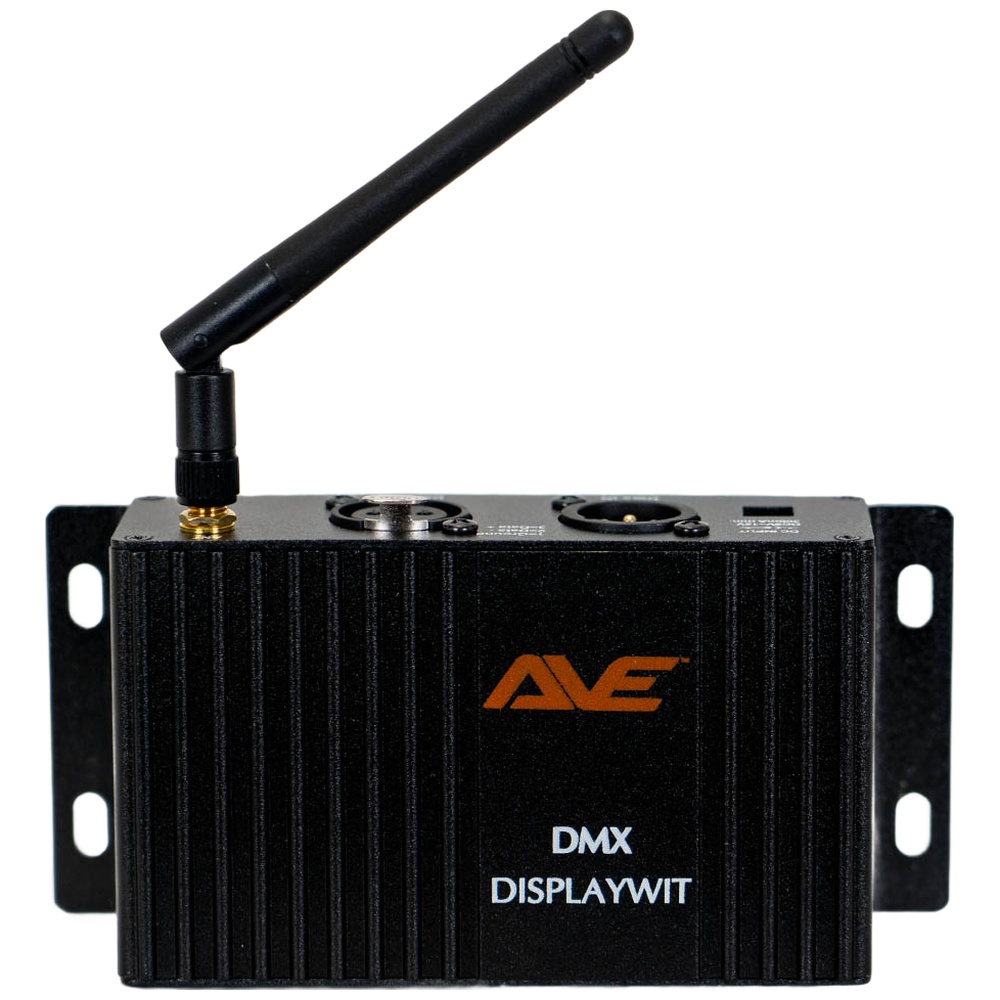

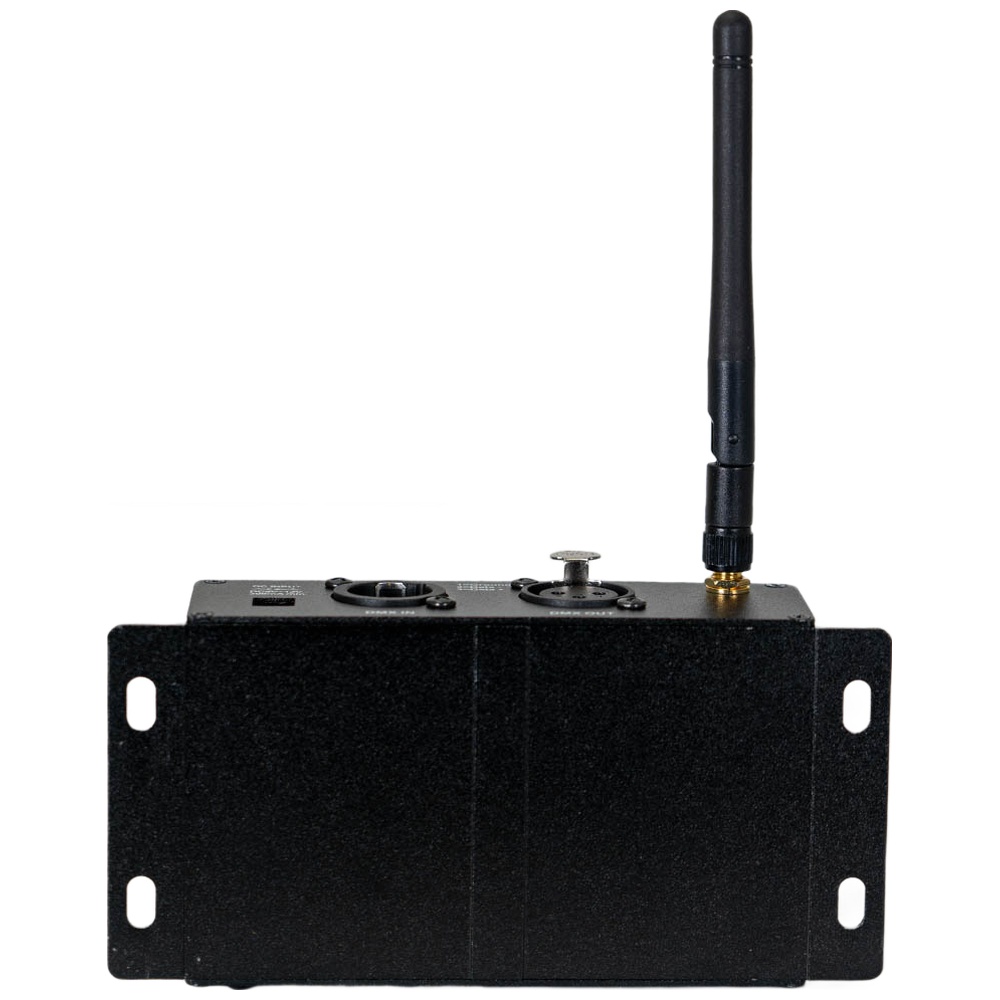

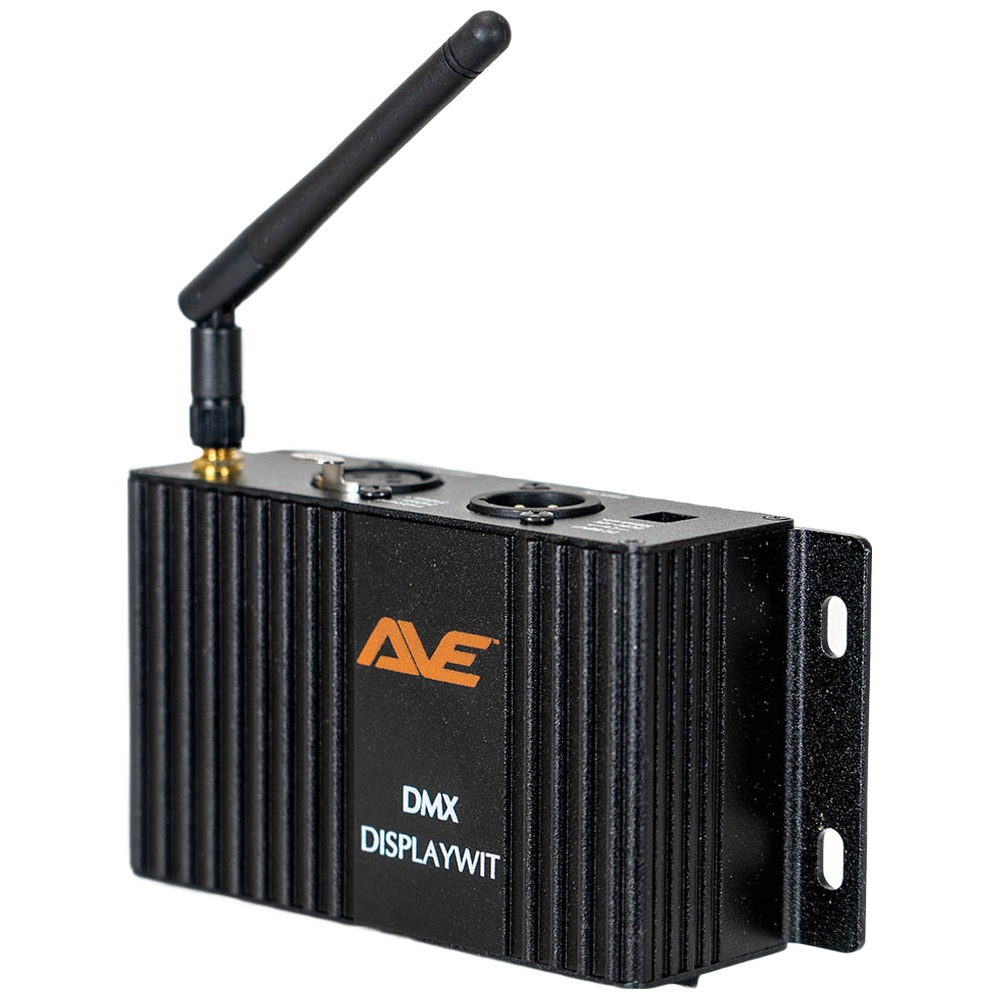

AVE DMX-DISPLAYWIT Wireless DMX Transmitter with Display Screen
RRP: $139.00 ex. GST
Key Features:
- 2.4GHz wireless DMX512 transmitter
- Clear 2×8 LCD display for real-time status monitoring
- Up to 700m communication distance (line-of-sight)
- 126 frequency bands with automatic frequency-hopping (FHSS)
- 16 selectable ID groups for multiple independent networks
- 4 adjustable transmission power levels (2dBm to 20dBm)
- Reliable, low-latency real-time signal transmission
- Supports both 3-pin and 5-pin XLR DMX connections
- Compact and lightweight design for easy integration
Technical Data
| Wireless Type | 2.4GHz DMX512 Transmitter |
|---|---|
| Display | 2×8 Bit LCD Screen |
| Frequency Band | 2.4GHz ISM (126 channels) |
| Frequency Range | 2.400 – 2.525 GHz |
| Transmission Power | 2dBm, 8dBm, 14dBm, 20dBm |
| Max Range | 700m (line-of-sight) |
| Receiver Sensitivity | -94dBm |
| ID Groups | 16 selectable groups (0–F) |

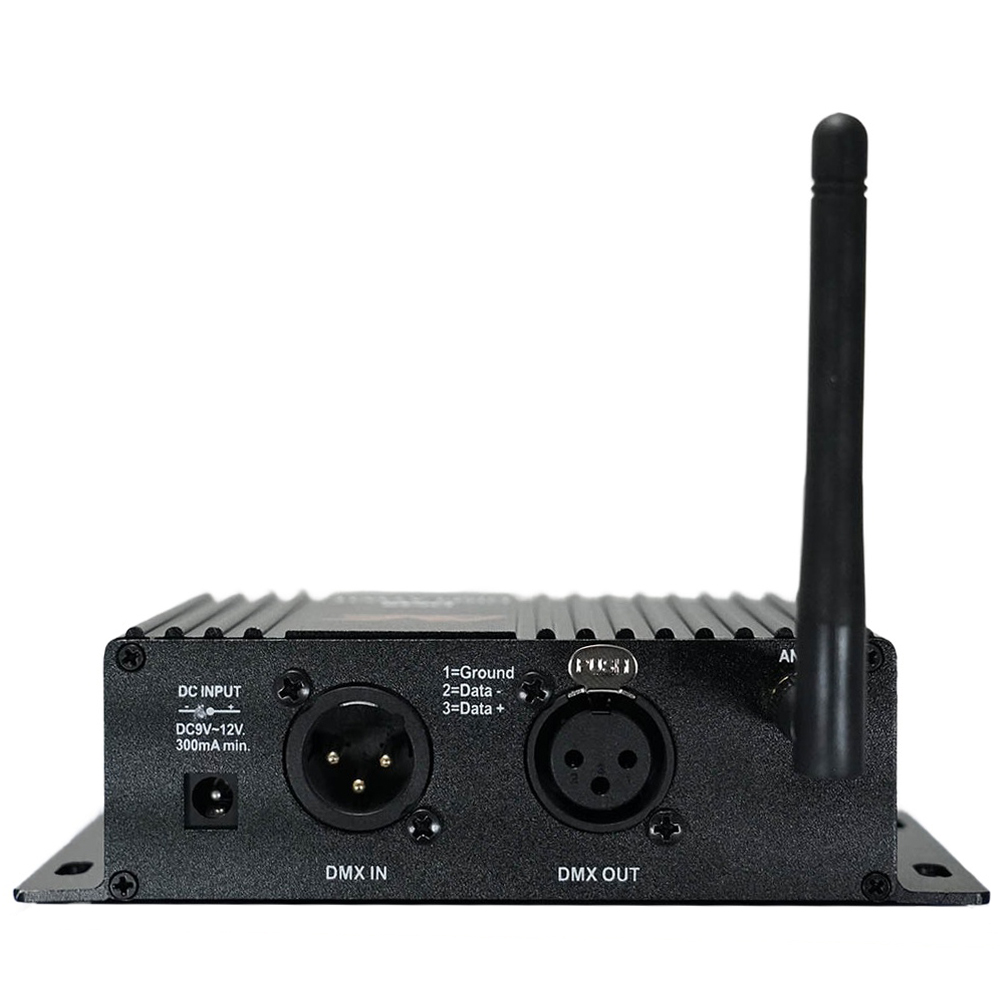

| DMX Connectors | 3-pin / 5-pin XLR |
| Input Voltage | 9–12V DC, 300mA minimum |
| Dimensions | 75 x 147 x 43 mm |
| Weight | 360 g |
| Operating Temperature | -20°C to +45°C |
| Humidity | 10% – 90% RH (non-condensing) |
