The BeamZ PRO Brute 20000FB4 Pure Diode Laser Outdoor is a full-colour semiconductor diode laser system with a guaranteed 20W output. It uses analogue RGB colour modulation and a 35kpps @ 8° scanner system with a maximum scanner angle of 50 degrees for professional beam and graphics applications. The system includes a Pangolin FB4 controller, Ethercon connectivity, ART-Net and SACN support, and stand-alone auto-mode activation. Its IP65-rated housing supports indoor and outdoor installations, including fixed installations, mobile use, multimedia projects, long-distance outdoor applications, and graphics projections.

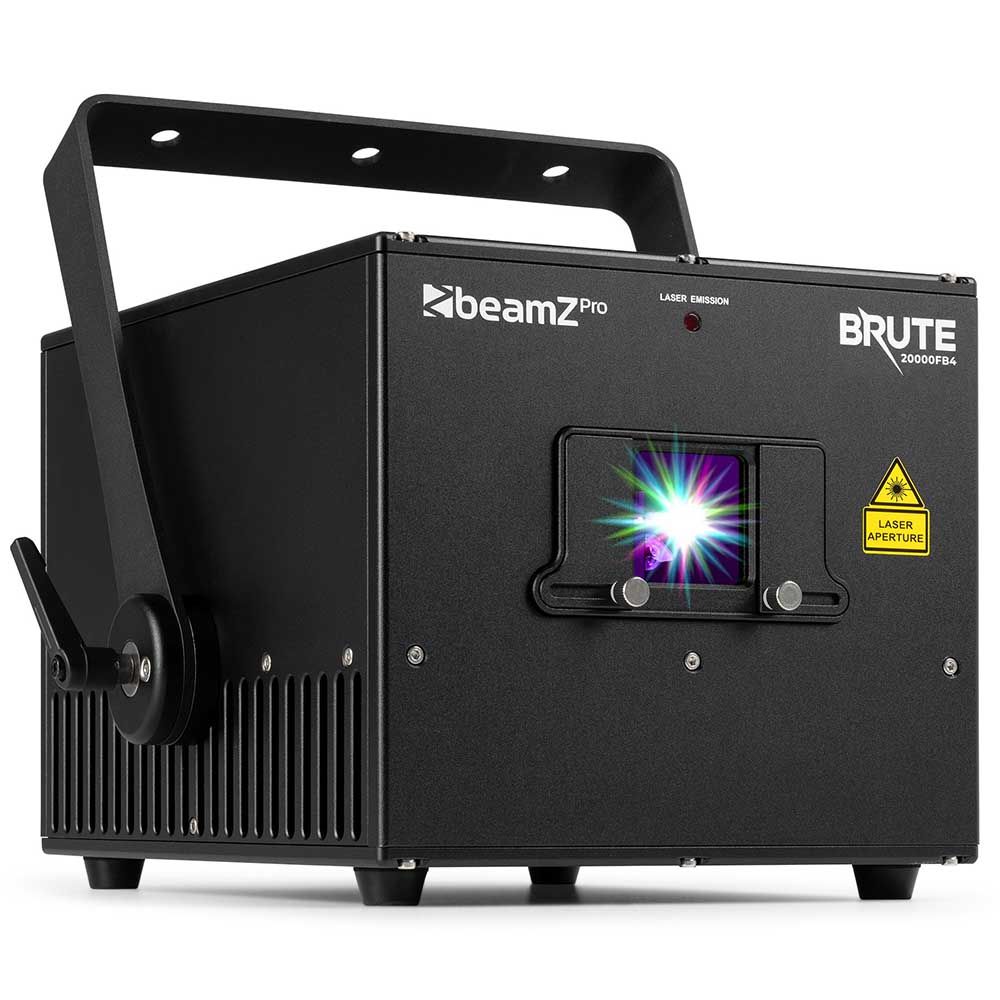

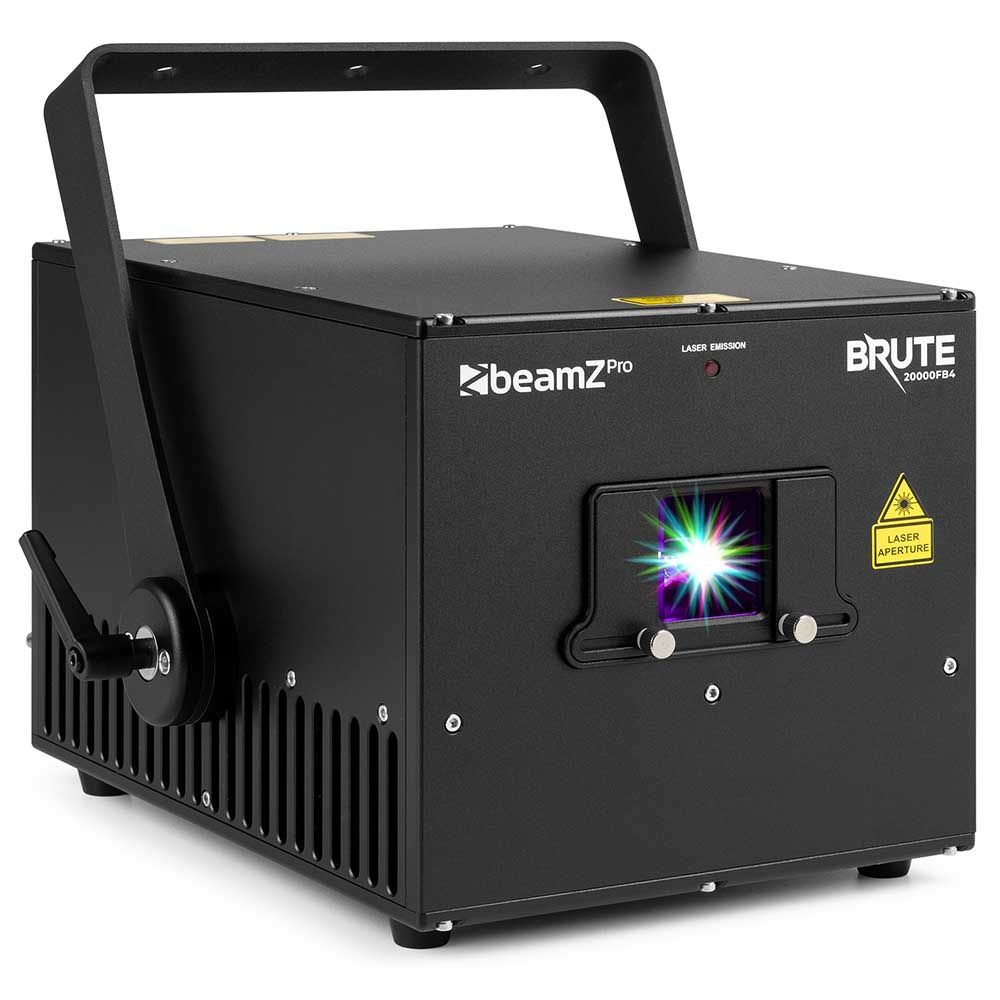

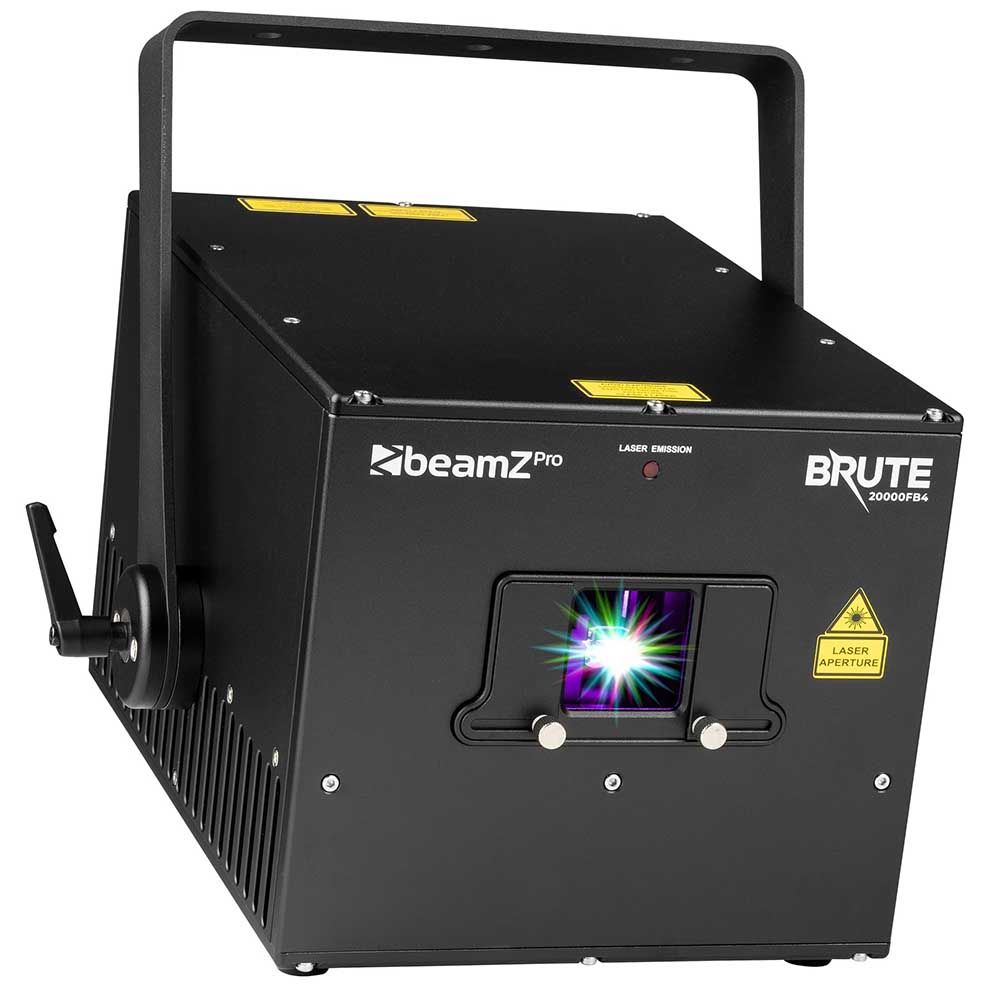

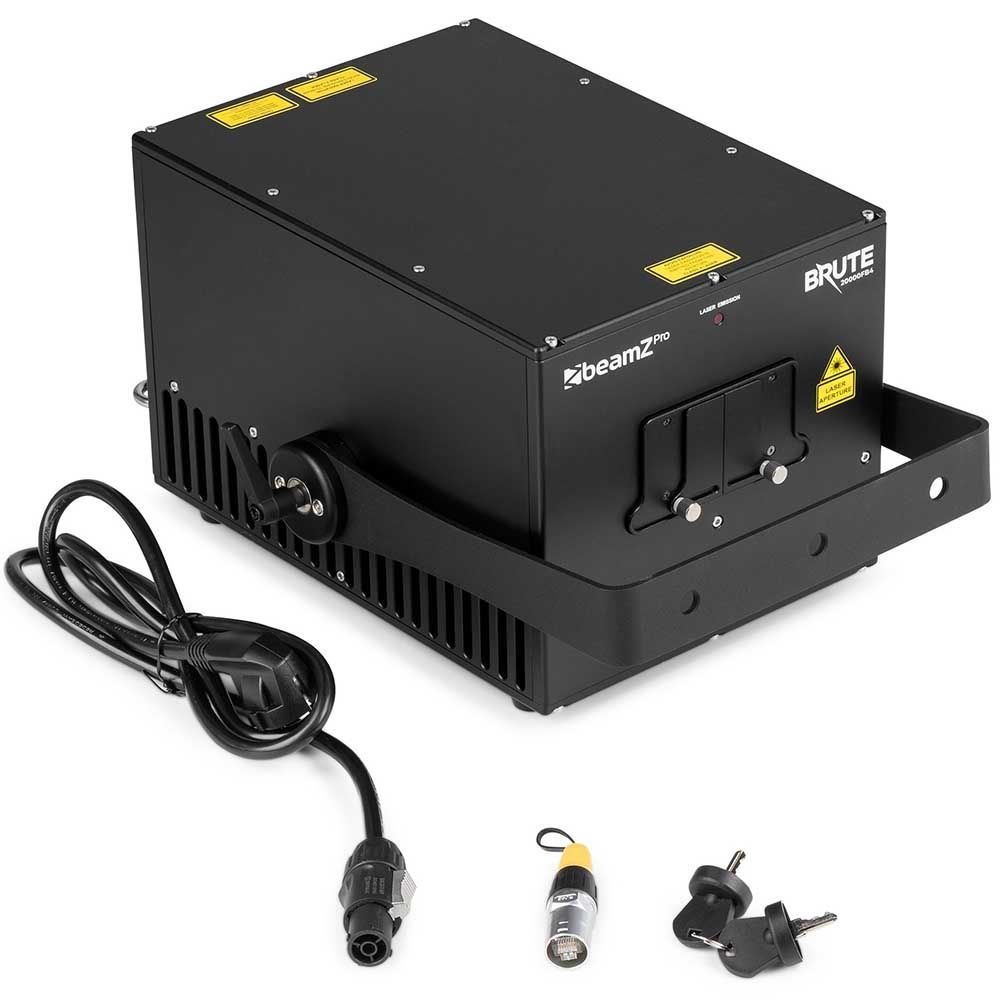

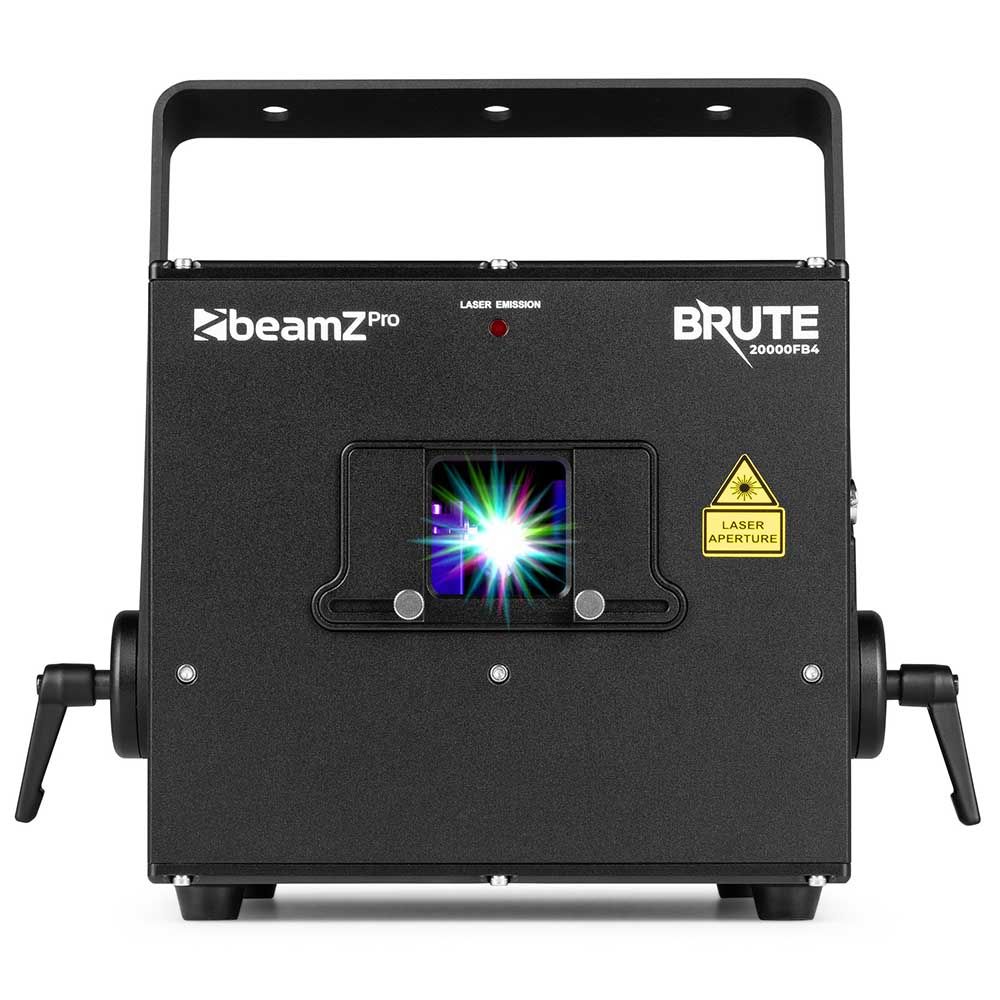

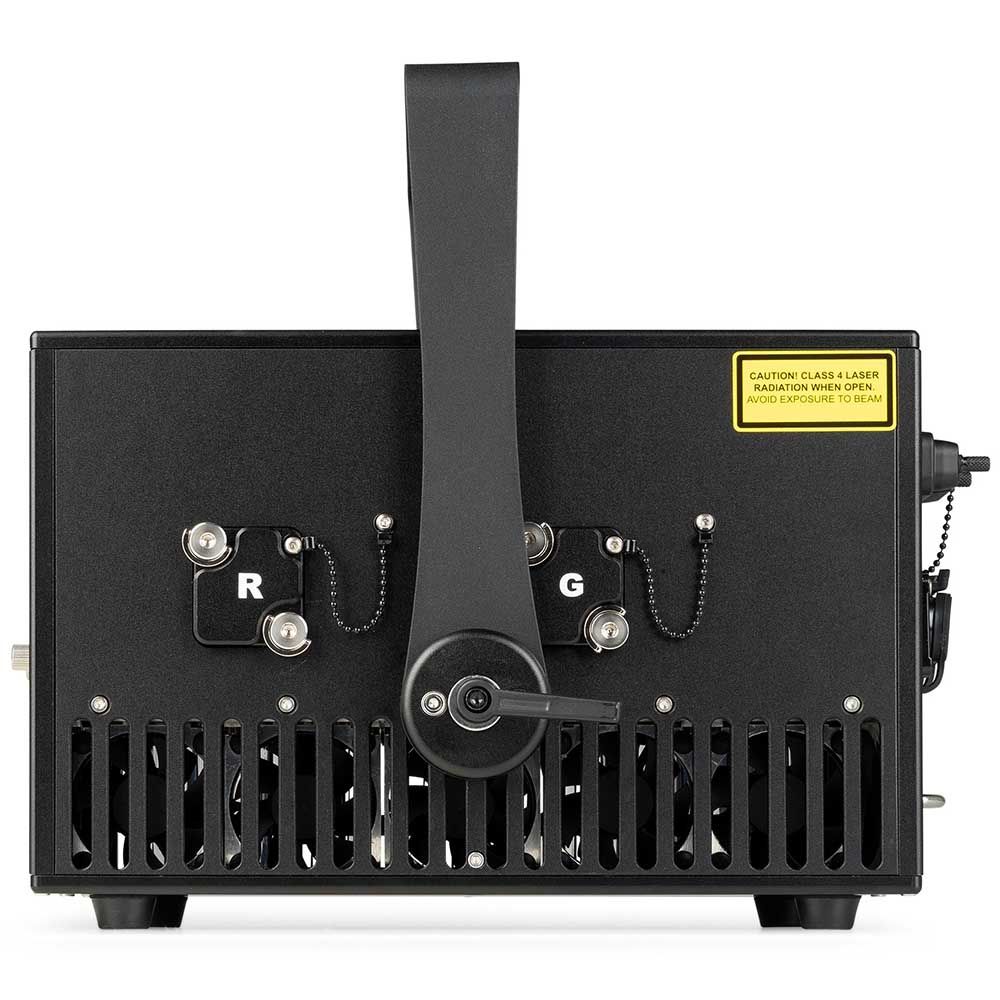

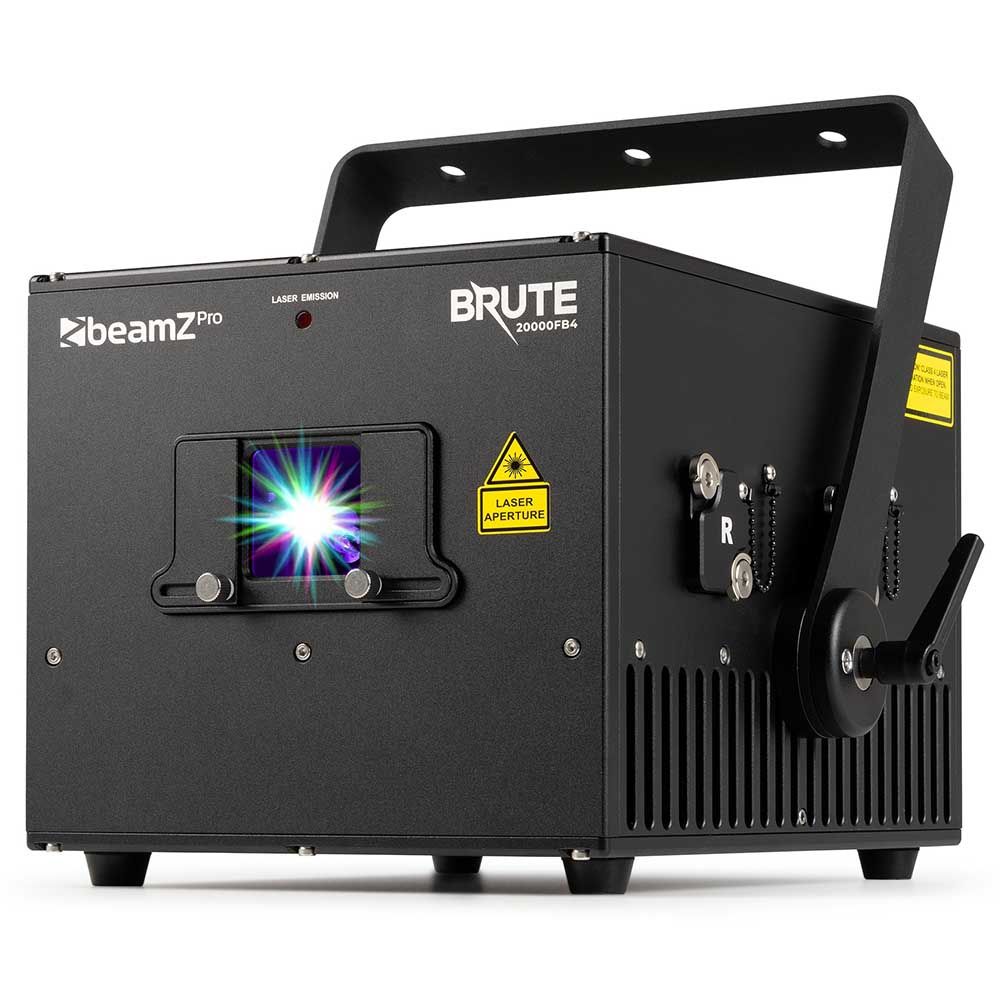

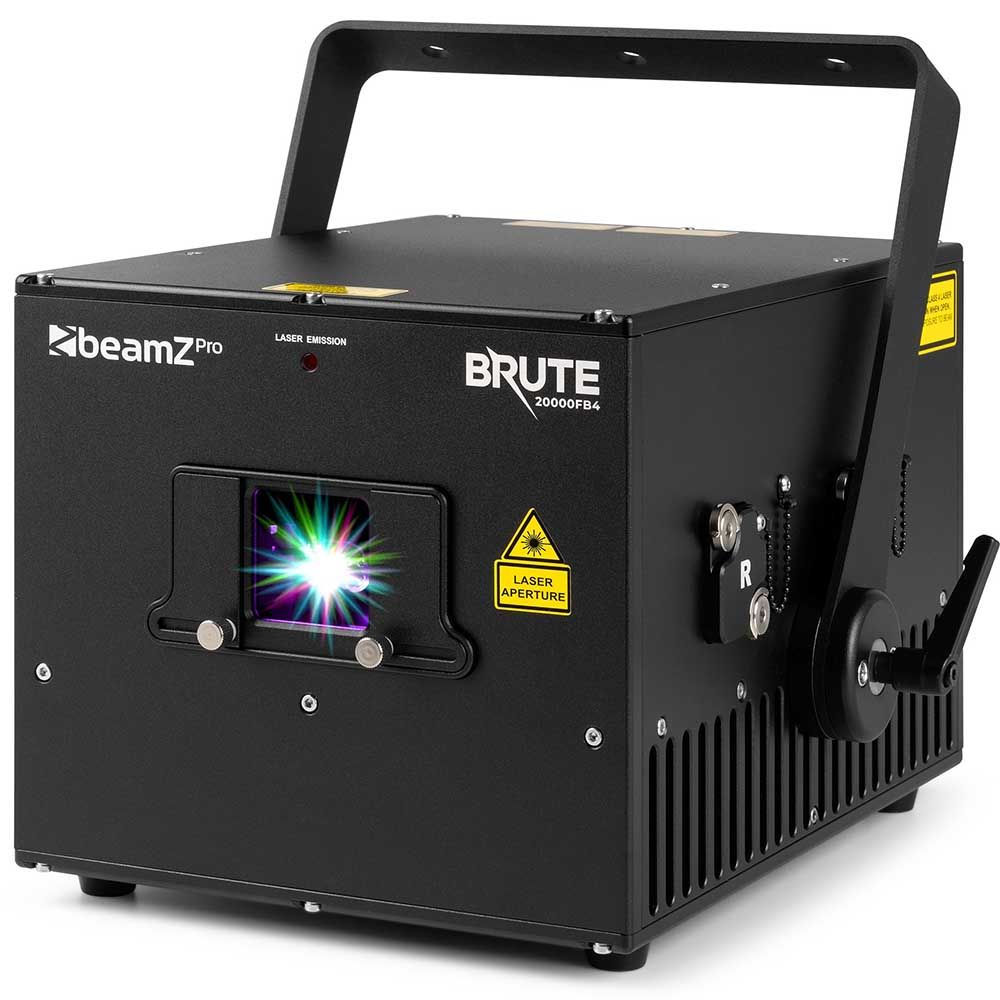

BeamZ PRO Brute 20000FB4 Pure Diode Laser Outdoor
RRP: $7,999.00 ex. GST
Key Features:
- Full-colour, IP65 semiconductor diode laser system
- Guaranteed 20W output
- Red (4000mW), Green (4000mW) and Blue (12000mW) Powerful laser
- Pangolin FB4 controller
- 35K@8° high speed optical scanner system
- Maximum scan angle 50°
- Analog RGB colour modulation
- Artnet, SACN

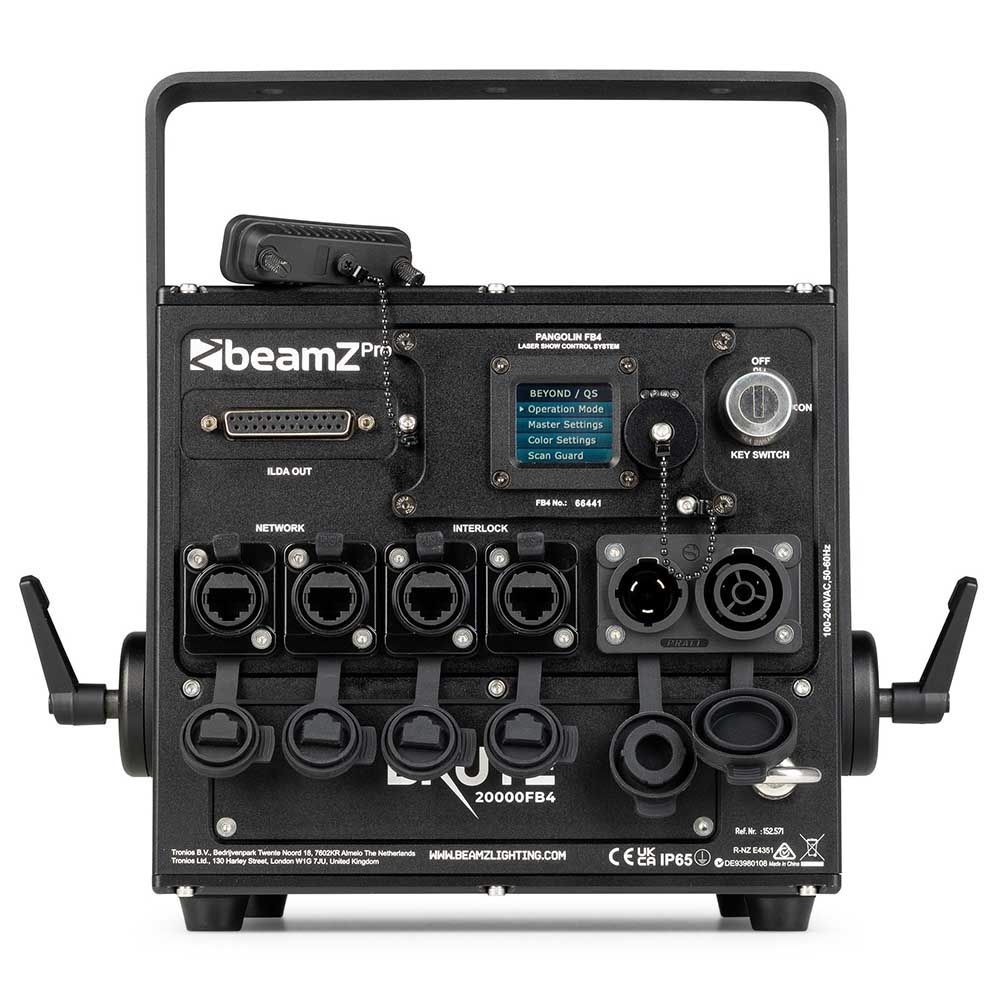

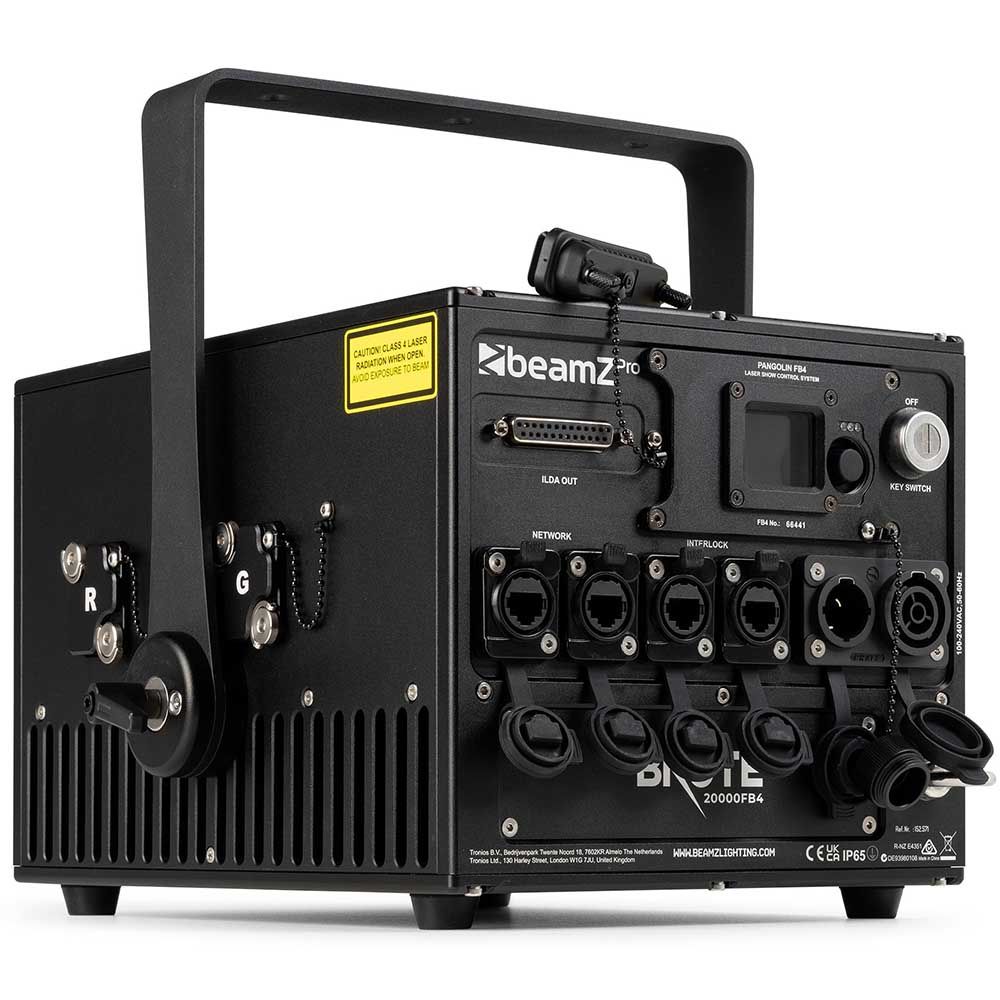

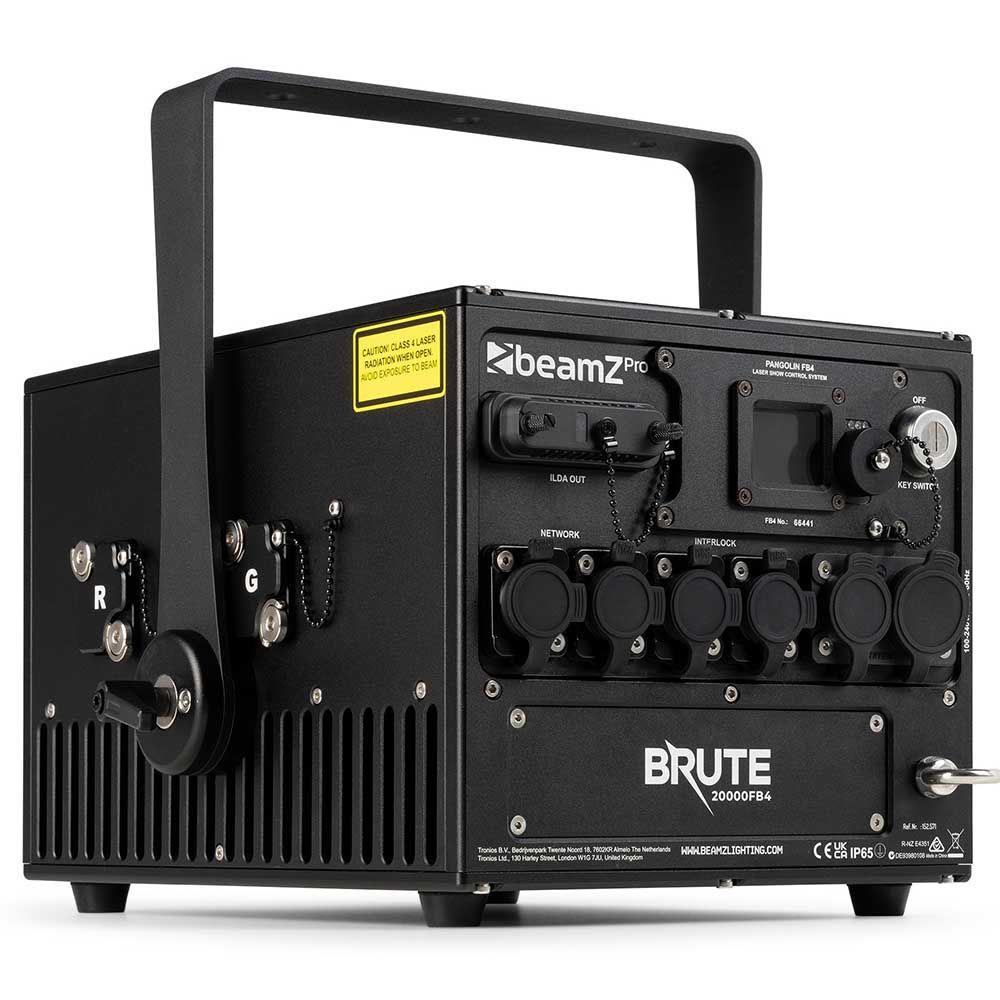

- Ethercon (in/out)
- Scan Fail Safety system
- Dust-proof aluminium housing for minimum maintenance
Technical Data
| Product colour | Black |
| Input connections | RJ45 (CAT) |
| Output connections | ILDA, RJ45 (CAT) |
| DMX connection | ART-Net |
| ILDA | DB25 |
| Laser Red | 4000mW @ 638nm |
| Laser Green | 4000mW @ 525nm |
| Laser Blue | 12000mW @ 455nm |
| Scanner system | 35kpps @ 8° |
| Maximum scanner angle | 50 degrees |
| Beam divergence (full angle) | <1.1mrad (full angle) |
| Guaranteed output (99mW) | 20000mW |
| Maximum output (99mW) | 20000mW |
| Power supply | 100-240VAC 50/60Hz |
| Dimensions (L x W x H) | 365 x 325 x 280mm (without bracket) |
| Weight (kg) | 9.3000 |
