The BeamZ PRO BTK050Z-5-WH Mini Fresnel Zoom is a compact white fresnel fixture for theatres, studios and live performances. It provides adjustable colour temperature from 2700K to 6500K and a manual zoom range of 10° to 60°. The fixture supports DMX and manual control, with 16 bit dimming via DMX, flicker-free operation and an OLED display. Intelligent temperature control provides silent operation, and a barndoor and mounting bracket are included.

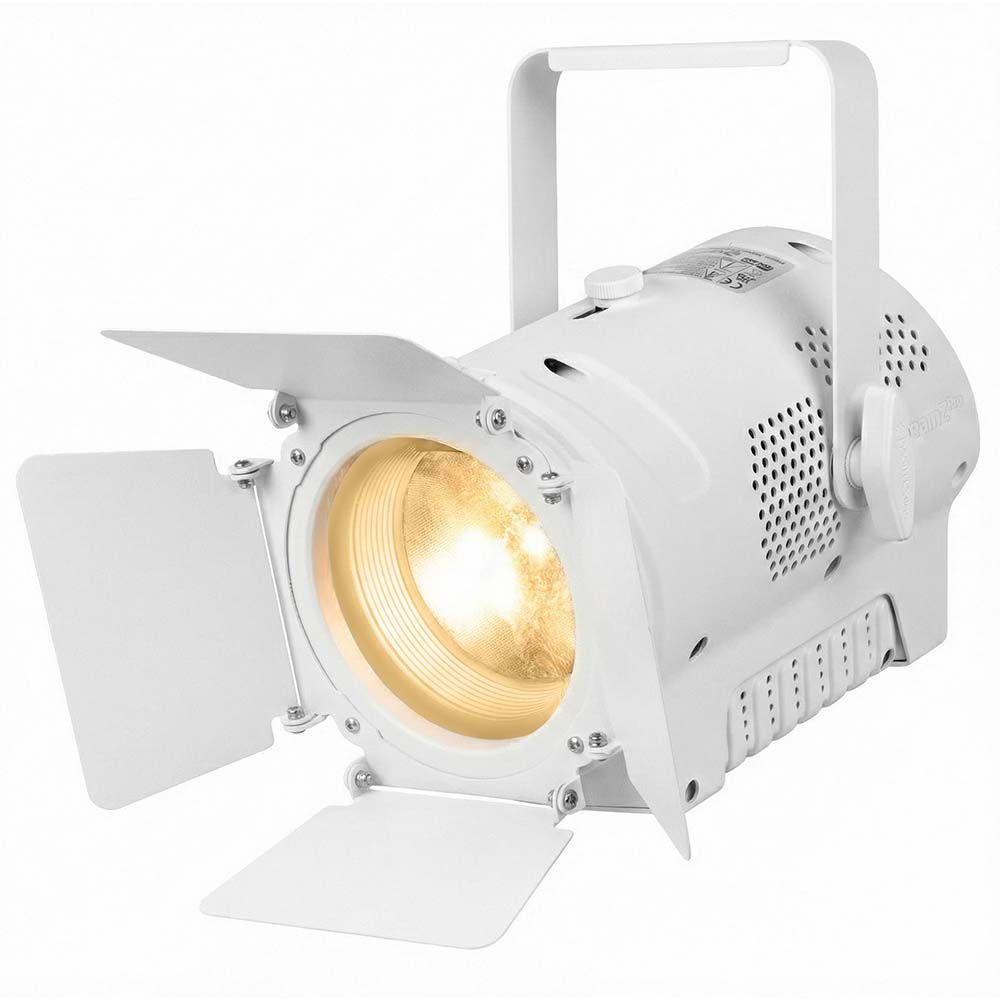

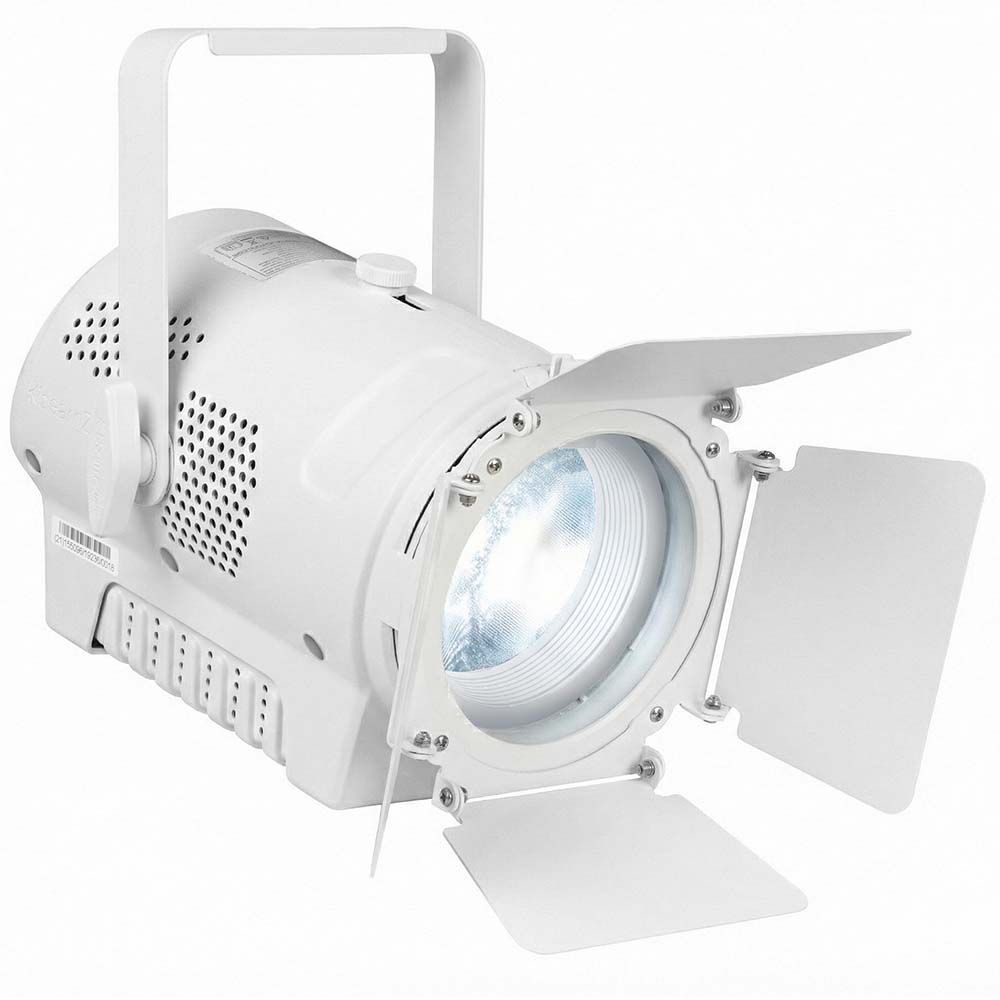

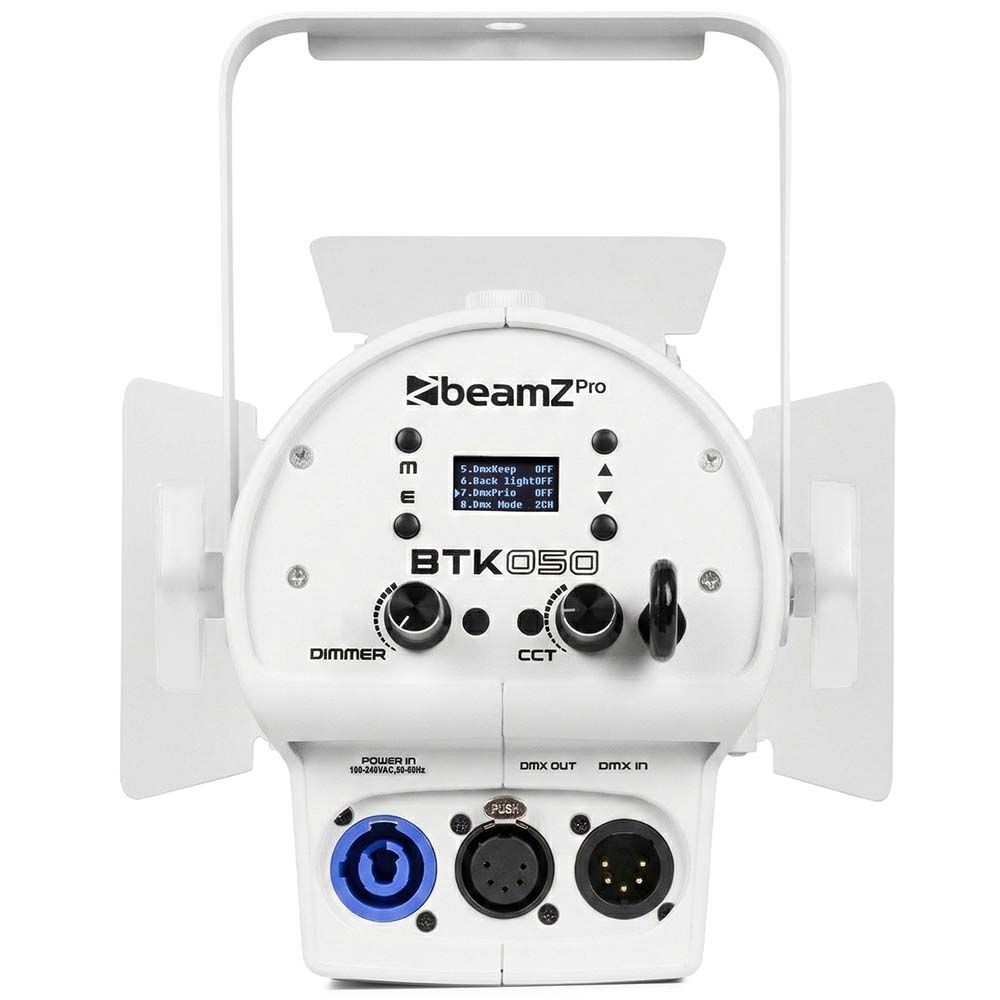

BeamZ PRO BTK050Z-5-WH Mini Fresnel Zoom
RRP: $299.00 ex. GST
Key Features:
- 2700K – 6500K adjustable colour temperature
- 10° to 60° manual zoom
- 16 bit dimming via DMX
- DMX (5-pin) and manual control options
- Flicker free operation
- Intelligent temperature control for silent operation
- CRI 92 (Colour Rendering Index)
- TLCI 98(3200K), TLCI 96(5600k)
- Including barndoor
Technical Data
| Product colour | White |
| Light source | Single colour LED |
| Colour temperature | 2700K – 6500K |
| Colours | Cool White, Warm White |
| LED power (single LED) | 50W |
| Quantity of LEDs | 1 |
| Beam angle | Min: 10° |
| Beam angle | Max: 60° |
| Illuminance | 18.668 lx @ 1m |
| Flash rate per second | 1 – 13Hz |
| DMX channels | 2, 3 |
| DMX connection | 5-pin XLR |
| Modes | DMX, Manual |
| IP rating | IP20 |
| Cooling | Convection |
| Display | OLED |
| Power plug | P-Con |
| Power consumption | 0.722 – 0.359A |
| Power supply | 100-240VAC 50/60Hz |
| Dimensions (L x W x H) | 250 x 175 x 230mm |
| Weight (kg) | 2.50 |
| Included accessories | Barndoor, Mounting bracket |
