The BTM100FC Fresnel Zoom is powered with a high power 100W LED module to provide superior colour mixing and is designed to replace traditional fresnels. The BTM100FC is equipped with high-quality optics, a motorized 15-55 degree zoom function and is both dimmable and able to be operated as a strobe up to 25 flashes per second. Ideal for use in theatres, studios, museums, exhibitions or any stage setting that requires smooth coloured output from an energy saving fixture with exceptionally long life. Features Powerconnector in&out and DMX controllability.

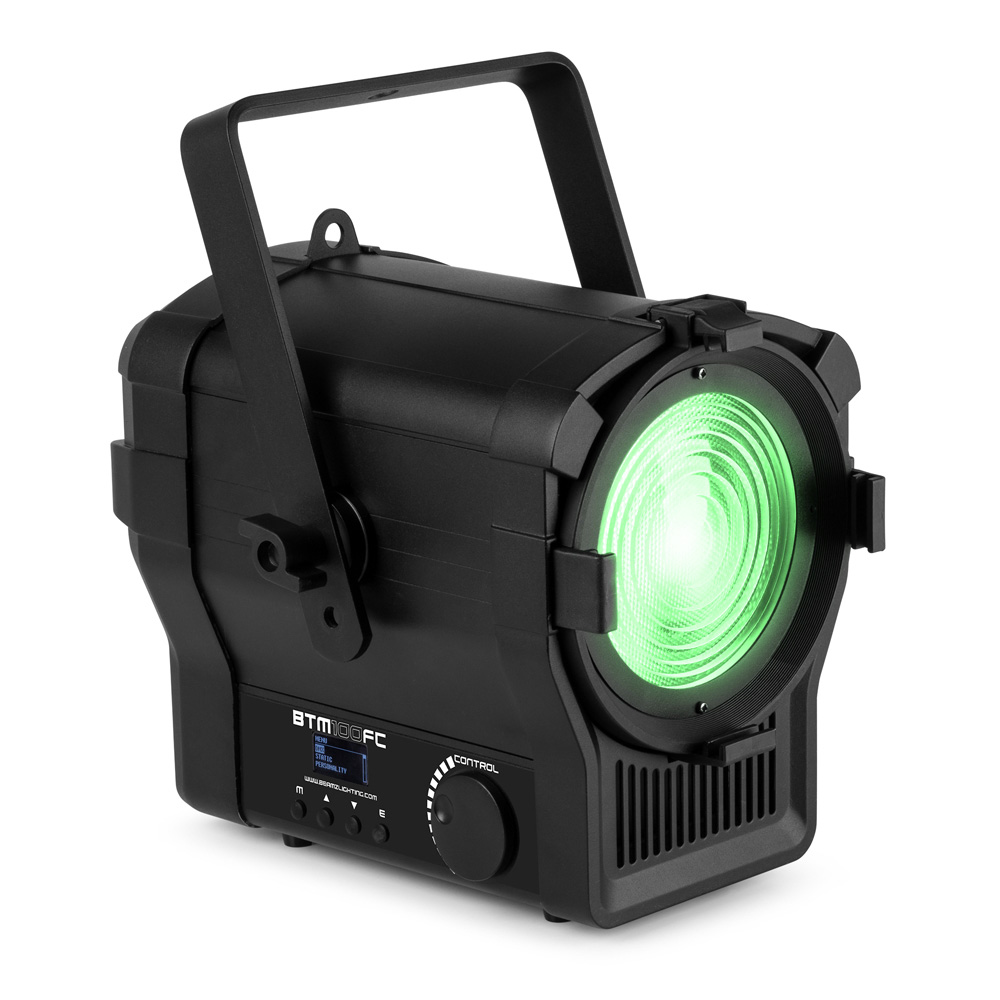

BeamZ PRO BTM100FC 100W Full-Colour LED Fresnel
RRP: $649.00 ex. GST
Key Features:
- Compact 100W LED fresnel
- RGBALC LED module
- Motorized zoom from 15° to 55°
- Lightweight Aluminium body
- HQ optical system
- 16-bit dimming via DMX
- Flicker-free with selectable PWM
- OLED Display
- DMX (3/5-pin) and manual control options
- Intelligent temperature control and silent mode
Technical Data
| Product colour | Black |
|---|---|
| Light source | 6-in-1 LED |
| Colour temperature | 2600K – 10000K |
| Colours | Red, Green, Blue, Amber, Lime , Cyan |
| LED power (single LED) | 100W |
| Quantity of LEDs | 1 |
| Beam angle: Min | 15° |
| Beam angle: Max | 55° |
| Illuminance | 71.245 lx @ 1m |
| Flash rate per second | 1 – 25Hz |
| DMX channels | 8, 10, 11, 18 |
| DMX connection | 3-pin XLR, 5-pin XLR |
| Modes | DMX |
| IP rating | IP20 |
| Cooling | Intelligent cooling system |
| Display | oLed |
| Power plug | P-Con TR1 |
| Power consumption | 0.91 – 0.45A |
| Power supply | 100-240VAC 50/60Hz |
| Dimensions (L x W x H) | 309 x 248 x 257mm |
| Weight | 5.20 kg |
| Included accessories | Mounting bracket, Power cable |
