The BeamZ PRO BTS80WW Compact Profile Spot with Zoom 80W WW is a compact LED profile spot for theatres, studios, galleries, and architectural applications. It uses a single 80W warm white LED with a 3000K colour temperature and a 19° to 31° beam angle. The precision profile lens system, internal cutting knives, and integrated gobo holder support beam shaping and projection. Control options include automatic programs, DMX, and Master/Slave modes, with 1 or 2 DMX channels, an OLED display, and a dimmer encoder.

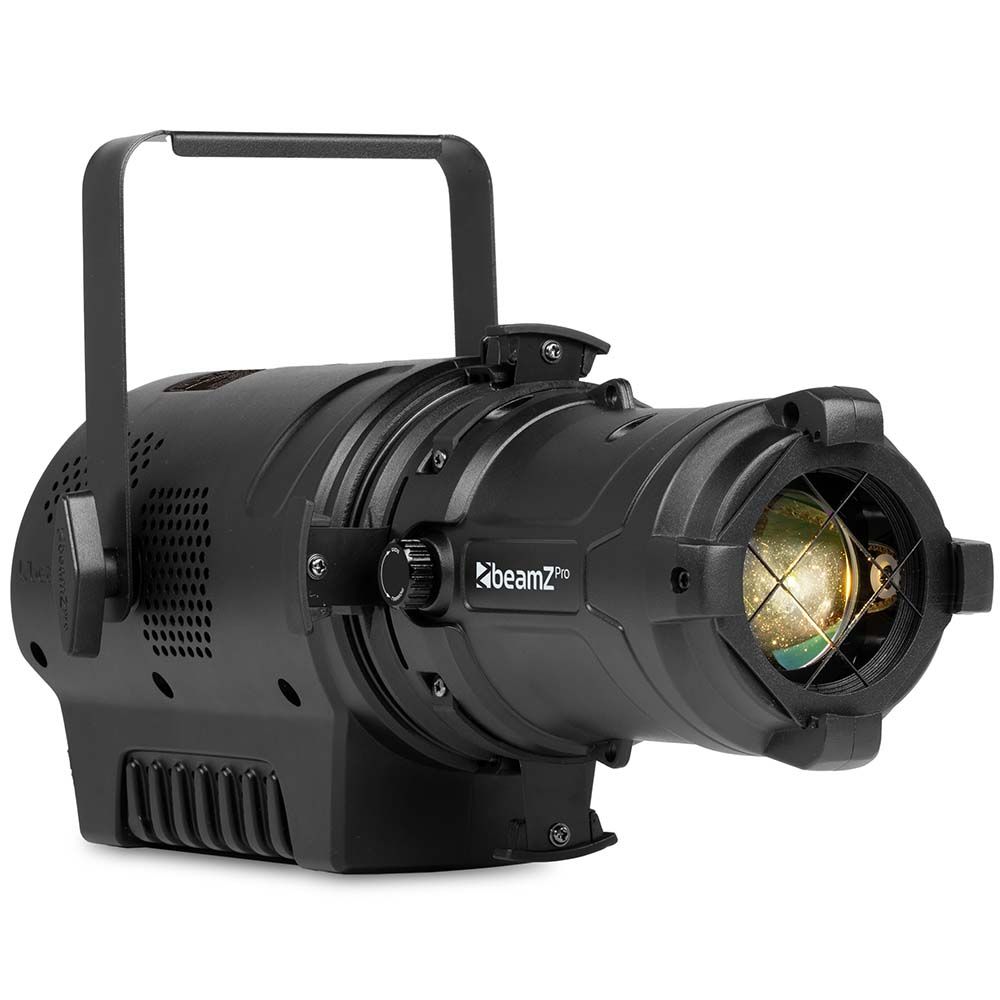

BeamZ PRO BTS80WW Compact Profile Spot with Zoom 80W WW
RRP: $479.00 ex. GST
Key Features:
- 80W warm white LED light source
- 19° to 31° zoom beam angle
- Precision profile lens system
- Internal cutting knives for beam shaping
- Integrated gobo holder
- 1 or 2 DMX channel modes
- DMX in/output via 5-pin XLR
- Flicker-free operation
Technical Data
| Product colour | Black |
| Light source | Single colour LED |
| Colour temperature | 3000K |
| Colours | Warm White |
| LED power (single LED) | 80W |
| Quantity of LEDs | 1 |
| Beam angle Min | 19° |
| Beam angle Max | 31° |
| Illuminance | 15.292 lx @ 1m |
| Flash rate per second | 1 – 20Hz |
| DMX channels | 1, 2 |
| DMX connection | 5-pin XLR |
| Modes | Automatic programs, DMX, Master/Slave |
| IP rating | IP20 |
| Cooling | Temperature controlled fan |
| Display | oLed |
| Power plug | P-Con |
| Power consumption | 1.224 – 0.560A |
| Power supply | 240VAC 50Hz |
| Dimensions (L x W x H) | 430 x 190 x 225mm |
| Weight (kg) | 2.77 |
| Included accessories | Mounting bracket, Power cable |
