The BeamZ PRO IGNITE220 LED Spot Moving Head is a spot fixture with a 220W high-intensity white LED and linear motorized zoom from 12° to 24°. It combines static and rotating gobo wheels, a 7-colour wheel and a rotatable 3-facet prism for gobo projection and aerial effects. Control options include 13, 15 or 17 DMX channels, master/slave synchronization, automatic programs and sound activation. The fixture also provides electronic dimming, electric focus, invertible pan/tilt and DMX connection through 3-pin and 5-pin XLR.

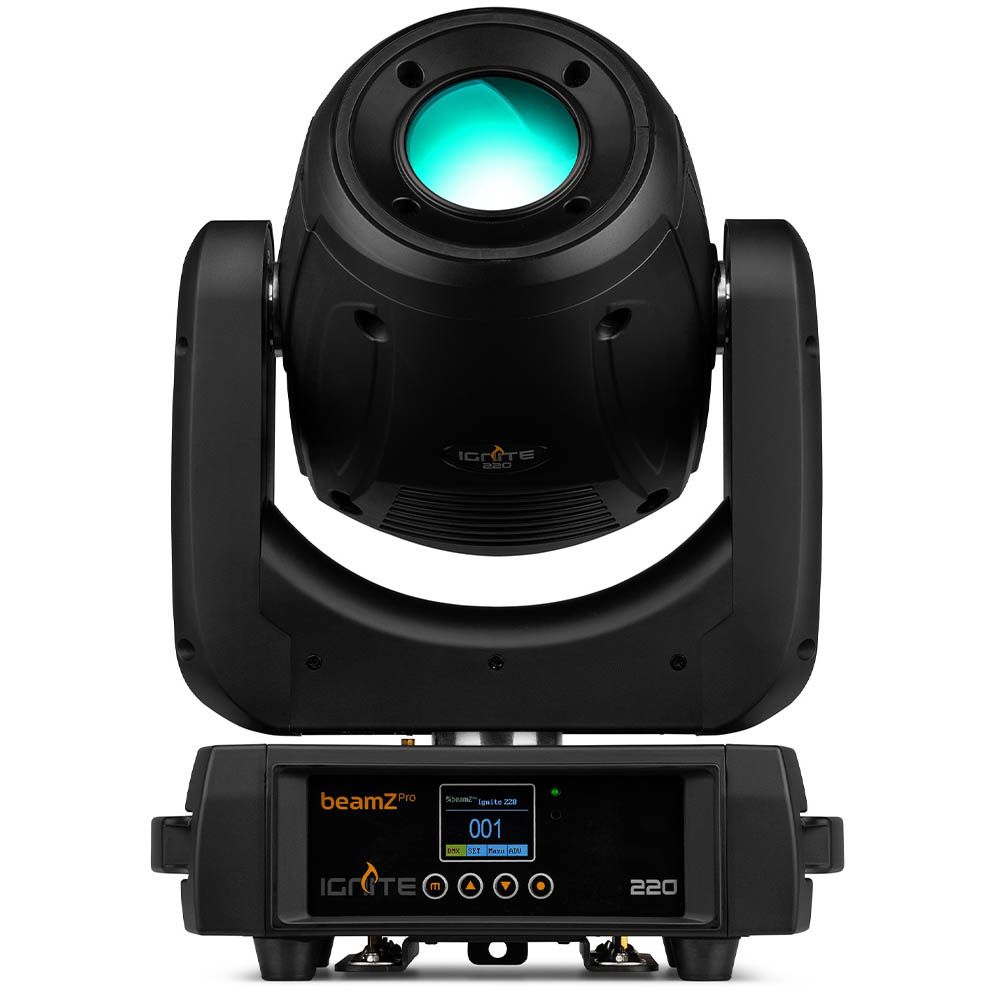

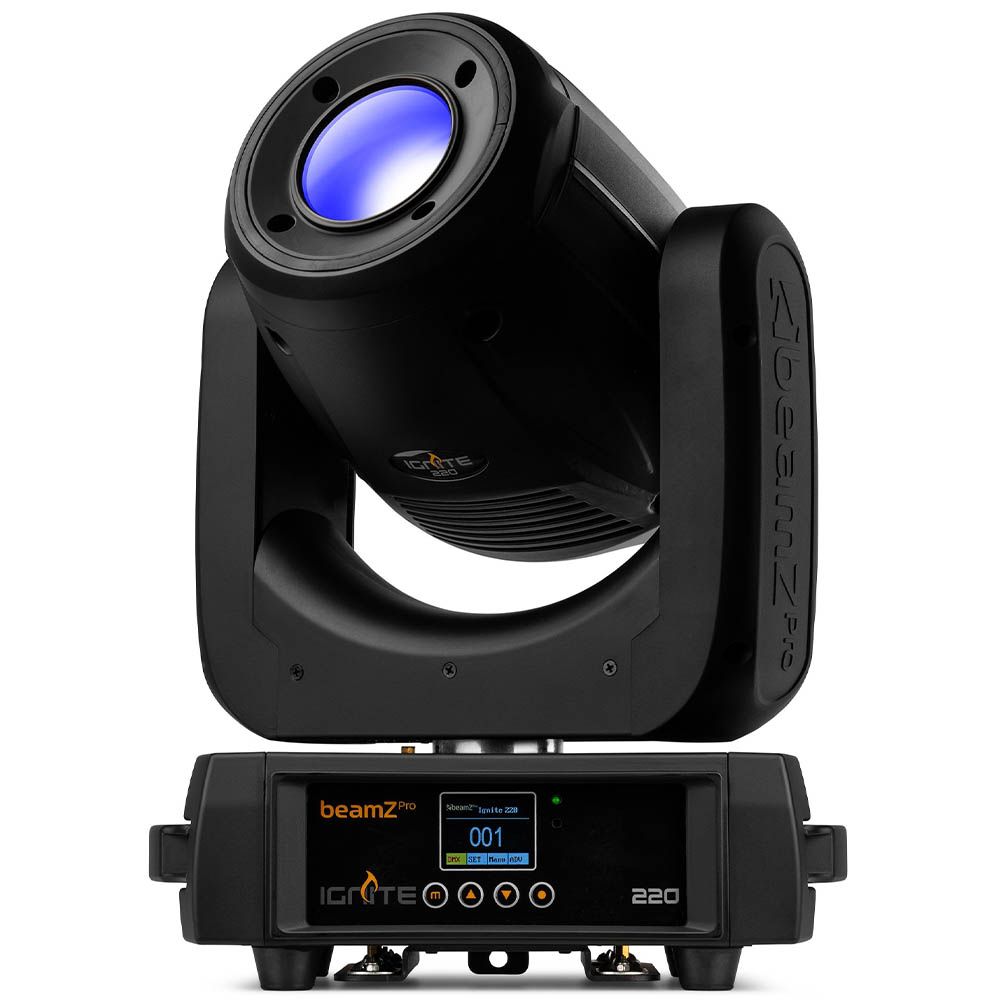

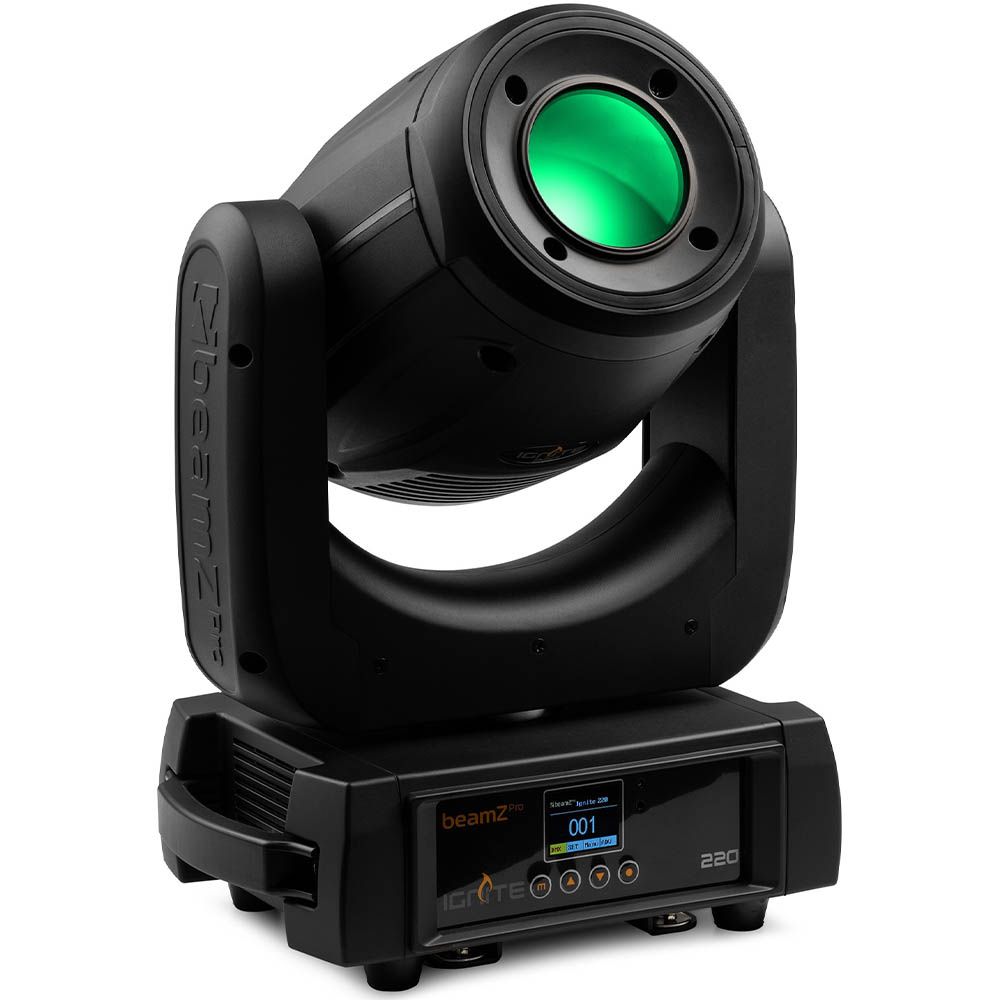

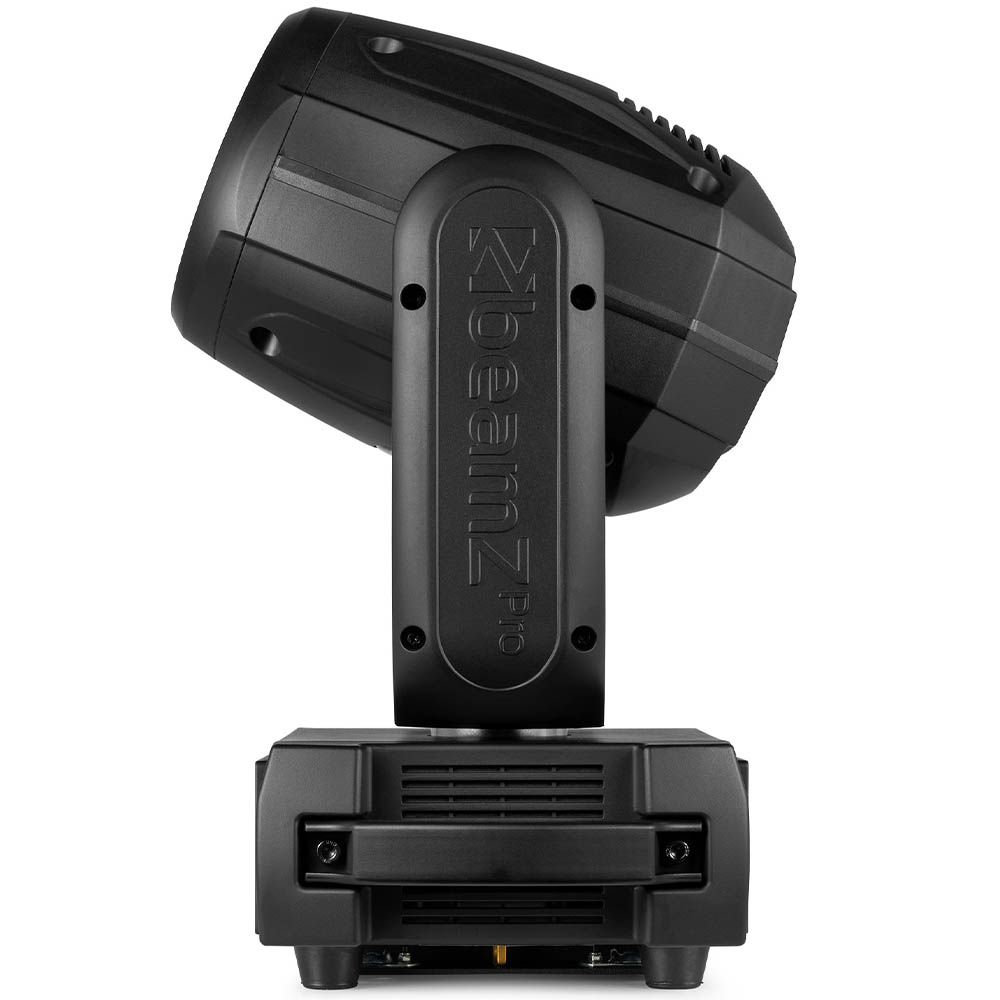

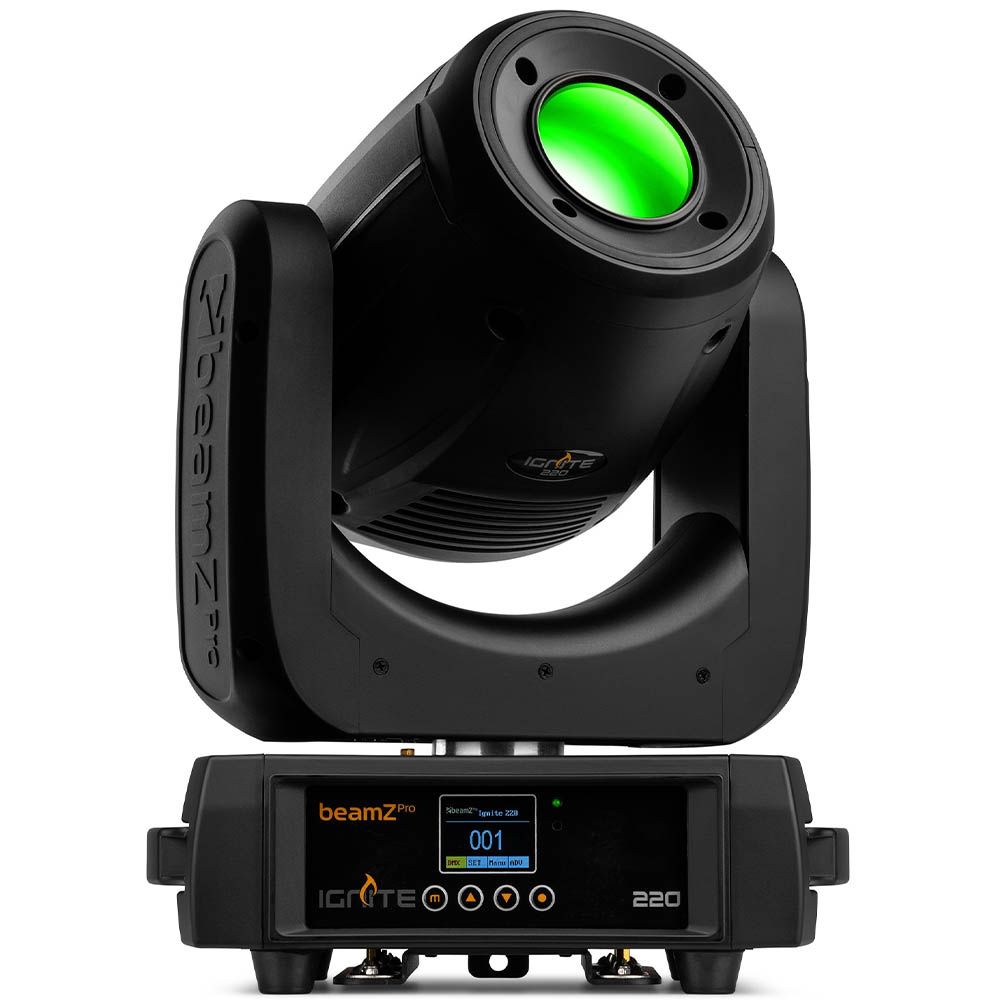

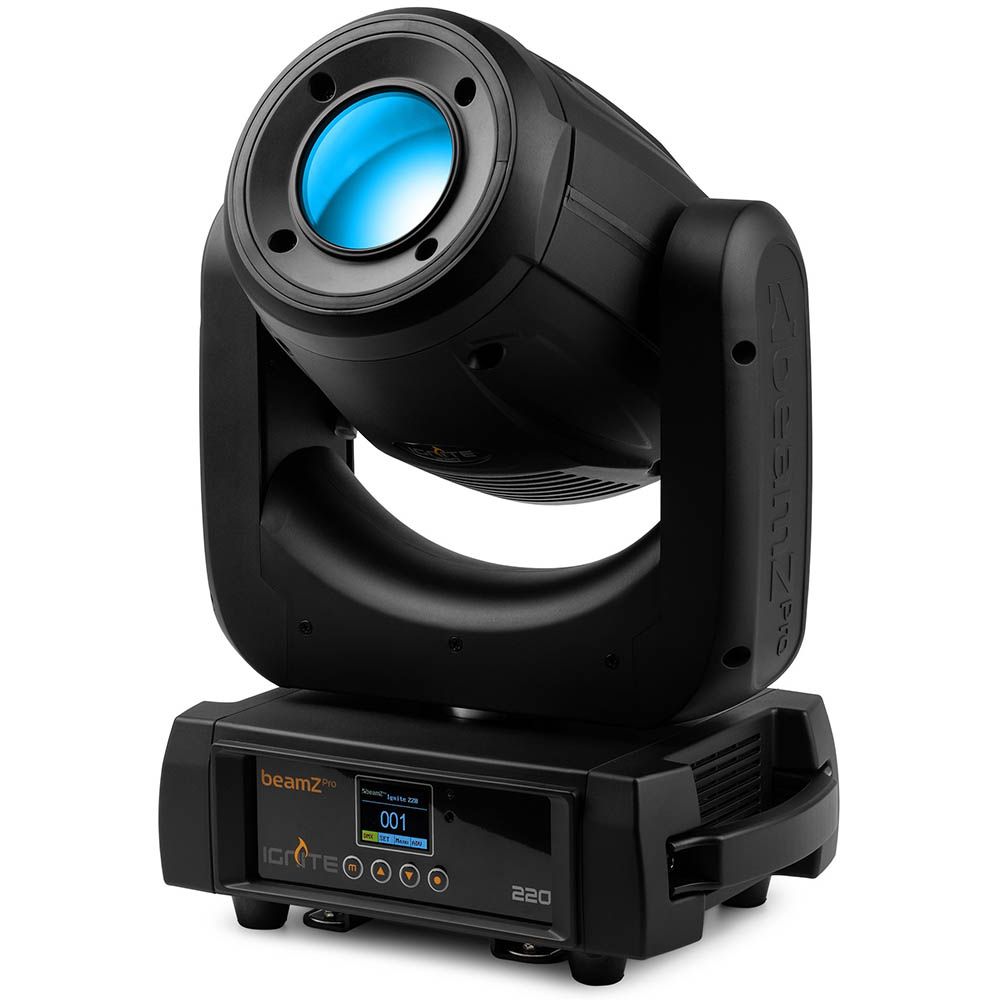

BeamZ PRO IGNITE220 LED Spot Moving Head
RRP: $2,199.00 ex. GST
Key Features:
- 220W high-intensity white LED
- Linear motorized zoom
- Static gobo wheel: 7x gobos + open
- Rotating gobo wheel: 6x gobos + open (interchangeable)
- Colour wheel: 7 Colours + open
- Rotatable 3 facet prism
- 13, 15 or 17 DMX channels
- DMX and Stand-alone mode
- Master/slave synchronization
- Sound activated mode (9 programs)
Technical Data
| Light source | Single colour LED |
| Colours | White |
| LED power (single LED) | 220W |
| Quantity of LEDs | 1 |
| Colour wheel | 7 colours + open |
| Beam angle | Min: 12°; Max: 24° |
| Zoom | Yes |
| Motorized focus | Yes |
| Illuminance | 130.115 lx @ 1m |
| Head movement | Pan: 540°; Tilt: 270° |
| Static gobo | Quantity: 7 |
| Rotating gobos | Quantity: 6 |
| Interchangeable gobos | Yes |
| Prisma 1 | 3 Facet |
| Flash rate per second | 1 – 25Hz |
| Modes | Automatic programs, DMX, Master/Slave |
| Sound to light mode | Yes |
| DMX channels | 13, 15, 17 |

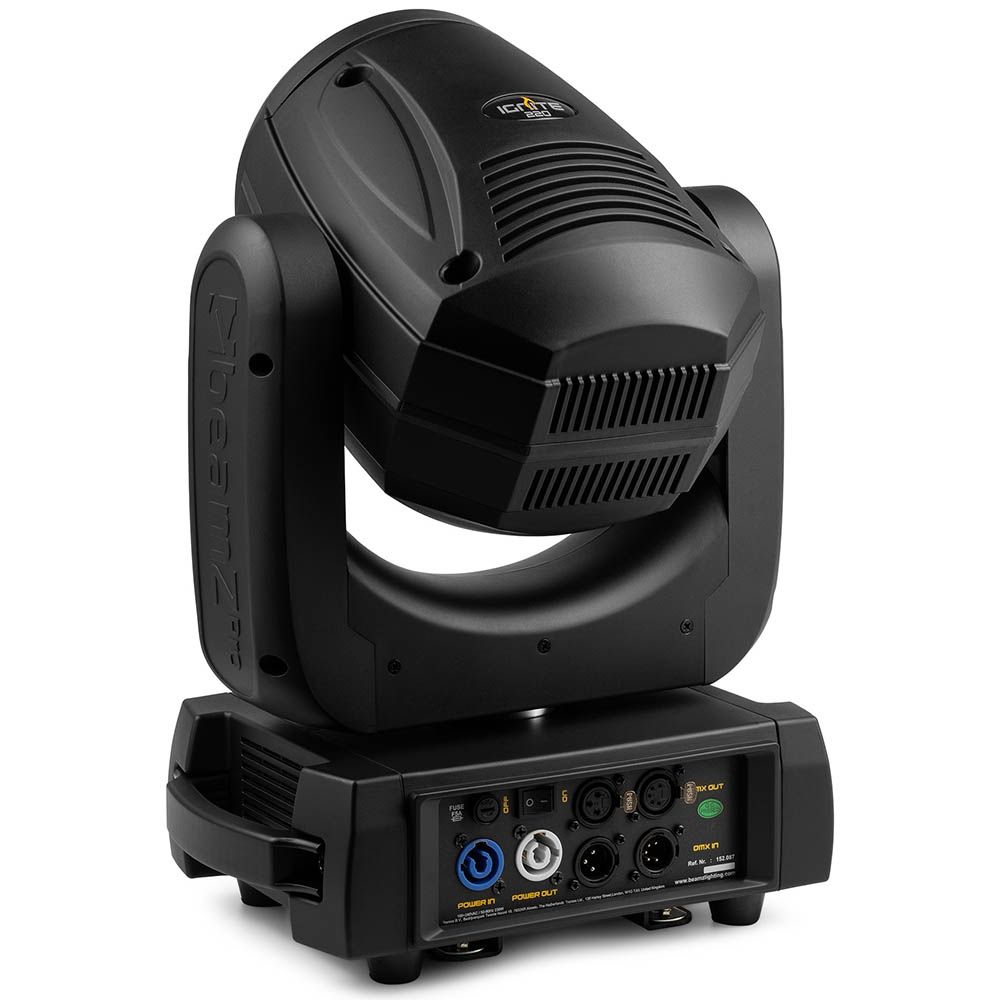

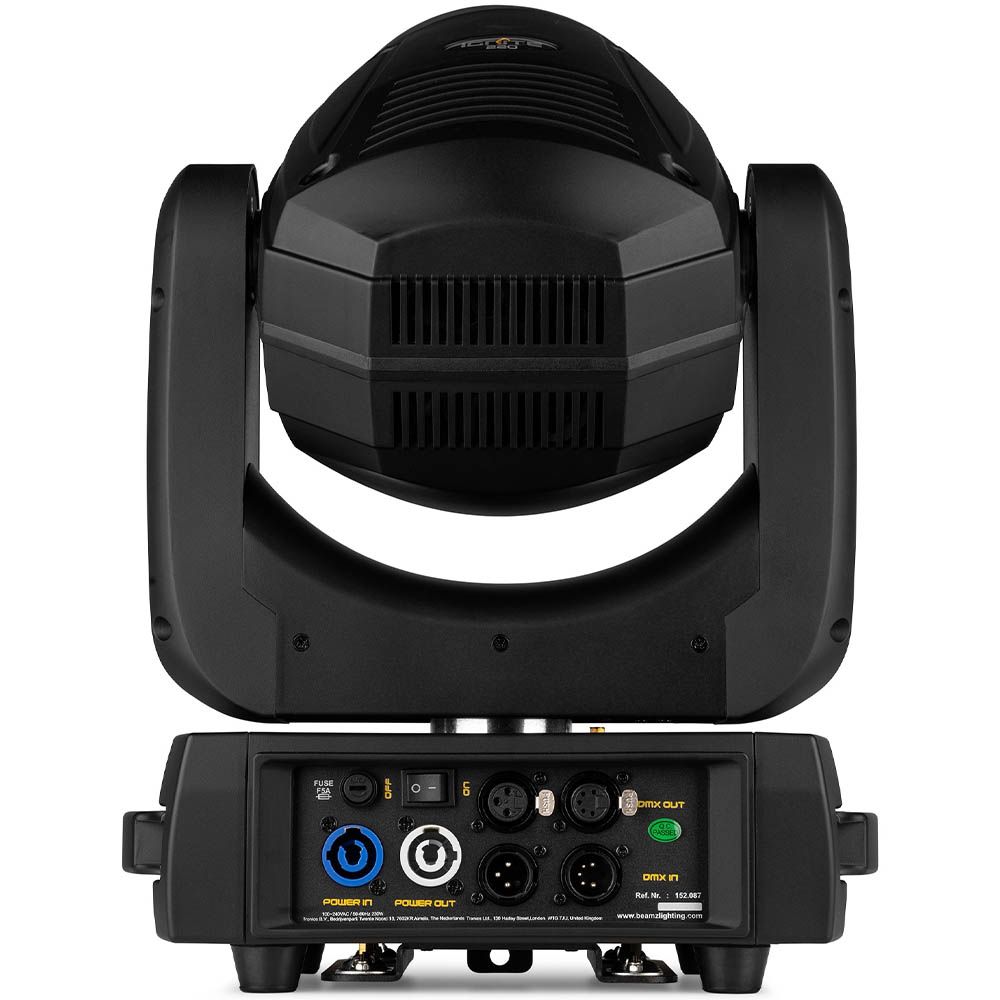

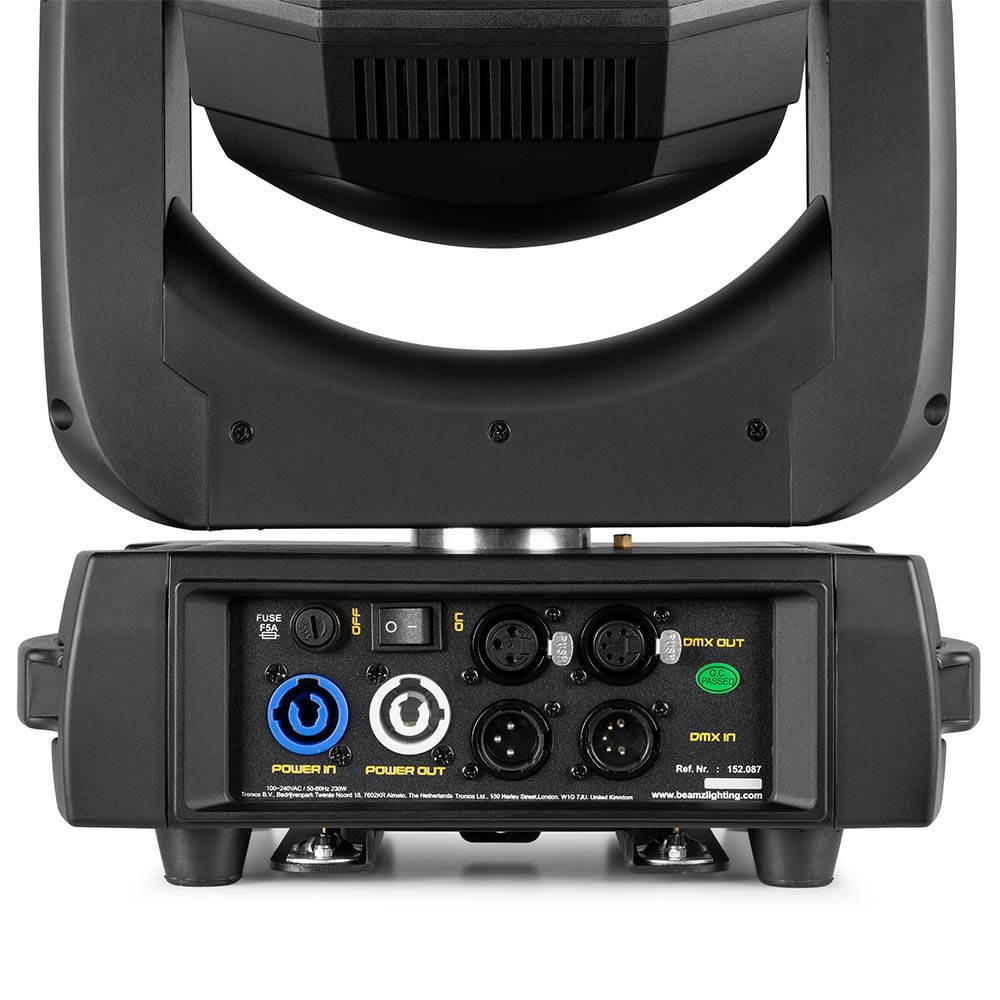

| DMX connection | 3-pin XLR, 5-pin XLR |
| Display | LCD |
| IP rating | IP20 |
| Cooling | Temperature controlled fan |
| Power plug | P-Con |
| Power consumption | 2.4 – 1.119A |
| Power supply | 100-240VAC 50/60Hz |
| Dimensions (L x W x H) | 305 x 225 x 420mm |
| Weight (kg) | 10.30 |

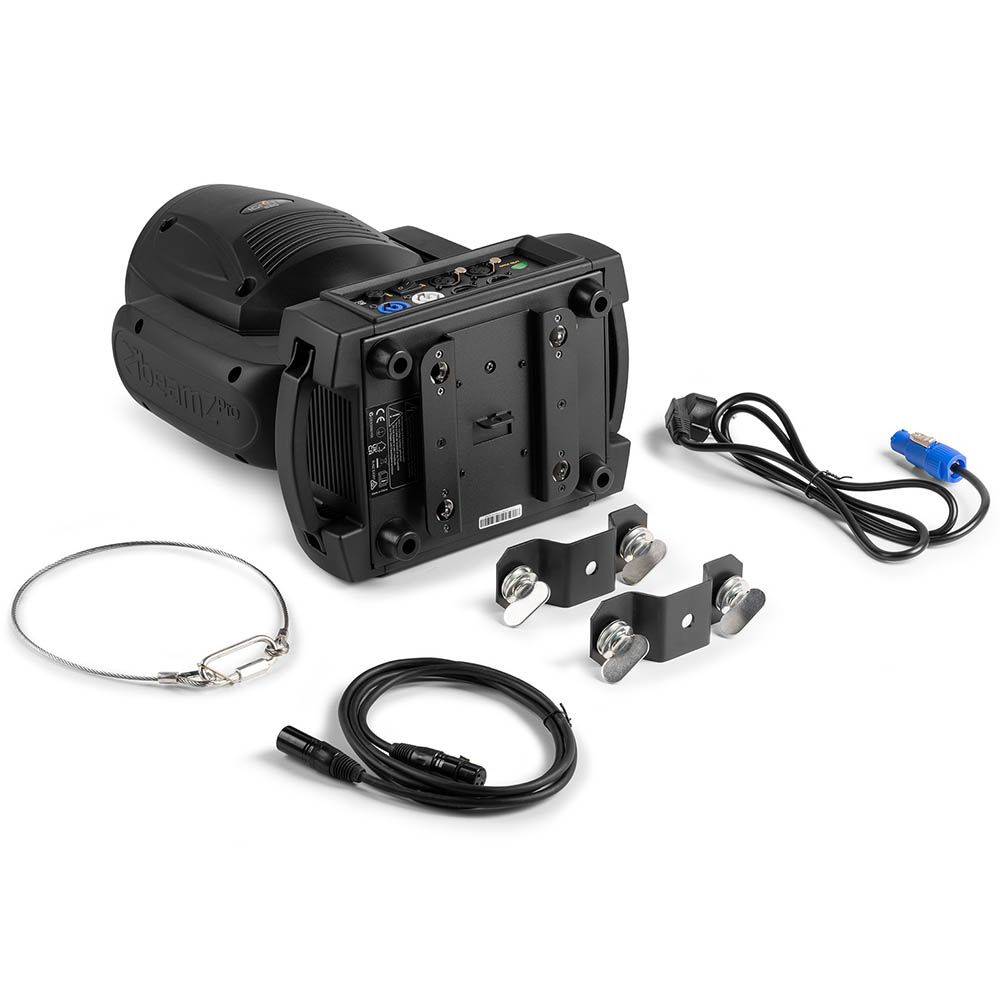

| Included accessories | Mounting bracket |
