The BeamZ PRO IGNITE300A combines beam, spot and wash functions in one moving head with a 300W high-intensity LED source. Its motorized linear zoom adjusts the beam angle from 7° to 32°, while the animation wheel, two gobo wheels, effect wheel, frost filter and rotatable prisms provide additional effects. Control options include 22-channel DMX, RDM, sound activation, automatic programs, manual, master/slave and stand-alone modes. The unit includes a mounting bracket and uses 3-pin and 5-pin XLR DMX connections.

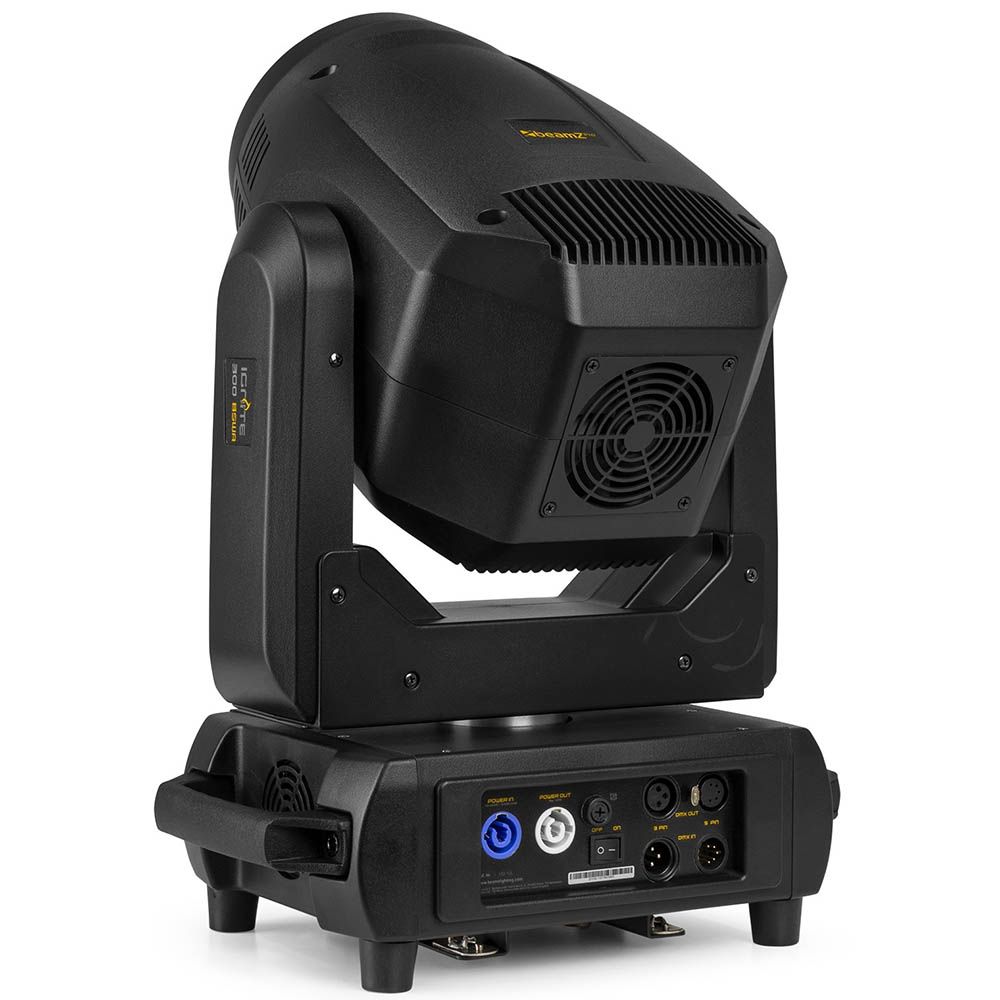

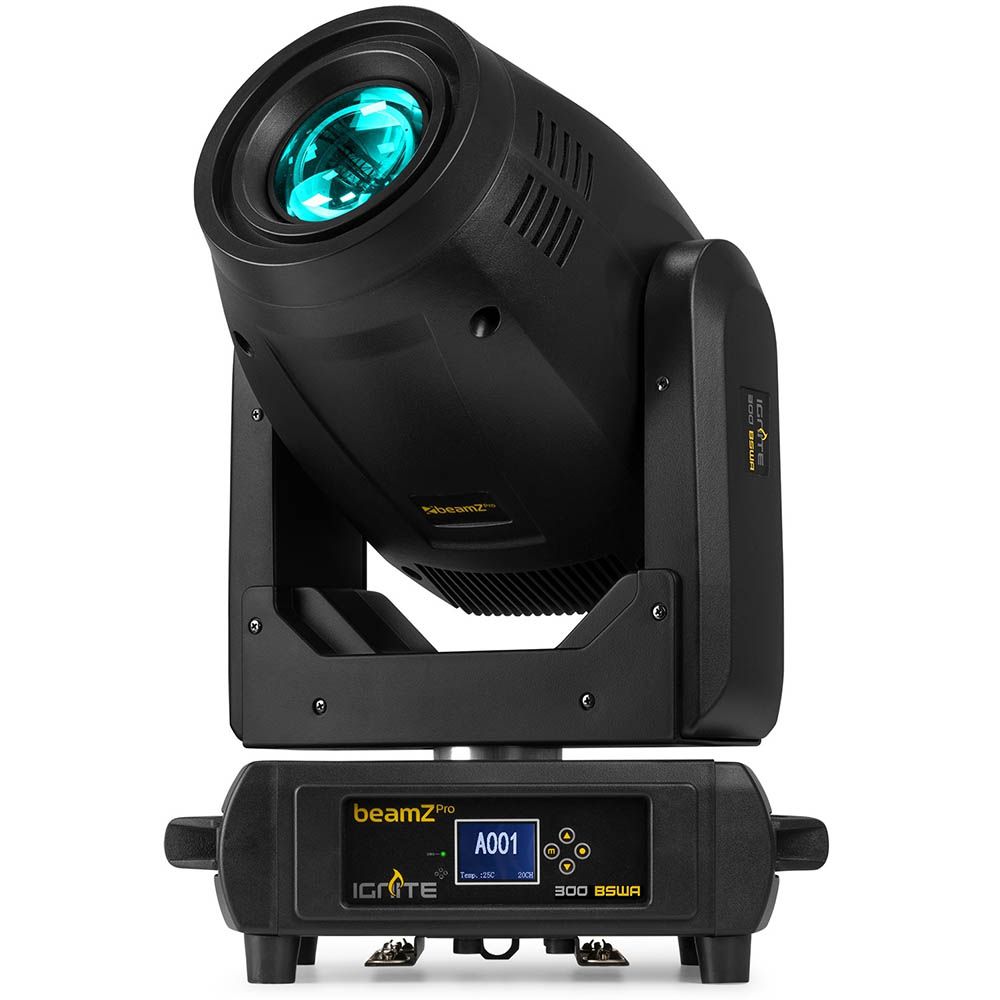

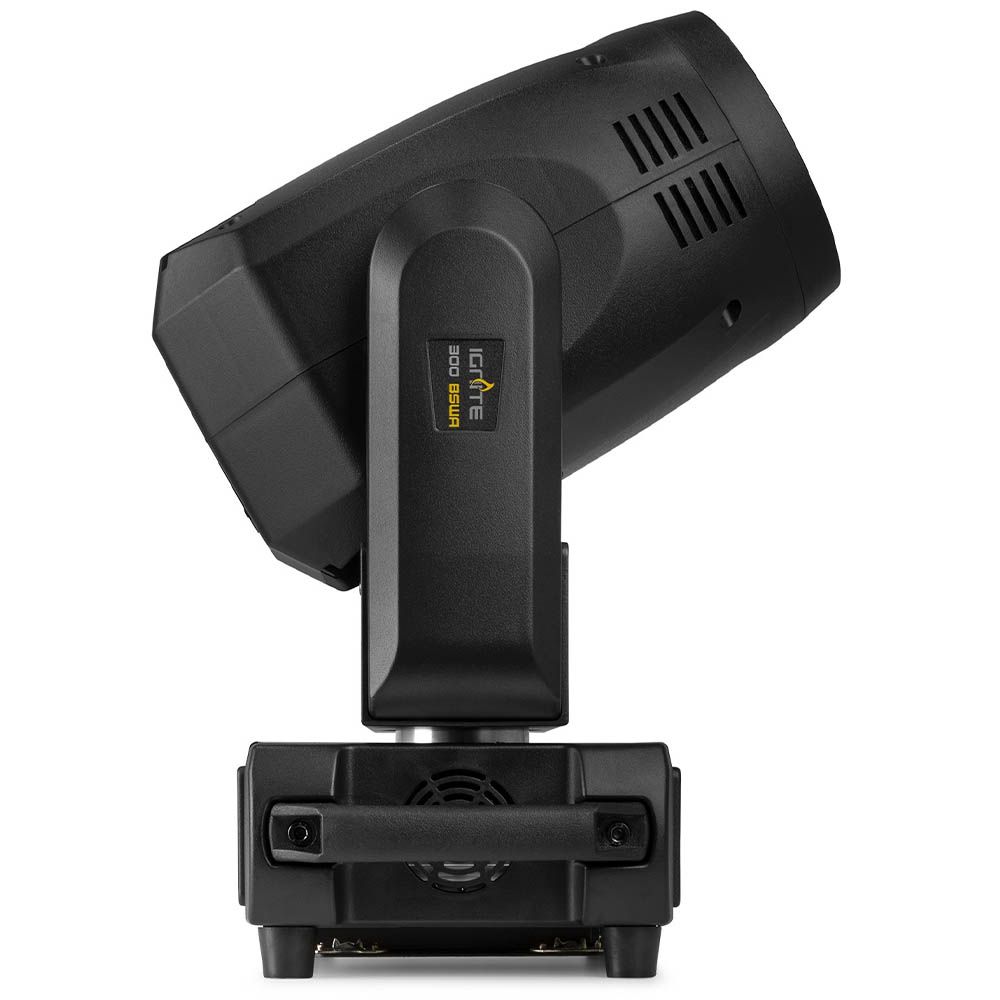

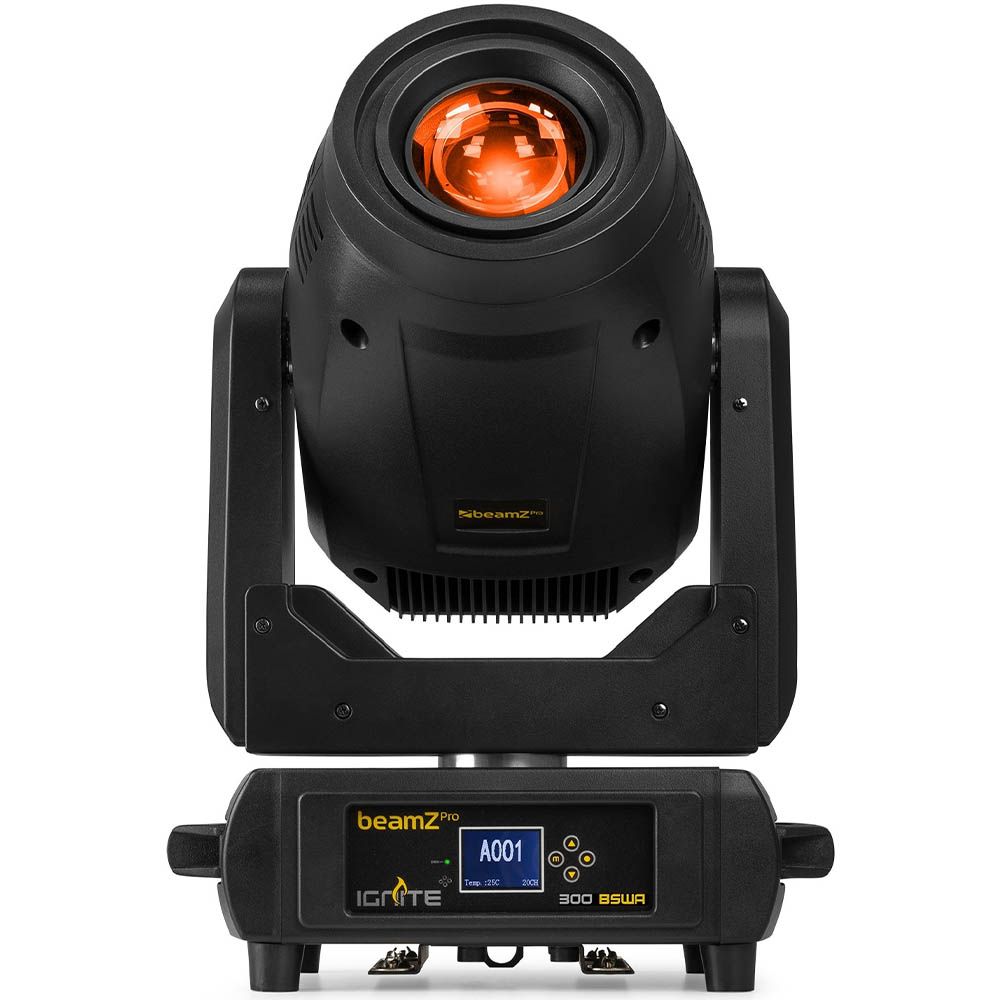

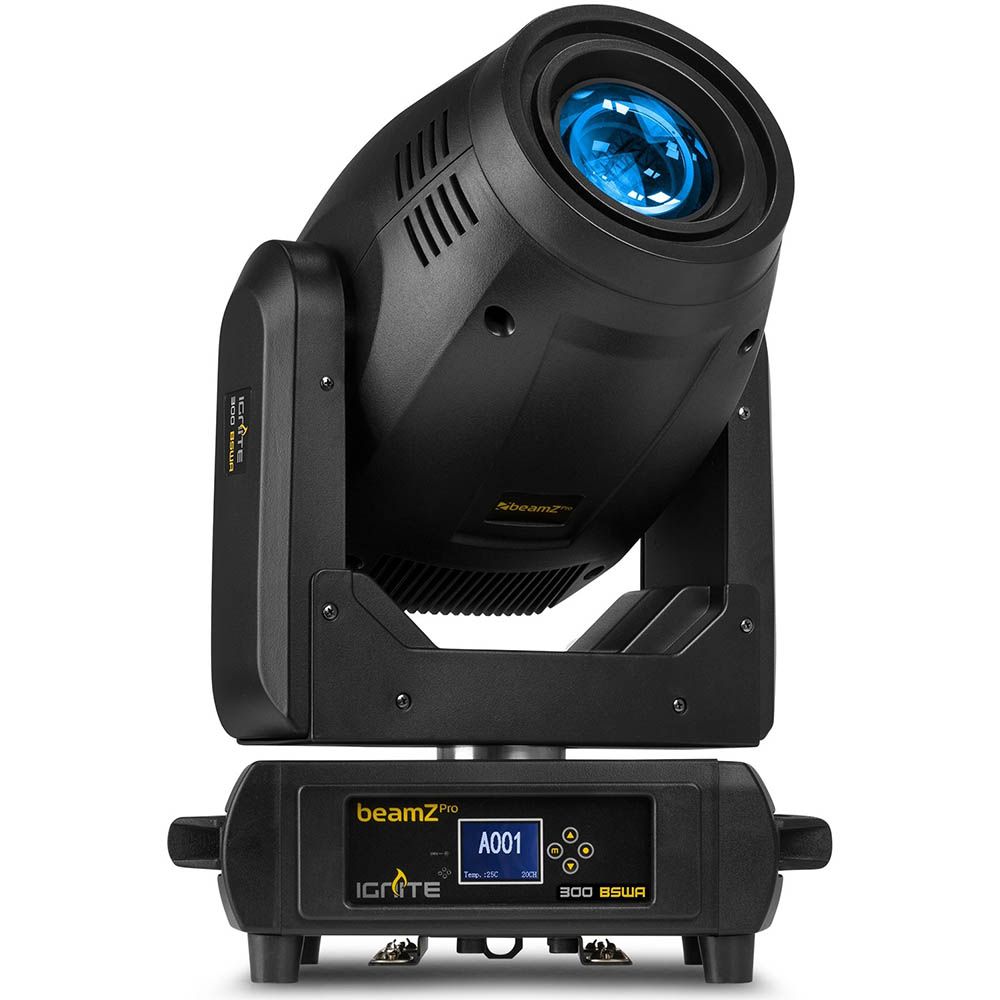

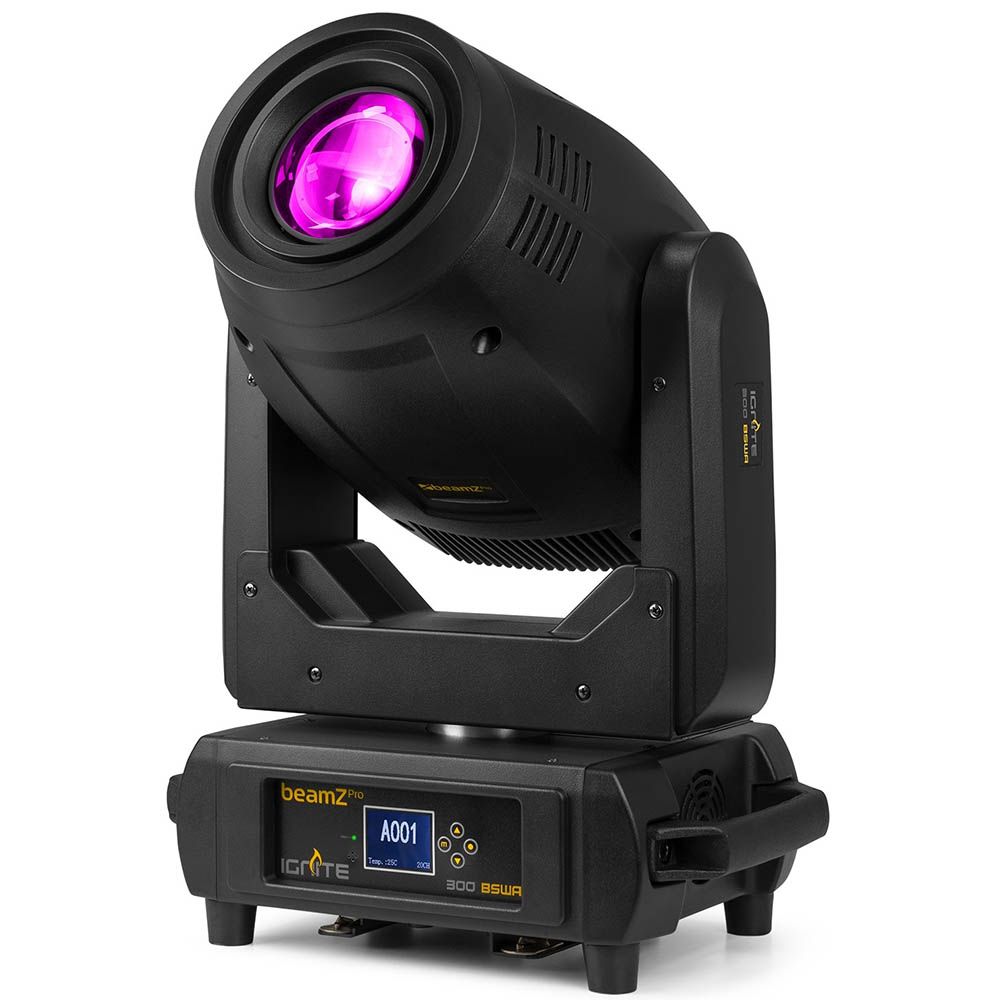

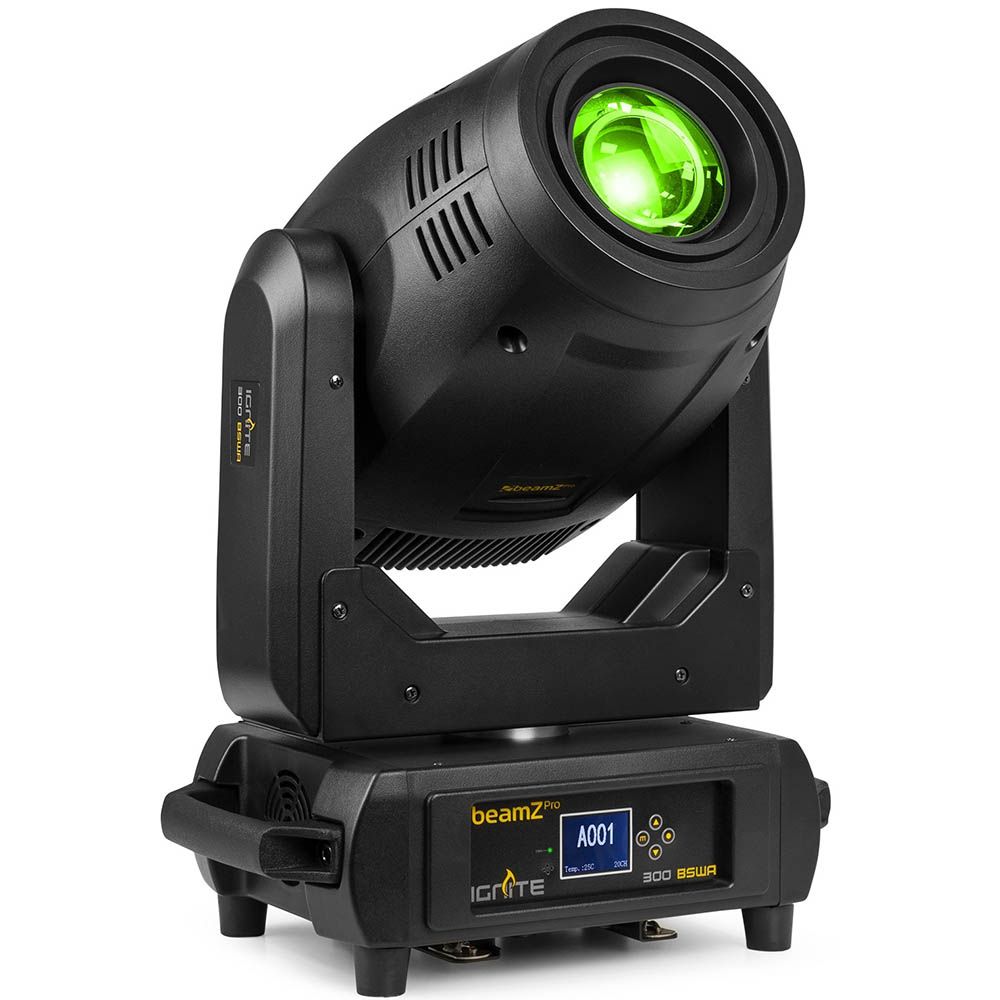

BeamZ PRO IGNITE300A LED BSW Moving Head with Animation
RRP: $2,999.00 ex. GST
Key Features:
- Beam, spot and wash light in one device
- 300W High Intensity LED
- Animation wheel with adjustable rotating speed and direction
- Motorized linear zoom from 7° to 32°
- Gobo Wheel 1: 2x glass and 5x metal gobos + open (interchangeable)
- Gobo Wheel 2: 9x fixed gobos + open (split colours)
- Rotatable 3 and 8 facet prisms with adjustable rotating speed and direction
- 22 DMX channels
- RDM Remote Control, bidirectional data transmission
- Quick lock omega clamp included
Technical Data
| Product colour | Black |
| Light source | Single colour LED |
| Colours | White |
| Quantity of LEDs | 1 |
| Colour wheel | 8 colours + open |
| Beam angle | Min: 7°; Max: 32° |
| Zoom | Yes |
| Head movement | Pan: 540°; Tilt: 270° |
| Static gobo | Quantity: 9 fixed + open |
| Rotating gobos | Quantity: 2 glass and 5 metal + open |
| Gobo shake | Yes |
| Interchangeable gobos | Yes |
| Gobo dimensions | 26mm |
| Prisma 1 | 3 Facet |
| Prisma 2 | 8 Facet |
| Frost filter | Yes |
| Flash rate per second | 0 – 20Hz |
| Modes | Automatic programs, DMX, Manual, Master/Slave |
| Sound to light mode | Yes |
| RDM | Yes |
| DMX channels | 22 |

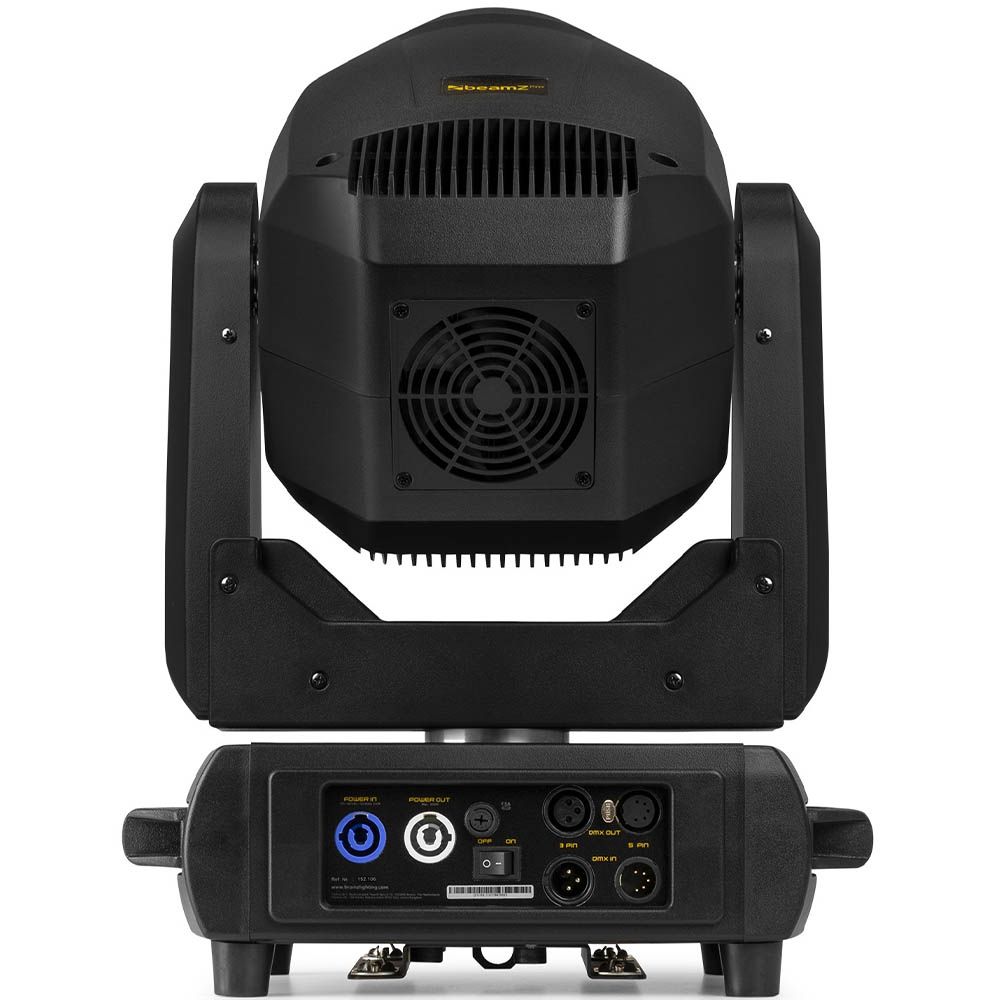

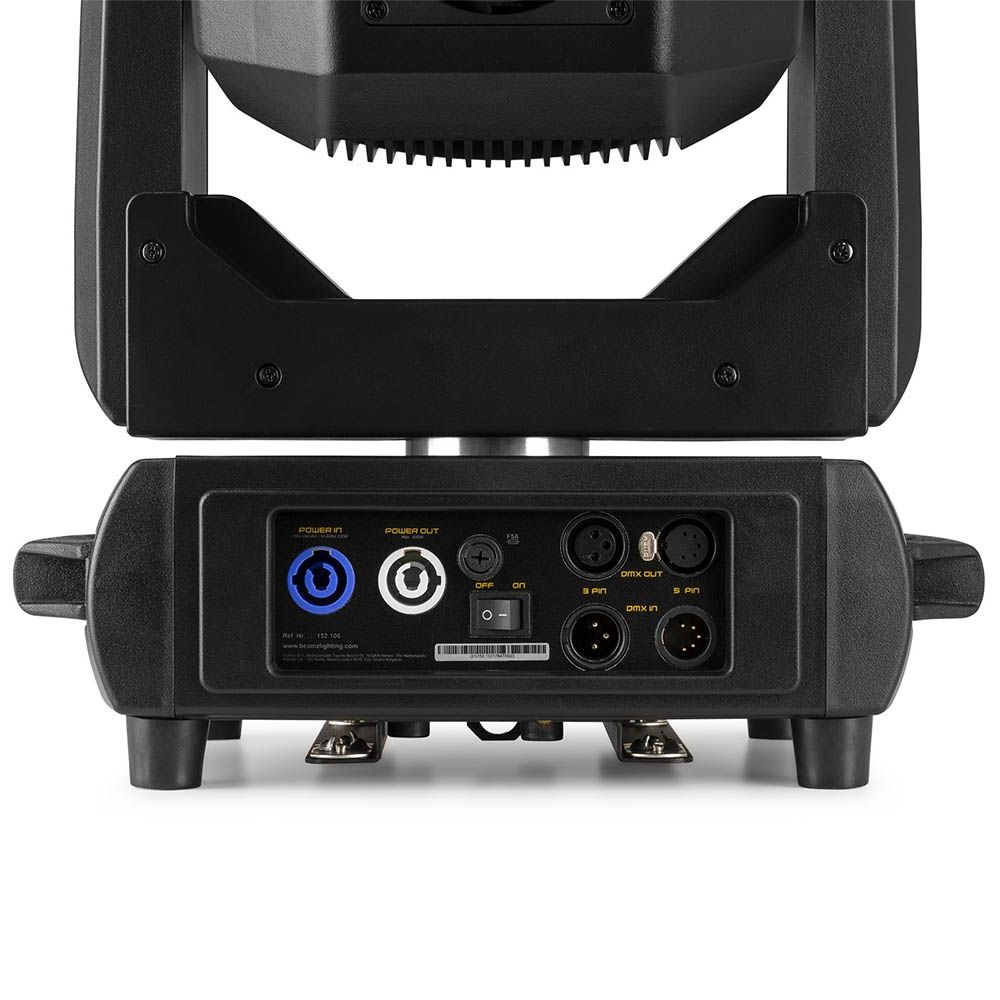

| DMX connection | 3-pin XLR, 5-pin XLR |
| Display | LCD |
| IP rating | IP20 |
| Cooling | Temperature controlled fan |
| Power plug | P-Con |
| Power consumption | 2.83 – 1.32A |
| Power supply | 100-240VAC 50/60Hz |
| Dimensions (L x W x H) | 365 x 225 x 530mm |
| Weight (kg) | 15.6000 |

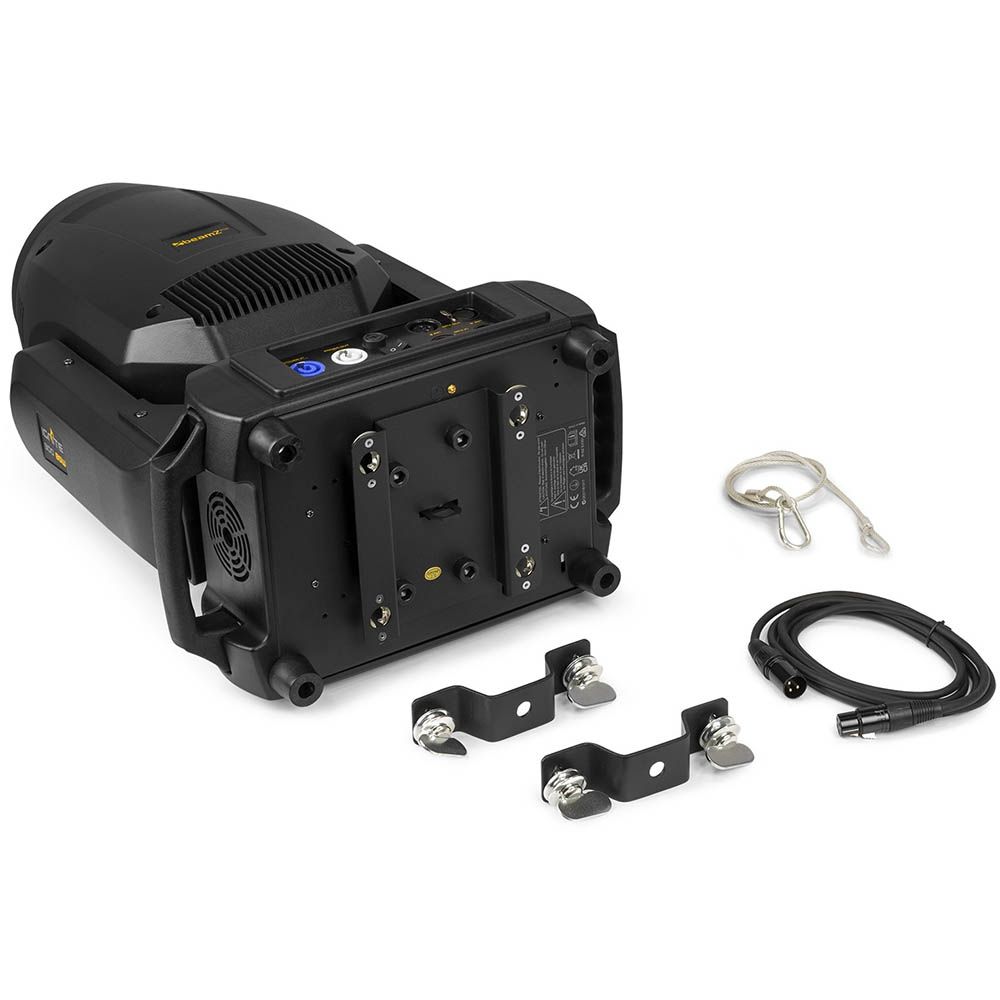

| Included accessories | Mounting bracket |
