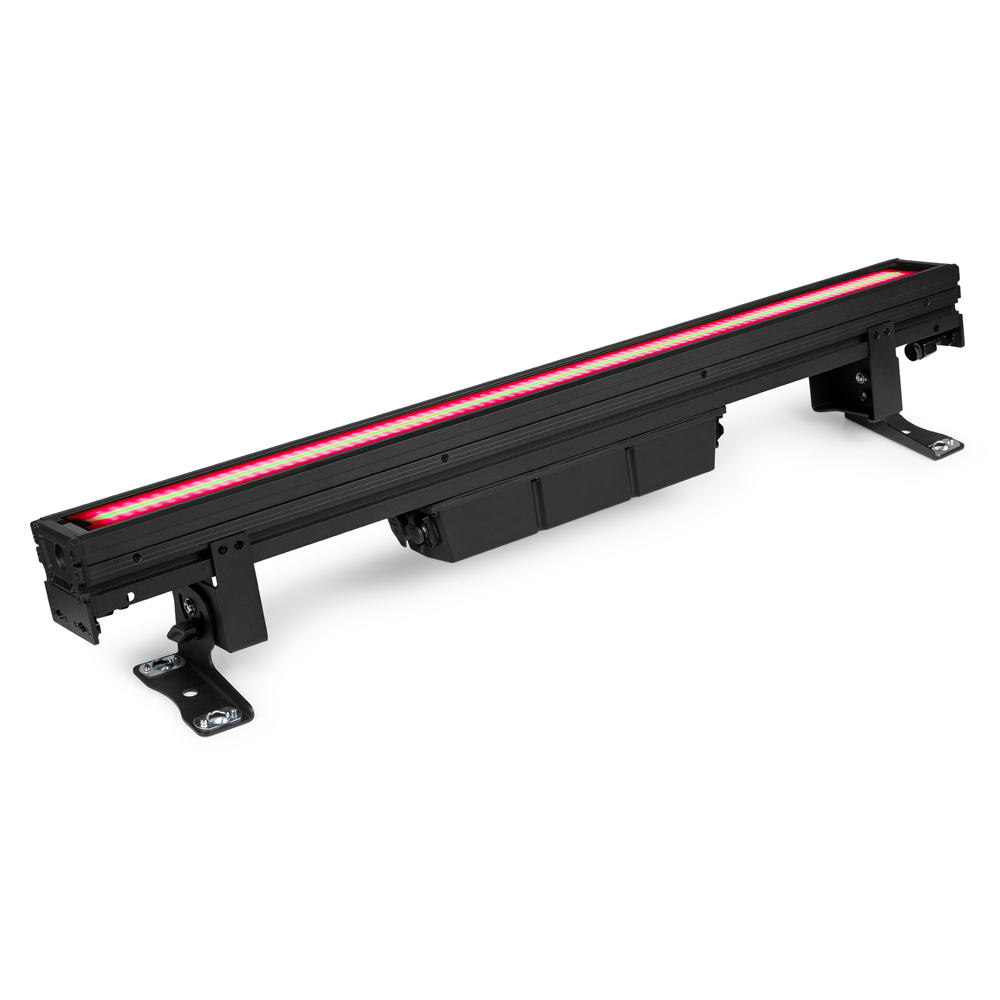

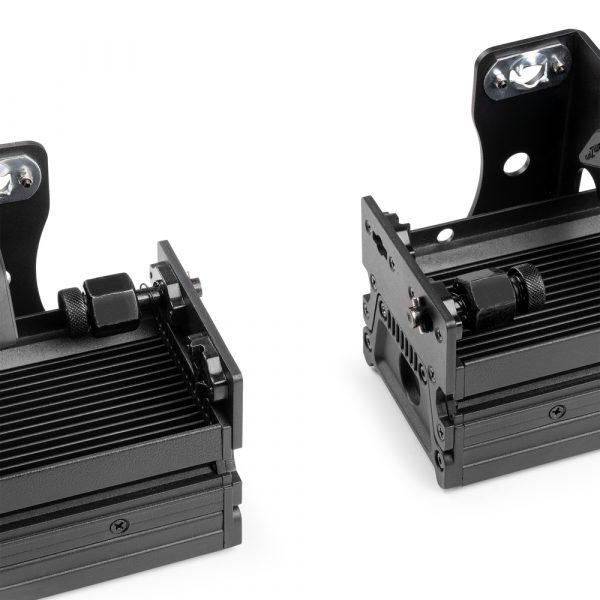

The LCB400IP is a robust aluminium LED bar specifically designed for indoor and outdoor environments. Utilizing advanced LED cutting-edge technology with RGB, Cool White and Amber SMD LEDs, the LCB400IP produces remarkable effects, making it versatile for a range of applications. It’s ideal for uplighting large venues and buildings or illuminating stages at live events. The fixture features a convection-cooled cast aluminium housing with watertight internal gaskets and weather-resistant power and DMX cable in/out connections. Quick Lock brackets are included for easy setup.
BeamZ PRO LCB400IP Outdoor 2-in-1 Liner Wash / Pixel Bar
RRP: $1,199.00 ex. GST
Key Features:
- IP65 LED Bar
- 504x SMD RGB LEDs
- 168x SMD Cool White LEDs
- 84x SMD Amber LEDs
- Separate controllable sections (RGB 36, CW 24 and Amber 12 sections)
- Weatherproof IP65 for indoor/outdoor use
- Pre-programmed shows and adjustable speed
- Electronic frost filter
- Strobe effect
- DMX and Stand-alone mode
- Master/Slave function
- Control panel with OLED display
- Aluminium housing with convection cooling
- Waterproof in/out connectors for DMX and power
Technical Data
| Product colour | Black |
|---|---|
| Light source | Single colour LED, 3-in-1 LED |
| Colours | Red, Green, Blue, Amber, Cool White |
| LED power (each) | 0.5W (RGB) 1W (Cool White) |
| Quantity of LEDs | 504 RGB + 168 Cool White + 84 Amber |
| Beam angle | 93° |
| Field angle | 127° |
| Illuminance | 19,772 lx @ 0.5m |
| Flash rate per second | 1 – 25Hz |
| Modes | Automatic programs, DMX, Master/Slave |
| RDM | Yes |
| DMX channels | 4, 6, 7, 12, 15, 35, 45, 75, 159 PX6 (RGB) 19 channels , PX6 All 31 channels, PX12 (RGB) 37 channels, PX12 All 61 channels, PX36 (RGB) 109 channels, PX All 145 channels |
| DMX connection | 5-pin XLR |
| IP rating | IP65 |
| Cooling | Convection |
| Display | OLED |
| Power plug | P-Con TR1 |
| Power consumption | 2.660 – 1.259A |
| Power supply | 100-240VAC 50/60Hz |
| Dimensions (L x W x H) | 1040 x 140 x 115mm |
| Weight | 9.80 kg |
| Â Included accessories | Mounting bracket, Power cable |
