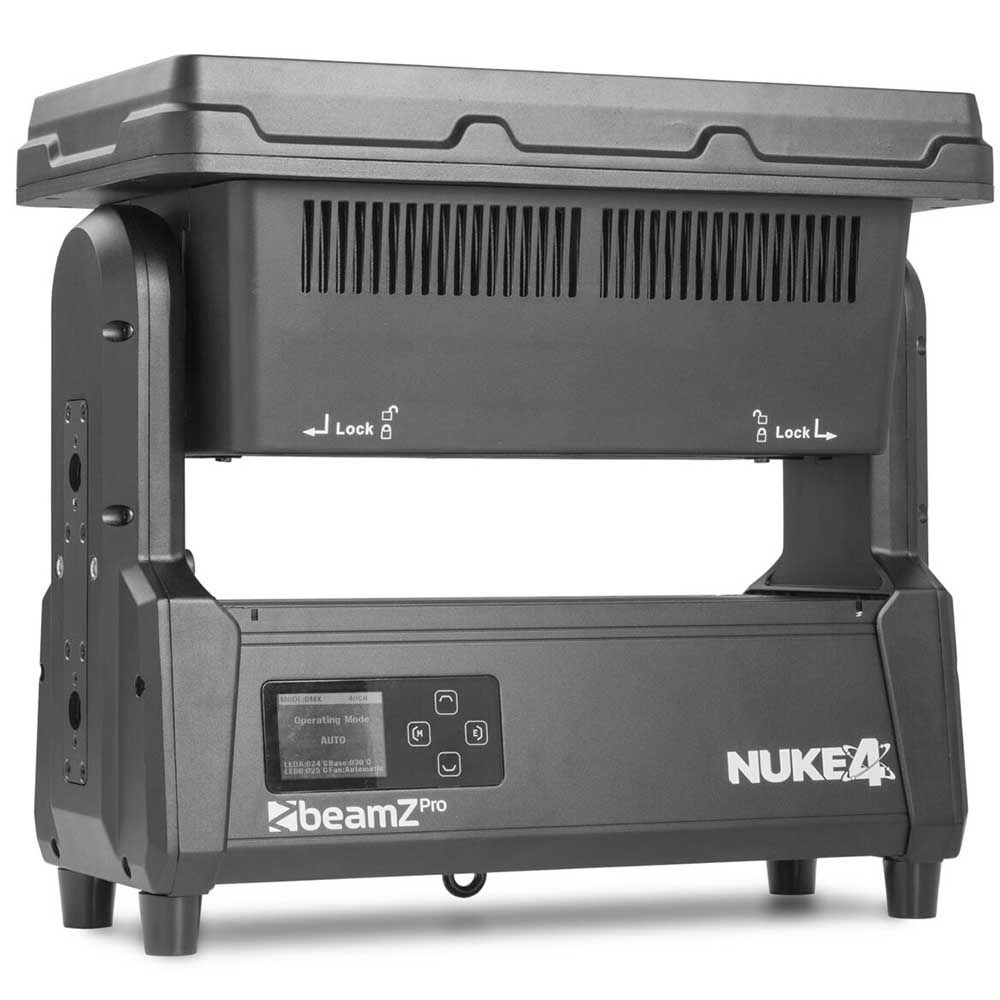

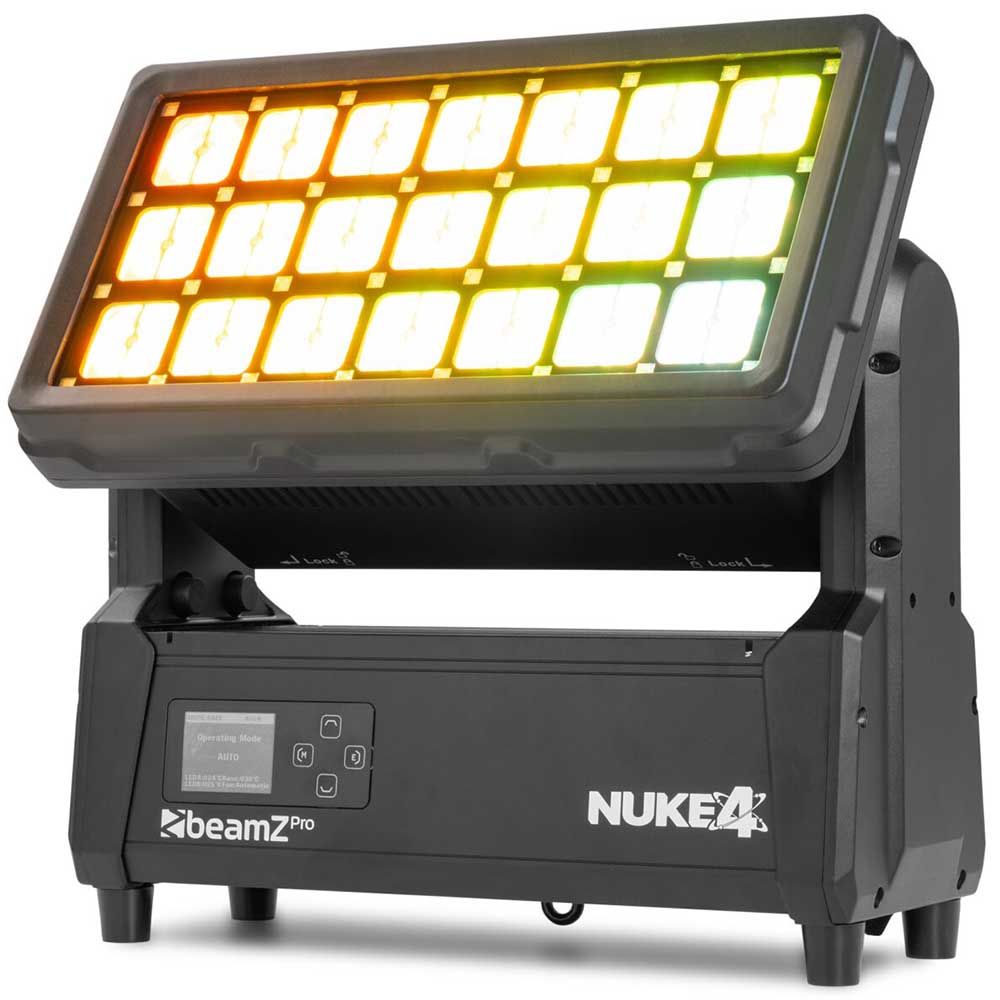

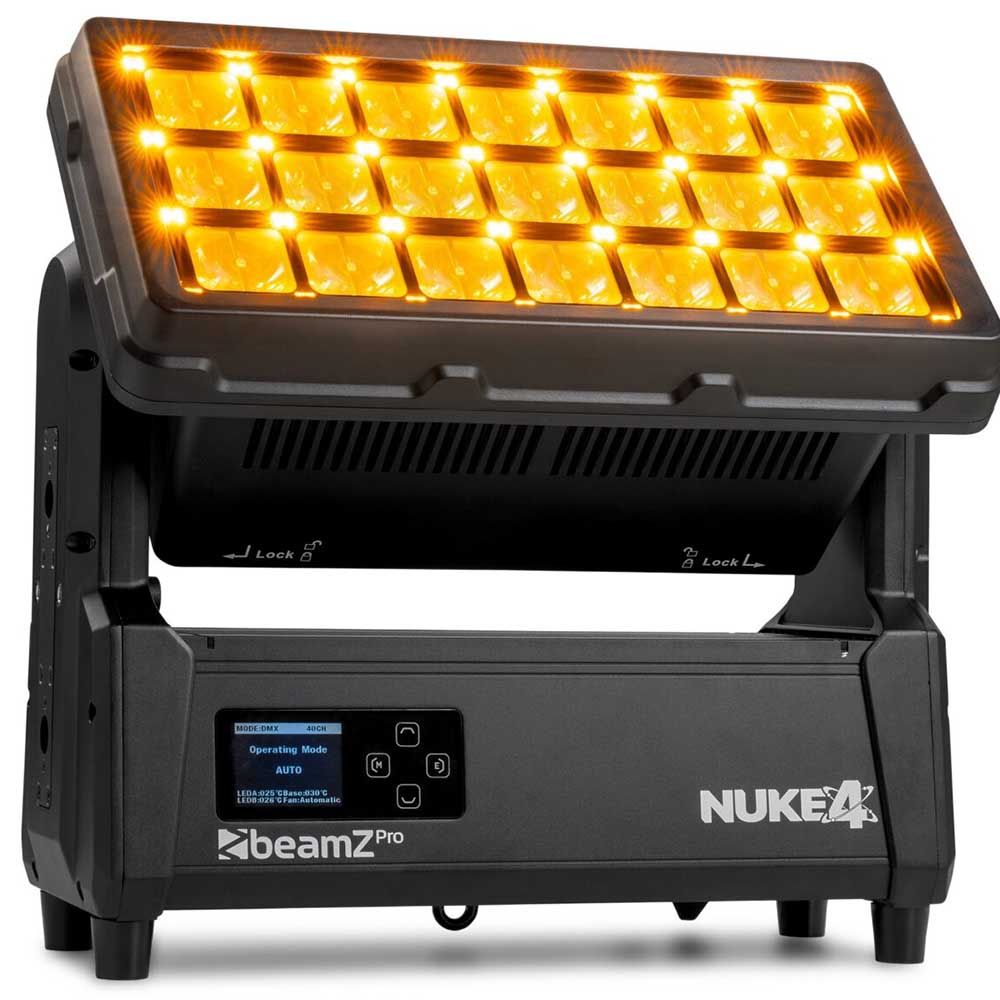

The BeamZ PRO NUKE4 Motorized Beam Outdoor is a hybrid strobe and beam fixture for large-scale outdoor productions, festivals and architectural lighting. It combines a top plate with RGBA strobe and pixel effects with a bottom plate of RGBW LEDs for beams and colour washes. The fixture provides a 180° motorized tilt range, DMX512, RDM, Art-Net and sACN control, pixel-controllable LEDs, automatic programs and built-in shows. Its IP65 housing supports outdoor installation and touring use.
BeamZ PRO NUKE4 Motorized Beam Outdoor
RRP: $2,779.00 ex. GST
Key Features:
- Hybrid strobe and beam fixture with 180° motorized tilt range

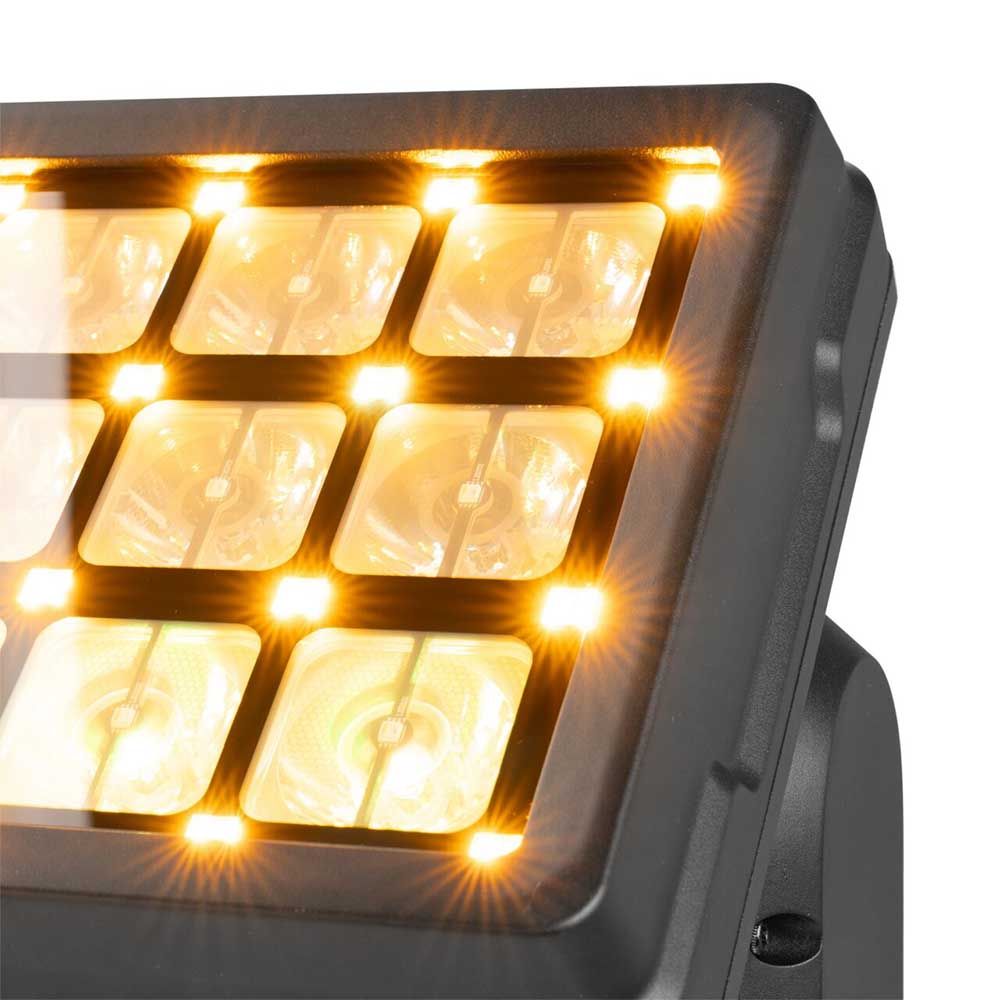

- Top plate with 21 x 1W RGBA and 32 x 3W RGBA LEDs
- Bottom plate with 21 x 40W RGBW LEDs
- Pixel-controllable LEDs with full pixel mapping
- DMX512, RDM, Art-Net and sACN control capability
- IP65 weatherproof housing
- 16-bit 0–100% dimming with selectable dimmer curves
- Electronic Frost Filter and adjustable effect speed
Technical Data
| Product colour | Black |
| Light source | 4-in-1 LED |
| Colours | Red, Green, Blue, Amber, White |
| LED power (single LED) | 40W |
| Quantity of LEDs | 21 |
| LED power | Strobe: 3W/1W |
| Quantity of strobe LEDs | 32 + 21 |
| Beam angle | 17° |
| Field angle | 23° |
| Illuminance | 137.393 lx @ 1m |
| IP rating | IP65 |
| DMX channels | 40, 334, 482, Net Mode |

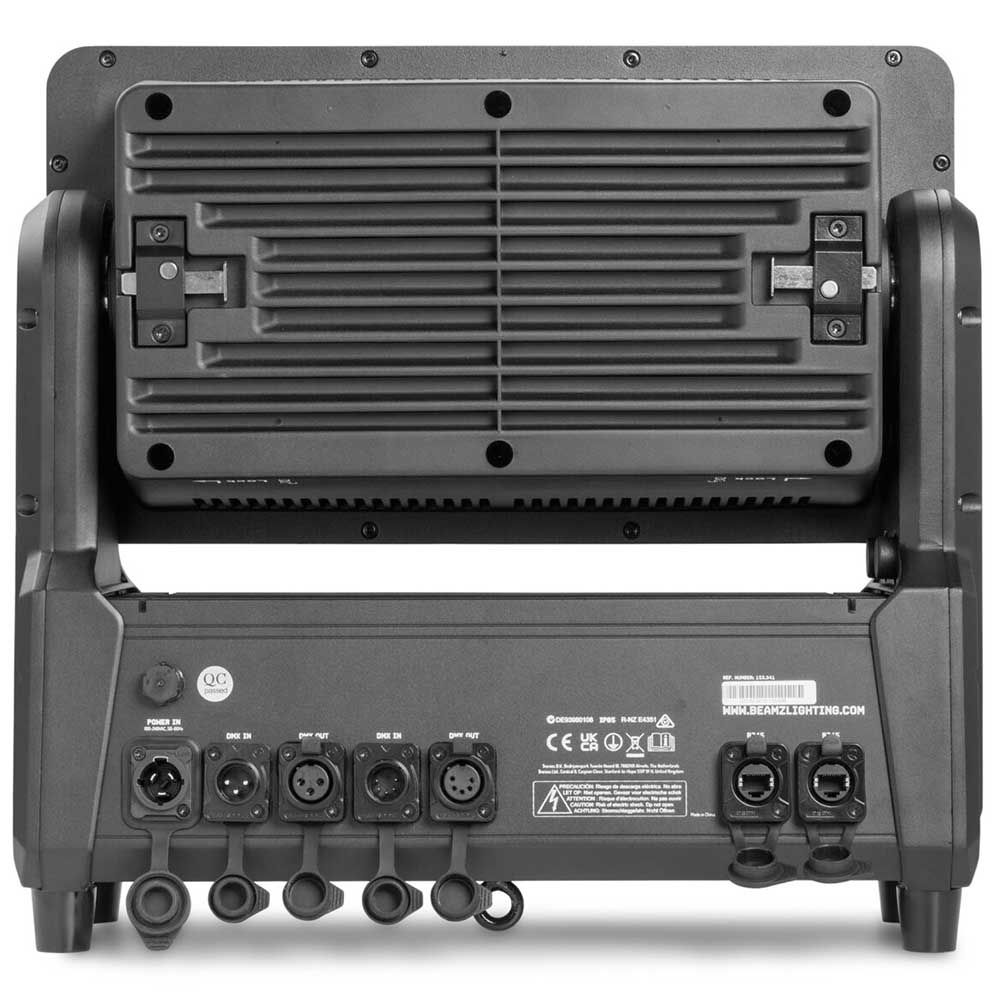

| DMX connection | ART-Net, 3-pin XLR, 5-pin XLR |
| Flash rate per second | 1 – 20Hz |
| Head movement | Tilt: 180° |

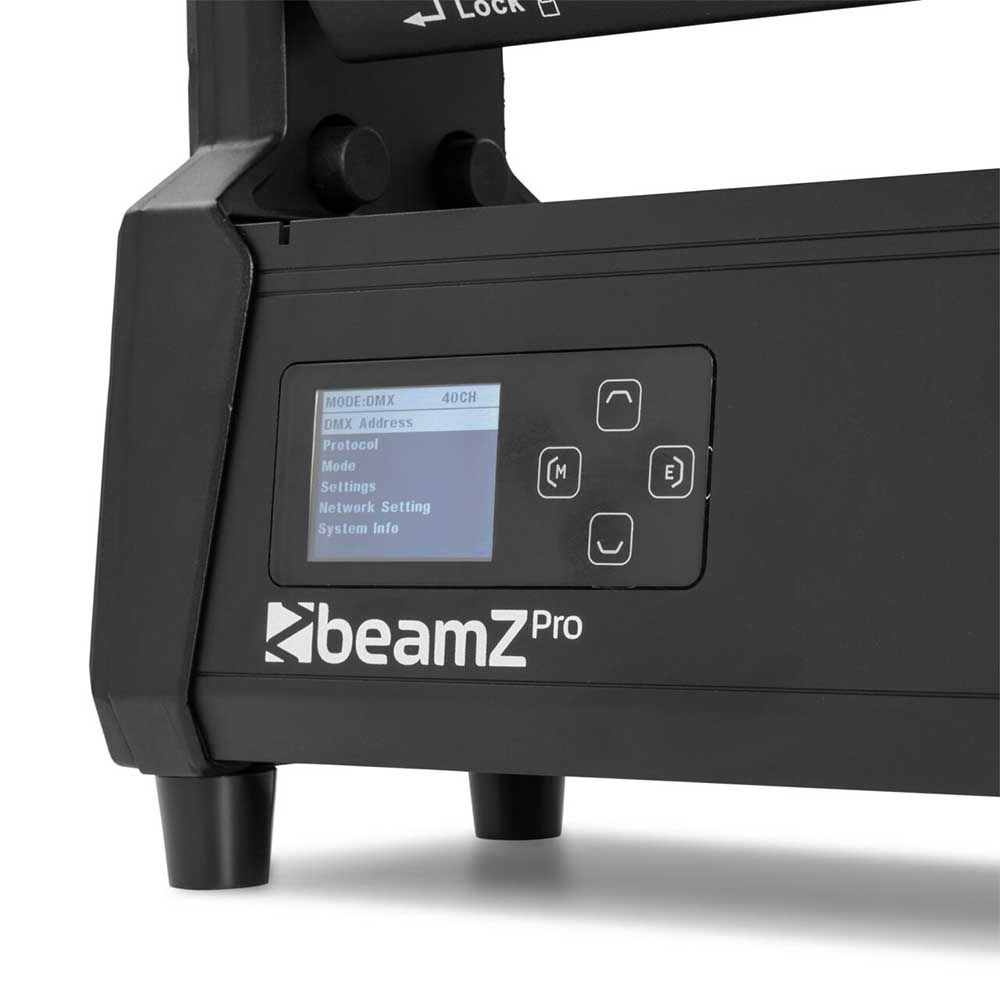

| Display | LCD |
| Modes | Automatic programs, DMX, Master/Slave |
| Power consumption | 9.28 – 4.78A |
| Power supply | 100-240VAC 50/60Hz |

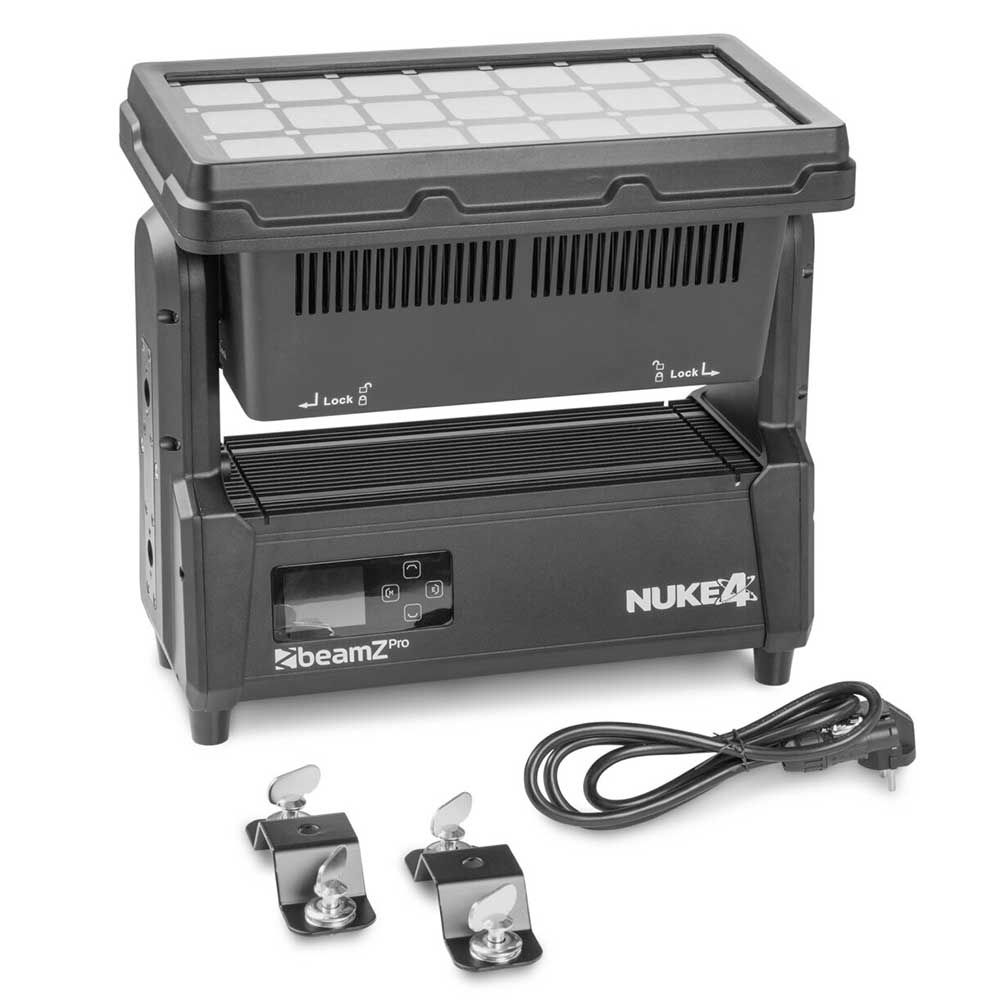

| Included accessories | Mounting bracket, Power cable |
| Dimensions (L x W x H) | 425 x 230 x 390mm |
| Weight (kg) | 20.6500 |
