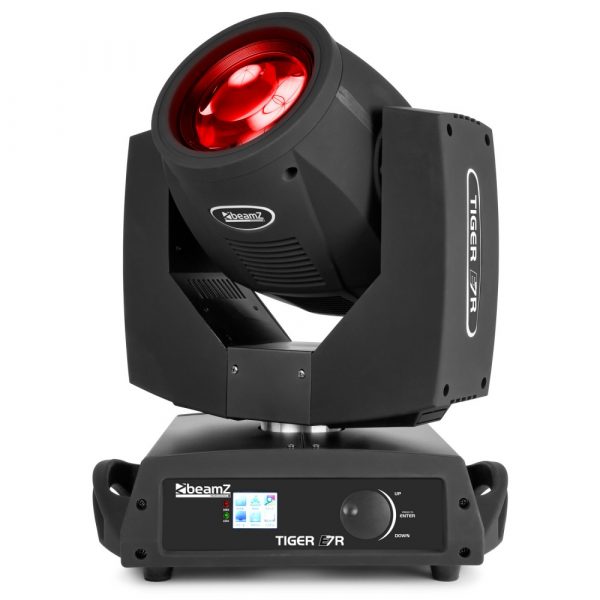

Beamz Tiger E 7R Moving Head Beam DMX

SKU TIGERE7R Categories ,
Find A Dealer
Key Features:
  • 230W 7R High Intensity discharge bulb (included)
  • Beam angle 5°
  • 17 Gobos + open beam
  • 14 Colours + open
  • Gobo shake effect
  • Frost effect lense
  • Rotatable 8 facet prism
  • Motorized focus
  • Mechanical shutter and adjustable speed strobe effect
  • Mechanical dimmer
  • 16 or 20 DMX channels
  • DMX and Stand-alone mode
  • Automatic pan/tilt correction
  • Reset function
  • Control panel with LCD Touch Screen display
  • DMX in/output via 3-pin XLR
  • Powerconnector input
  • Quick lock omega clamp included (2x)
  • DMX cable included
  • Powerconnector cable included

This Tiger 7R moving head has a very bright output due to the use of the 7R 230W high intensity discharge bulb. The moving head is equipped with a colour, frost, gobo and prism effect wheel for ultimate control. The gobo wheel has 17 different gobos + open, together with the motorized 16-facet rotating prism it can create a wide range of light effects. The colour wheel has 14 colours + open. This Tiger 7R moving head works both in DMX or stand-alone mode. When operating in DMX mode you have complete control with 16 DMX channels. Among its features are an mechanical shutter and adjustable speed strobe, frost lens, rotation prism, motorized focus and mechanical dimmer.

Technical Data

Colour temperature 8000K
Light source MSD 7R 230W bulb
Colour wheel 14 colours + open
Dispersion
Illuminance 80.000lx@10m
Pan Range 540°
Tilt Range 270°
Static gobo: Quantity 17
Gobo shake Yes
Prisma 1 8 Facet
Frost filter Yes
Flash rate per second 0 – 10Hz
Modes Automatic programs, DMX, Manual
Sound to light mode Yes
DMX channels 16, 20
DMX connector 3-pin XLR
Display LCD
IP rating IP20
Cooling Temperature controlled fan
Power Plug Power-connector
Power consumption 0.6 – 1.1A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 330 x 395 x 460
Weight 16.7kg

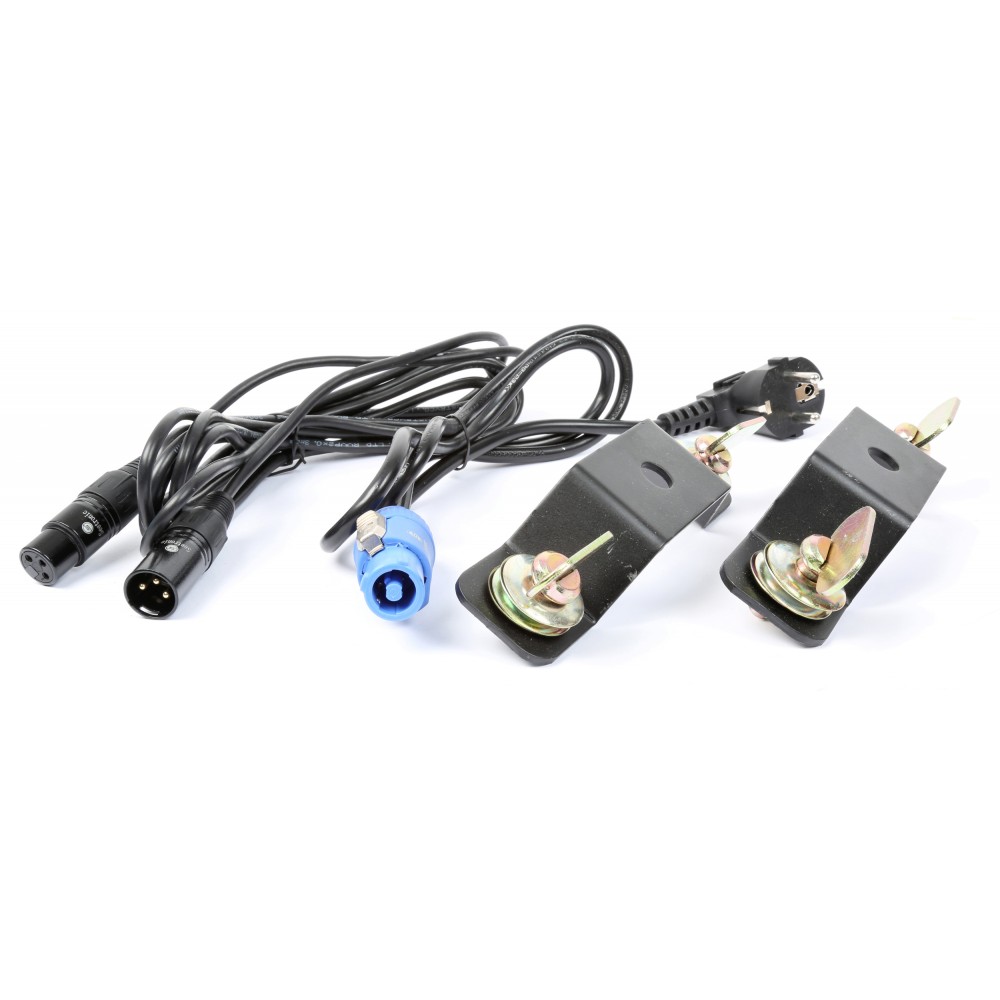

Accessories DMX cable, Mounting bracket, Power cable

Related Documents

Tiger E7R MANUAL
