The Cameo F1 FC is a compact full-color Fresnel spotlight equipped with a 2,600 lumen RGBW LED source that replaces traditional 650W halogen units. It features continuous color temperature adjustment from 1,600 K to 6,500 K with CRI over 90 and green-magenta correction. The unit offers a zoom range from 15° to 53° and selectable pulse-width modulation frequencies up to 25 kHz for flicker-free video recording. Designed for mobile and professional use, it includes a lightweight magnesium housing, silent cooling mode, and an optional V-mount battery plate for cordless operation.

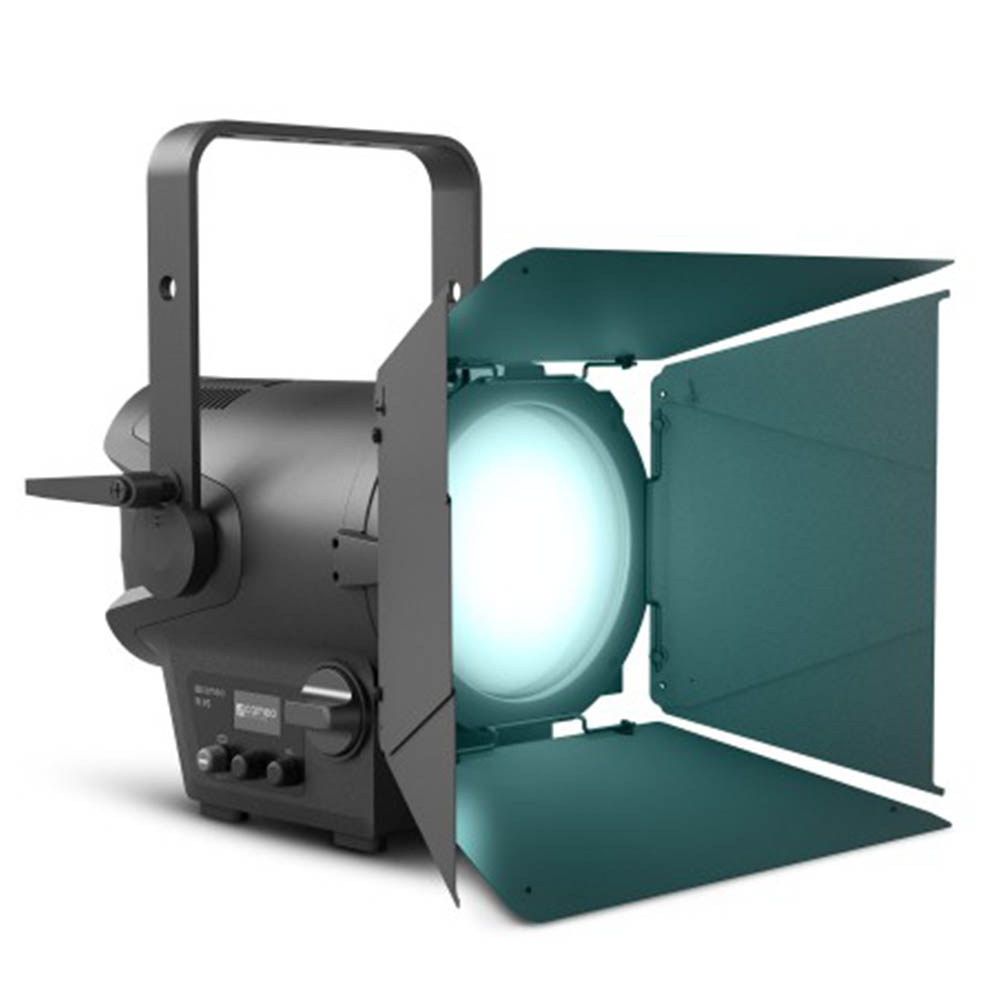

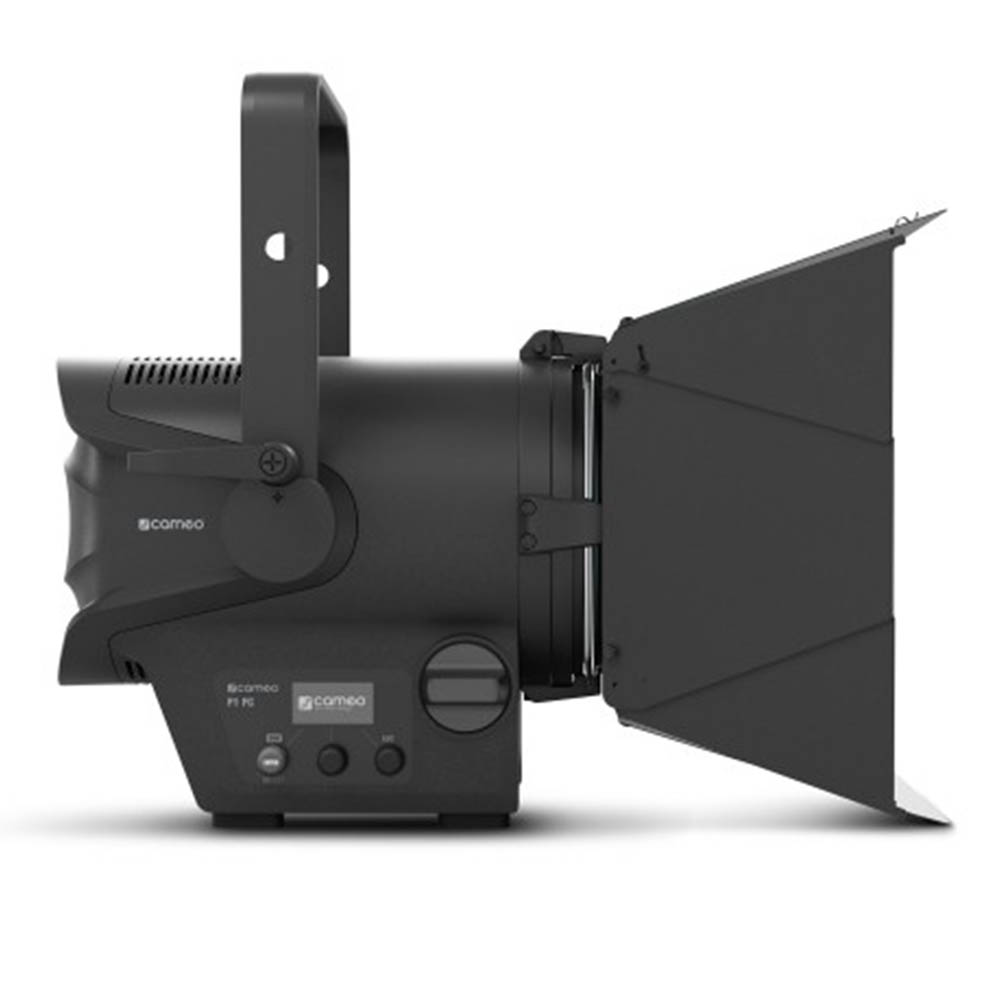

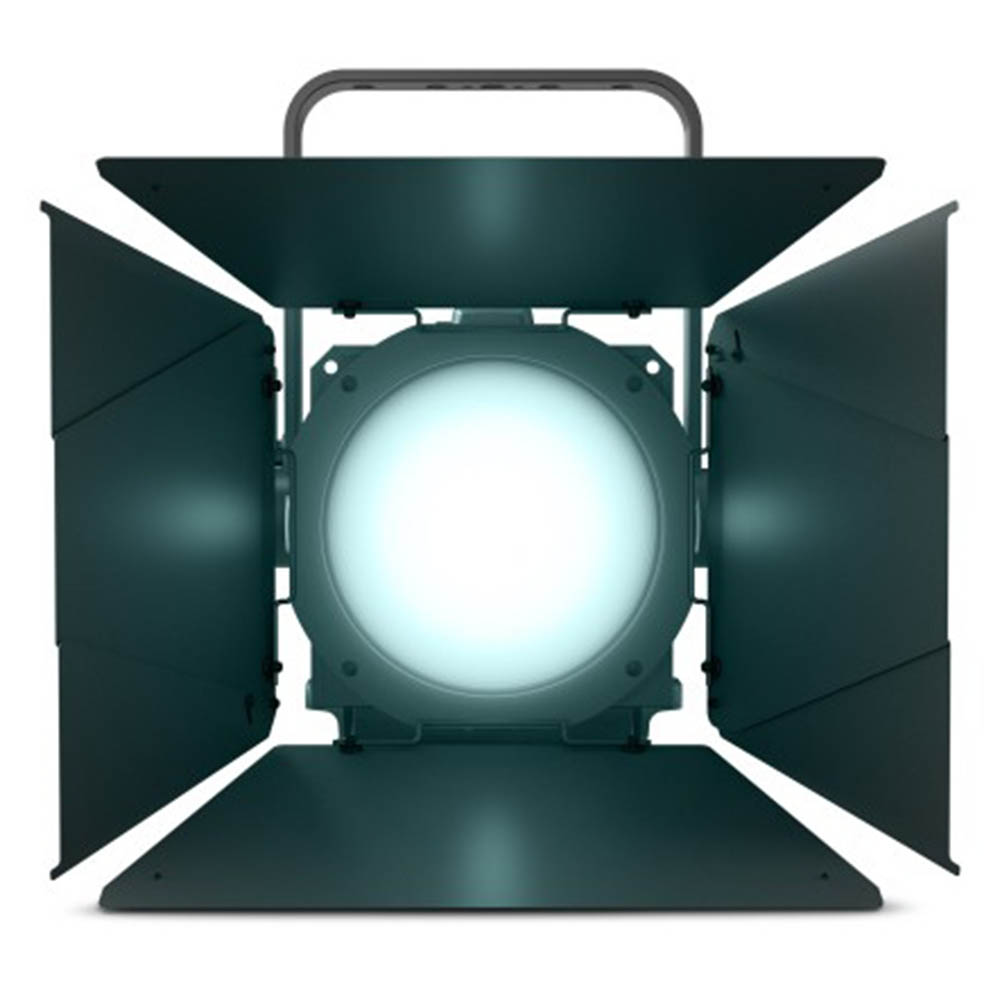

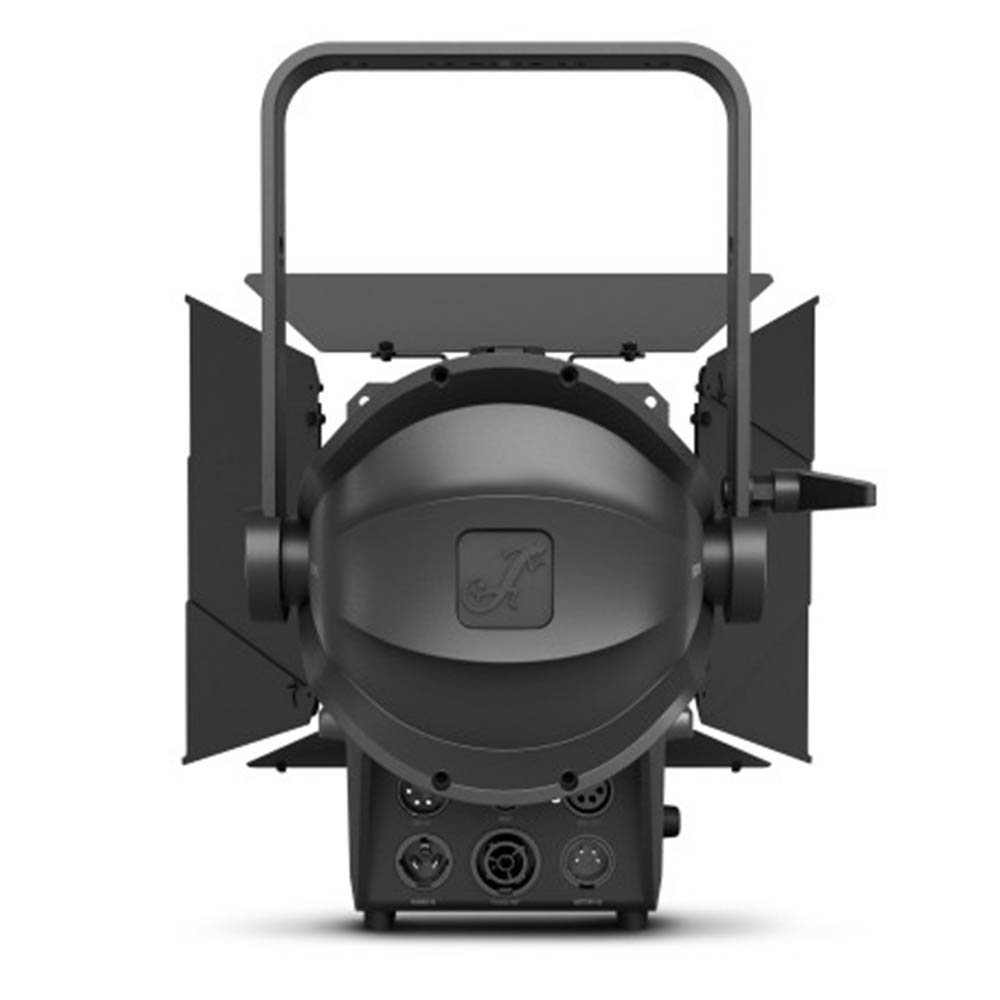

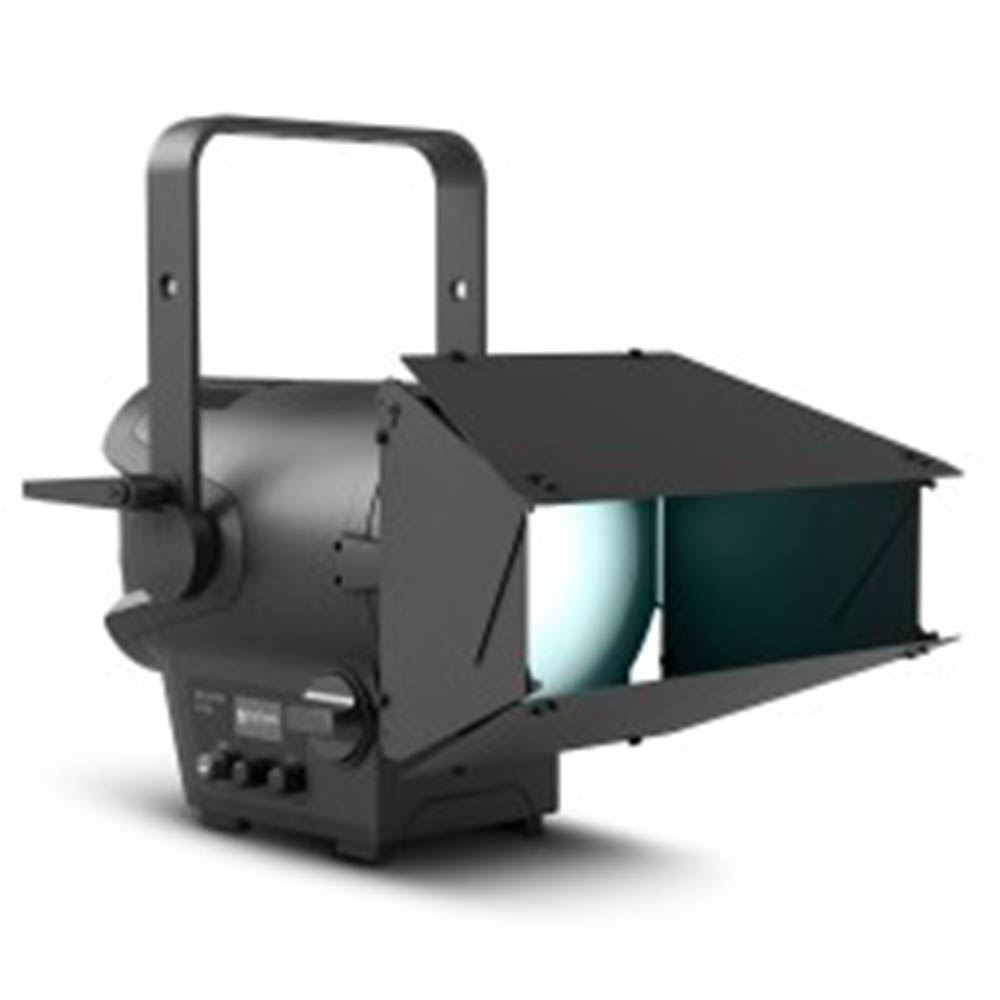

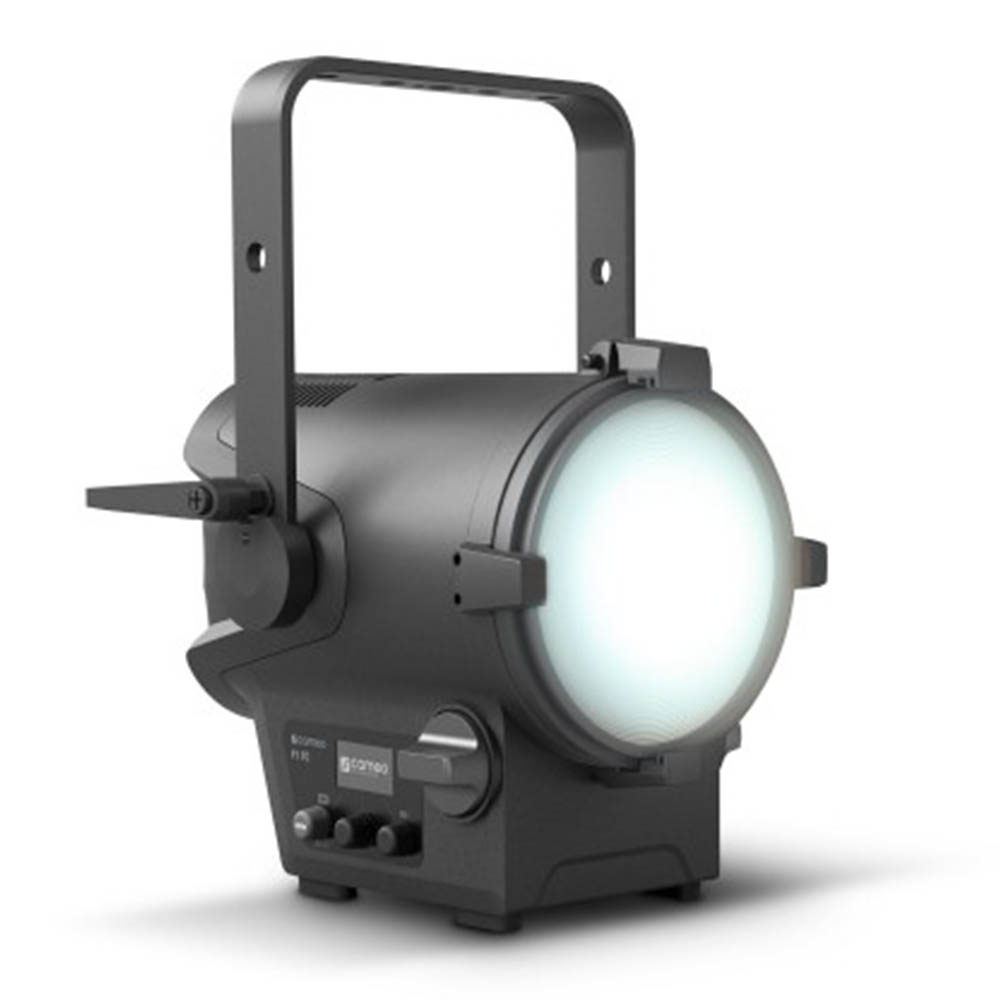

Cameo F1 FC Compact Full-Color Fresnel Spotlight
Key Features:
- Full-color Fresnel spotlight with RGBW-LED
- 2,600 lm luminous flux replacing 650W halogen Fresnel spotlights
- Continuous 1,600 – 6,500 K color temperature adjustment with CRI > 90
- Adjustable green-magenta correction
- Continuously variable zoom range 15° to 53°
- Selectable pulse-width modulation frequency up to 25 kHz for flicker-free operation
- Four selectable dimmer curves with adjustable response
- Silent mode and efficient cooling system
- Includes 8-way barn door and gel frame
- Compact, lightweight magnesium housing (4.5 kg)
- Optional V-mount battery plate for battery operation
Technical Data
| Luminous Flux | 2,600 lm |
| LED Data | 124 RGBW LED |
| Beam / Field Angle | Beam: 15° / Field: 26° |
| LED PWM Frequency | 800 Hz, 1,200 Hz, 2,000 Hz, 3,600 Hz, 12 kHz, 25 kHz |
| Correlated Colour Temperature (CCT) | 1,600 – 6,500 K |
| Control | Stand alone operating modes, Master/slave, Static |

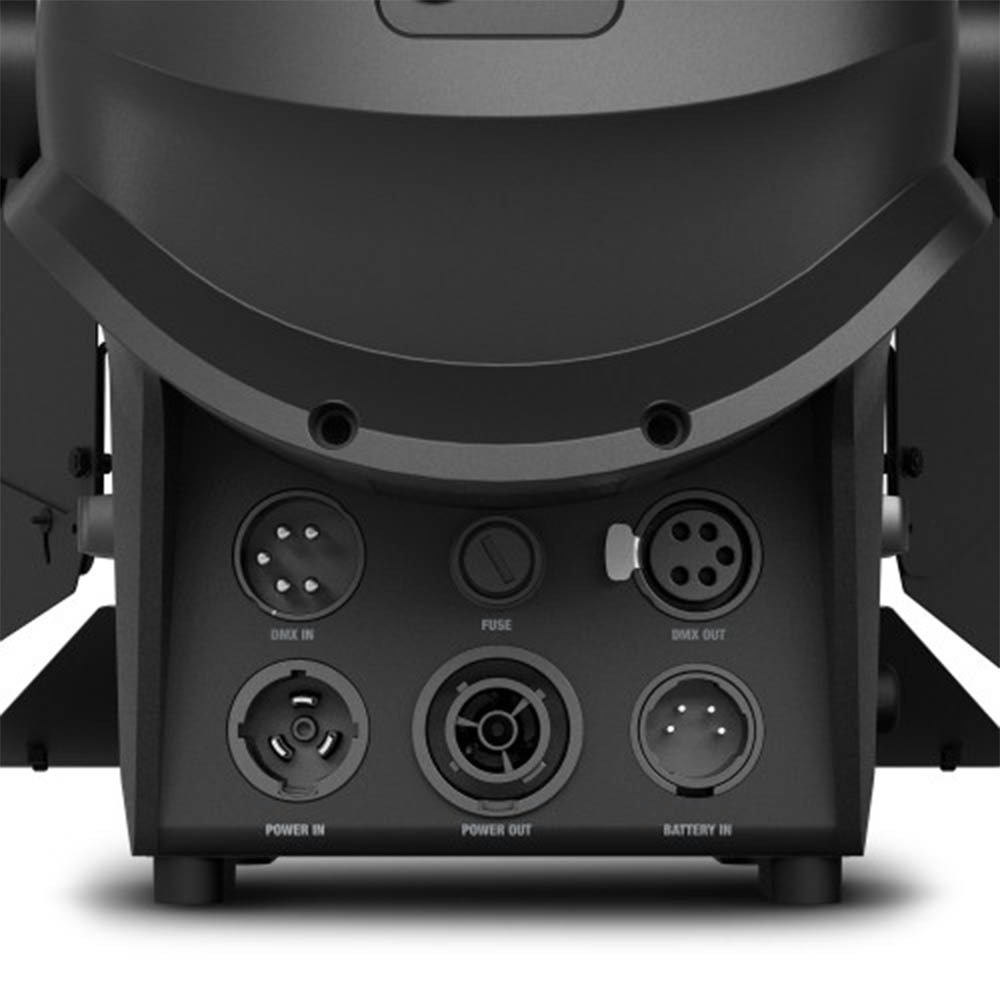

| Data In Connector | XLR 5-pole male |
| Data Out Connector | XLR 5-pole female |
| Mains Operation | Operation voltage 100 V AC – 240 V AC / 50 – 60 Hz |
| Rated Power | 128 W |
| Cabinet Material | Magnesium |
| Colour | Black |
| Cooling System | Heat pipes, Temperature controlled fan cooling |
| Protection Class | IP20 |
| Ambient Temperature | -15 – 40 °C |
| Width | 225 mm |
| Height | 255 mm |
| Depth | 280 mm |
| Weight | 4.5 kg |
