The Cameo CLS2IP S2 IP LED Softlight Panel is a smaller, robust lighting solution suitable for outdoor and indoor environments thanks to its IP65 rating. It features 272 single SMD LEDs per color (RGBWW) arranged in a 4-cluster configuration, delivering natural color rendering with a CRI of 95 and TLCI of 91, and covers 85% of the extended Rec. 2020 color space. The panel offers adjustable color temperature from 1,800 to 10,000 Kelvin and multiple control options including DMX, W-DMX, ArtNet, sACN, and RDM. It is designed with ergonomic handles and lockable powerCON TRUE1 connectors, enhancing its practicality for professional use in film, studio, and live streaming setups.

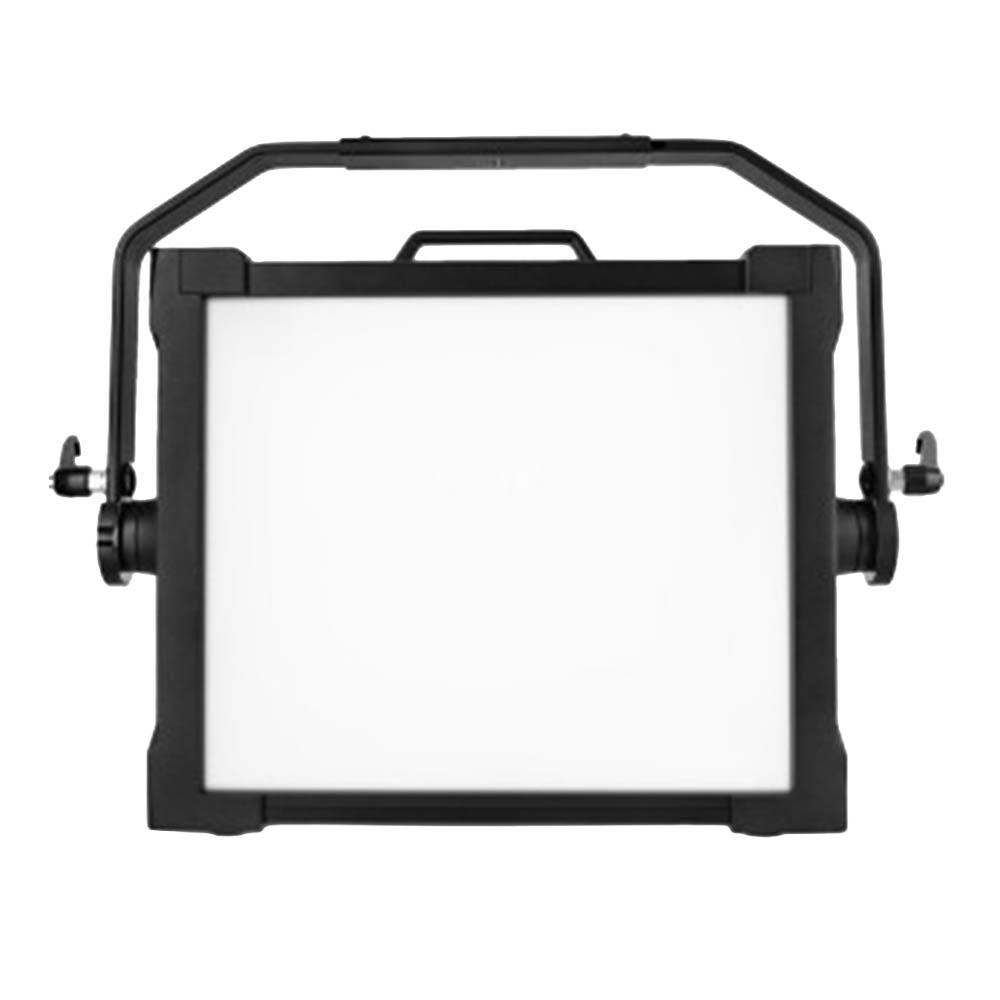

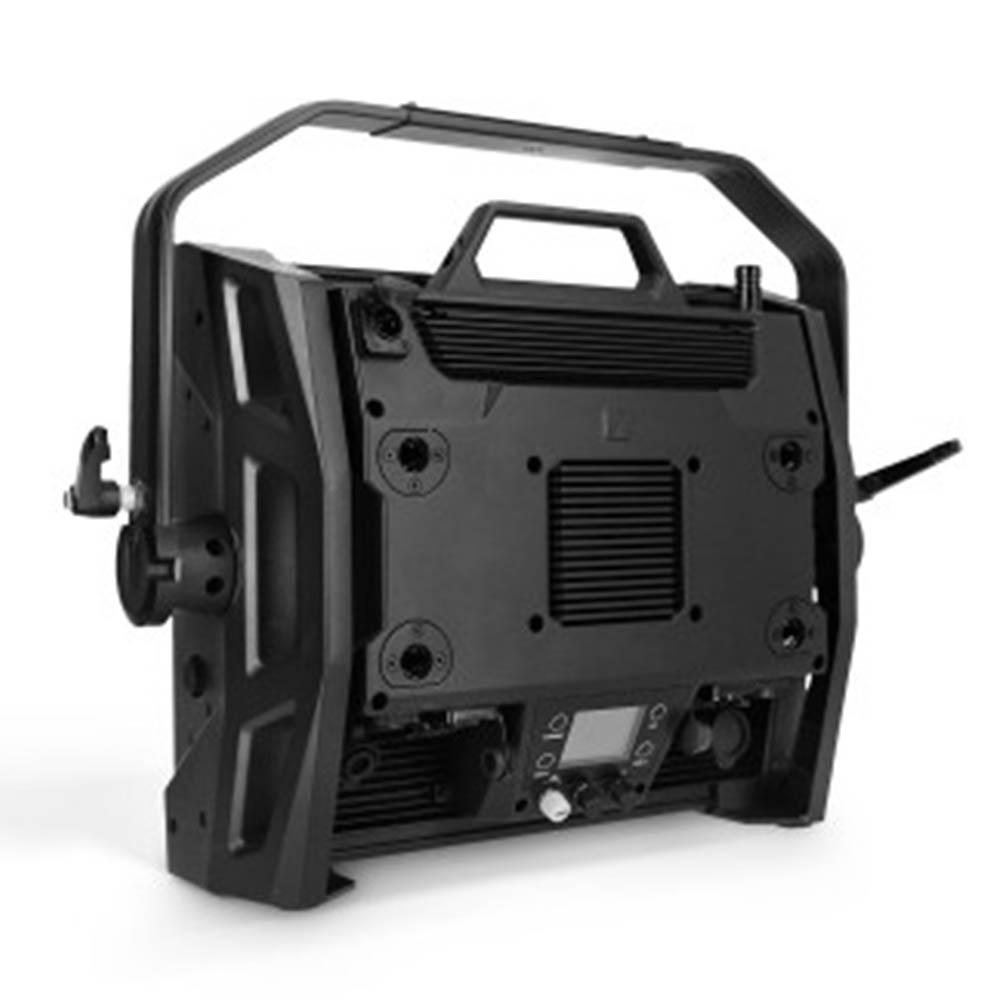

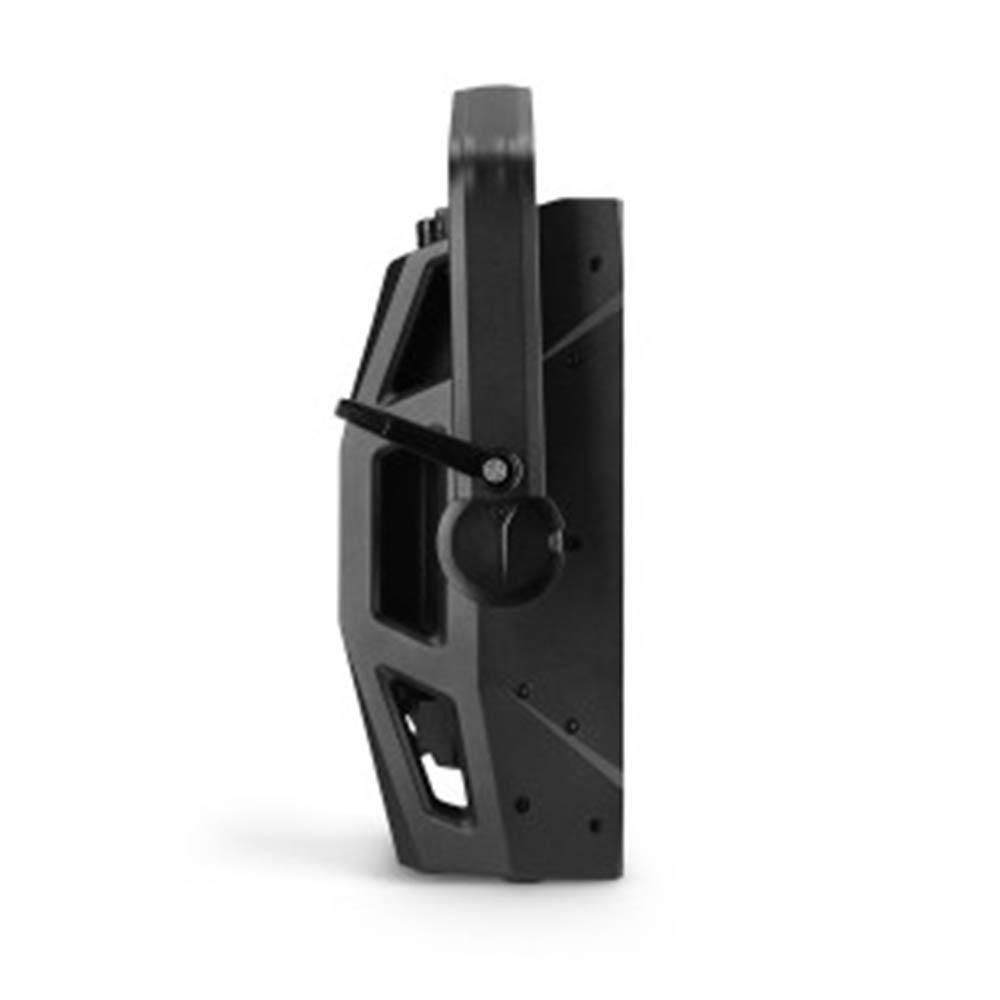

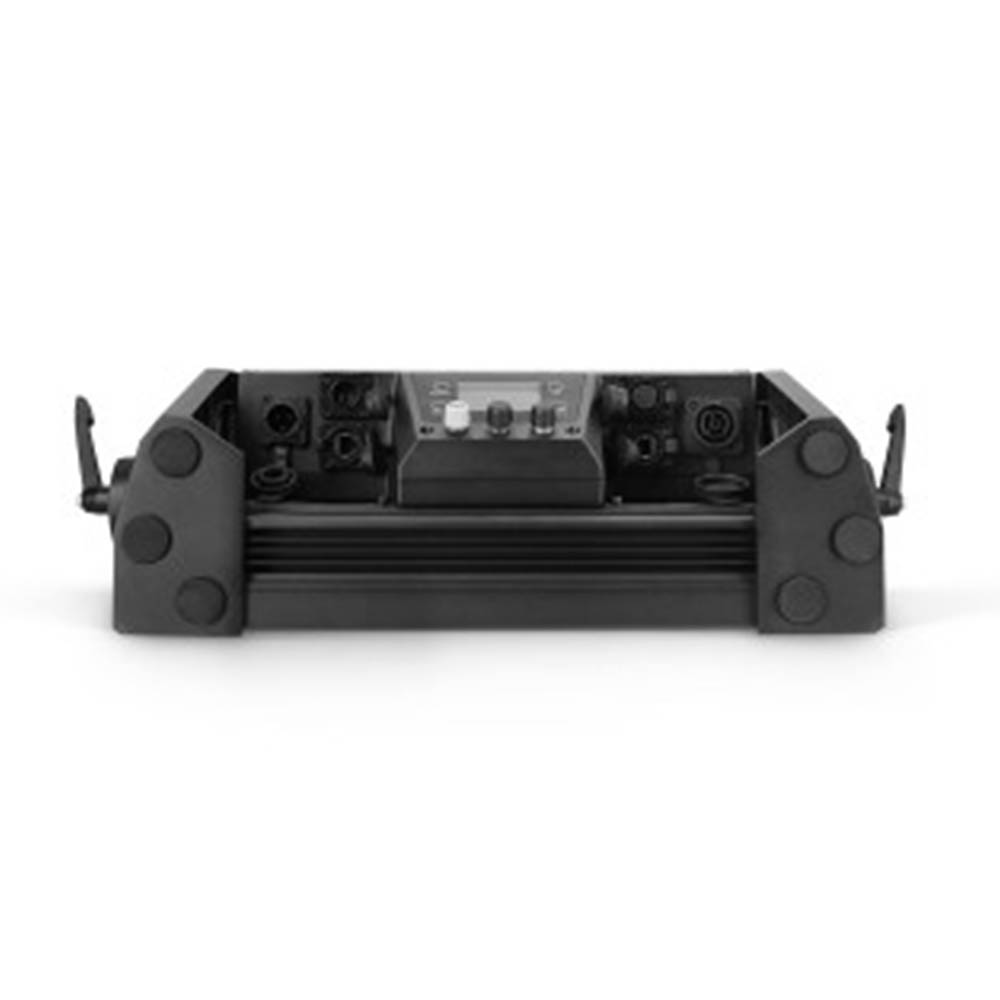

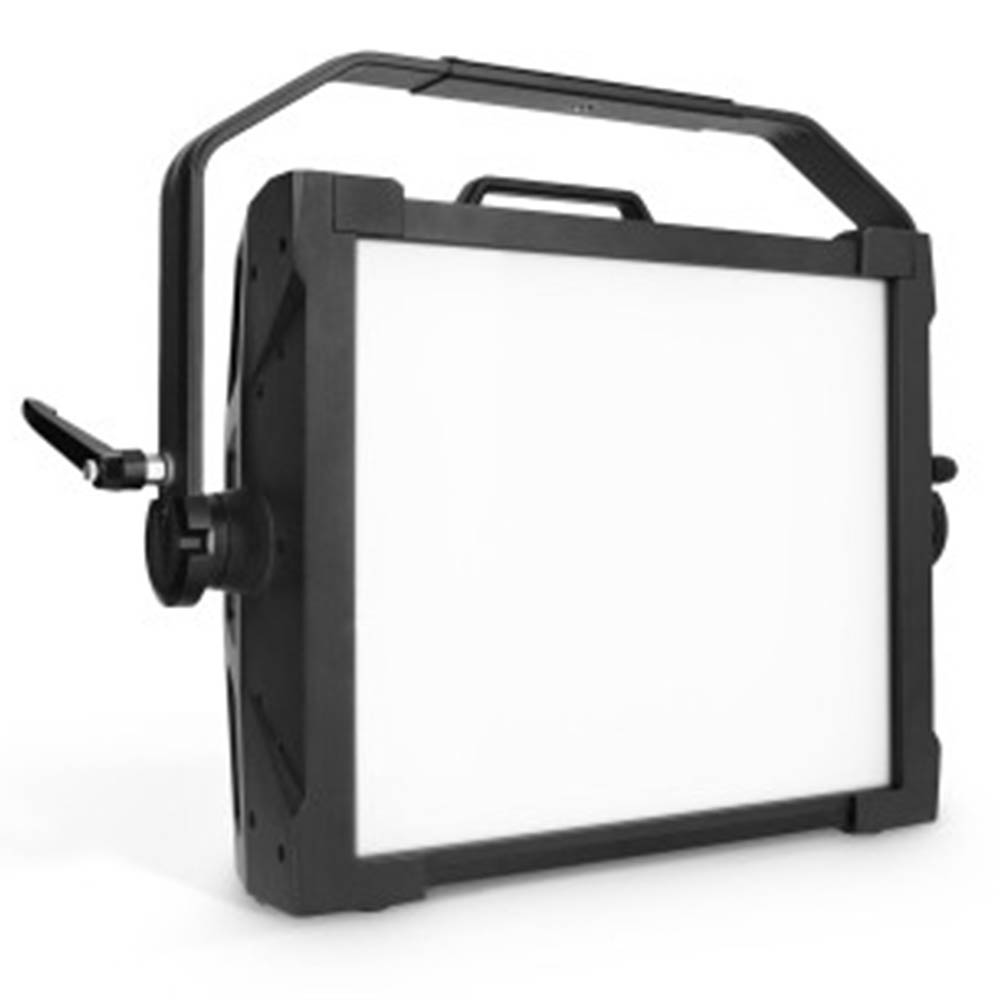

Cameo S2 IP IP65 LED Softlight Panel
Key Features:
- 272 single SMD LEDs per colour (RGBWW) in 4-cluster arrangement
- Enables outdoor use thanks to IP65 classification
- Adjustable temperature range from 1,800 – 10,000 K
- Adjustable PWM frequency for flicker-free operation
- Manual operation on the unit or via EZRemote with the optional UNICON® (CLIREMOTE)
- Control options via DMX, W-DMX, ArtNet, sACN & RDM
- Ergonomic handles for safe handling
- High colour rendering values (CRI 95, TLCI 91), plus 85% coverage of Rec. 2020 colour space
- Optional dark filter (CLS2IPDARKFILTER) integrates the panel into any scenery
- Numerous accessory options such as Honey Combs, Intensifier, Barndoor and many more.
Technical Data
| DMX512 | Communication standard DMX512 enabling control of up to 32 devices |
| Environment-friendly | High energy efficiency, long LED lamp life, low heat dissipation |
| Protection Class | IP65 |
| LED Technology | Bright LEDs with low heat, long life, low energy consumption |
| Master & Slave | Supports master/slave mode for device synchronization |
| Colour System | RGB additive colour system plus white LEDs for enhanced contrast and clearer colour boundaries |
| Standalone Mode | Controlled via integrated programmes |
| Strobe | Fast flash sequences for slow-motion effect |
| RDM | Full RDM capability |
| ARTNET Compatible | Yes |
| W-DMX | Wireless DMX data transmission |
| ETL Certified | Yes |
| LED PWM Frequency | 650 Hz, 1,530 Hz, 3,600 Hz, 12 kHz, 18.9 kHz, 25 kHz |
| Luminous Flux | 16,000 lm |
| Illuminance | 223 lx at 5 meters |
| Beam / Field Angle | 102° beam / 157° field |
| Operation Voltage | 100 V AC – 240 V AC / 50 – 60 Hz |
| Rated Power | 252 W |
| Cabinet Material | Magnesium |
| Colour | Black |
| Cooling System | Temperature controlled fan cooling |
| Ambient Temperature | -15 to 40 °C |
| Dimensions (W x H x D) | 594 mm x 439 mm x 153 mm |
| Weight | 13.48 kg |
