Chamsys GeNetix GA10D is a DIN rail mountable 10-port converter for DMX, Art-Net and sACN input to analogue 0-10V output. It provides ten 0-10V analogue outputs through Phoenix screw terminals, with DMX in and through available via terminal block connectors. The unit is powered via an external 12-48V power supply, purchased separately, and includes an onboard menu display with push-button navigation for configuration. Output port status is shown by LEDs, and each output port is rated at 20mA.

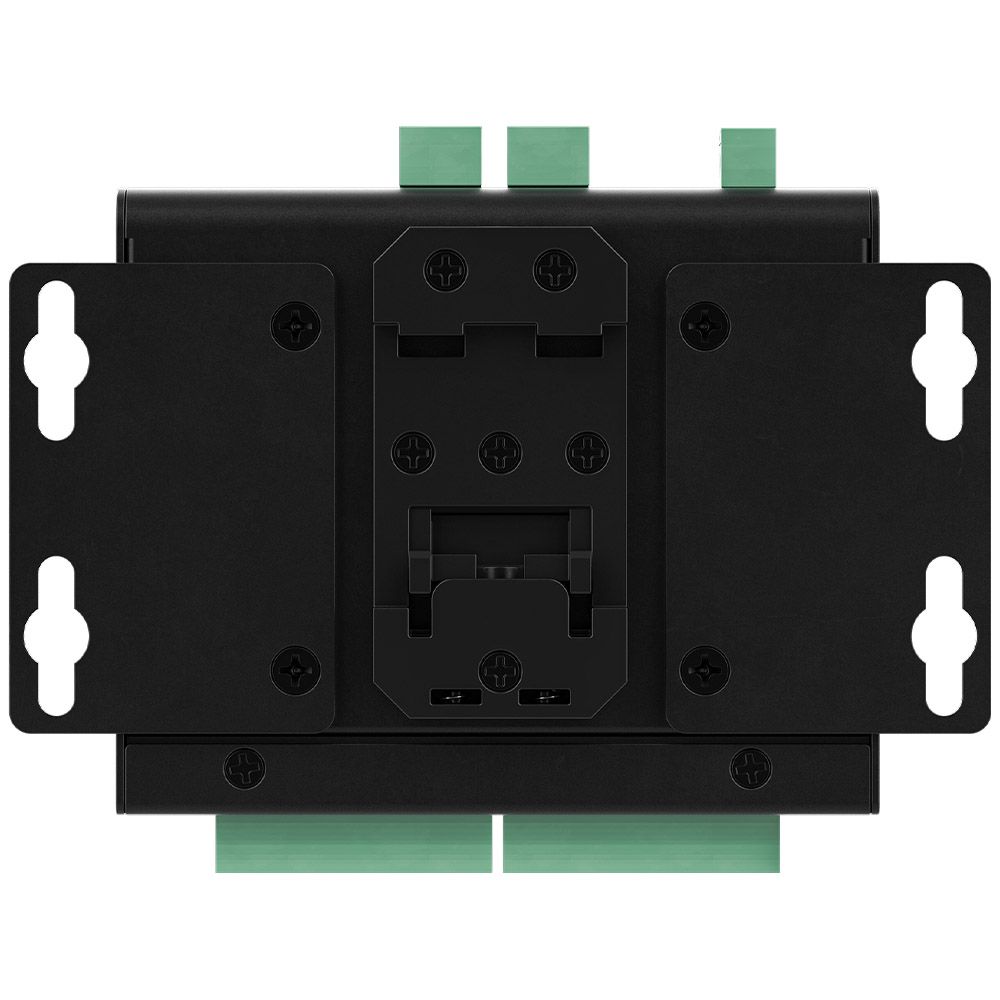

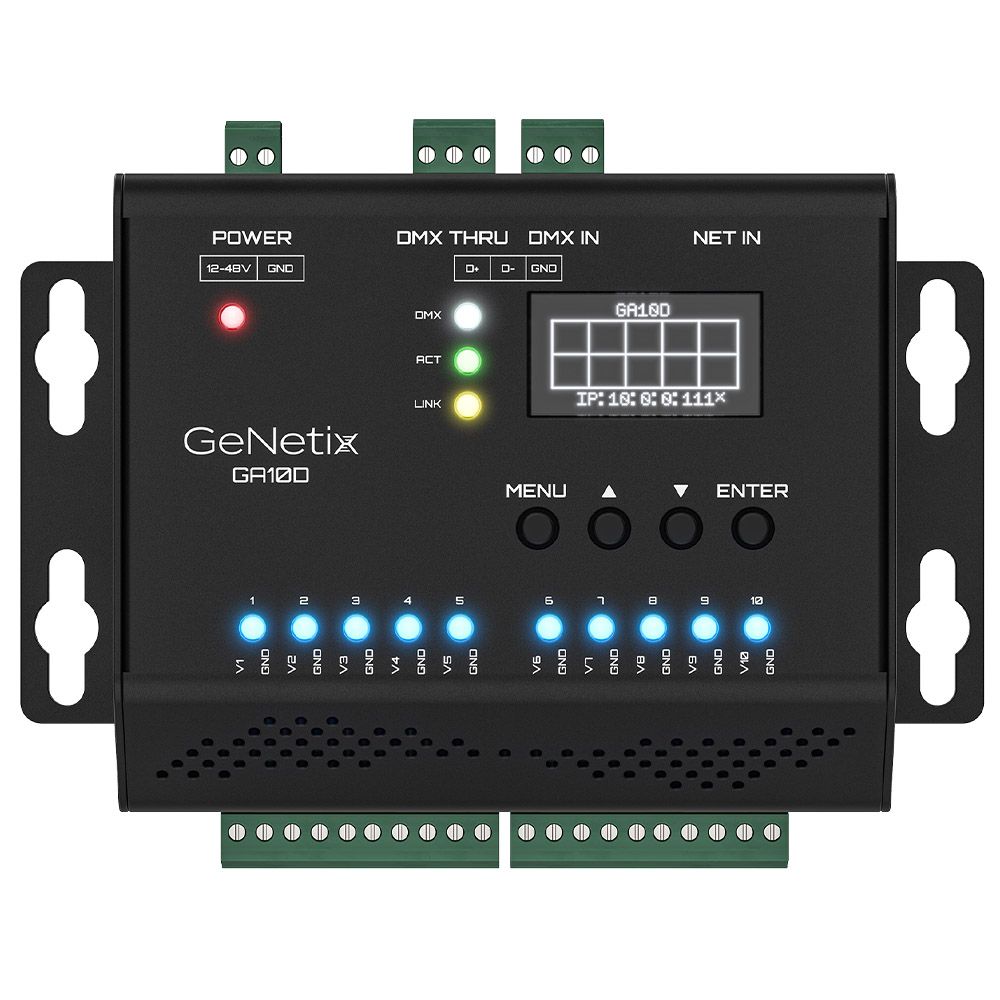

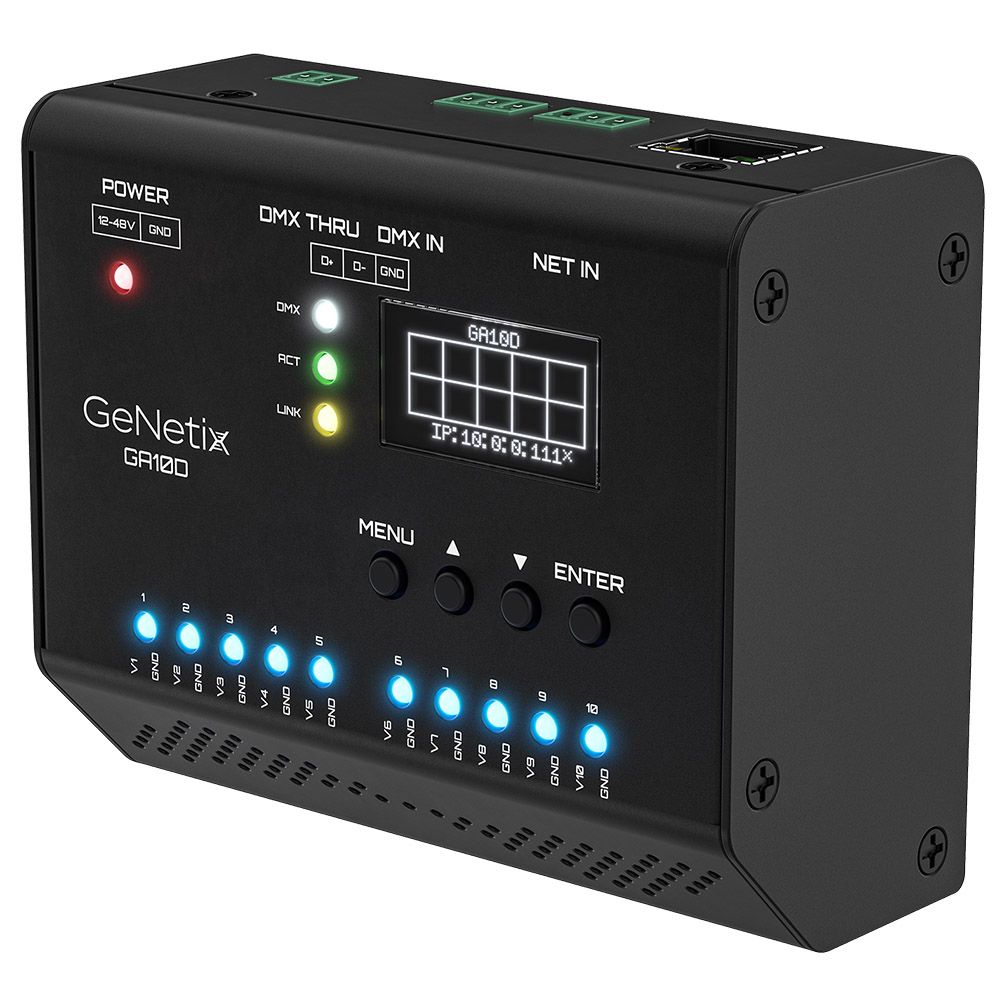

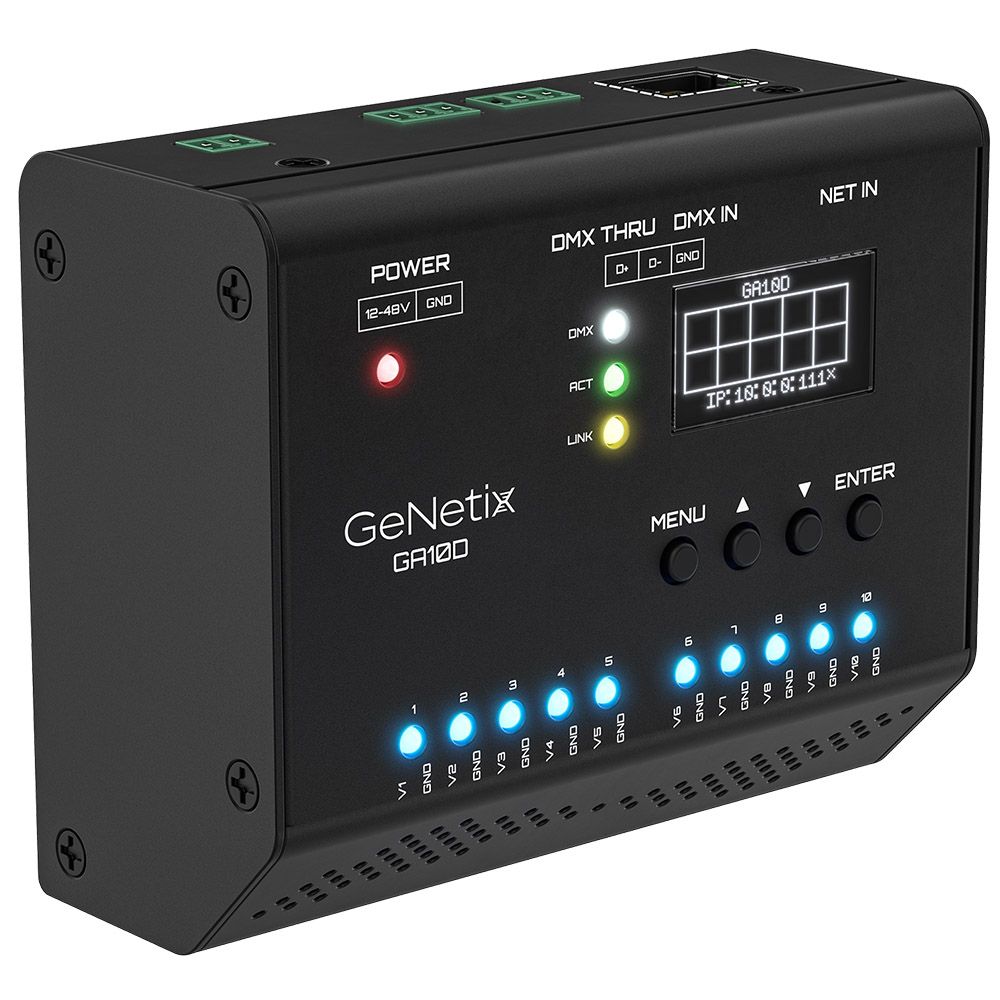

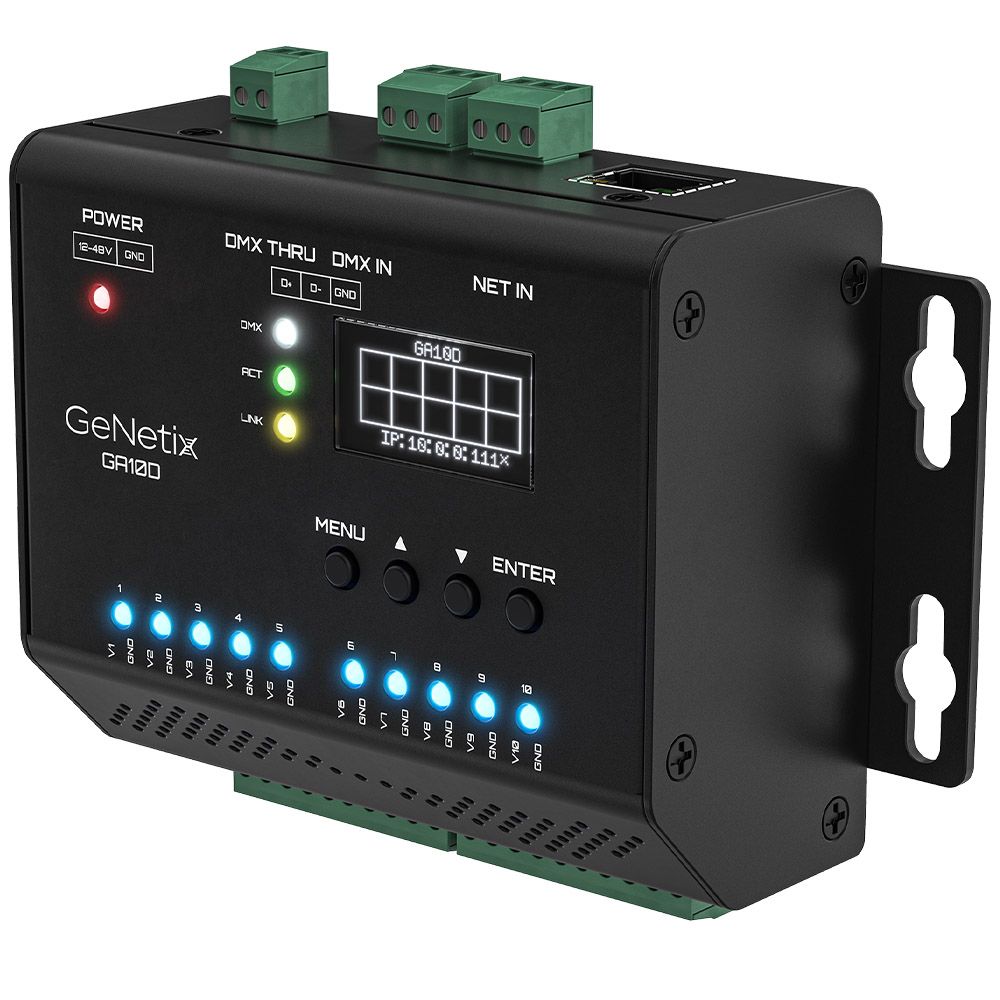

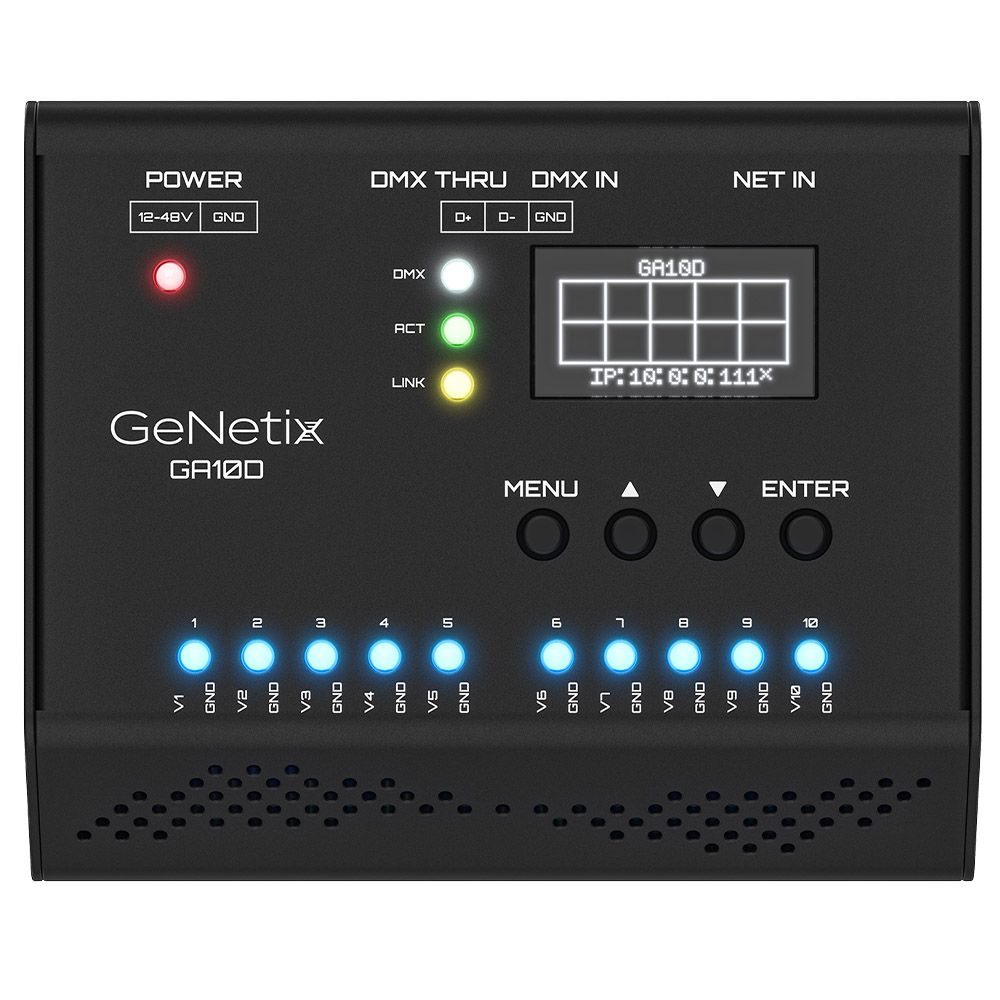

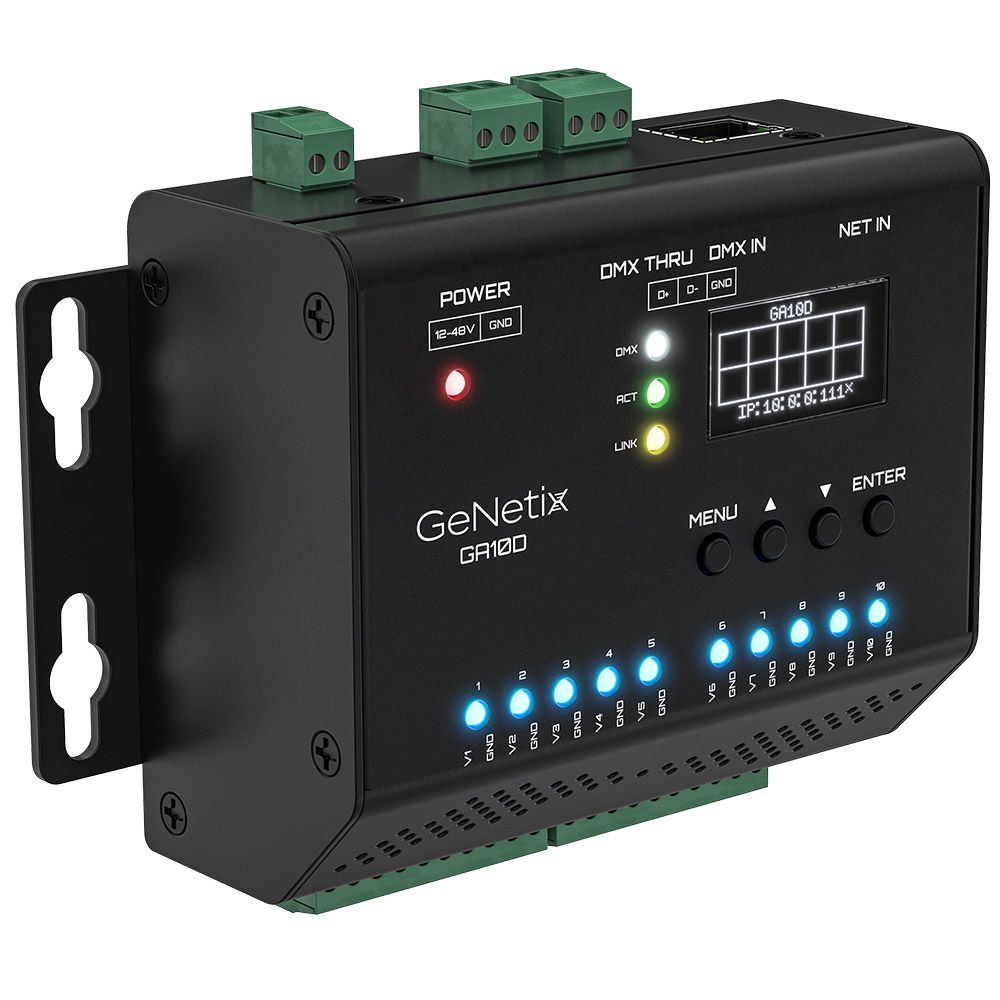

Chamsys GeNetix GA10D DIN Rail DMX to 0-10V Converter
RRP: $1,047.00 ex. GST
Key Features:
- Phoenix Screw Terminal 0-10v Outputs: 10
- DMX In and Through option: Yes
- Art-Net/sACN/DMX In option: Yes
- DIN Rail Mounted: Yes
- Powered via External 12-48v Power Supply: Yes
- Output port Rating: 20mA per port
Technical Data
| Width (Boxed) | 185mm (7.28 inches) |
| Depth (Boxed) | 170mm (6.69 inches) |
| Height (Boxed) | 90mm (3.54 inches) |
| Weight (Boxed) | 0.6 KG (1.32 lb) |
| Width (Unit) | 104mm (4.09 inches) |
| Depth (Unit) | 87mm (3.42 inches) |
| Height Inc DIN Clip (Unit) | 65mm (2.55 inches) |
| Weight (Unit) | 0.4 KG (0.88 lb) |
| Inbuilt Webserver | Yes |
| Included Accessories | DIN Rail Mount Clip: 1, Quick Start Guide: 1 |
