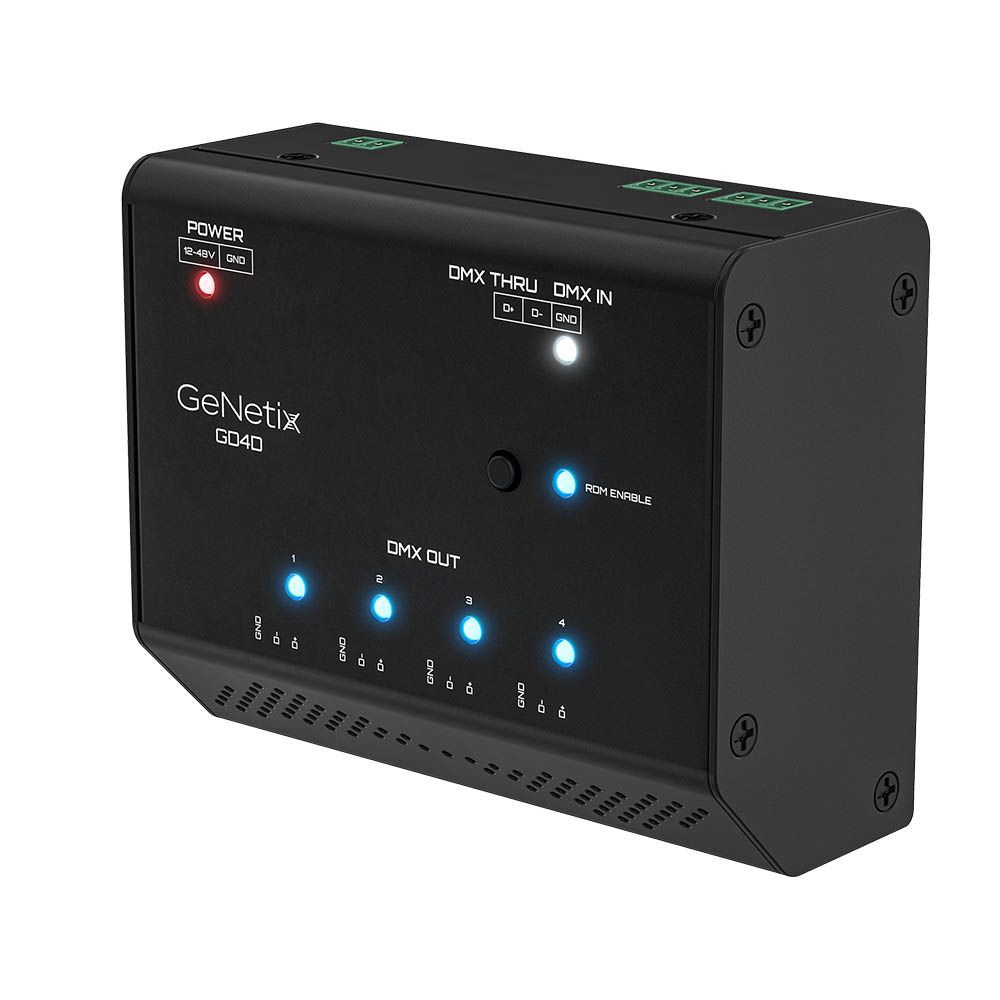

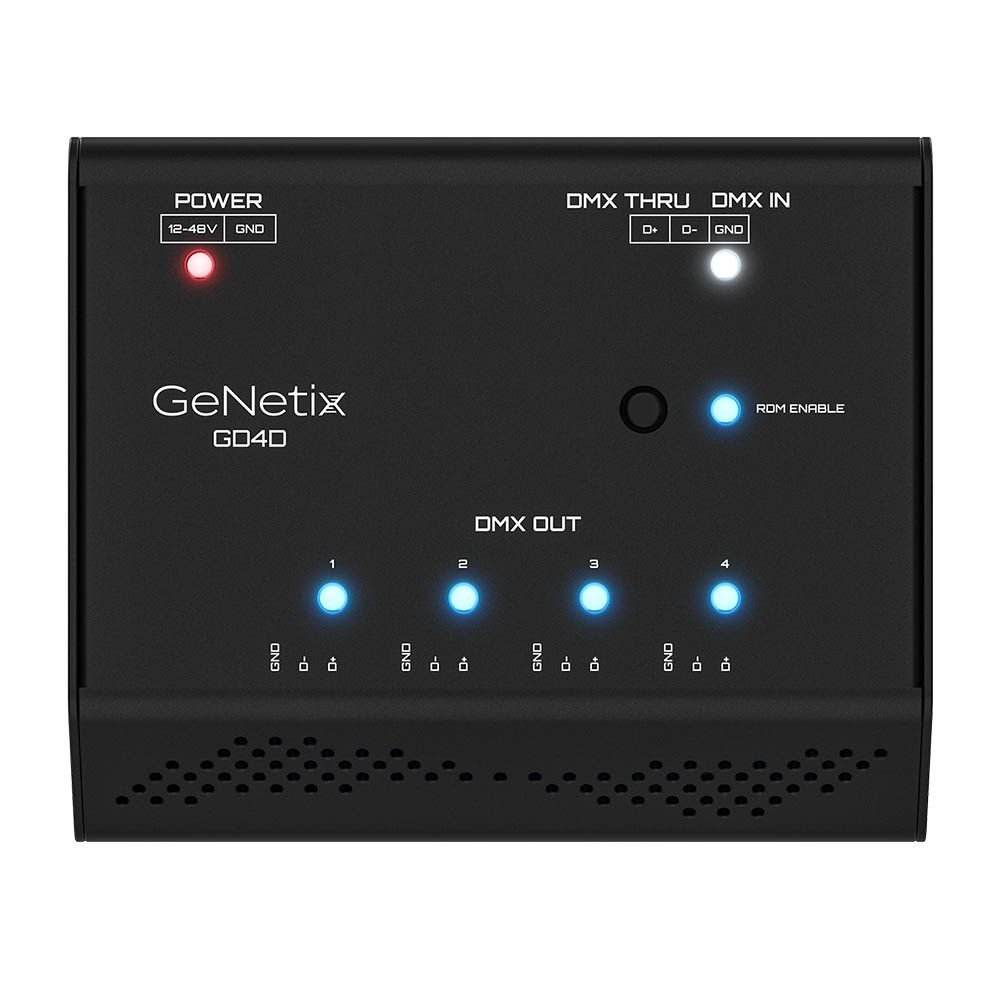

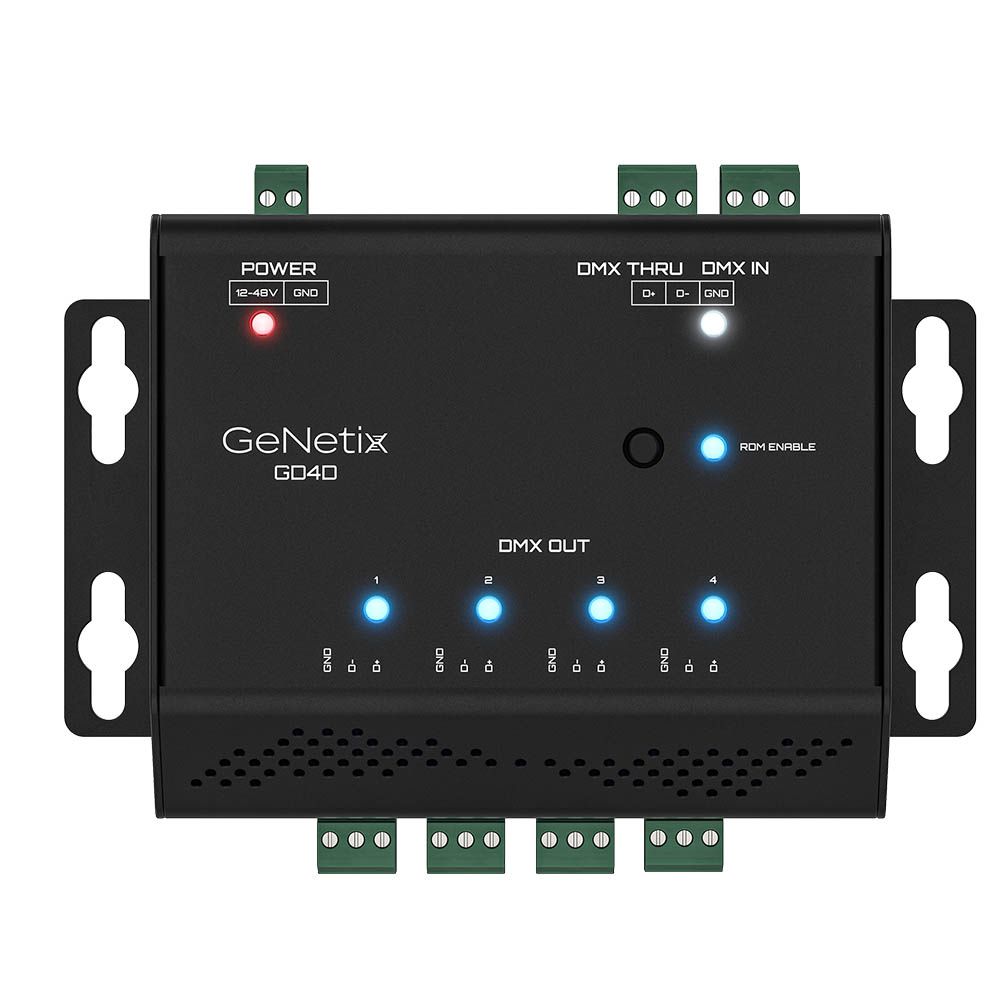

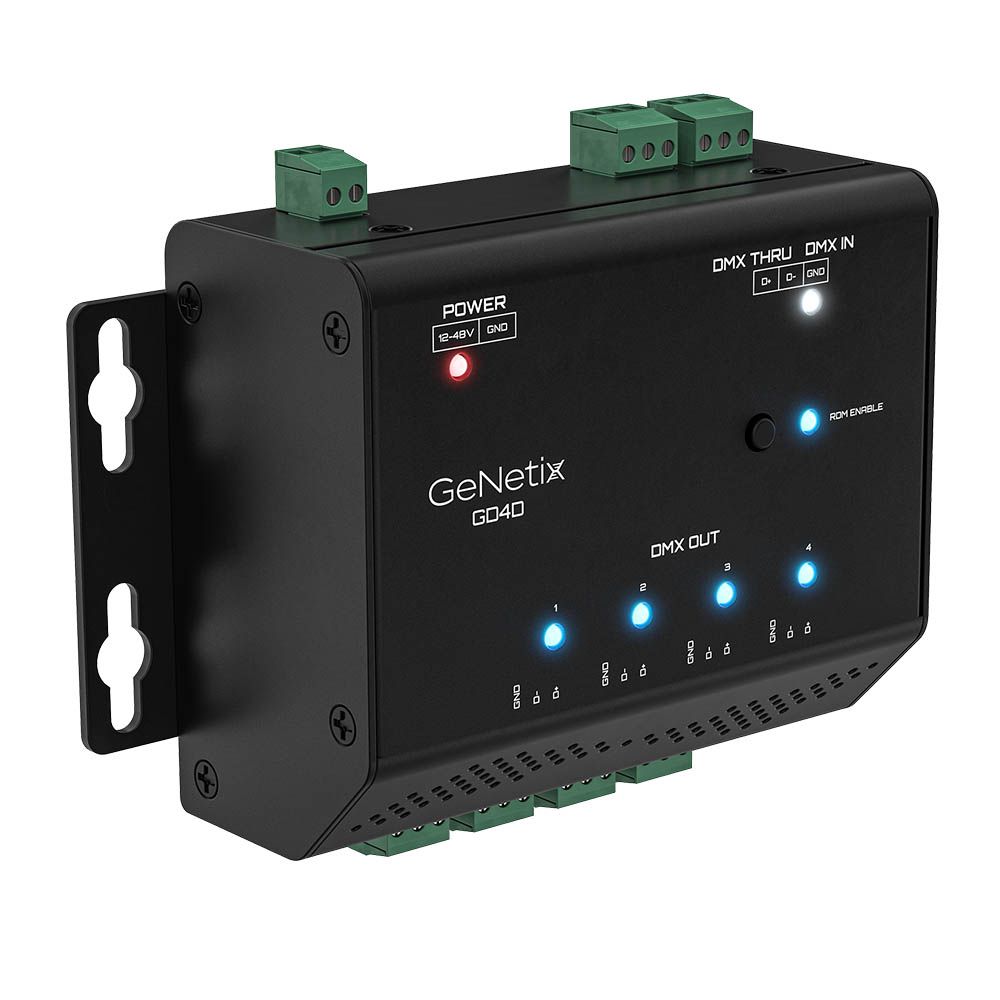

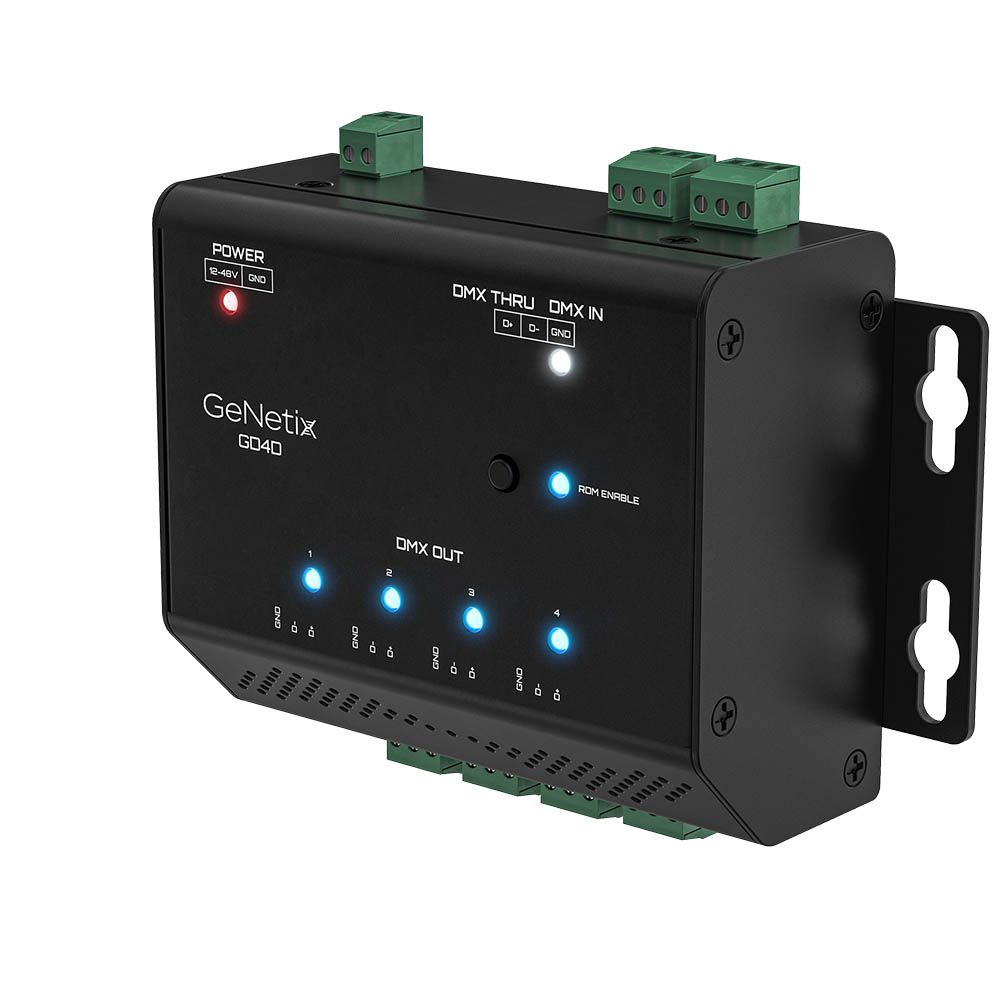

Chamsys GeNetix GD4D is a DIN rail mountable, RDM-capable four-port DMX splitter for permanent installations. It provides DMX input, through, and four output connections via Phoenix screw terminals. The unit supports an external 12-48V power supply, purchased separately, and includes an RDM Disable option that strips RDM data and retimes the DMX signal. LEDs indicate external power, RDM status, and DMX input and output status.
Chamsys GeNetix GD4D 4-Port DMX Splitter
RRP: $843.00 ex. GST
Key Features:
- Phoenix Screw Terminal DMX Output Ports: 4
- DMX In and Through option: Yes
- RDM Disable/Enable Option: Yes

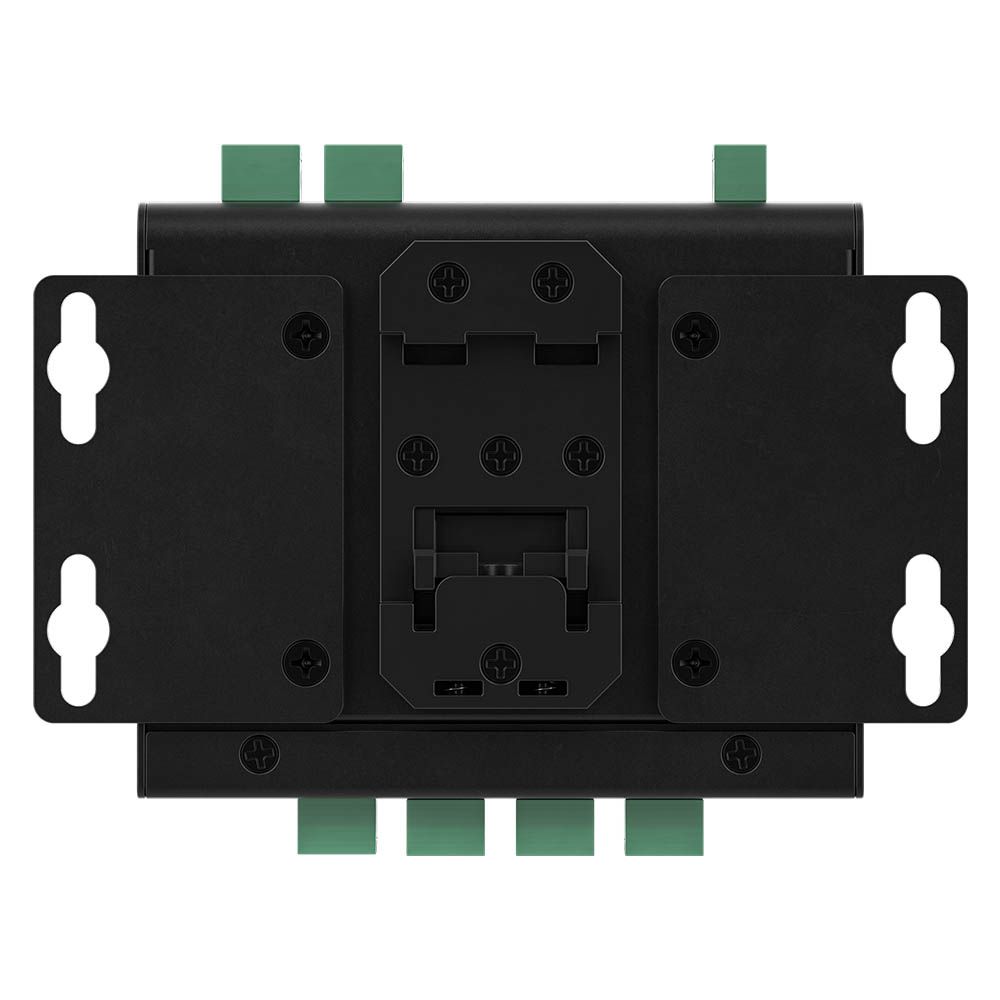

- DIN Rail Mounted: Yes
- Powered via External 12-48v Power Supply: Yes
- PoE Output: Yes – When powered by a 48v External Power Supply
Technical Data
| RDM E1.20 Compliant | Yes |
| DIN Rail Mount Clip | 1 |
| Quick Start Guide | 1 |
| Width (DIN) | 104mm (4.09 inches) |
| Depth (DIN) | 87mm (3.42 inches) |
| Height Inc DIN Clip | 65mm (2.55 inches) |
| Weight (DIN) | 0.4 KG (0.88 lb) |
| Width (Boxed) | 185mm (7.28 inches) |
| Depth (Boxed) | 170mm (6.69 inches) |
| Height (Boxed) | 90mm (3.54 inches) |
| Weight (Boxed) | 0.6 KG (1.32 lb) |
