The Chamsys GeNetix GS5D is a five-port unmanaged Gigabit network switch for network and PoE distribution. It is DIN rail mountable and can be powered via PoE or an external 12-48V power supply, purchased separately. When powered by a 48V external power supply, ports 2-5 provide 30W of PoE output per port, with a maximum combined output of 60W. Status LEDs indicate external power, network or PoE port connection and activity, and Gigabit network operation.

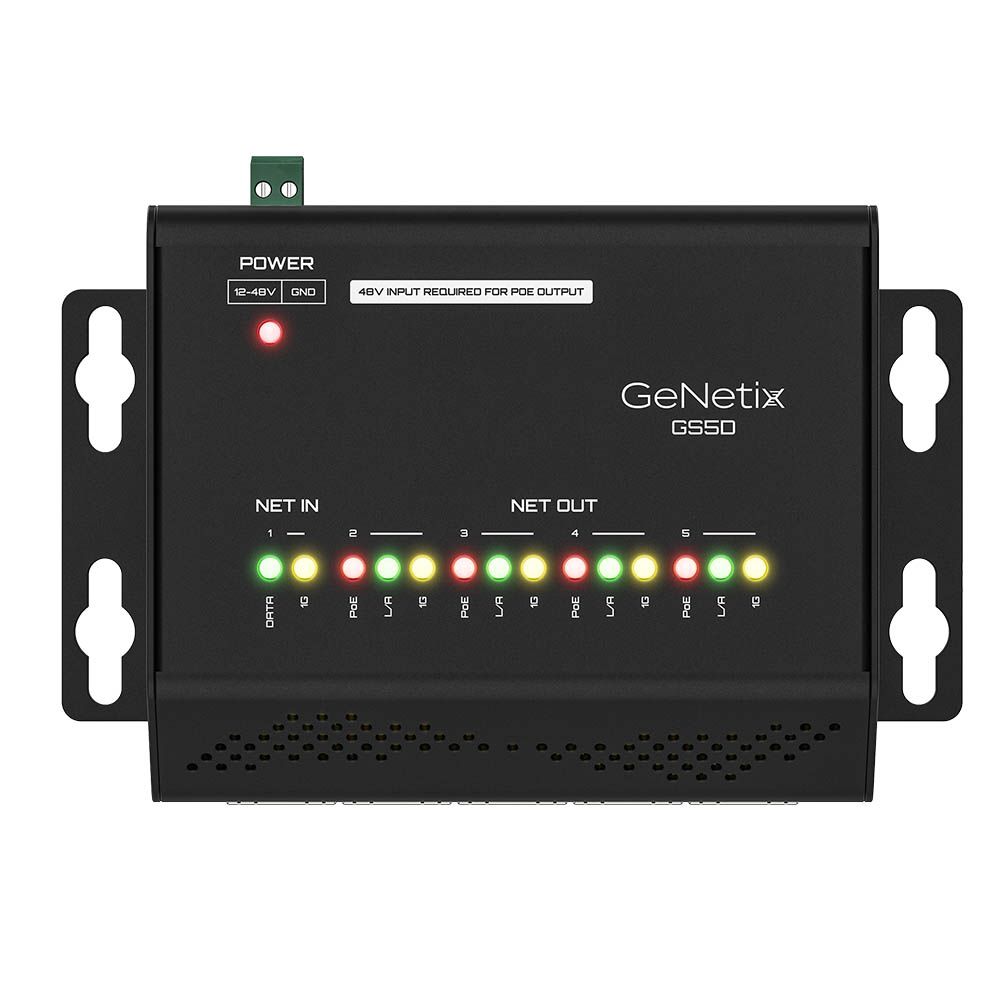

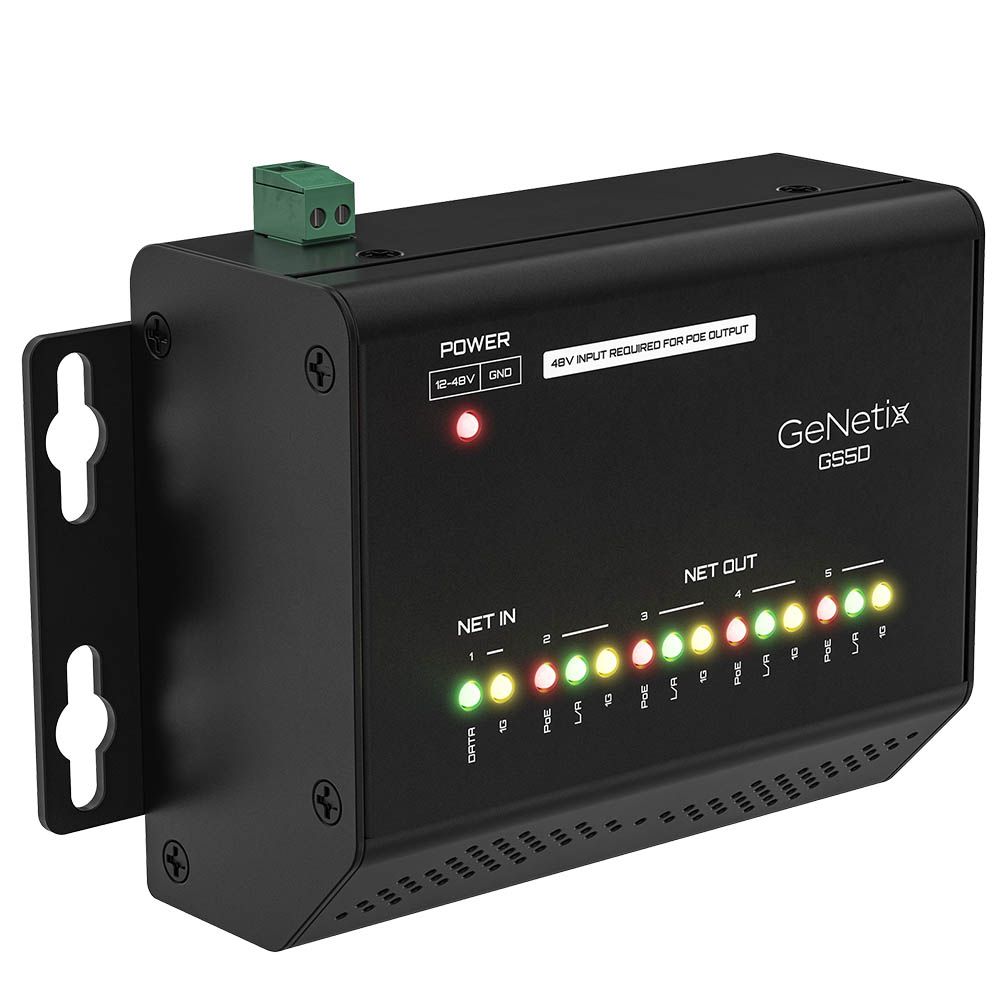

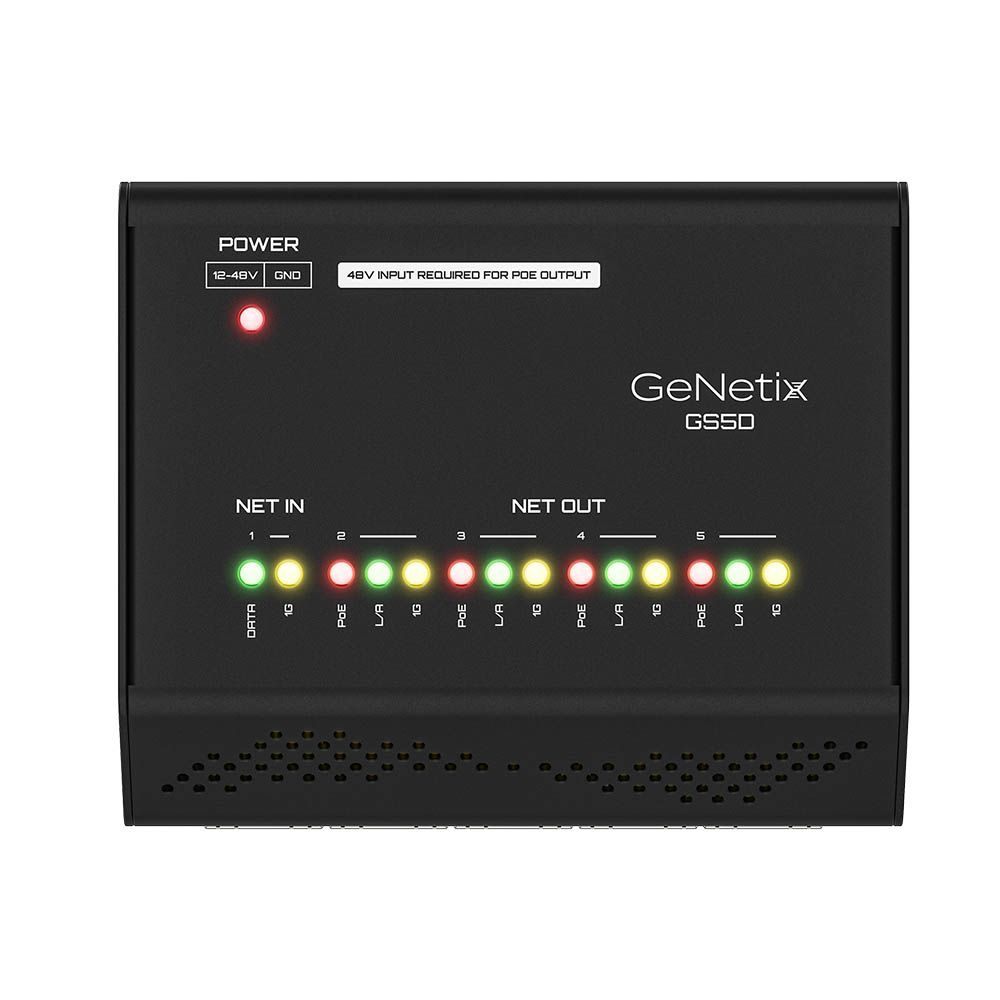

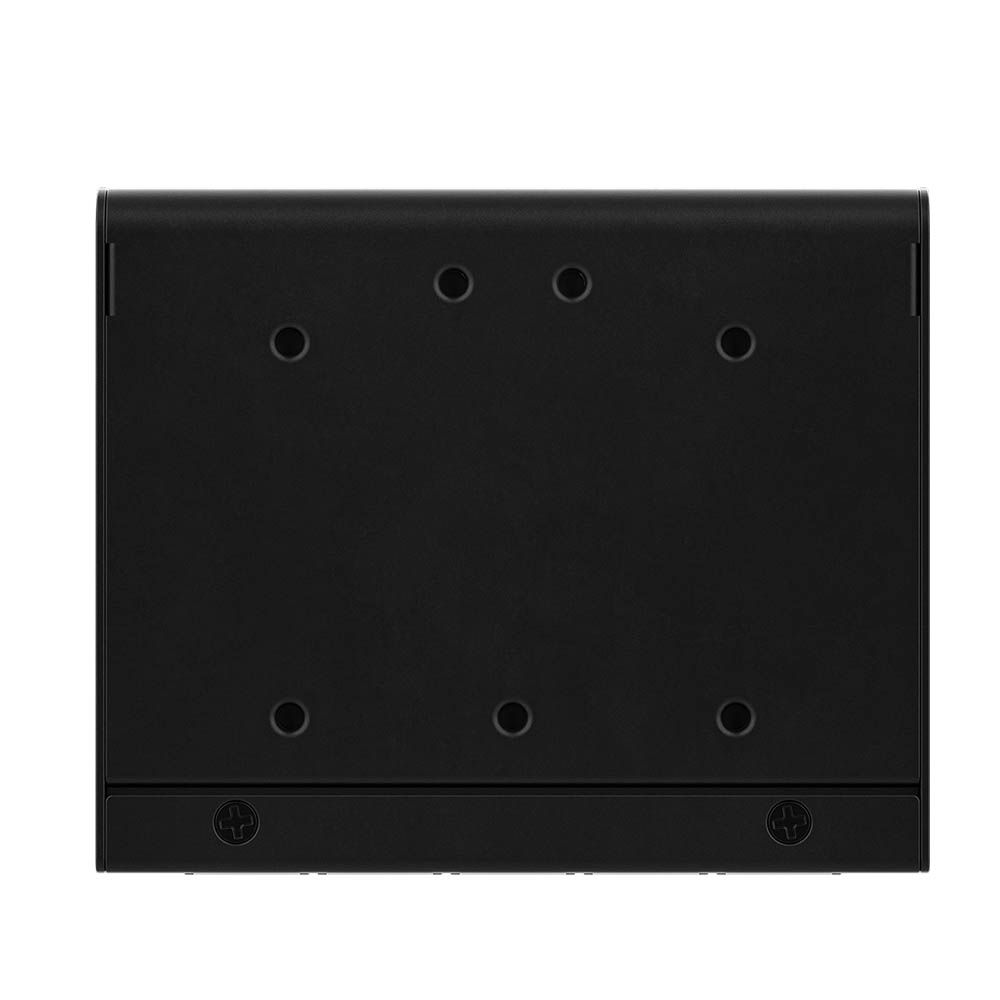

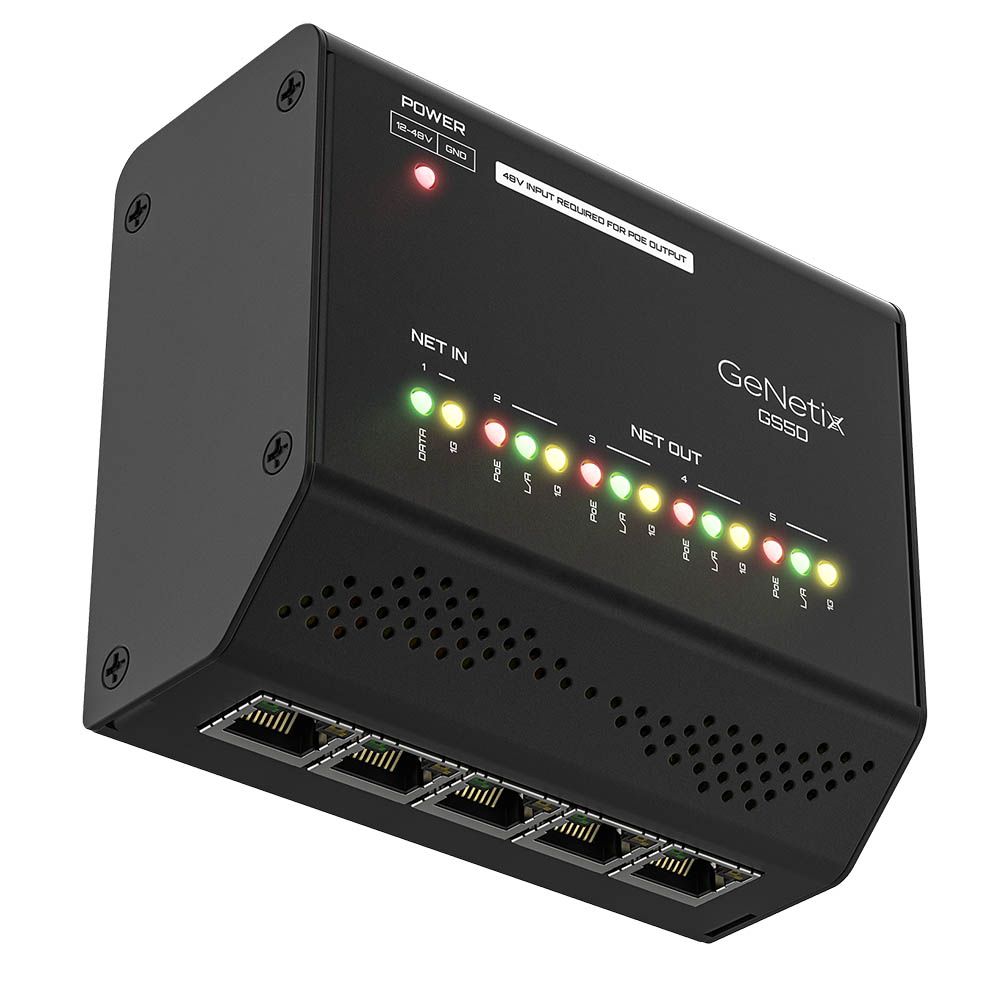

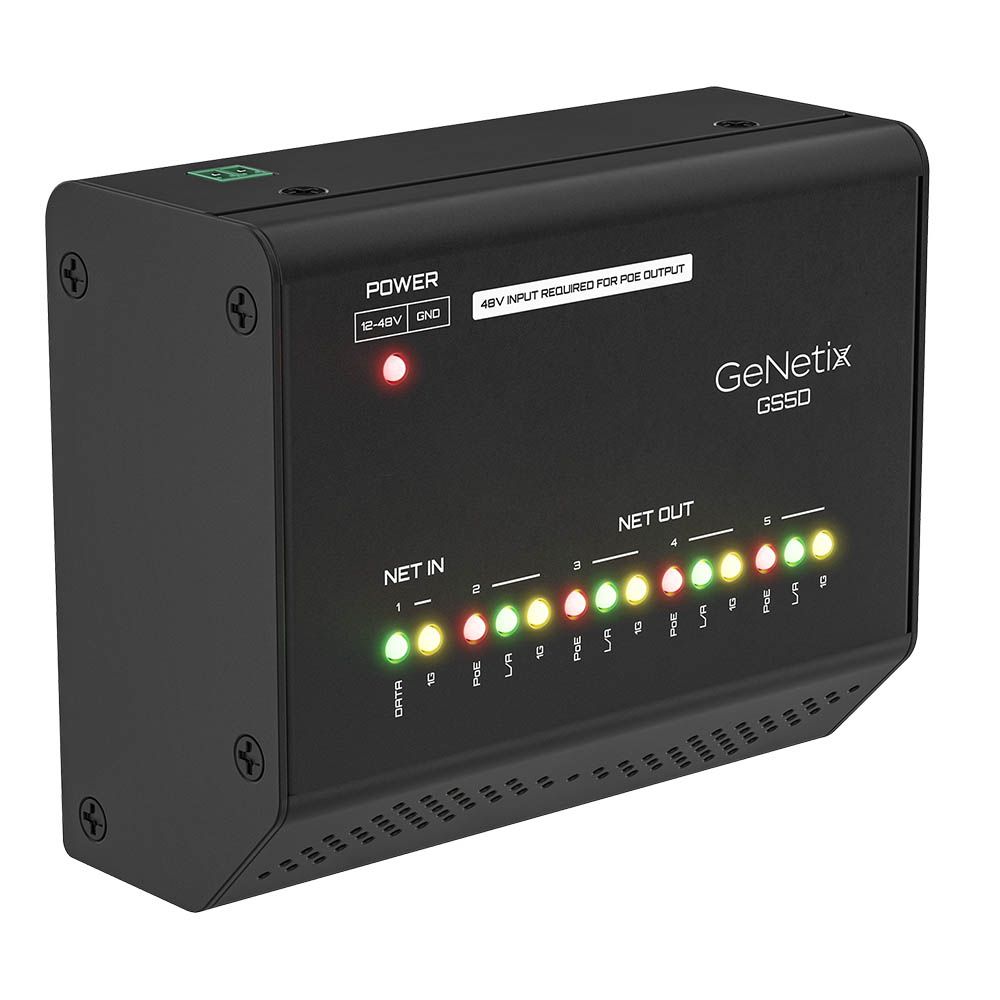

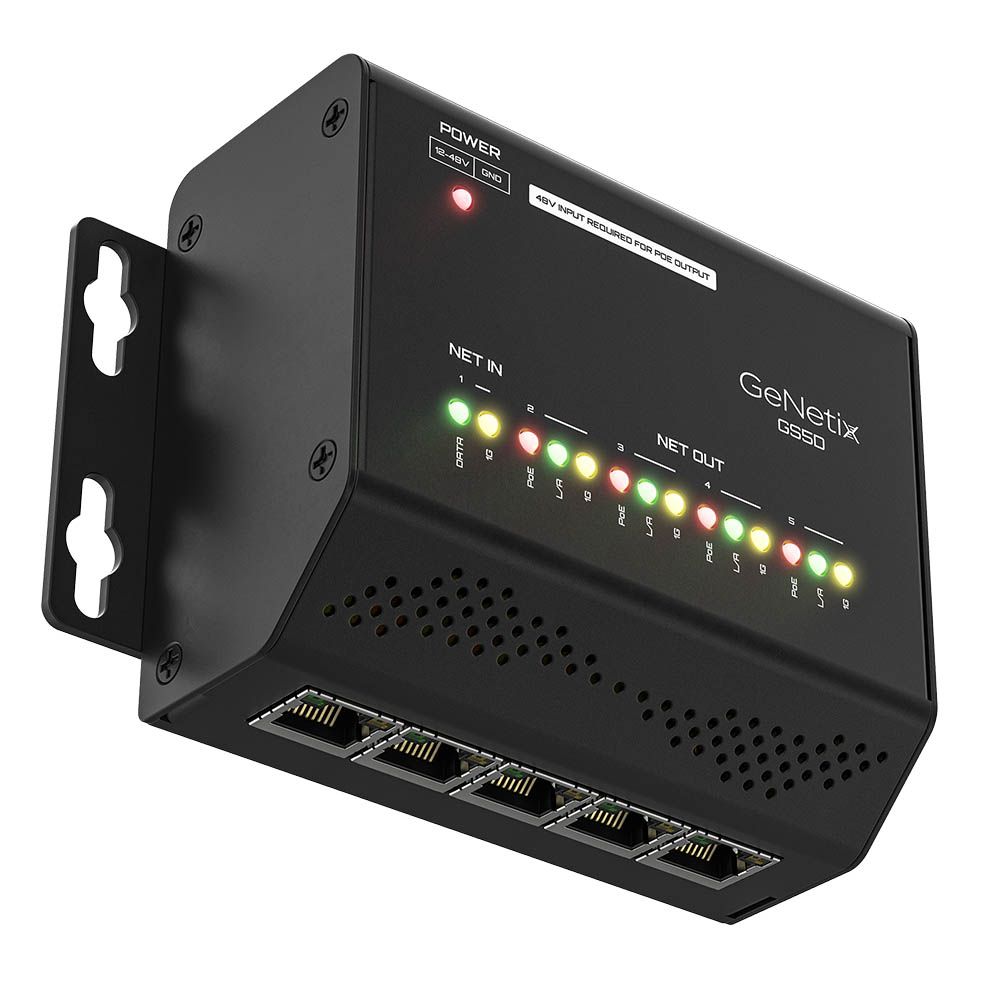

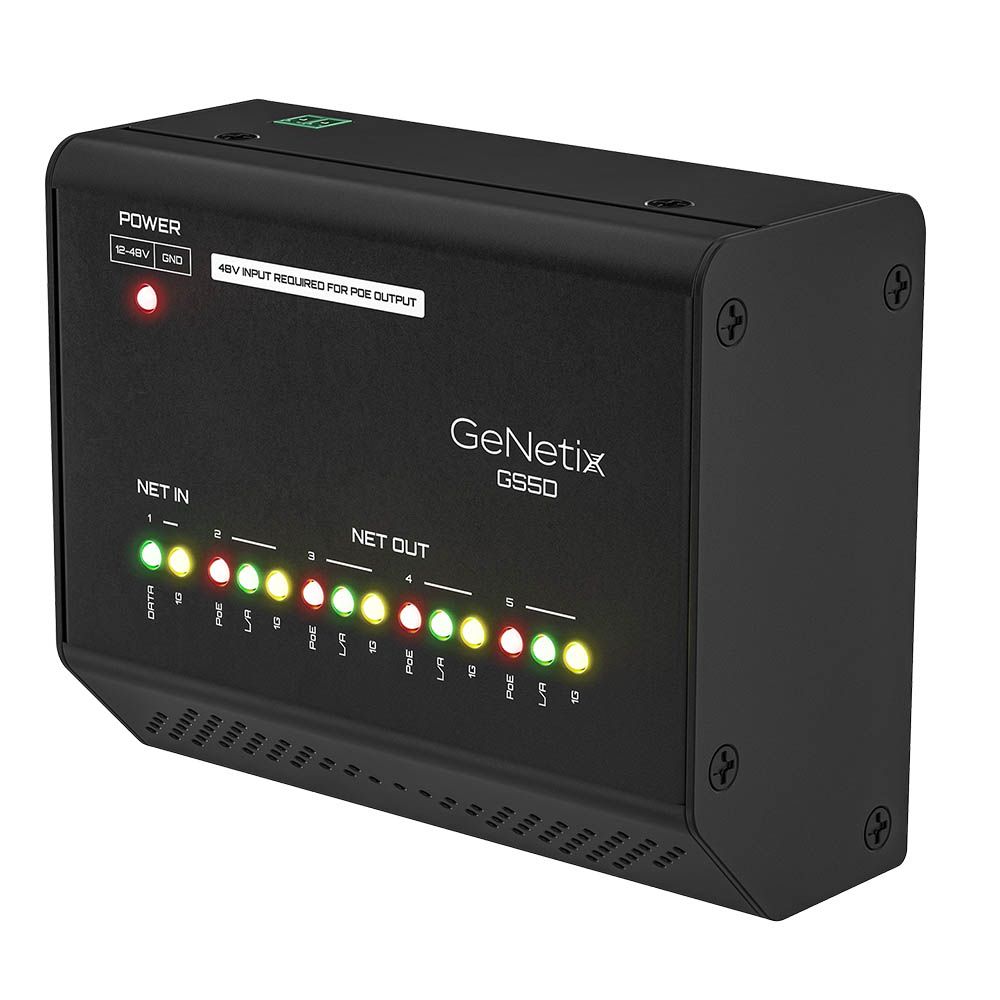

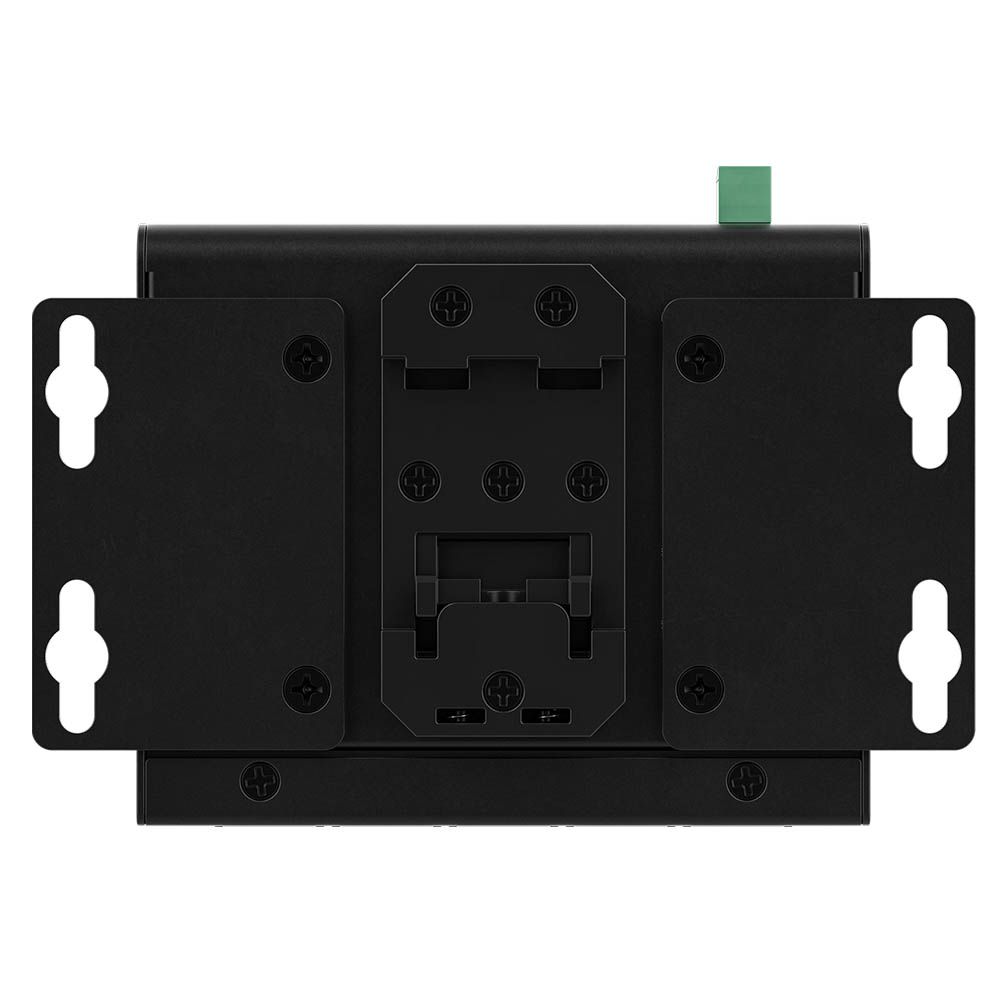

Chamsys GeNetix GS5D 5-Port DIN Rail Gigabit PoE+ Network Switch
RRP: $561.00 ex. GST
Key Features:
- 5-port unmanaged Gigabit network switch
- Supports PoE 802.3af, 802.3at in Modes A & B
- 30W PoE output per port when powered by 48V
- Maximum 60W combined PoE output
- DIN rail mountable
- Status LEDs for power and network indication
Technical Data
| Network Ports | 5 |
| PoE Output | Yes – When powered by a 48v External Power Supply |
| PoE+ Outputs Ports | 4 |
| DIN Rail Mounted | Yes |
| Powered via PoE | Yes |
| Powered via External 12-48v Power Supply | Yes |
| Gigabit Ethernet | Yes |
| Unmanaged Network Switch | Yes |
| Included Accessories | DIN Rail Mount Clip: 1, Quick Start Guide: 1 |
| Unit Width | 104mm (4.09 inches) |
| Unit Depth | 87mm (3.42 inches) |
| Unit Height Inc DIN Clip | 65mm (2.55 inches) |
| Unit Weight | 0.4 kg (0.88 lb) |
