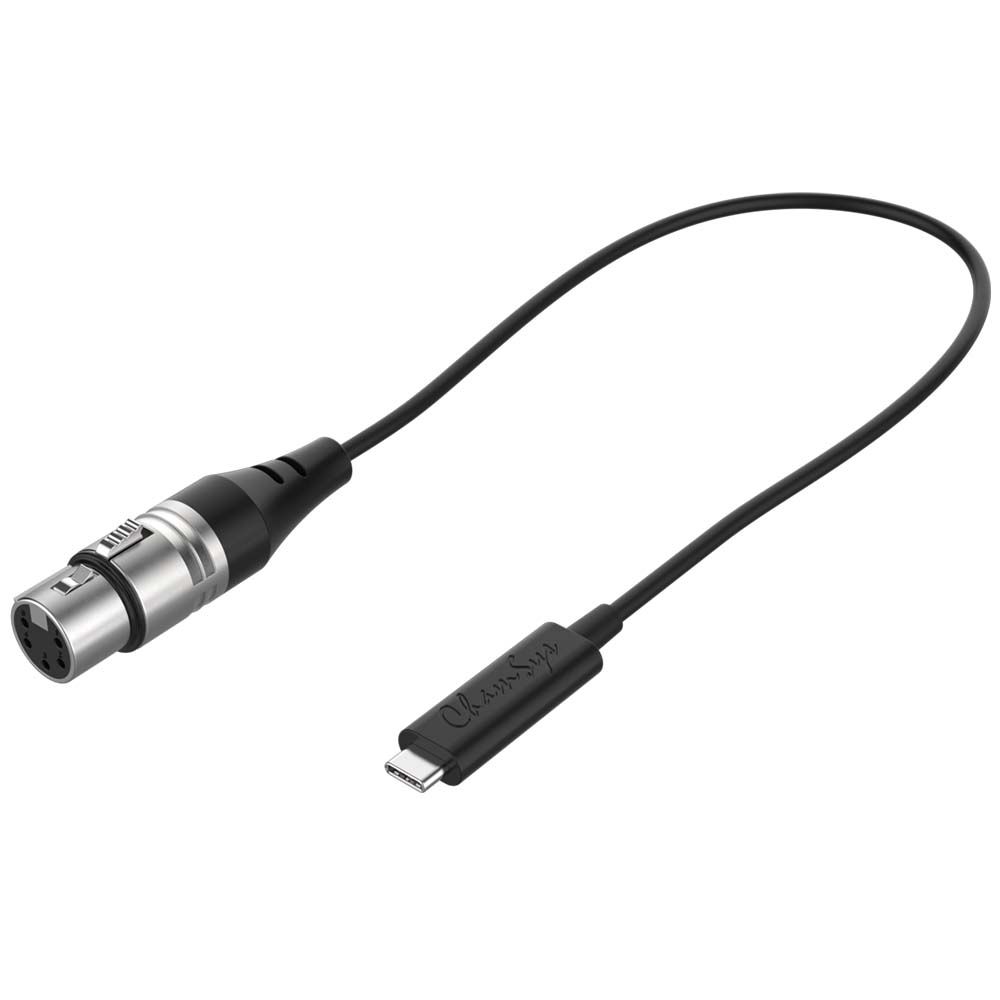

The Chamsys MagicDMX Full USB to DMX Interface provides one universe of DMX output or input for use with free MagicQ software. It supports RDM, allowing users to remotely set DMX addresses, select fixture modes and auto patch RDM compliant fixtures to MagicQ. The interface can also be used as a DMX test device or for monitoring DMX. It includes a 5 pin female XLR, USB-C connector, basic electrical protection and an LED status indicator.
Chamsys MagicDMX Full USB to DMX Interface
RRP: $329.00 ex. GST
Key Features:
- One universe DMX output or input.
- RDM Support: Yes
- 5 pin female XLR
- USB-C connector
- Basic electrical protection
- LED status indicator
Technical Data
| DMX Port(s) | 1 |
| RDM Support | Yes |
| USB Port(s) | 1 (USB-C) |
| Unlocks ‘demo mode features | No |
| Time Restriction | No |
| Universes | 64 |
| Channels | 32,768 |
| Number of fixtures | up to 32,768 |
| Cues | 5000 |
| Cue stacks | 2000 |
| Palettes | 4096 |
| Groups | 5000 |
| Media server support | 50 (each different content) |

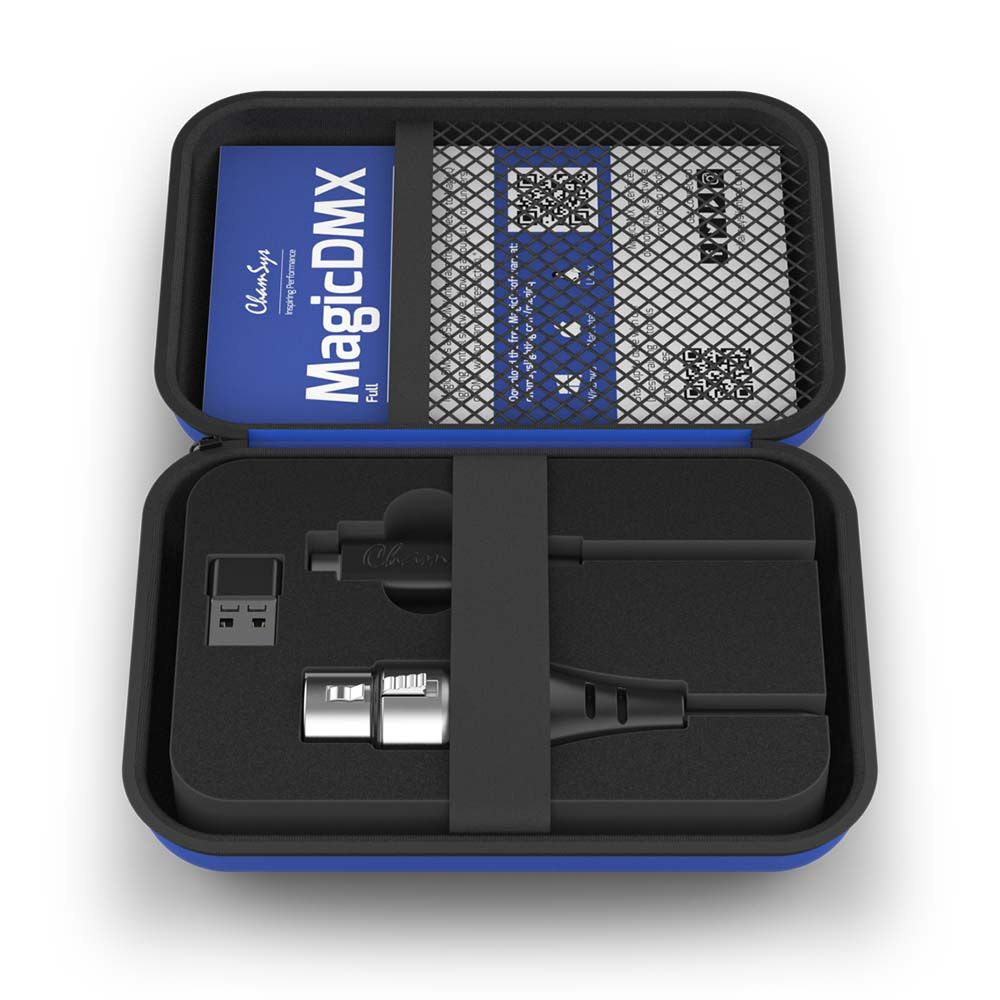

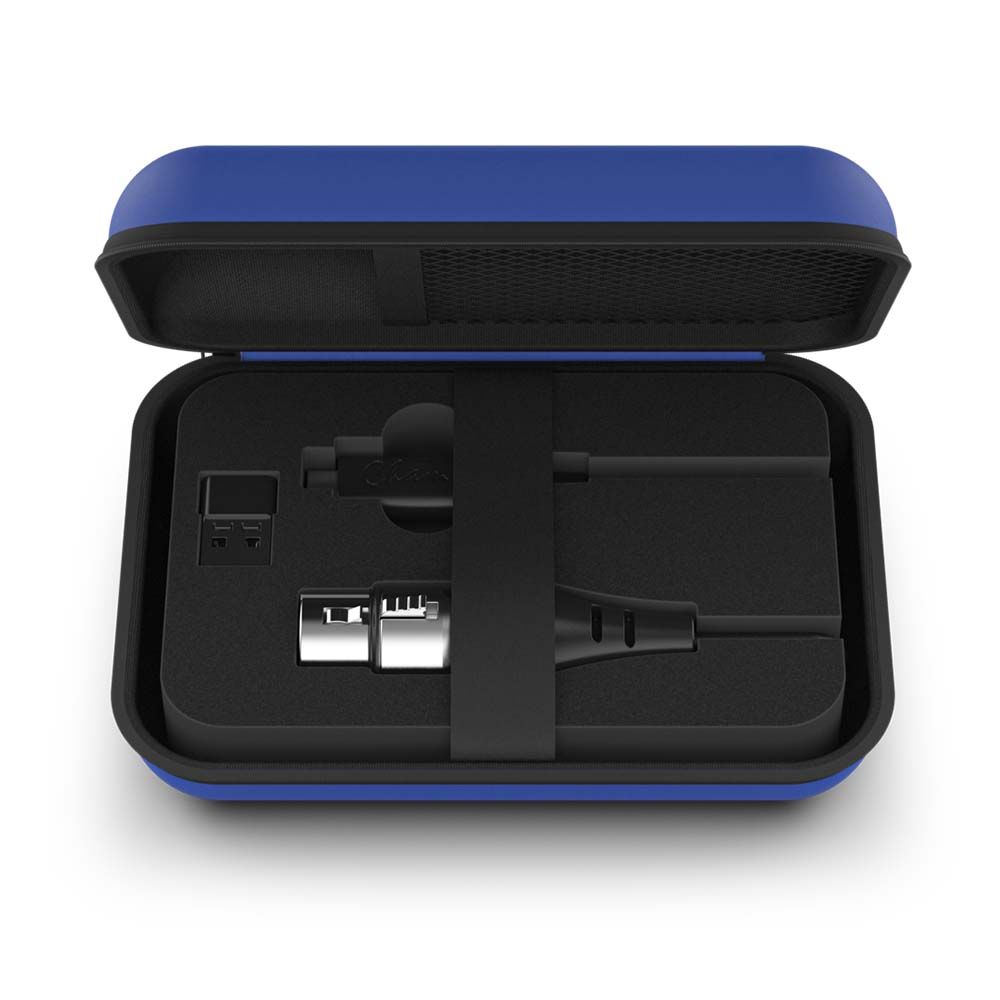

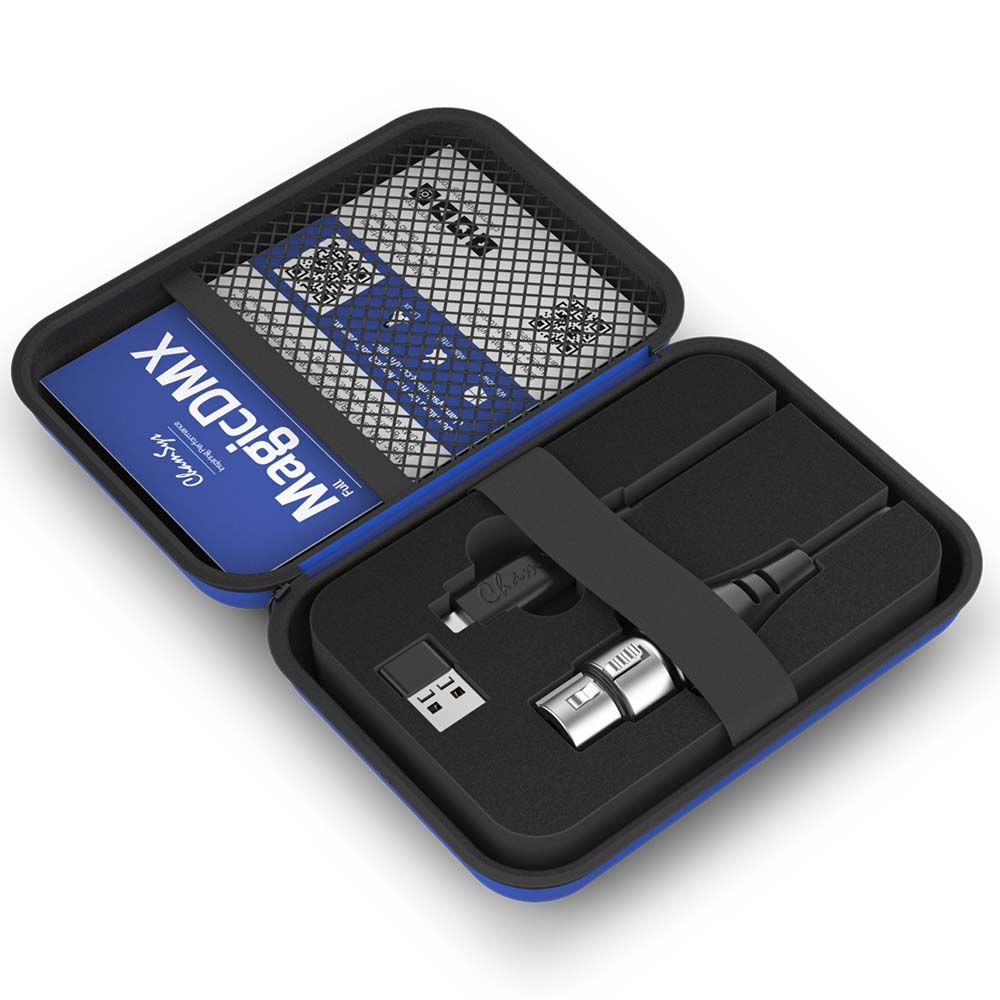

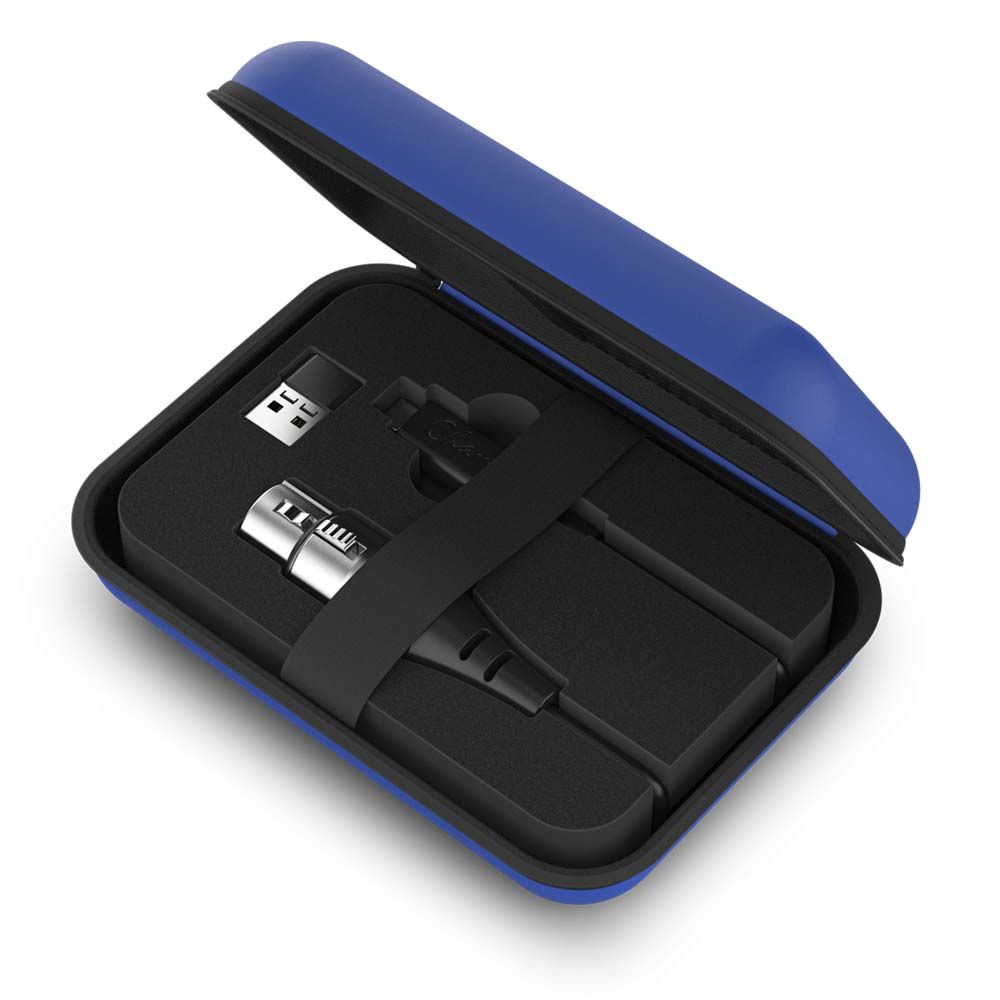

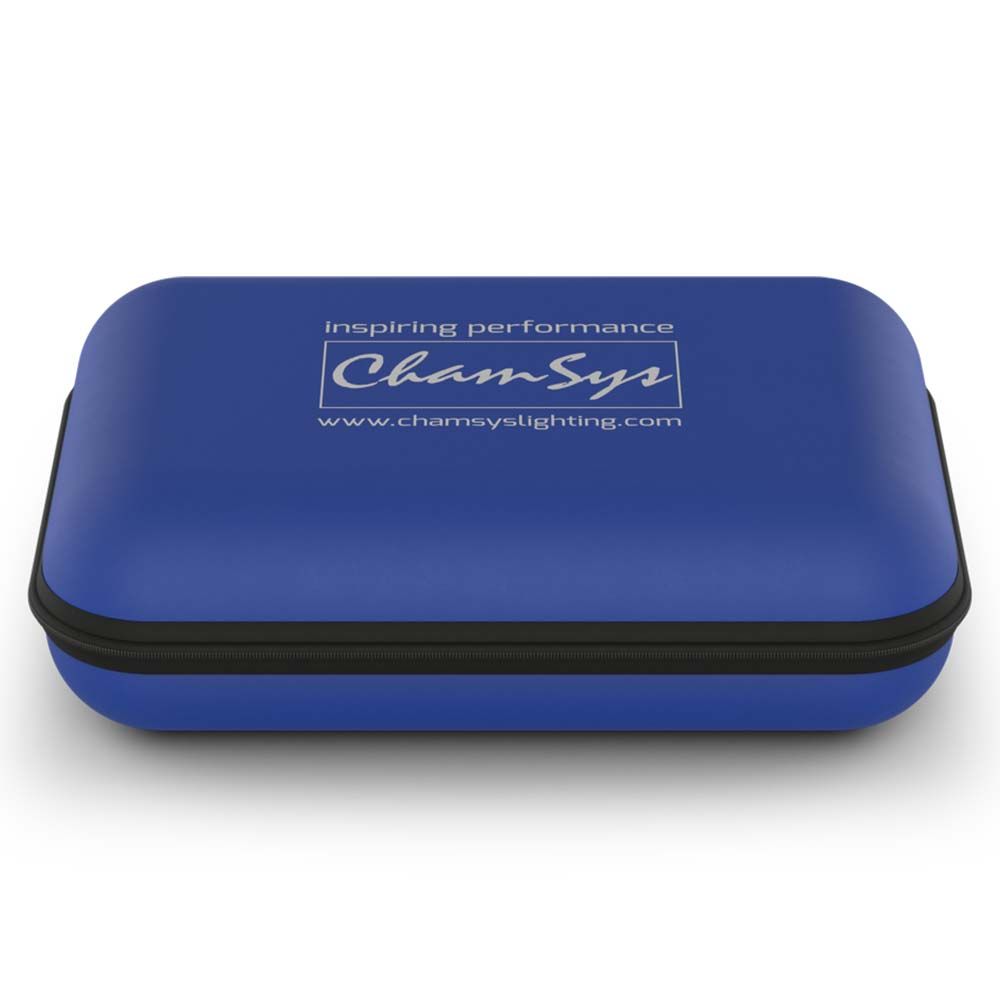

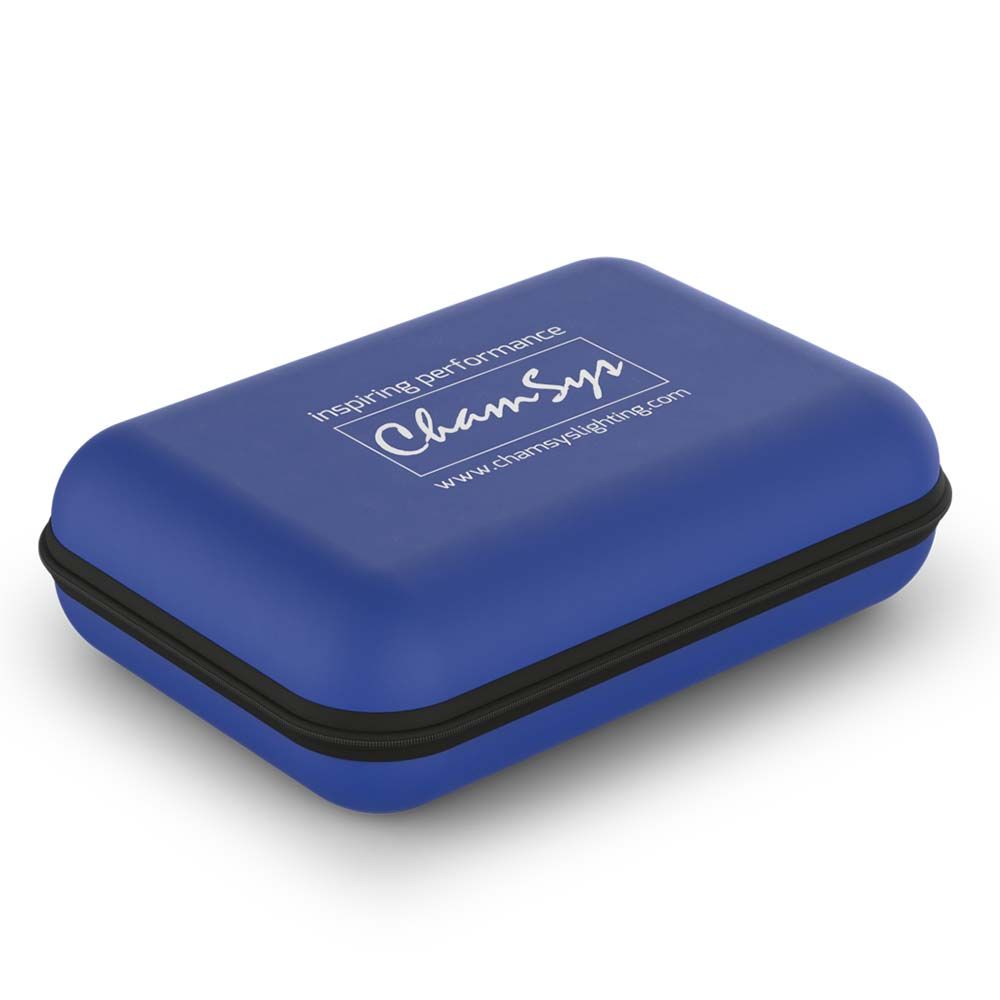

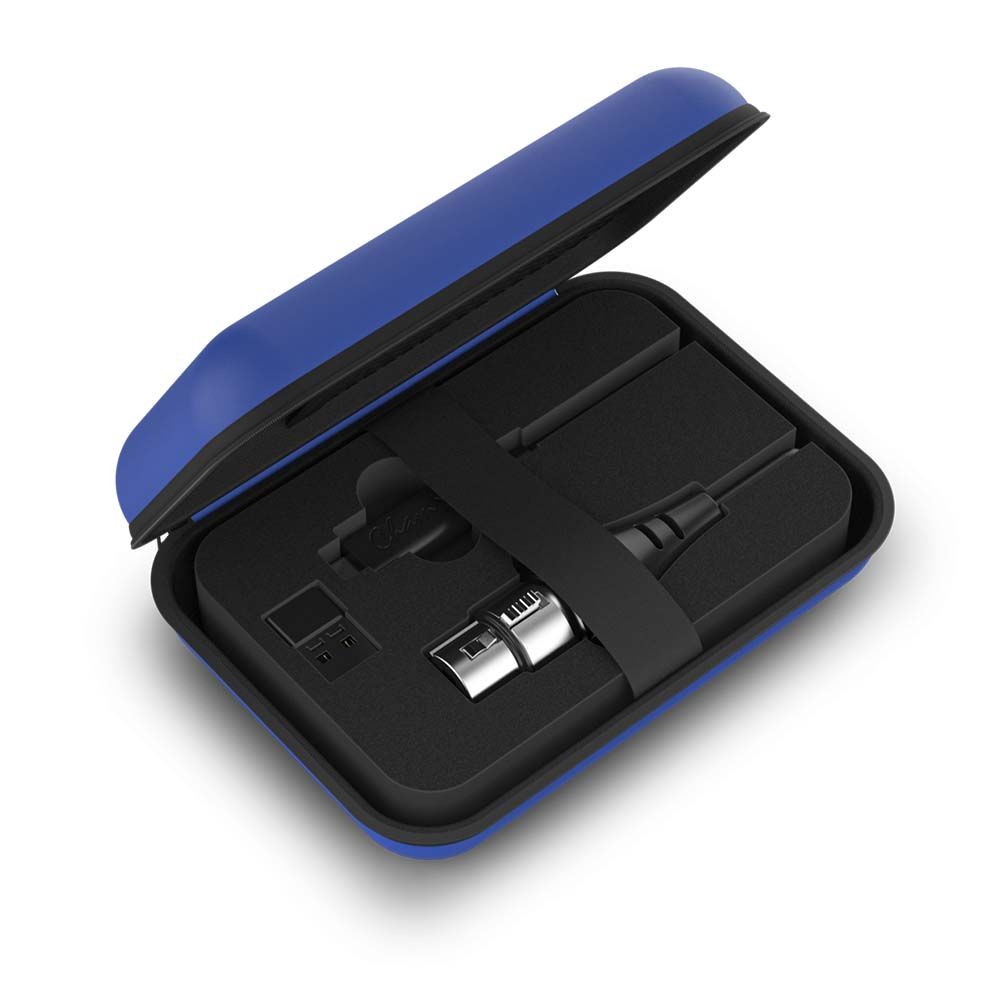

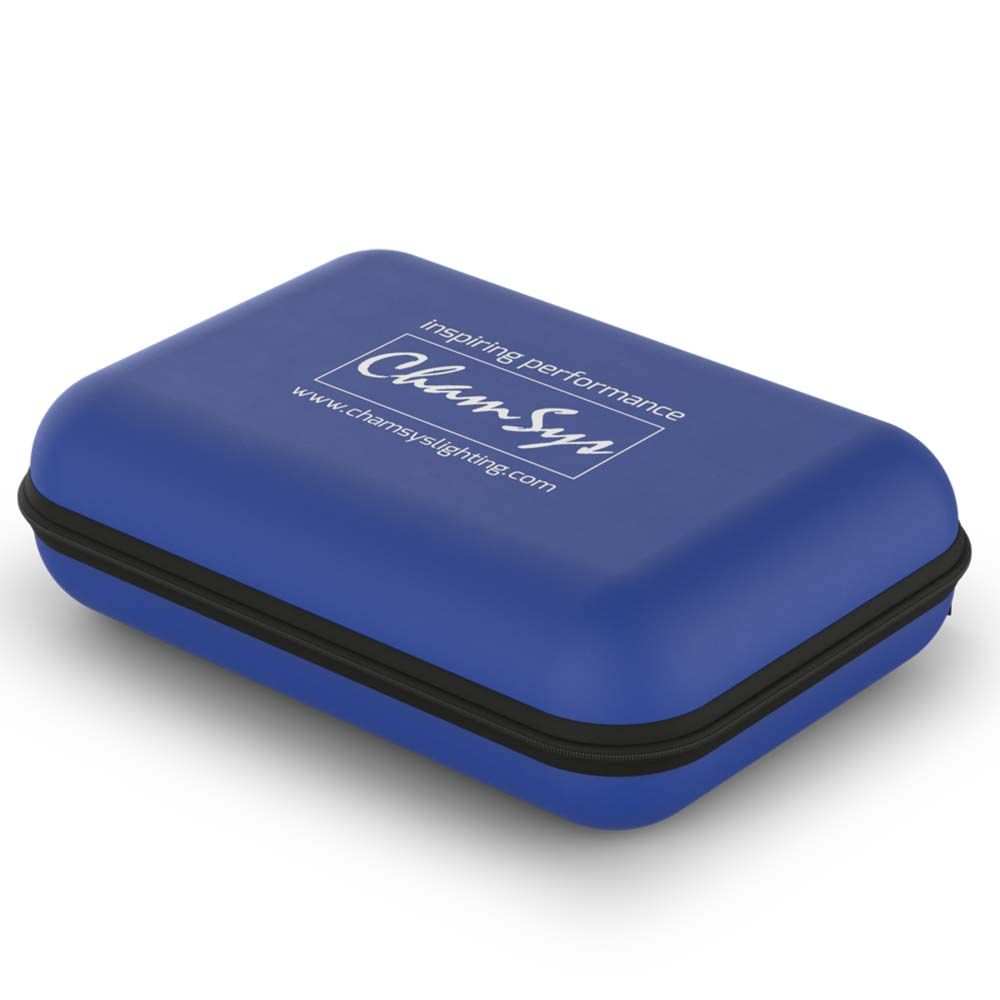

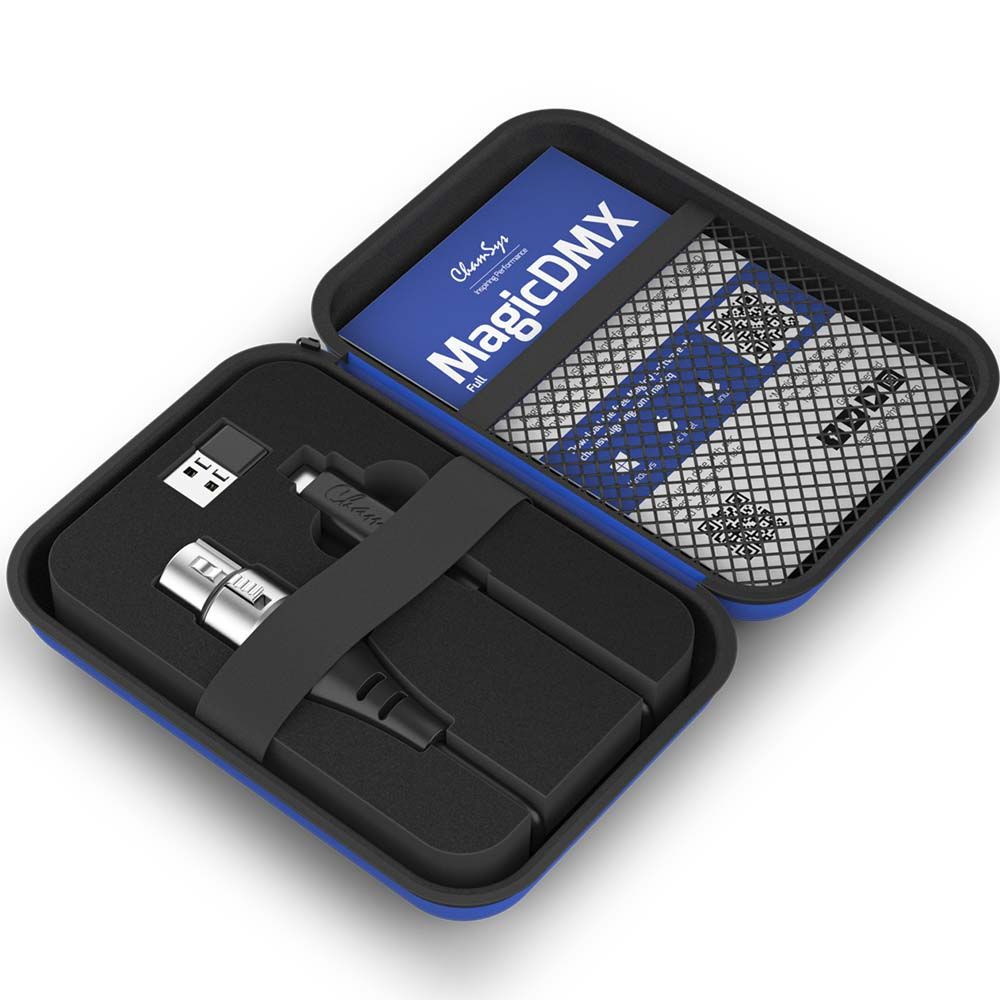

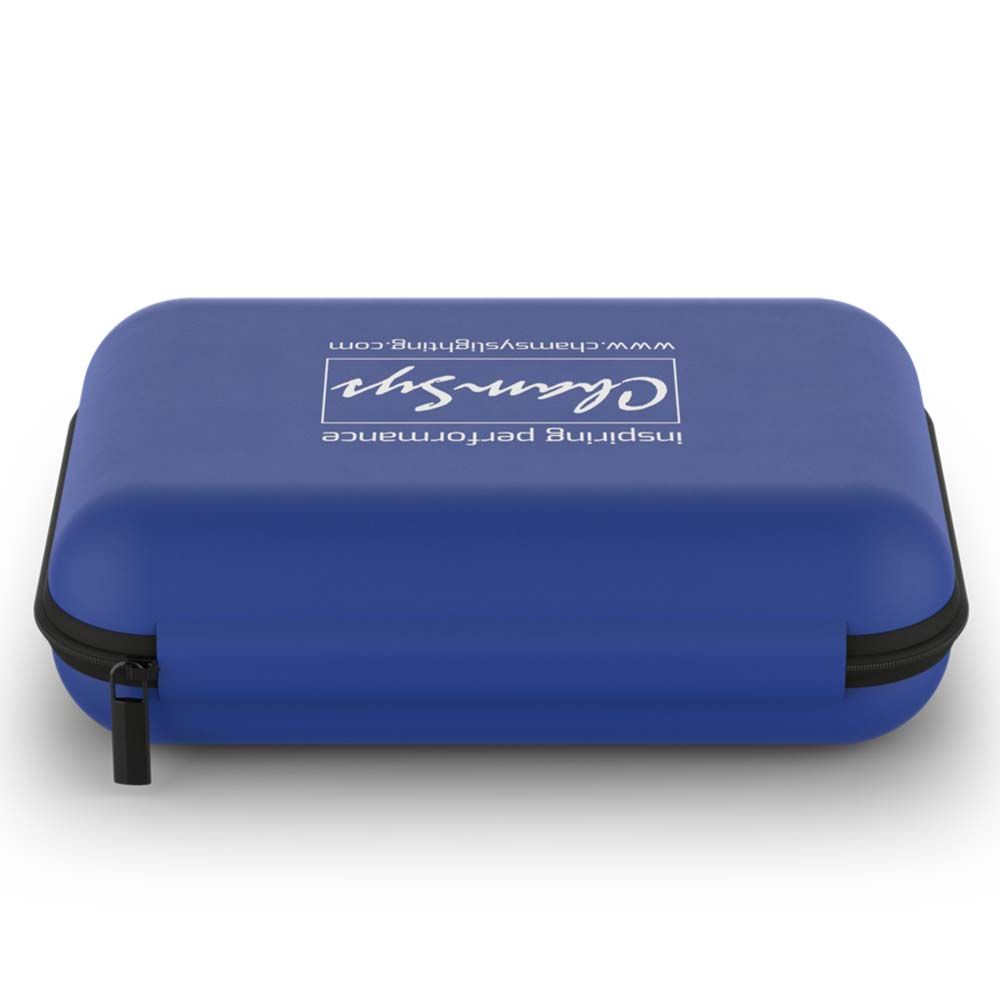

| Included Accessories | Soft Shell Carry Case: 1 |
| Width | 135mm (5.3”) |
| Depth | 93mm (3.6”) |
| Height | 38mm (1.4”) |
| Weight (MagicDMX Inside case) | 0.1kg (0.22lbs) |
