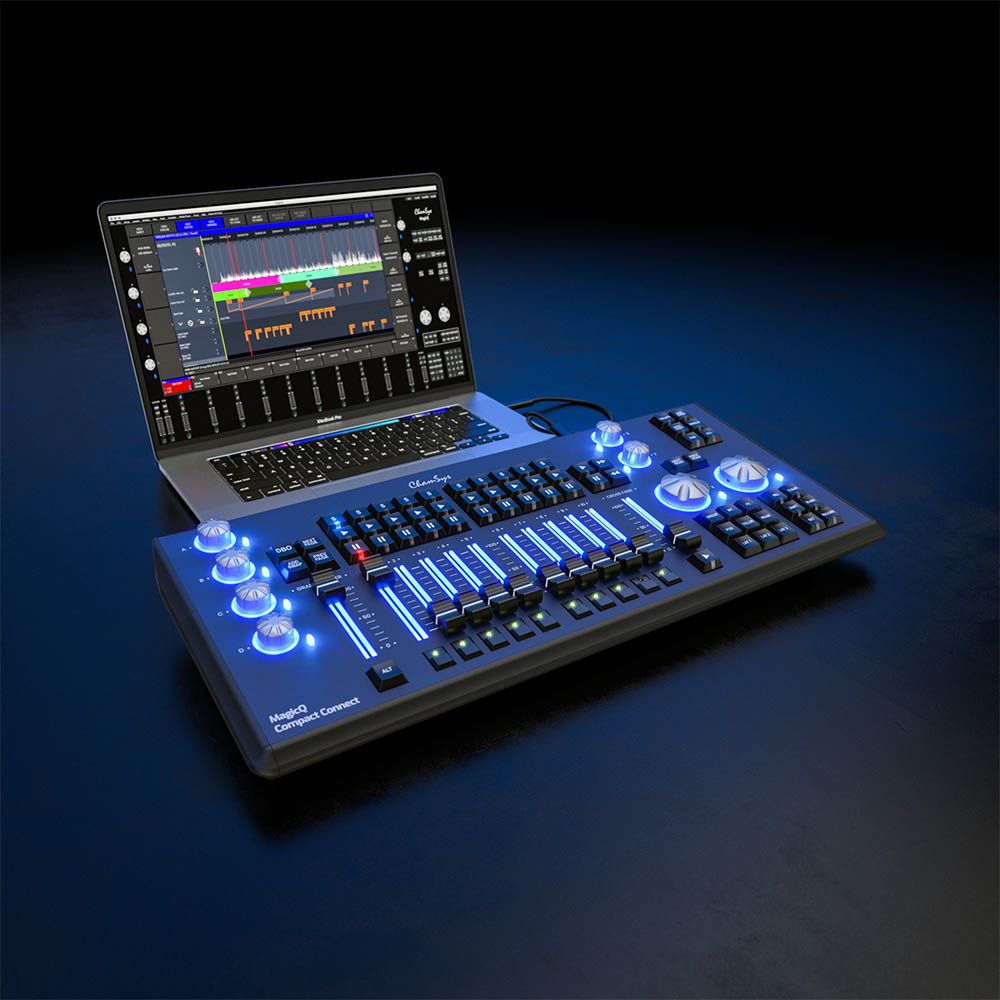

The Chamsys MagicQ Compact Connect USB Lighting/Media Control Surface links to a computer for lighting, media, and LED control. It provides 10 playback faders, two direct DMX outputs supporting RDM, and up to 64 universes via ArtNet/sACN. The surface includes eight rotary encoders, a Grand Master, Crossfader, USB I/O, audio input, network port, 10Scene input, and MIDI I/O. It supports Windows (8.1 or Higher), macOS (10.13 or Higher), and Linux.

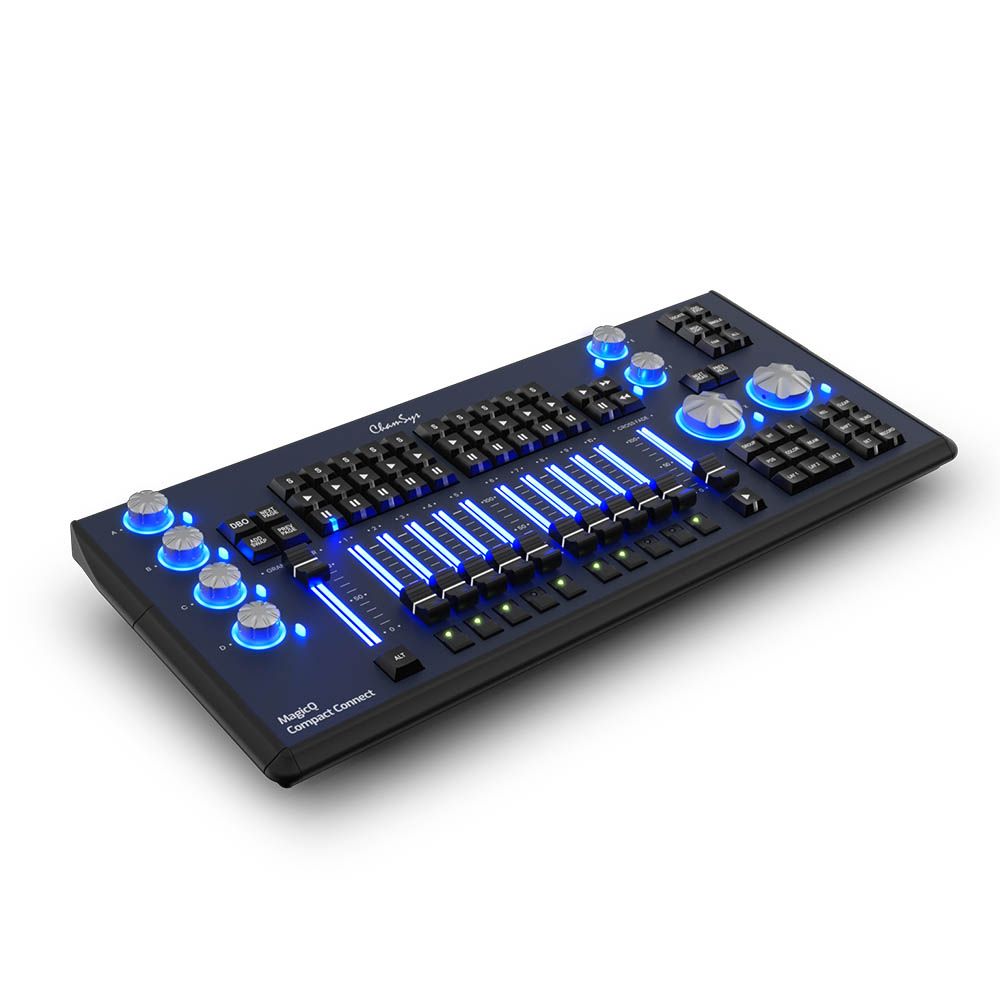

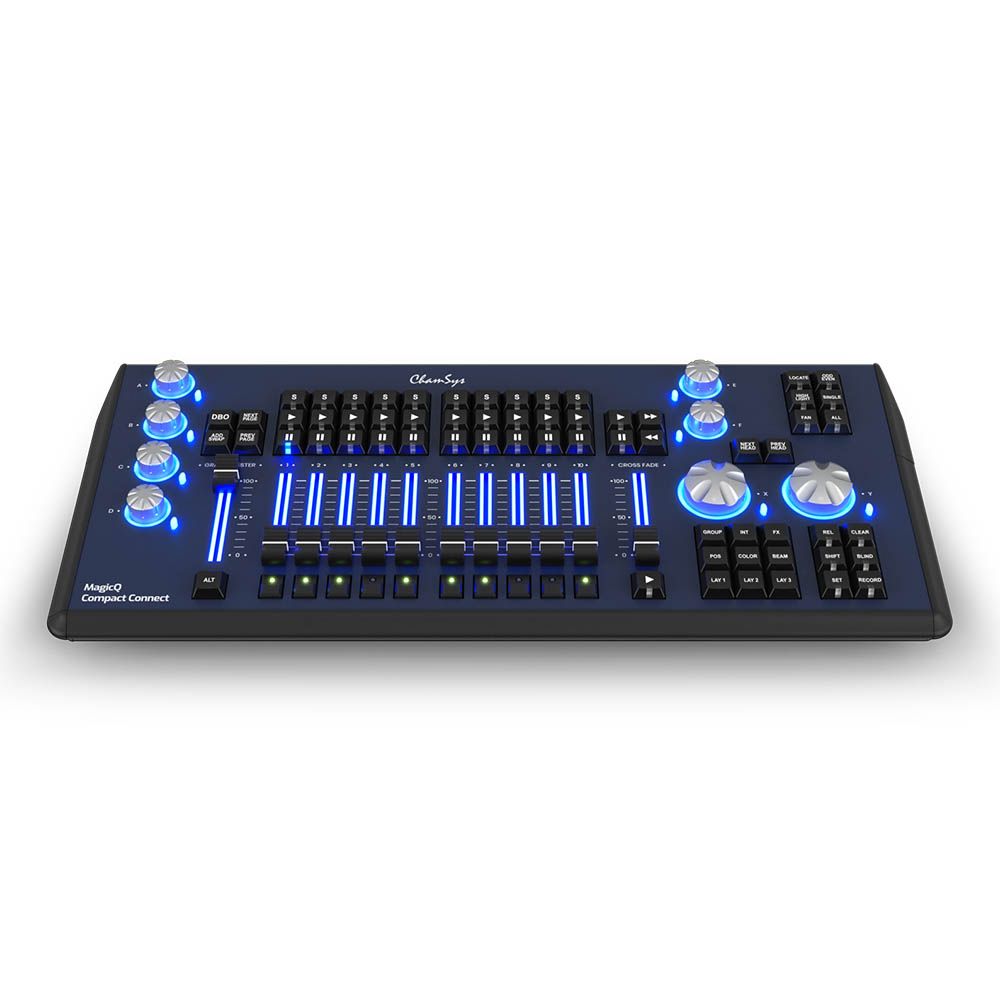

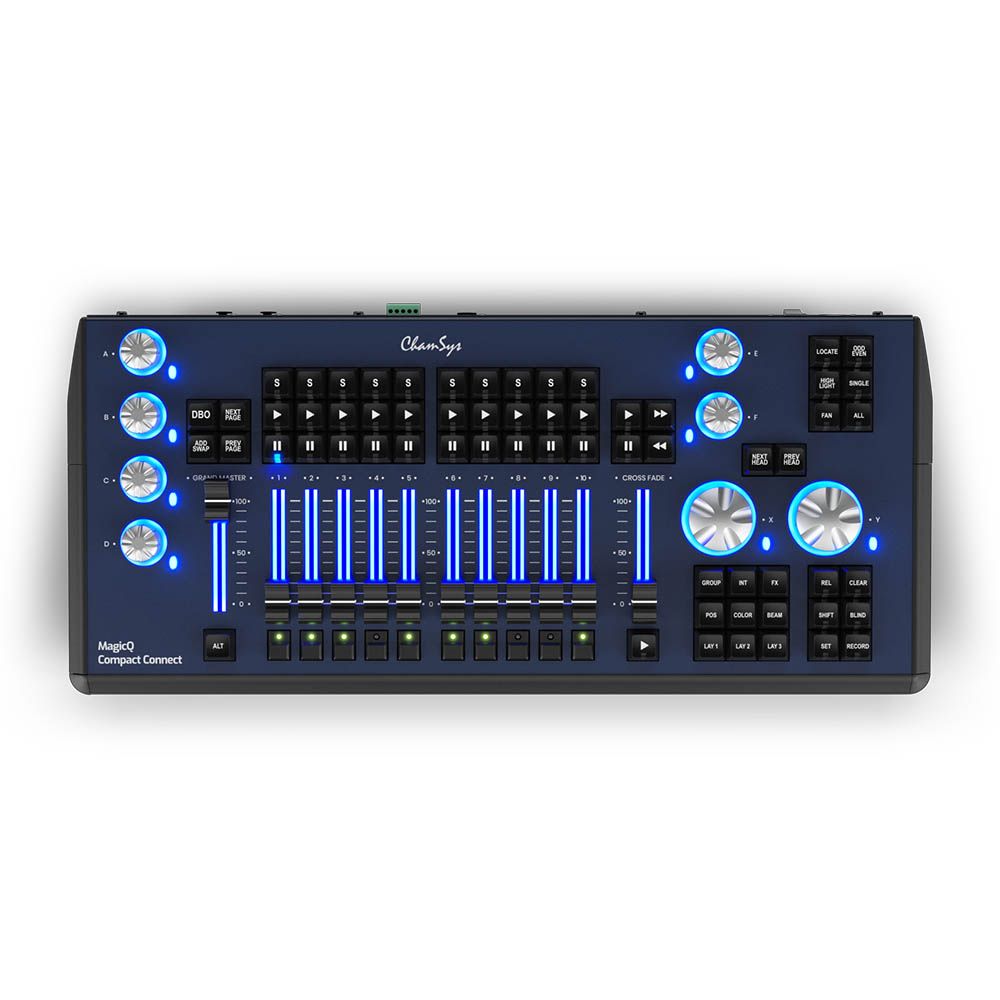

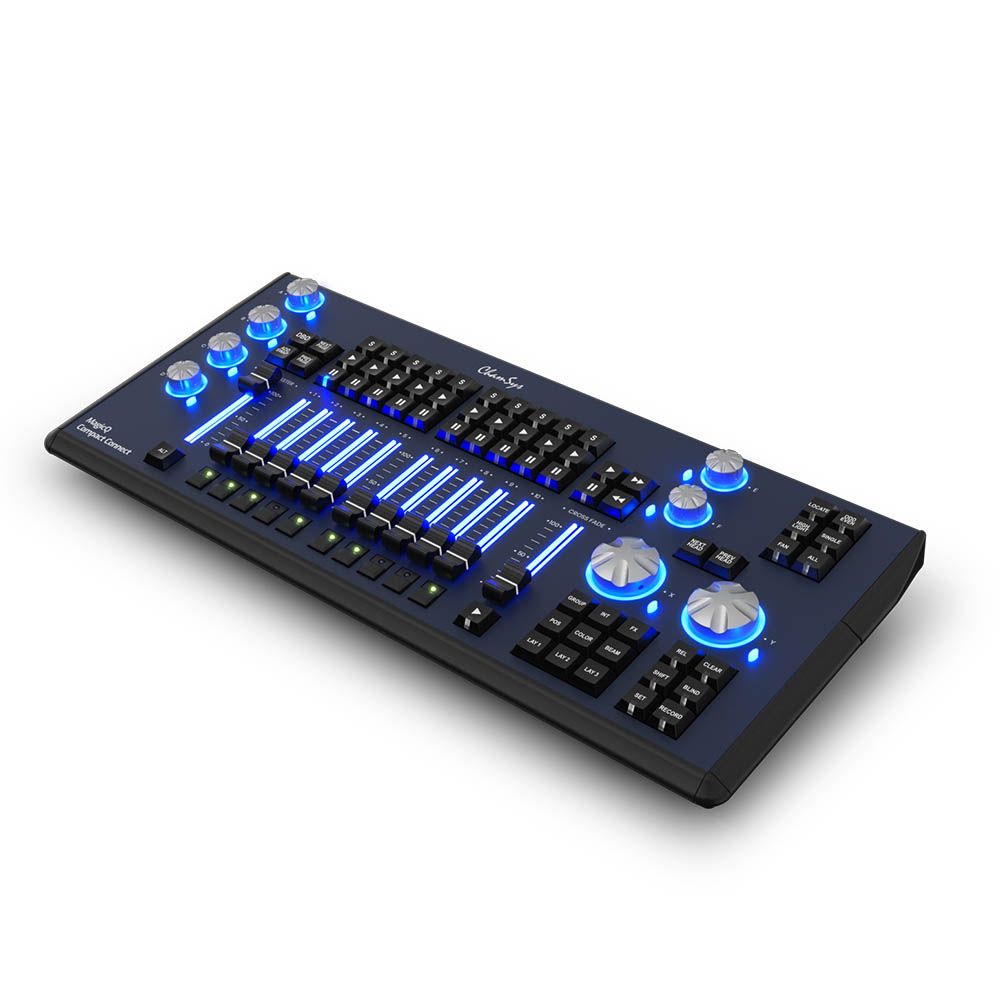

Chamsys MagicQ Compact Connect USB Lighting/Media Control Surface
RRP: $6,299.00 ex. GST
Key Features:
- Lightweight USB Control Surface
- 10 Playback Faders
- 64 Universes via Artnet/sACN
- 2 x Direct DMX Outputs Supporting RDM
- Windows, macOS & Linux Support
- Neutrik powerCON TRUE1 Cable Included
- Compliant with Hand Luggage Restrictions
Technical Data
| Universes | 64 |
| Max Number of DMX Channels | 32768 |
| Max Number of Fixtures Supported | 32768 |
| Max Number of Cues | 5000 |
| Max Number of Cue Stacks | 2000 |
| Max Number of Groups | 5000 |
| Max Number of Palettes | 4096 |
| Number of Media Server Layers Supported | 50 (Each Different Content) |
| Security | Kensington Security Lock |
| OS Compatibility | Windows (8.1 or Higher), macOS (10.13 or Higher), and Linux |
| USB I/O | 1 x USB-C Female Input; 4 x USB-A Female Output |
| Audio I/O | 1x 1/8″ / 3.5 mm Line Input |

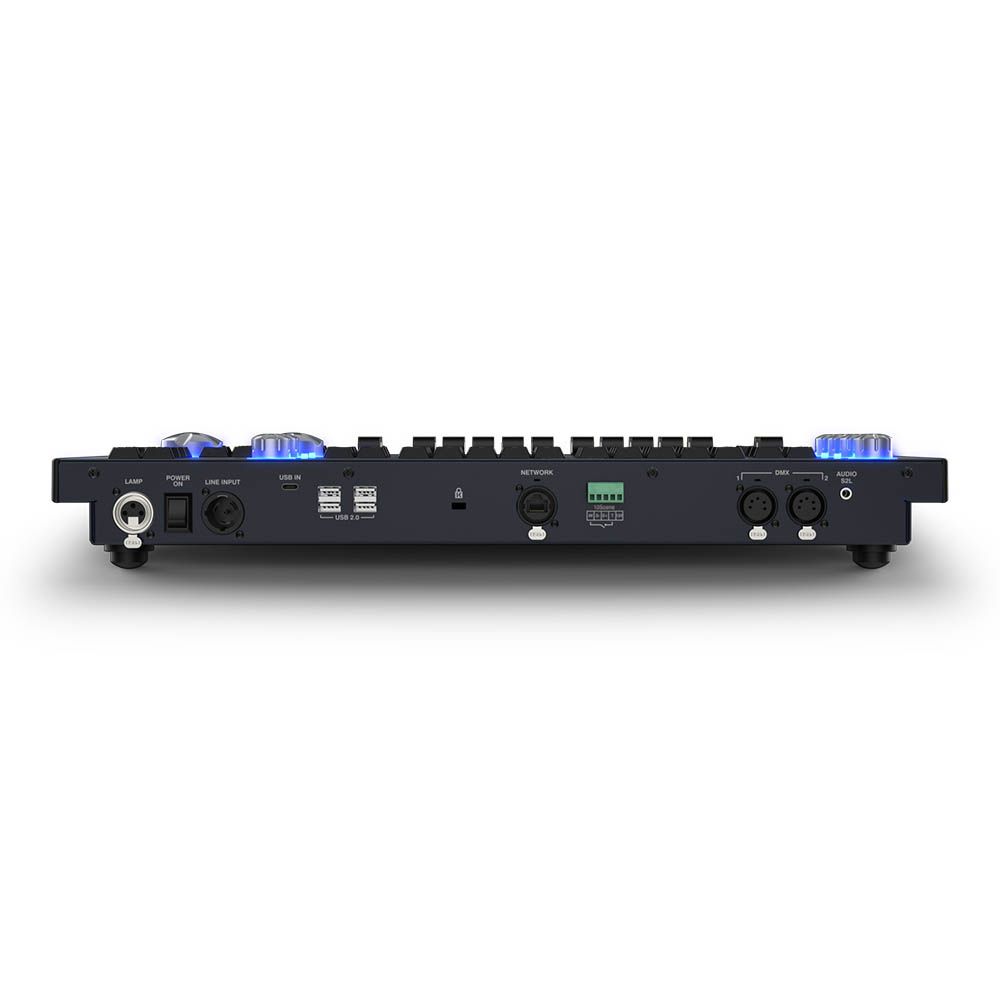

| Other I/O | 1 x Network Port; 1 x 5-Pin Block Input Connector for 10Scene; 1 x MIDI Input; 1 x MIDI Output; 2 x 5-Pin XLR (DMX) |
| Wireless | Yes |
| Power Source | Plug-In Power (Included) |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| Color | Black |
| Dimensions | 20.6 x 9.1 x 2.6″ / 522 x 230 x 65 mm |
| Weight | 8.05 lb / 3.65 kg |
