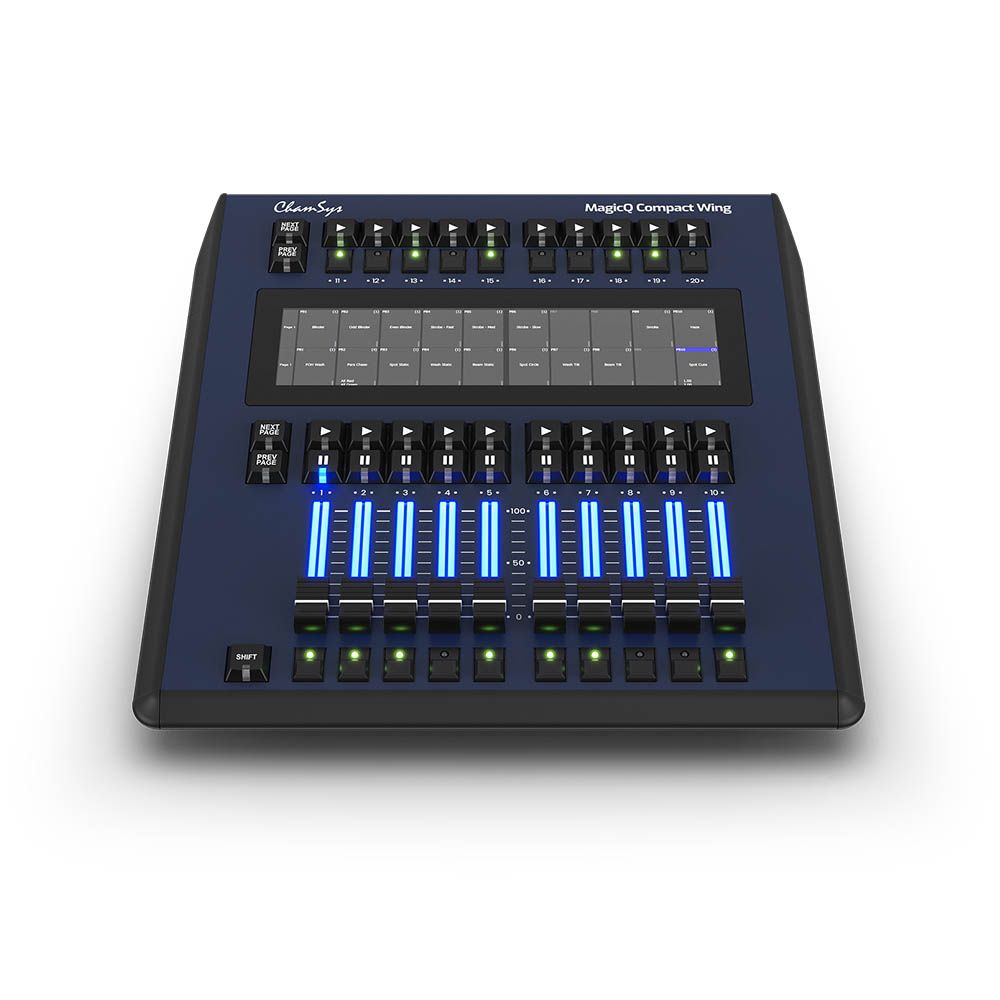

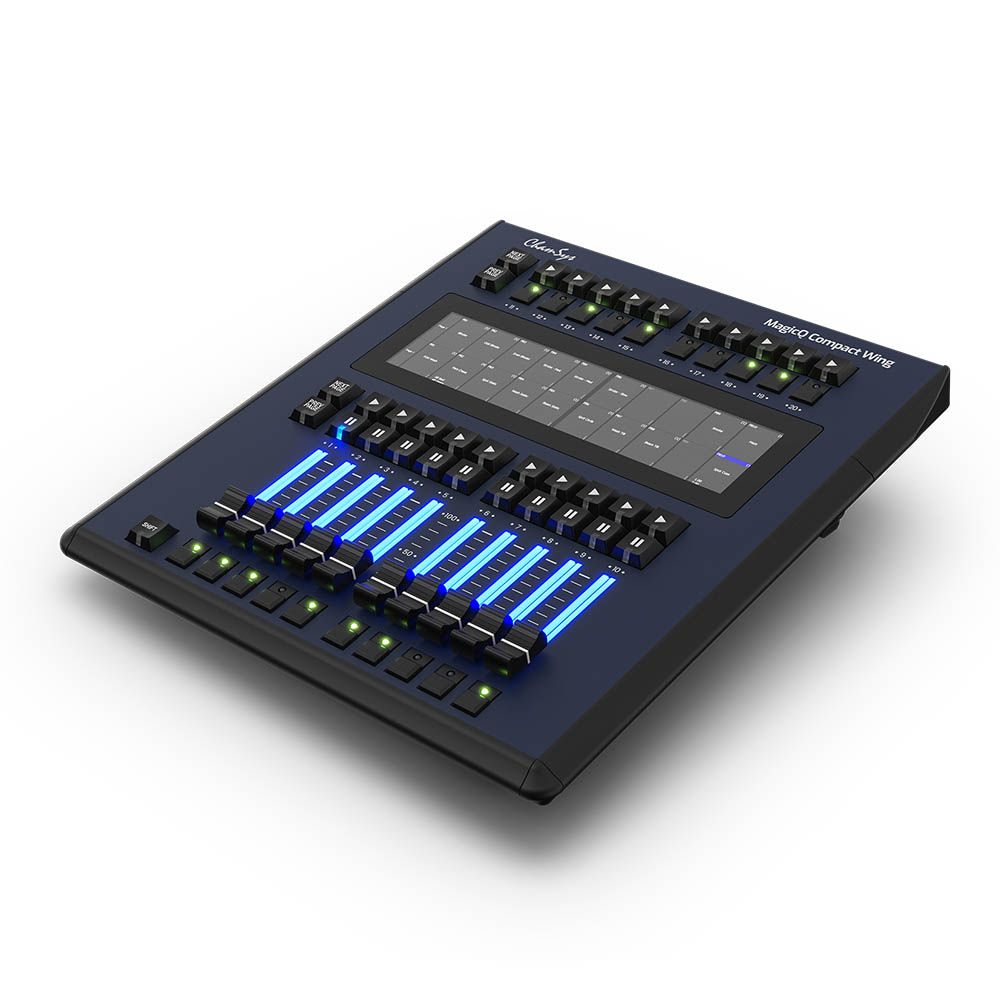

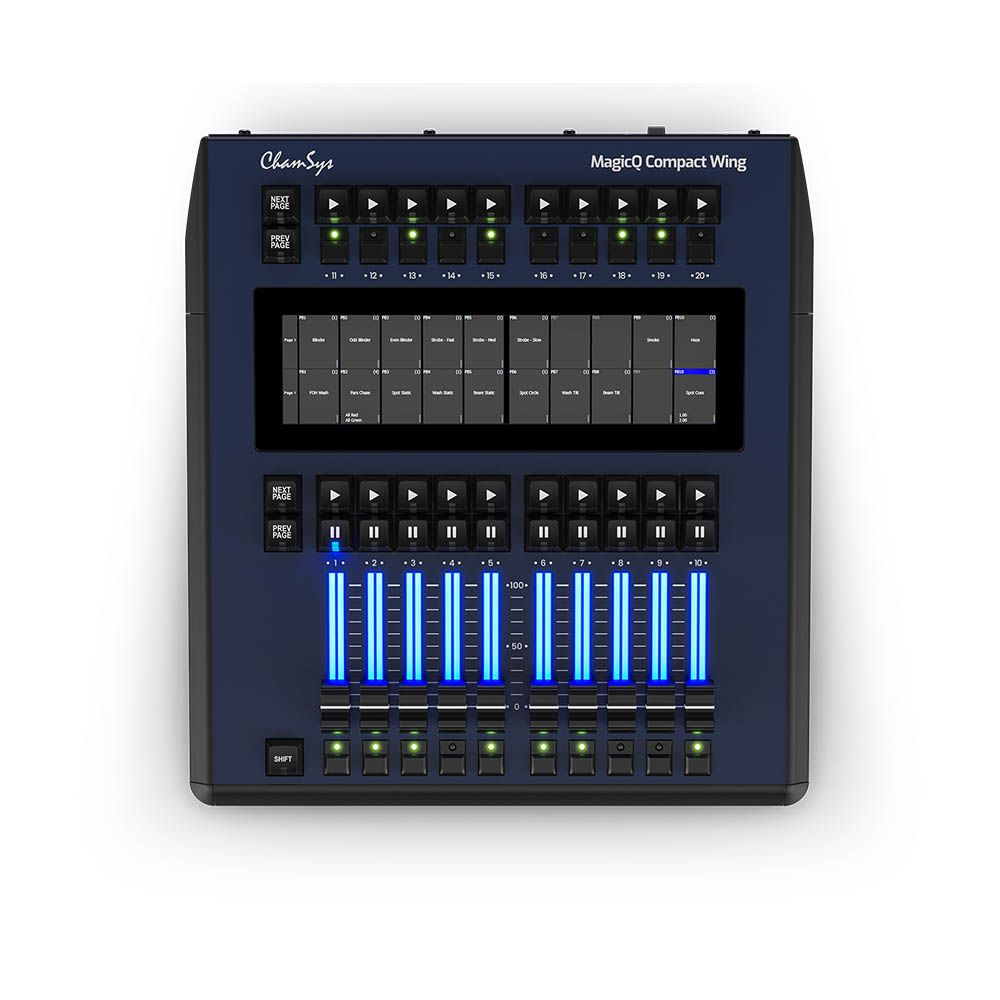

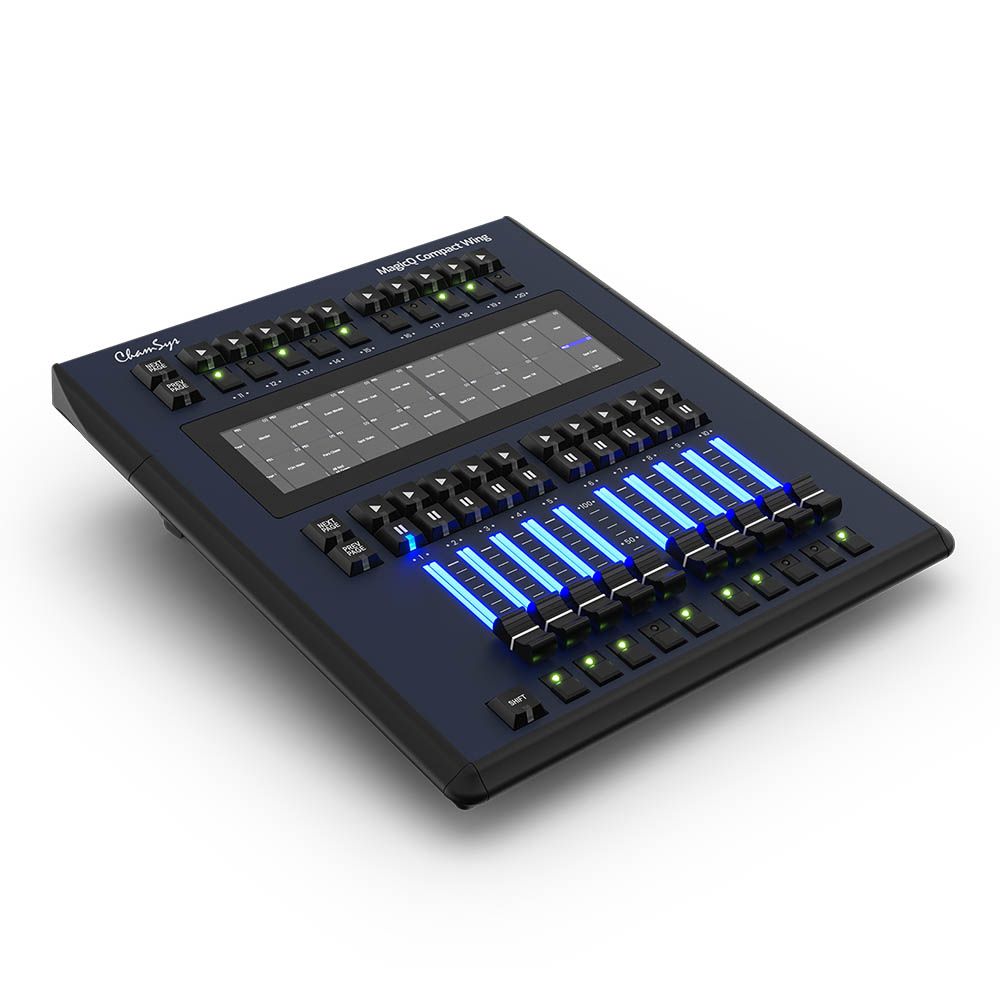

The Chamsys MagicQ Compact Control Expansion Wing with Touch Screen expands the number of physical playbacks available to MagicQ users. It provides 10 fader playbacks and 10 executor playbacks, with a full-colour touch-screen display for electronic playback legends and attribute display. The wing connects to MagicQ Compact and full-size consoles, as well as MagicQ PC or MacOS systems, using USB. Up to 2 Compact Wings can be connected per system.
Chamsys MagicQ Compact Control Expansion Wing with Touch Screen
RRP: $6,799.00 ex. GST
Key Features:
- 20 Playbacks with 10 Fader and 10 Executable playbacks
- Full Colour Touch-Screen Attribute Display
- Electronic Playback Legends
- Connect to MagicQ Compact and Full Size Consoles
- Connect to MagicQ PC or MacOS Systems
- Up to 2 Compact Wings per System
- USB Connection
- Dimmable Dual Colour Working Light
Technical Data
| Fader Playbacks | 10 |
| Executor Playbacks | 10 |
| Total Number of Playbacks | 20 |
| Touch-Screen Display | Yes |
| Electronic Playback Legends | Yes |

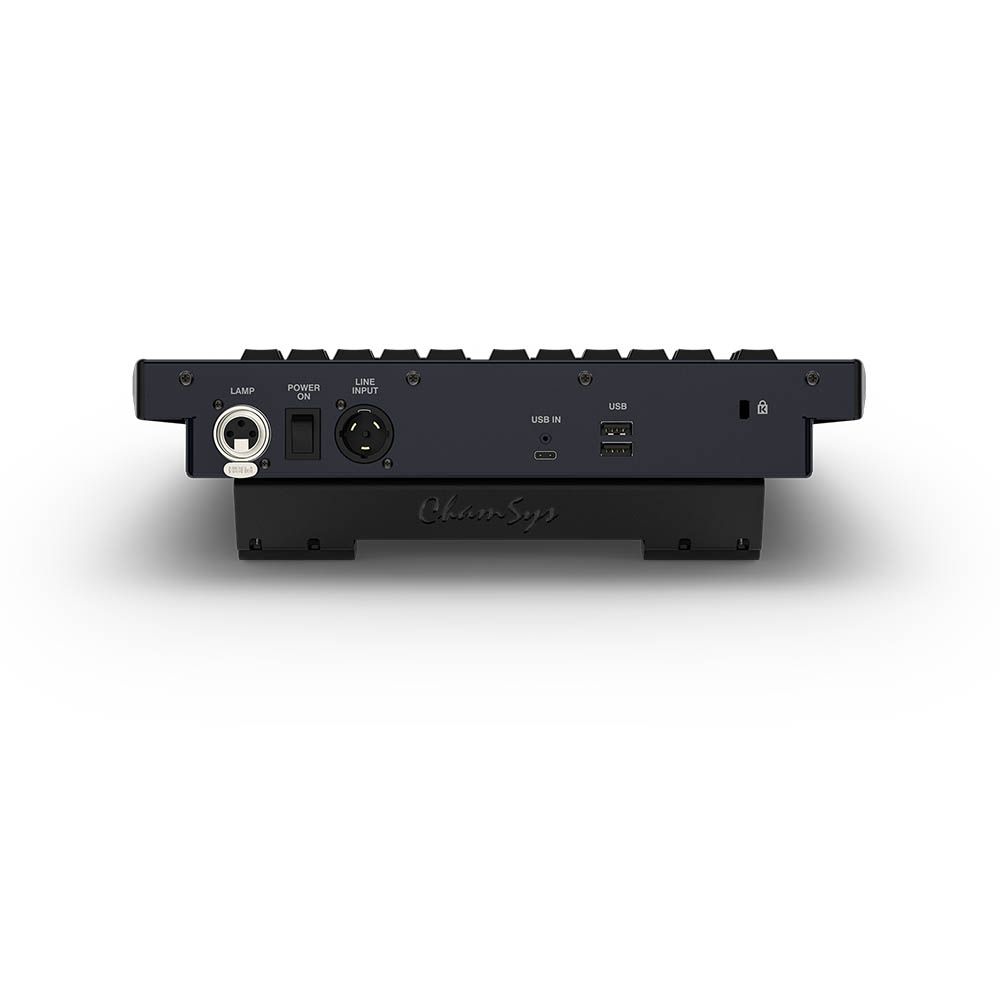

| USB Ports | 3 (1 USB-C In, 2 USB A Out) |
| Kensington Security Lock Fixing | Yes |
| Working Light Port | Yes |
| Power Input | PowerCon True1 100-240 VAC |
| Universes | 64 |
| Max Number of DMX Channels | 32768 |
| Max Number of Fixtures Supported | 32768 |
| Max Number of Cues | 5000 |
| Max Number of Cue Stacks | 2000 |
| Max Number of Groups | 5000 |
| Max Number of Palettes | 4096 |
| Number of Media Server Layers Supported | 50 (Each different content) |
