The Chamsys MagicQ MQ250M Stadium Lighting Console combines portable hardware with MagicQ Stadium Software for lighting control applications. It provides 64 universes directly from the console, expandable to 128, with network control through Art-Net, sACN and Pathport. The console includes 10 fully motorised fader playbacks, 10 encoder playbacks, RGB illumination, an inbuilt 15″ HD multi-touch display and a dedicated attribute/encoder touch display. MagicQ Stadium Software also includes an audio timeline editor, multi emitter colour picker, 3D trackers support and plot.

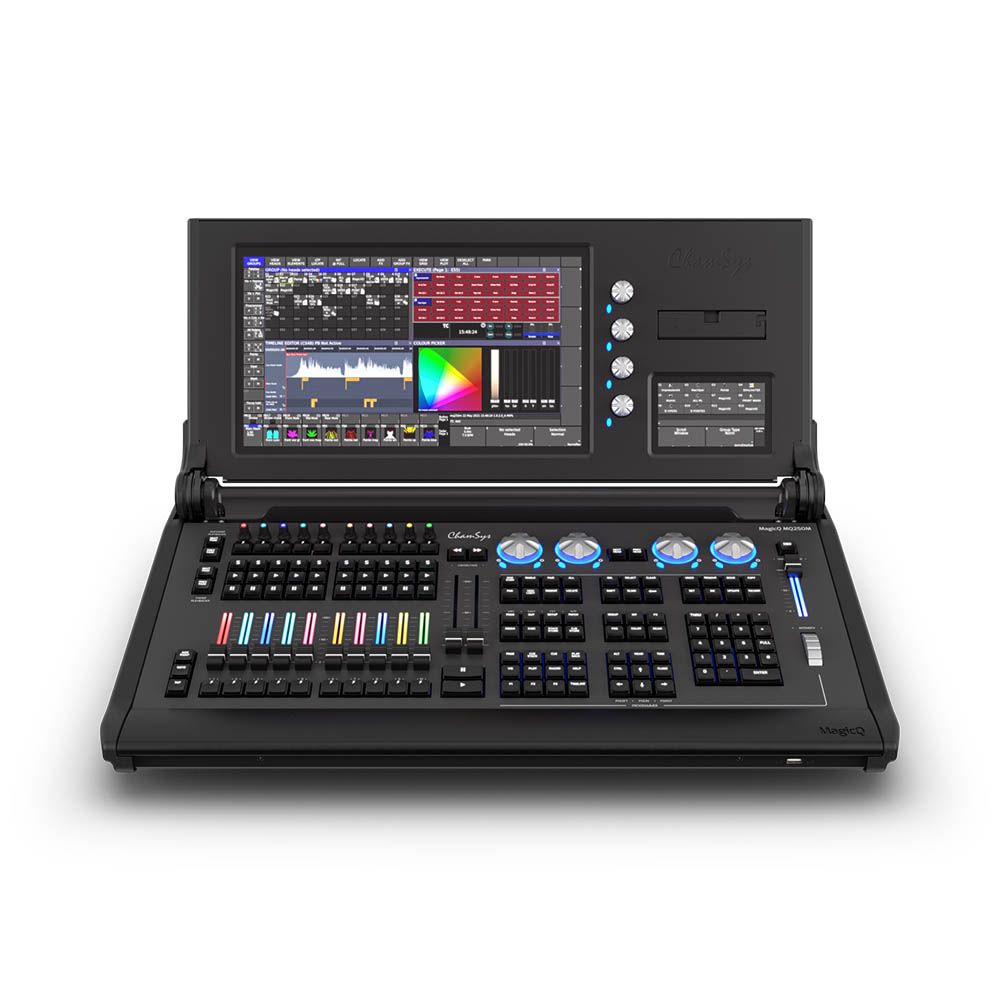

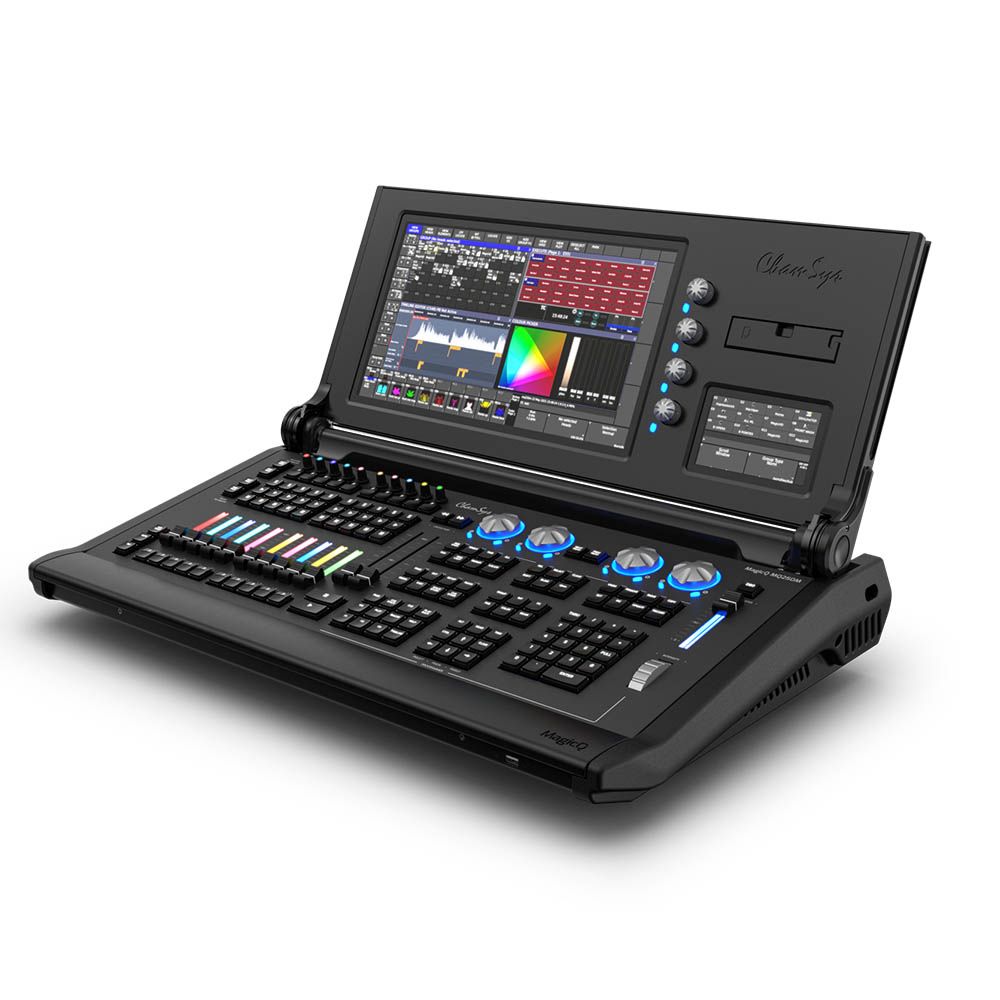

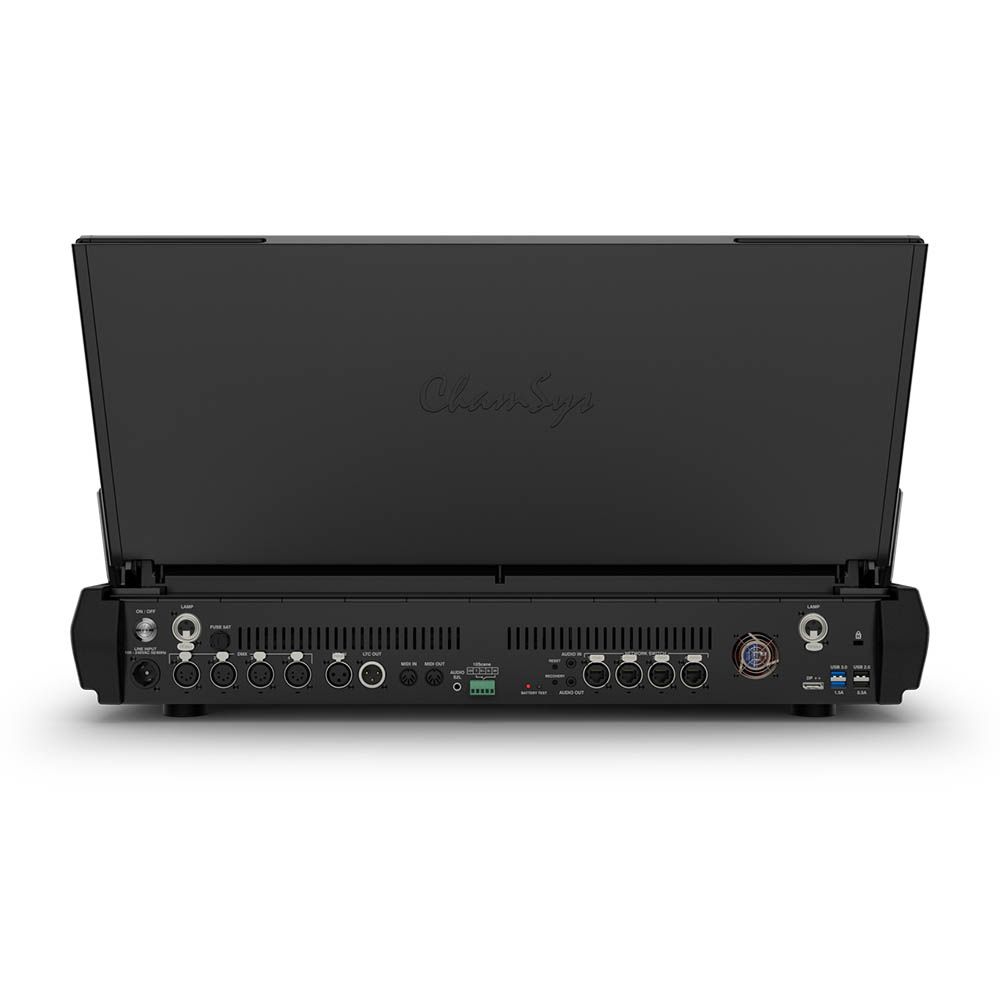

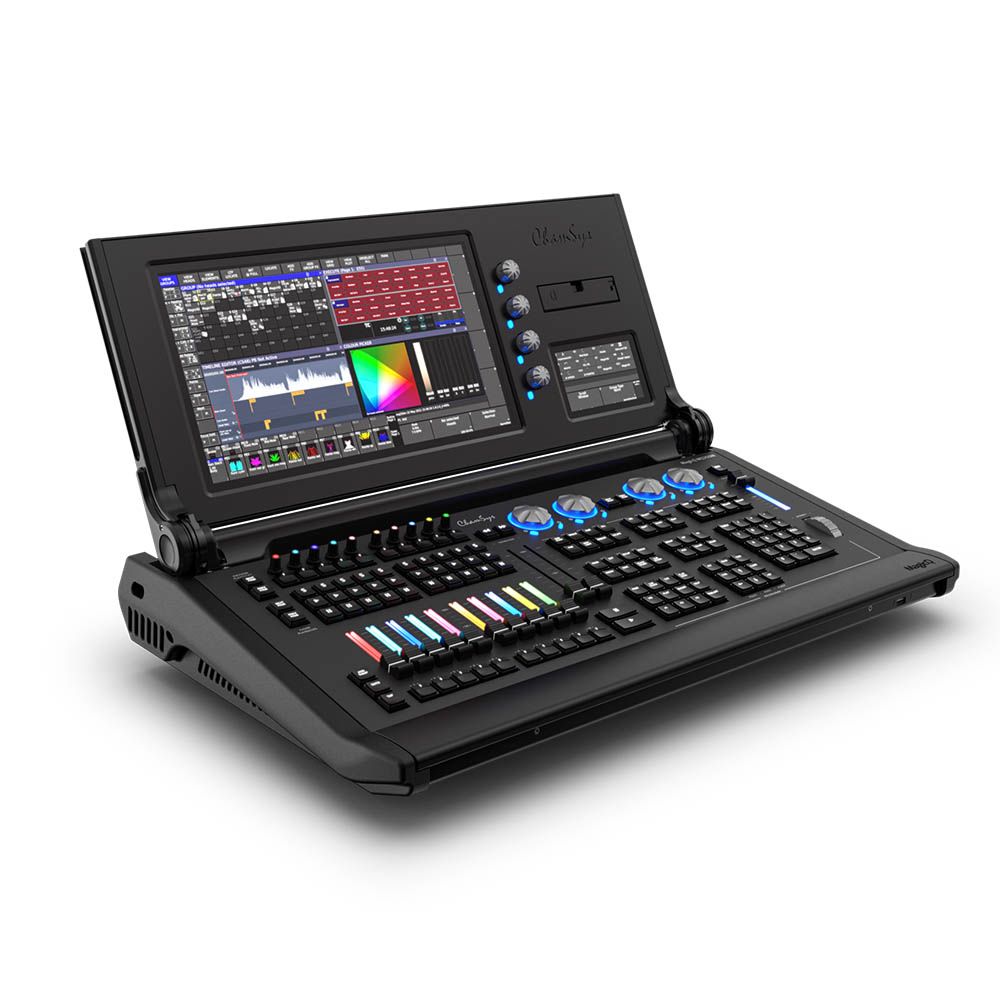

Chamsys MagicQ MQ250M Stadium Lighting Console
RRP: $47,999.00 ex. GST
Key Features:
- 64 universes direct from the console, with 128 universe upgrade option
- 10 fully motorised fader playbacks
- 10 encoder playbacks
- Inbuilt 15″ Multi HD touch display
- Dedicated 5″ Attribute/Encoder touch display
- Direct DMX control through Art-Net, sACN and Pathport
- RGB illumination of playbacks
- Backlit buttons
- Dual 100mm Manual Cross Faders
- Inbuilt Wi-Fi connects to MagicQ Remote control app
Technical Data
| Universes direct from the console (via Artnet/sACN/Pathport) | 64 expandable to 128 |
| Direct DMX Outputs | 4 |
| Motorised Playbacks | 10 |
| Encoder Playbacks | 10 |
| Total no of Playbacks | 20 (10+10) |
| Dual Cross Faders | Yes |
| Attribute Encoders | 8 |
| Backlit Keys | Yes |
| Illuminated Playback/Encoders with RGB control | Yes |
| Intensity Wheel | 1 |
| Network Ports | 4 |
| Inbuilt 15″ HD Multi-Touch Displays | 1 |
| Inbuilt Attribute/Execute display | 1 |
| External Monitor up to 1920×1200 Resolution – Display Port | 1 |
| USB Ports, including 2 High Power USBs | 6 |
| Audio Input (1 channel, 7 band) | Yes |
| Audio Input Sound to Light | Yes |
| Audio Output | Yes |
| MIDI Ports 1 in and out | Yes |
| LTC Timecode Ports in and out | Yes |
| 10Scene Port | 1 |
| Inbuilt UPS | Yes, uses 12v Lead-Acid Battery |
| Power Input | Power Input, Neutrik powerCON TRUE1 110 to 240 VAC |
| Max Power Consumption (mains) | 351w |
| Max Number of DMX Channels | 32,768 expandable to 65,536 |
| Max Number of Fixtures Supported | 32,768 expandable to 65,536 |
| Max Number of Cues | 5000 |
| Max Number of Cue Stacks | 2000 |
| Max Number of Groups | 5000 |
| Max Number of Palettes | 4096 |
| Number of Media Server Layers Supported | 50 (each different content) |
| Numbers of Shows | Virtually unlimited (500GB SSD) |
| Width (console) | 680mm (26.7 inches) |
| Depth (console) | 416mm (16.4 inches) |
| Height (console) | 159mm (6.26 inches) |
| Weight (console) | 13kg (28.7lbs) |
