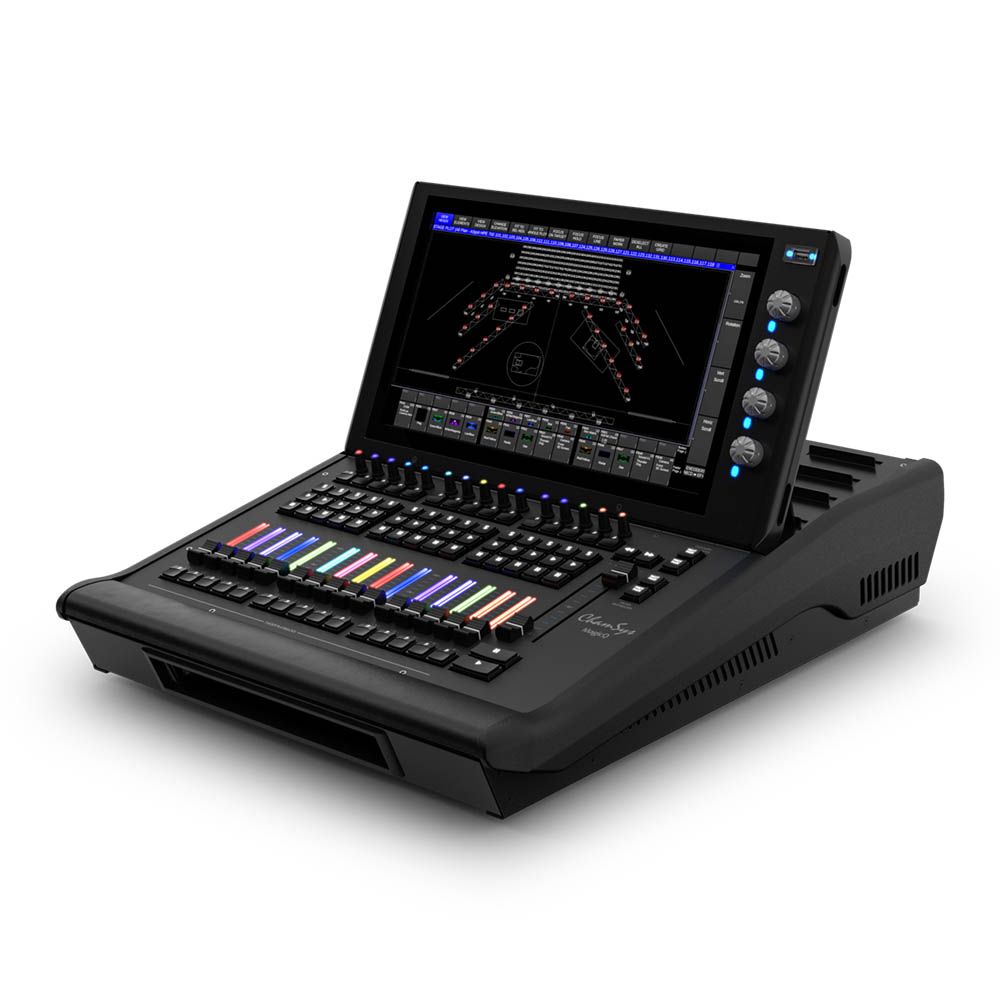

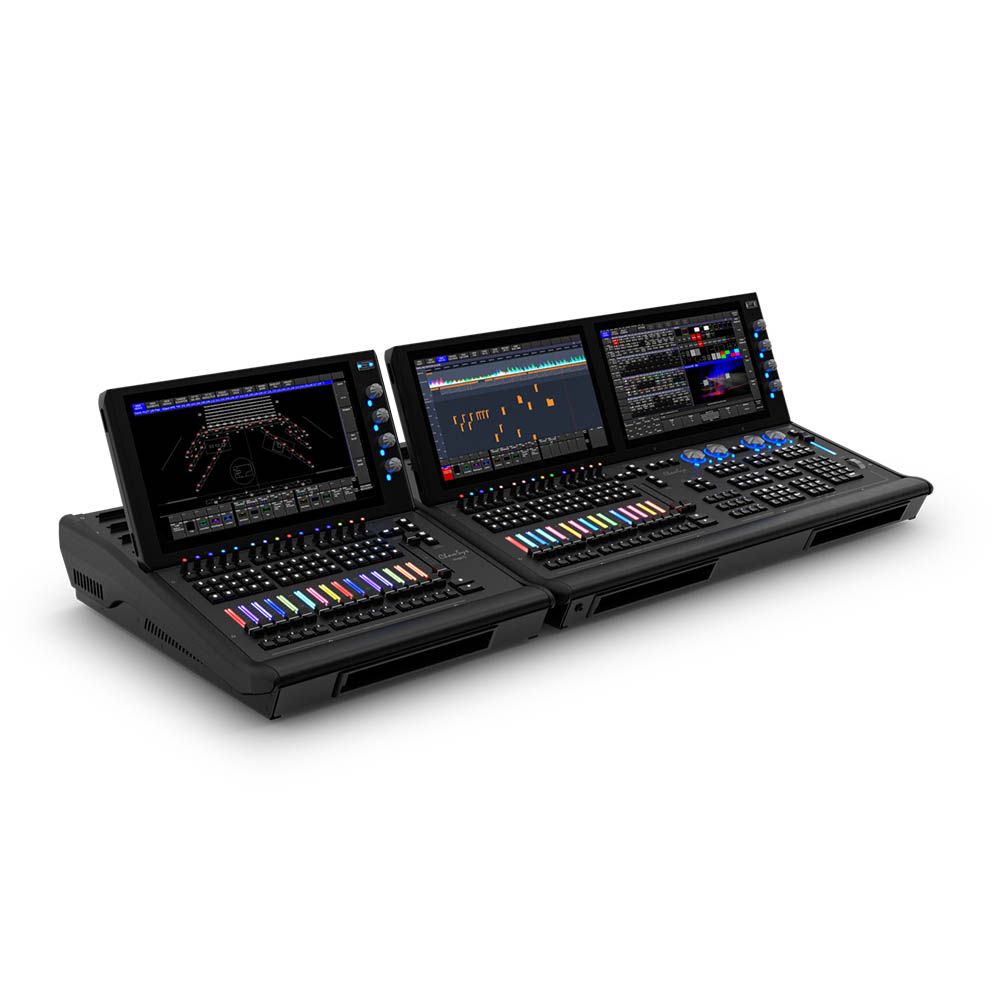

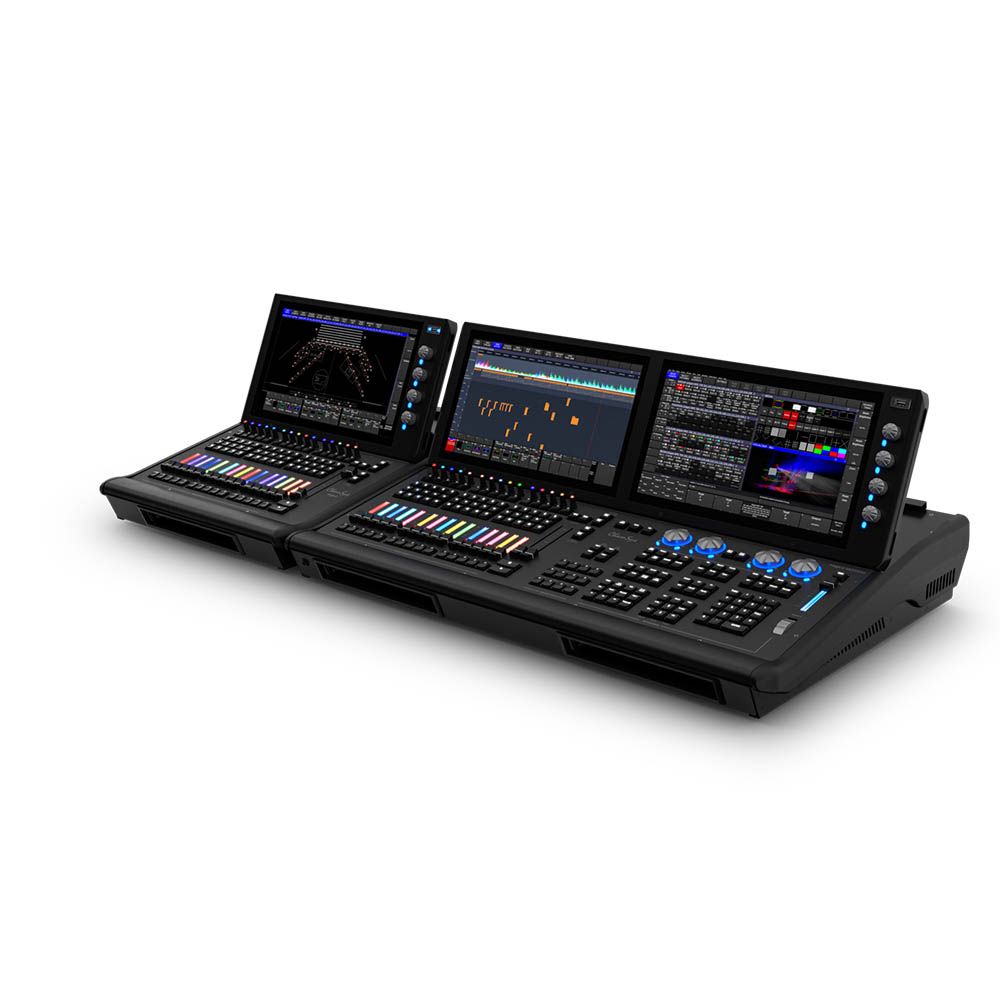

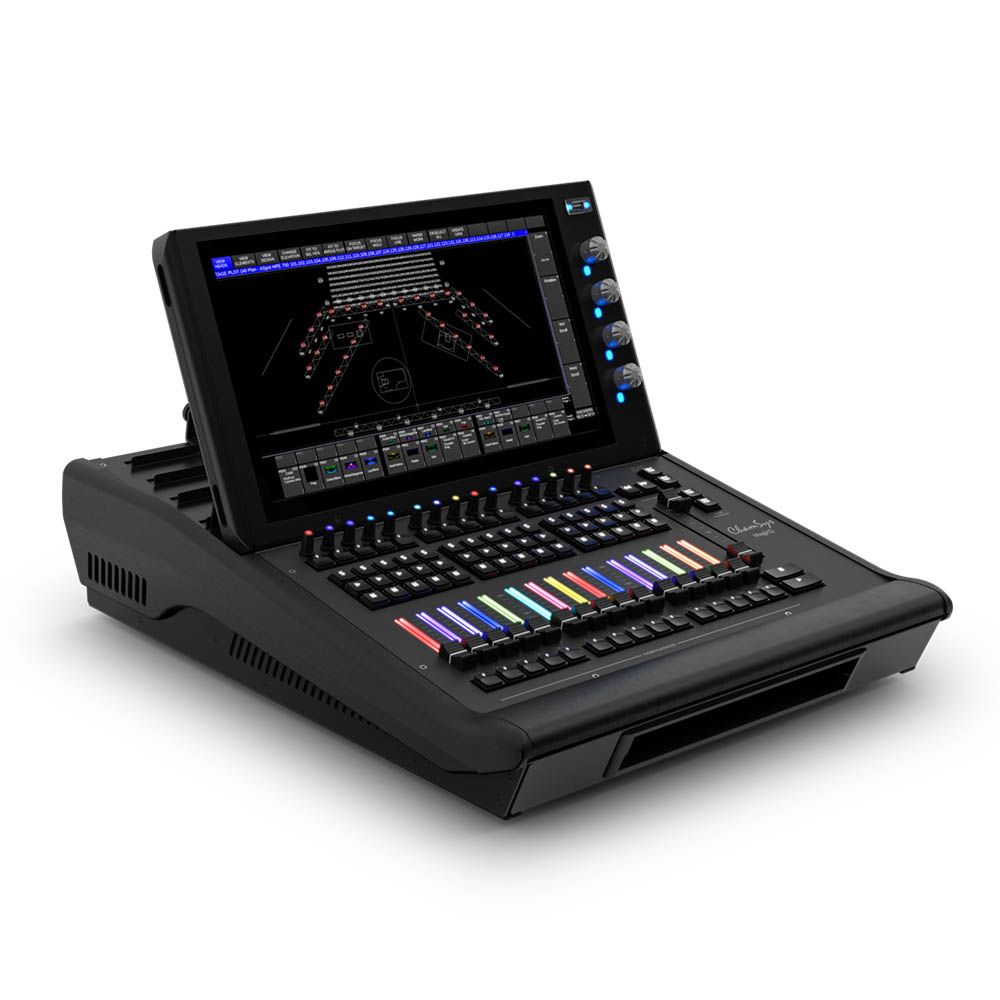

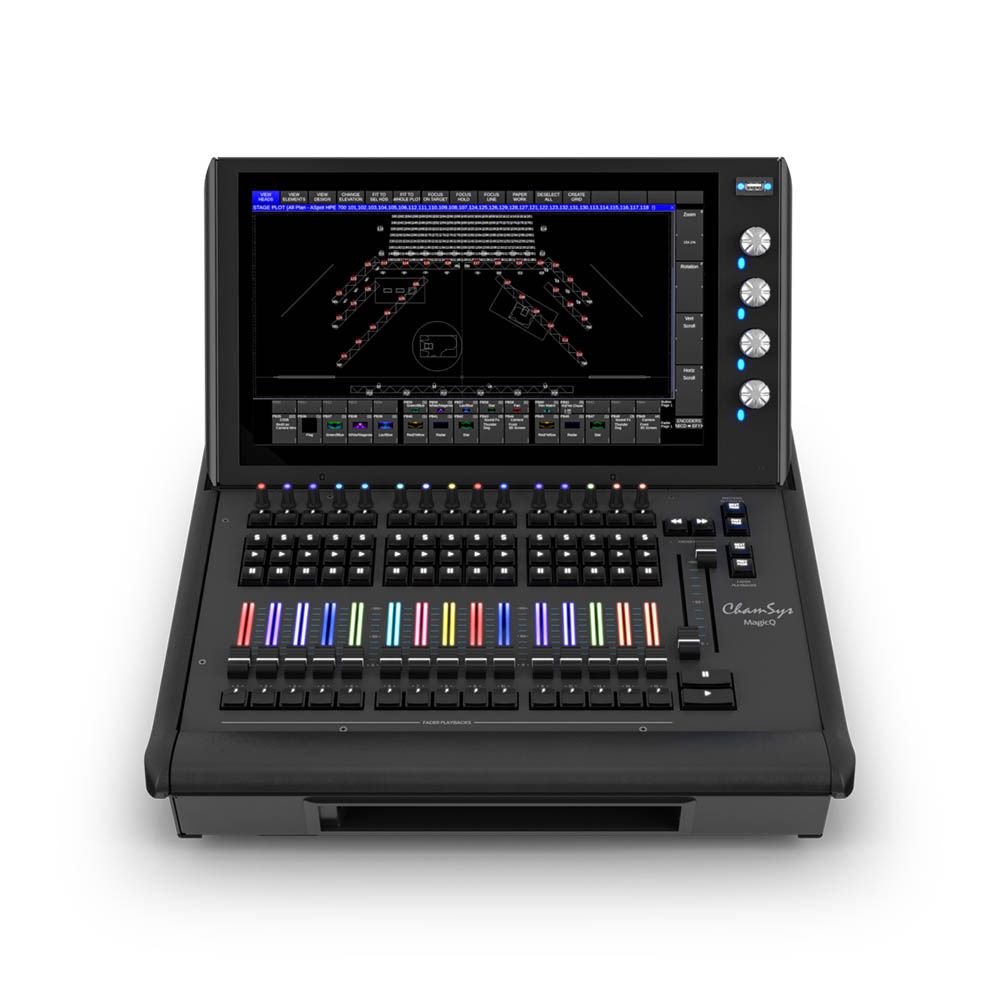

The Chamsys MagicQ MQ500M Stadium Control Expansion Wing is an expansion control surface designed for use with the MagicQ MQ500M Stadium console. It provides 15 motorised fader playbacks and 15 encoder playbacks, with RGB illumination and backlit keys. The wing also includes a 15″ HD multi-touch display, dual motorised crossfaders, four assignable DMX ports and an inbuilt UPS. It supports up to six banks, providing access to up to 180 playbacks.
Chamsys MagicQ MQ500M Stadium Control Expansion Wing
RRP: $23,426.00 ex. GST
Key Features:
- 15 motorised faders
- 15 encoder playbacks
- Total of 30 playbacks
- Dual motorised crossfaders
- 4 assignable DMX ports
- 15″ HD multi-touch display
- Backlit keys
- RGB illumination of playbacks
- Inbuilt UPS
- High Power USB Port
Technical Data
| Motorised Playbacks | 15 |
| Encoder Playbacks | 15 |
| Total no of Playbacks | 30 |
| Dual Motorised Cross Faders | Yes |
| Execute Encoders | 4 |
| Backlit Keys | Yes |
| Direct DMX Outputs | 4 |
| Illuminated Playback/Encoders with RGB control | Yes |
| Inbuilt 15″ HD Multi-Touch Display | 1 |
| High Power USB Port | 1 |
| Inbuilt UPS | Yes, uses 12v Lead-Acid Battery |
| Front Storage Pocket | 1 |
| Power Input | Neutrik powerCON TRUE1 110 to 240 VAC |
| Max Power Consumption (mains) | 170w |
| Max Number of DMX Channels | 131072 |
| Max Number of Fixtures Supported | 131072 |
| Max Number of Cues | 5000 |
| Max Number of Cue Stacks | 2000 |
| Max Number of Groups | 5000 |
| Max Number of Palettes | 4096 |
| Number of Media Server Layers Supported | 50 |
| Width | 690mm (21 inches) |
| Depth | 590mm (23.3 inches) |
| Height | 340mm (13.3 inches) |
| Weight | 21kg (46.2 lb) |
