Chamsys MagicQ Rack 24-Universe Lighting Console is a rack-mountable lighting controller designed for installations and architectural settings. It features the same software as MagicQ Consoles and operates without physical user control, with ten buttons for activation of Playbacks and Executes. The unit provides 24 universes of DMX output, expandable to 48 via licence upgrade, plus two RDM enabled 5-pin DMX connectors, inbuilt Wi-Fi and four 10Scene ports for connecting up to forty 10Scene wall plates. It can be used as a desktop box or rack mounted with the supplied rack ears.

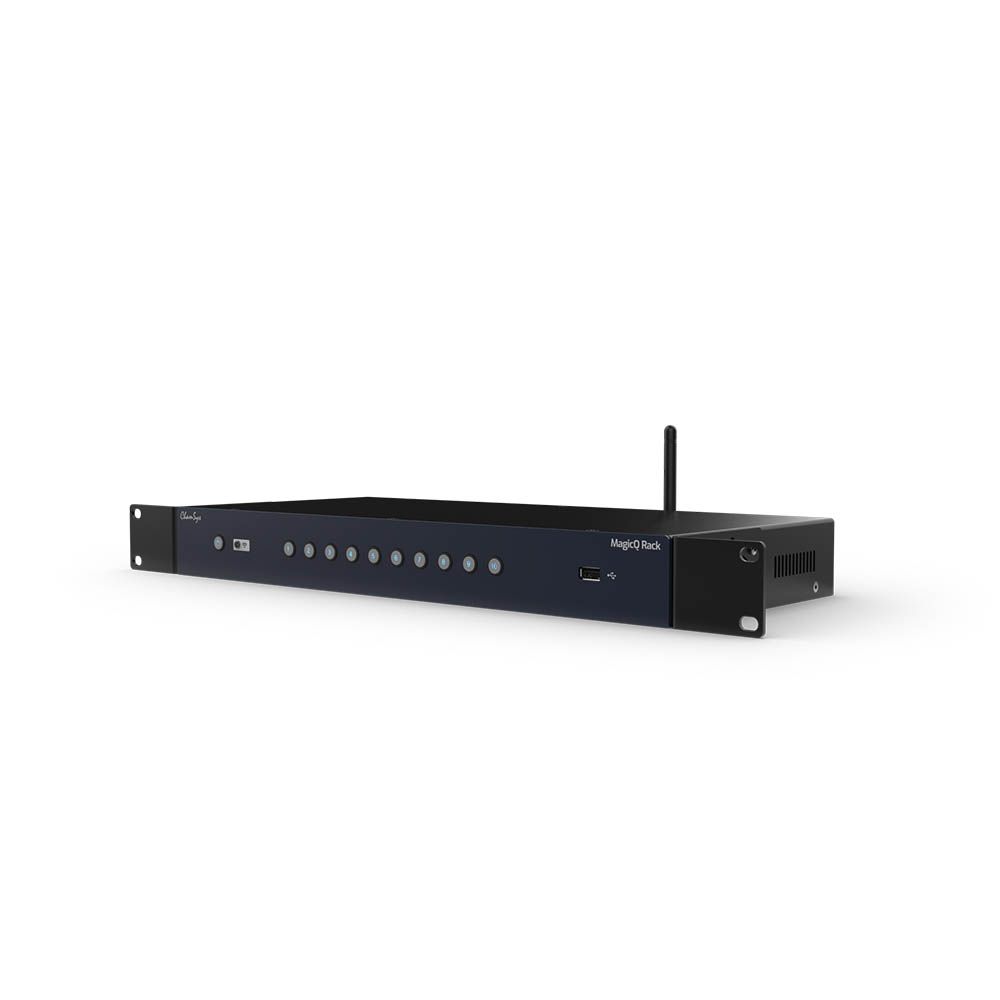

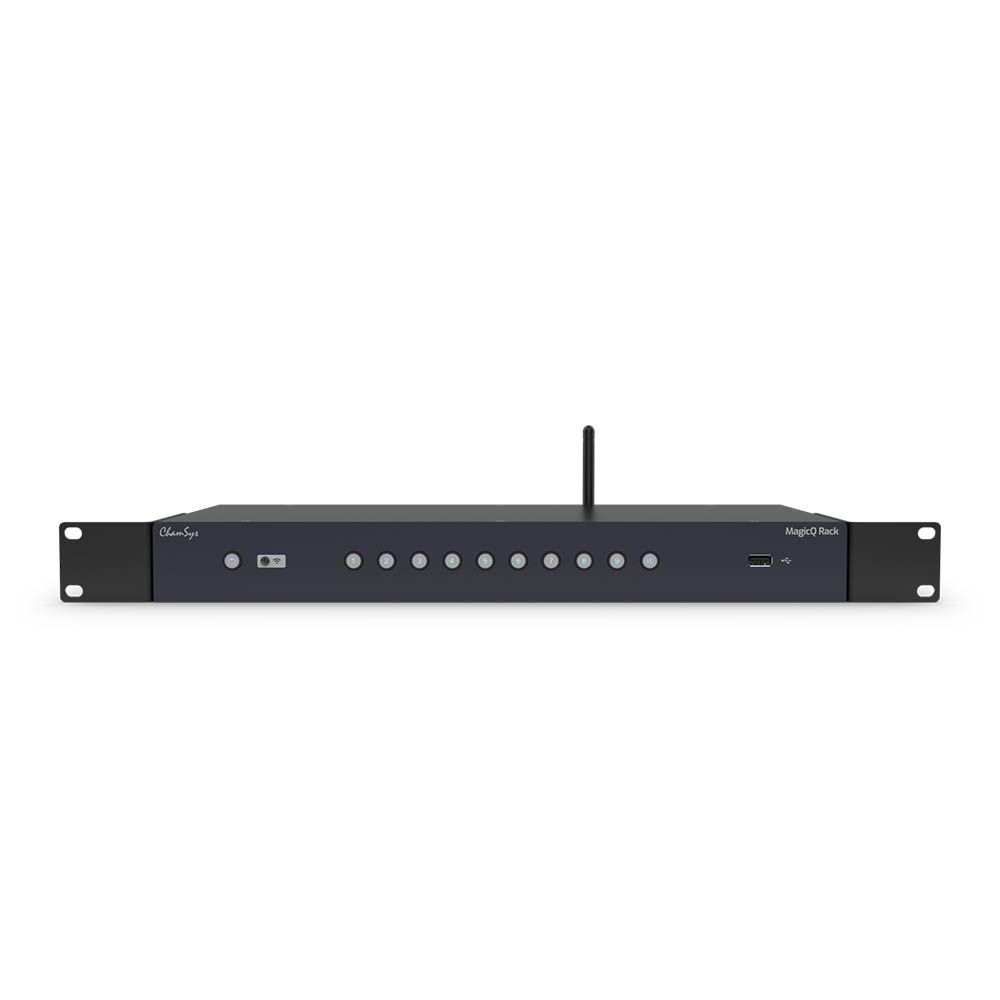

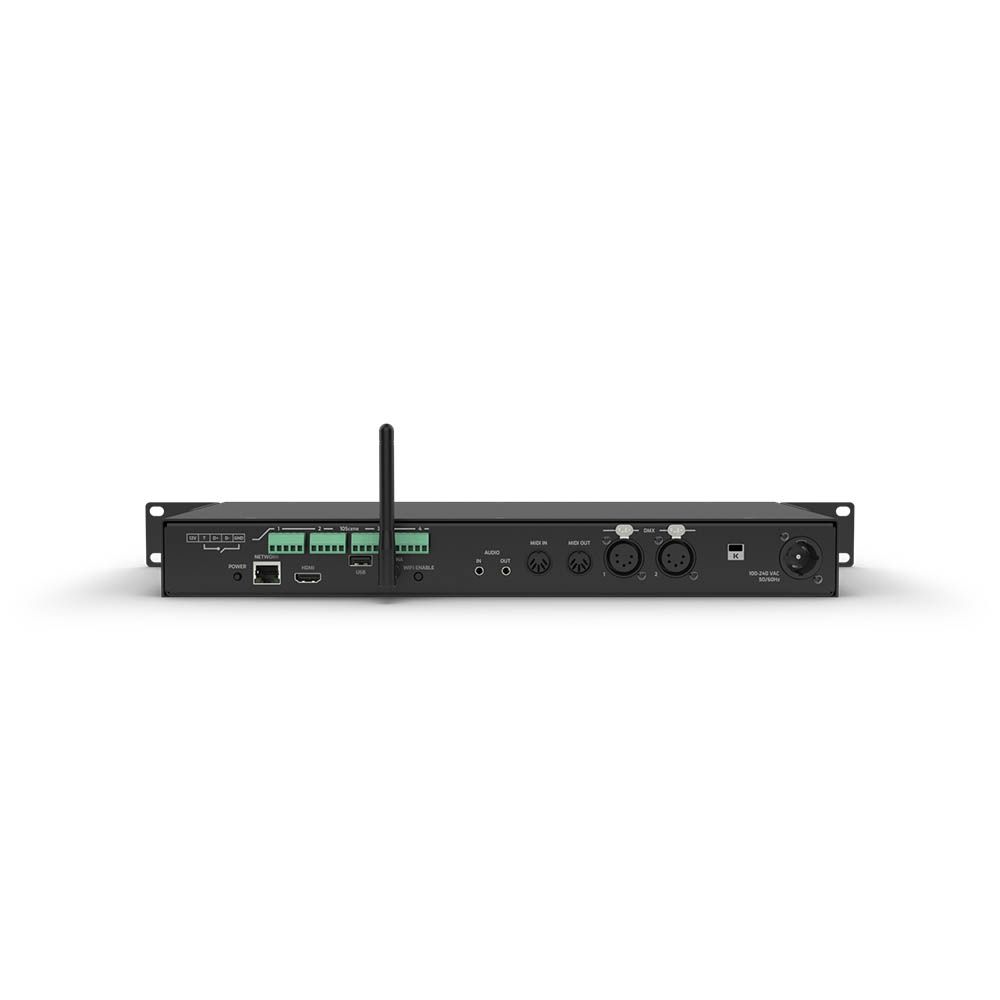

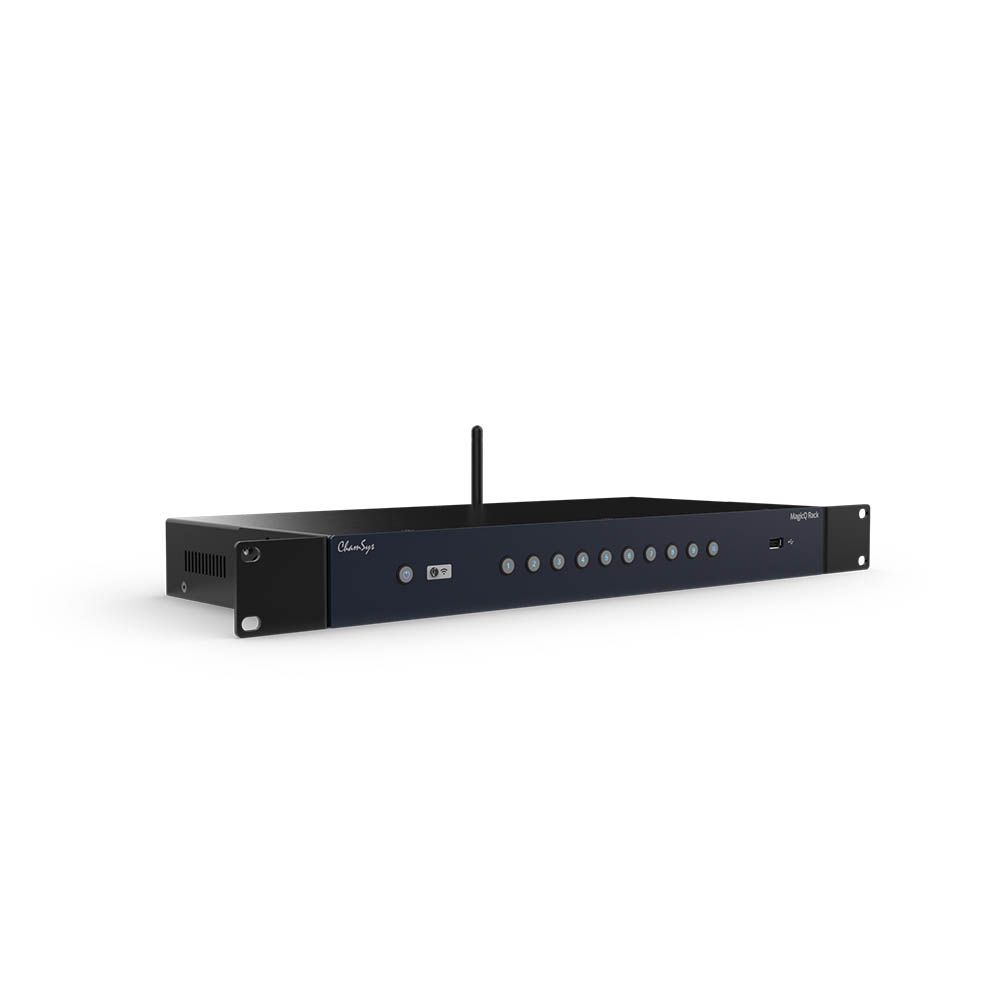

Chamsys MagicQ Rack 24-Universe Lighting Console
RRP: $13,563.00 ex. GST
Key Features:
- 24 universes direct from the console, expandable to 48
- Two RDM enabled 5-pin DMX connectors
- Inbuilt Wi-Fi for programming and remote control
- Four 10Scene ports for connection of up to forty 10Scene wall plate
- Ten buttons for activation of Playbacks and Executes
- Features the same software as MagicQ Consoles
Technical Data
| Universes supported | 24, expandable to 48 via licence upgrade |
| Direct DMX Outputs 5-Pin XLR | 2 |
| 10Scene buttons | 10 |
| External Monitor | 1920 x 1080 HDMI |
| Inbuilt Wi-Fi | Yes |
| Network Port | 1 |
| USB Ports | 2 |
| Audio Input | 1 |
| Audio Output | 1 |
| MIDI Ports in/out | Yes |
| TrueCon Power Input | 90-250v AC |
| Max Power Consumption (mains) | 60w |
| Max Number of DMX Channels | 12288, expandable to 24576 |
| Max Number of Fixtures Supported | 12288, expandable to 24576 |
| Max Number of Cues | 5000 |
| Max Number of Cue Stacks | 2000 |
| Max Number of Groups | 5000 |
| Max Number of Palettes | 4096 |
| Number of Media Server Layers Supported | 50 (each different content) |
| Midi & Midi Timecode Supported | Yes |
| OSC Supported | Yes |
| RDM Autopatch for fast show patching | Yes |
| Fixture library of over 48,000 fixture files | Yes |
| Built in FX generator | Yes |
| Colour picker and Gel inbuilt Gel library | Yes |
