The Chamsys MediaMaster Vision-SDI2 Card (2 x SDI) is a PCIe x8 video processing card for use with ChamSys MediaMaster 25. It provides four BNC/SDI connectors for inputs and outputs, with capture support up to 2x 2048×1556 at 24fps or 2x 1920×1080 at 60fps. The card supports a maximum SDI bitrate of 3Gb/s, user-defined update rates, and the listed RGB, YUV and MONO sample formats. Frame buffer memory is 64 MB per channel, with 128 MB total.

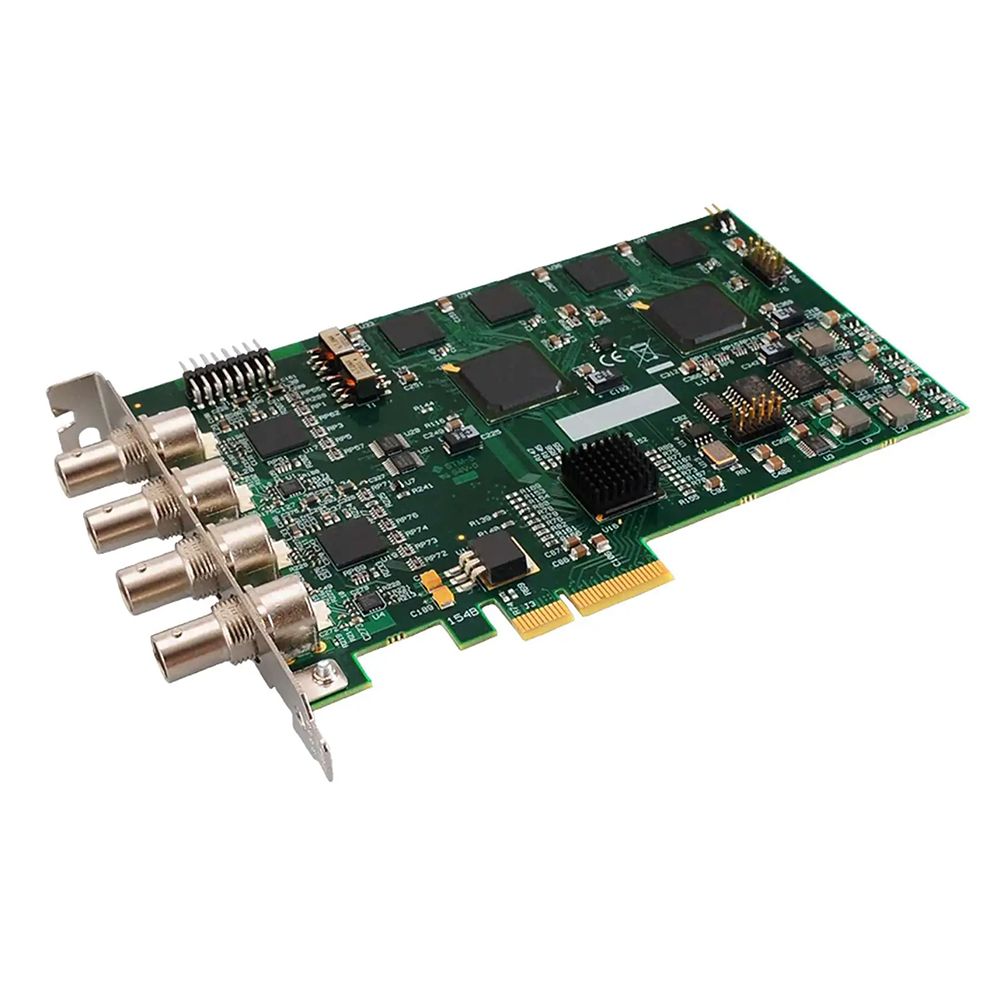

Chamsys MediaMaster Vision-SDI2 Card (2 x SDI)
RRP: $10,115.00 ex. GST
Key Features:
- PCIe x8 motherboard connection
- 4 x BNC/SDI for inputs and outputs
- Maximum capture resolution of 2x 2048×1556 at 24fps or 2x 1920×1080 at 60fps
- Maximum SDI bitrate of 3Gb/s
- 64 MB per channel frame buffer memory, 128 MB total
Technical Data
| Motherboard Connection Type | PCIe x8 |
| Input Connectors | 4 x BNC/SDI for Inputs and Outputs |
| Maximum Capture Resolution | 2x 2048×1556 at 24fps, 2x 1920×1080 at 60fps |
| Update Rate | User defined, captured frame rate will match the source |
| Maximum SDI Bitrate | 3Gb/s |
| Supported Frame Rates | 23-98Hz, 24Hz, 25Hz, 29-97Hz, 30Hz, 50Hz, 59-94Hz & 60Hz |
| Sample Formats | RGB: 5-5-5, 5-6-5 or 8-8-8 (24 bit/32 bit) pixels, YUV: 4:2:2, MONO: 8 bit |
| Frame Buffer Memory | 64 MB per channel (total 128 MB) |
| Included Accessories | VS4+ Rear Panel Adapter Plate: 1 |
| Width | 280mm (4.09 inches) |
| Depth | 170mm (4.09 inches) |
| Height | 75mm (4.09 inches) |
| Weight | 0.35 kg (0.77 lb) |
