The Chamsys MediaMaster VisionSC-HD4+H HDMI Video Input Card adds multiple HDMI or DVI video input channels to MediaMaster VS2+ or VS4+ media servers running MediaMaster software. It provides four independent HDMI 1.4 channels for capturing and controlling separate video sources simultaneously. Two channels support 297MHz and 3840×2160 at 60 fps, while two support 165 MHz and 1920×1080 at 60 fps. The card connects through PCIe x8.

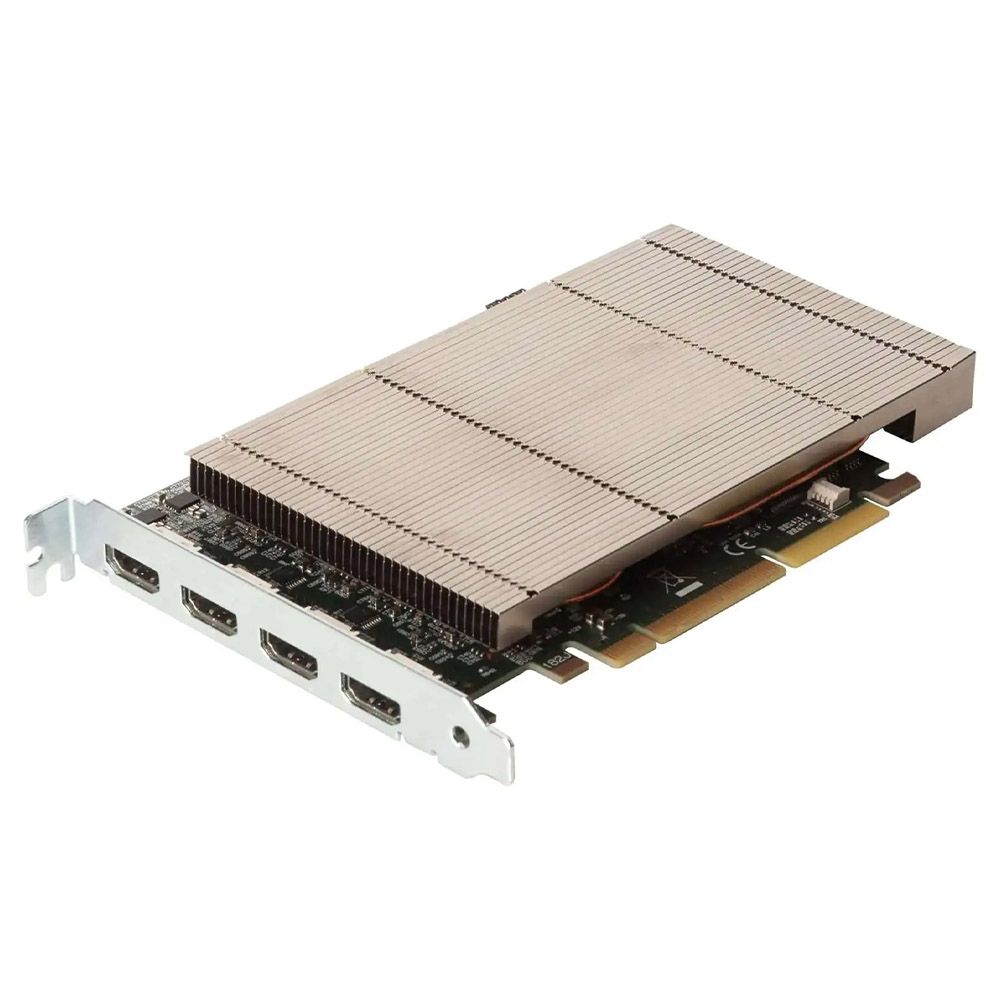

Chamsys MediaMaster VisionSC-HD4+H HDMI Video Input Card
RRP: $11,984.00 ex. GST
Key Features:
- Four channels of HDMI 1.4
- Two channels supporting 297MHz (3840×2160 at 60 fps)
- Two channels supporting 165 MHz (1920×1080 at 60 fps)
- Independent operation of all channels
- Supports multiple video sources simultaneously
Technical Data
| Motherboard Connection Type | PCIe x8 |
| Input Connectors | 4 x BNC/SDI |
| Maximum Capture Resolution | 2.97 Gbps capture bandwidth per channel. Provide => 4 * 1920x1080p @ 60 Hz per input |
| Update Rate | User defined. Captured frame rate will match the source providing max data rate (6 GB/s per channel) is not exceeded. Multi-buffered to eliminate tearing artefacts. |
| SMPTE Standards | ST-259, ST-272, ST-274, ST-291, ST-292, ST-293, ST-296, ST-299, ST-352, ST-424, ST-425, ST-2048 |
| Video Modes | 480i, 576i, 720p, 1080i, 1080p, 1080psF, 2048 x 1080p, 2048 x 1080psF |
| Supported Frame Rates | 23-98Hz, 24Hz, 25Hz, 29-97Hz, 30Hz, 50Hz, 59-94Hz & 60Hz |
| Sample Formats | RGB: 4:4:4 (+A), YUV: 4:2:2 (+A), 4:4:4 (+A) |
| Frame Buffer Memory | 768 MB |
| Included Accessories | VS4+ Rear Panel Adapter Plate: 1 |
| Width | 280mm (4.09 inches) |
| Depth | 170mm (4.09 inches) |
| Height | 75mm (4.09 inches) |
| Weight | 0.35 KG (0.77 lb) |
