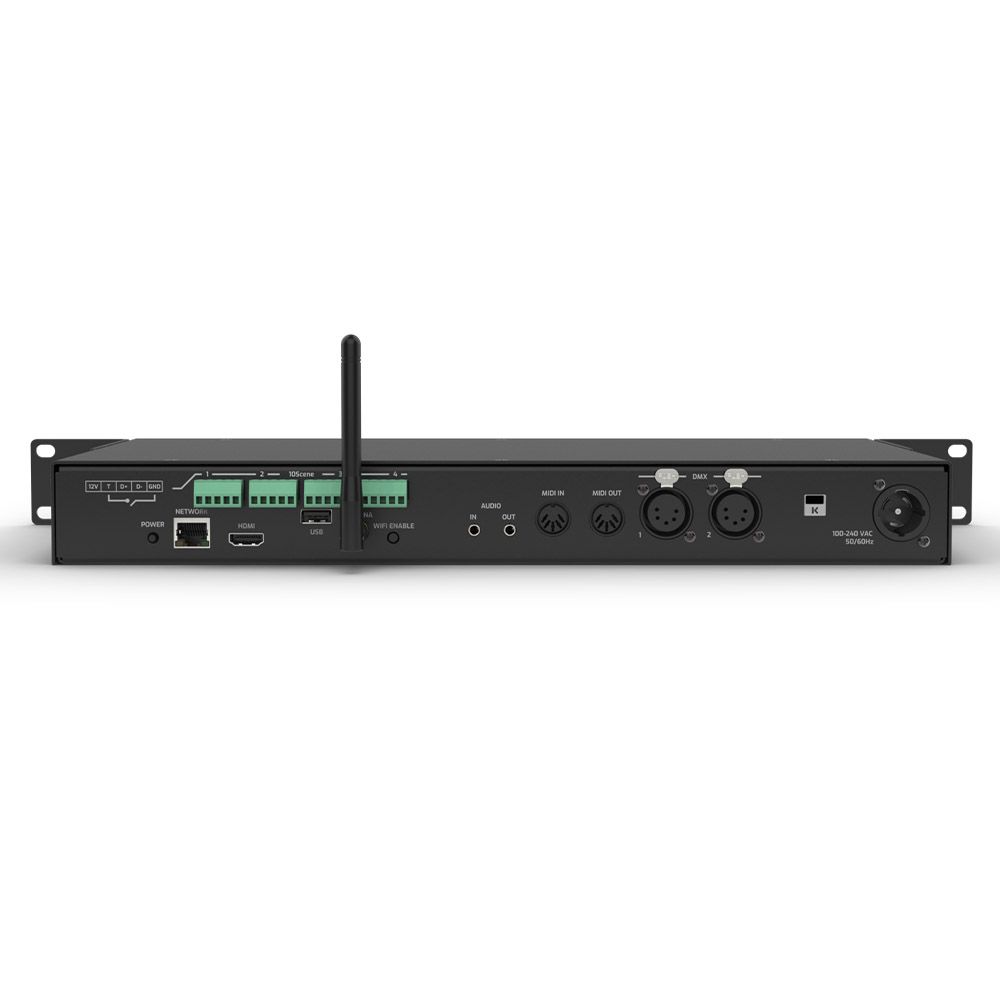

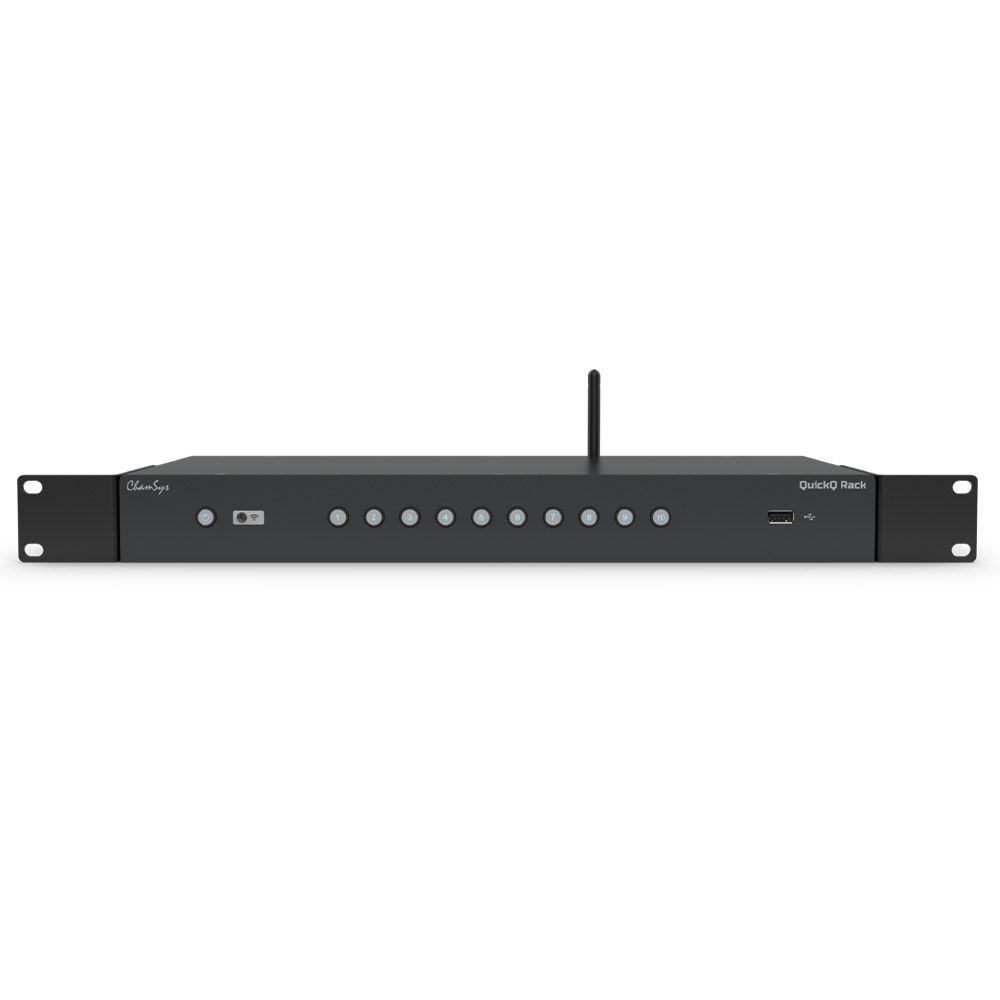

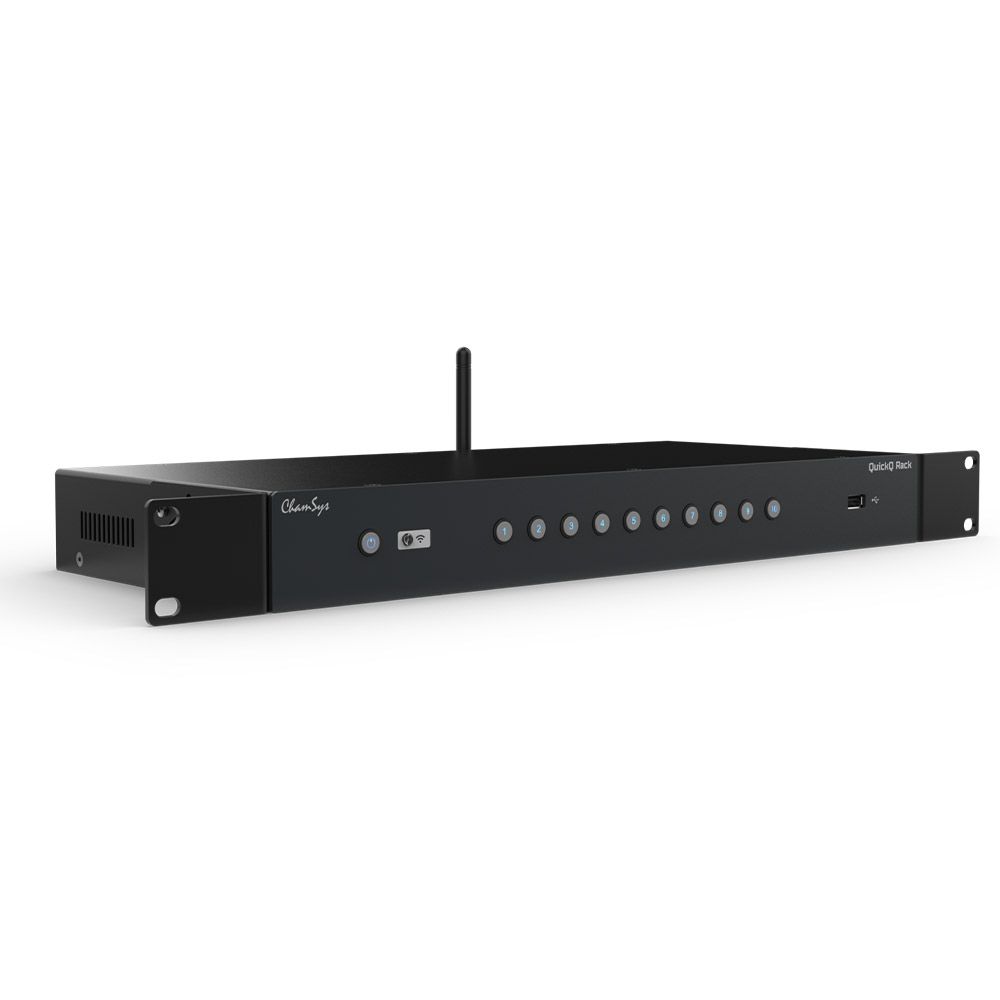

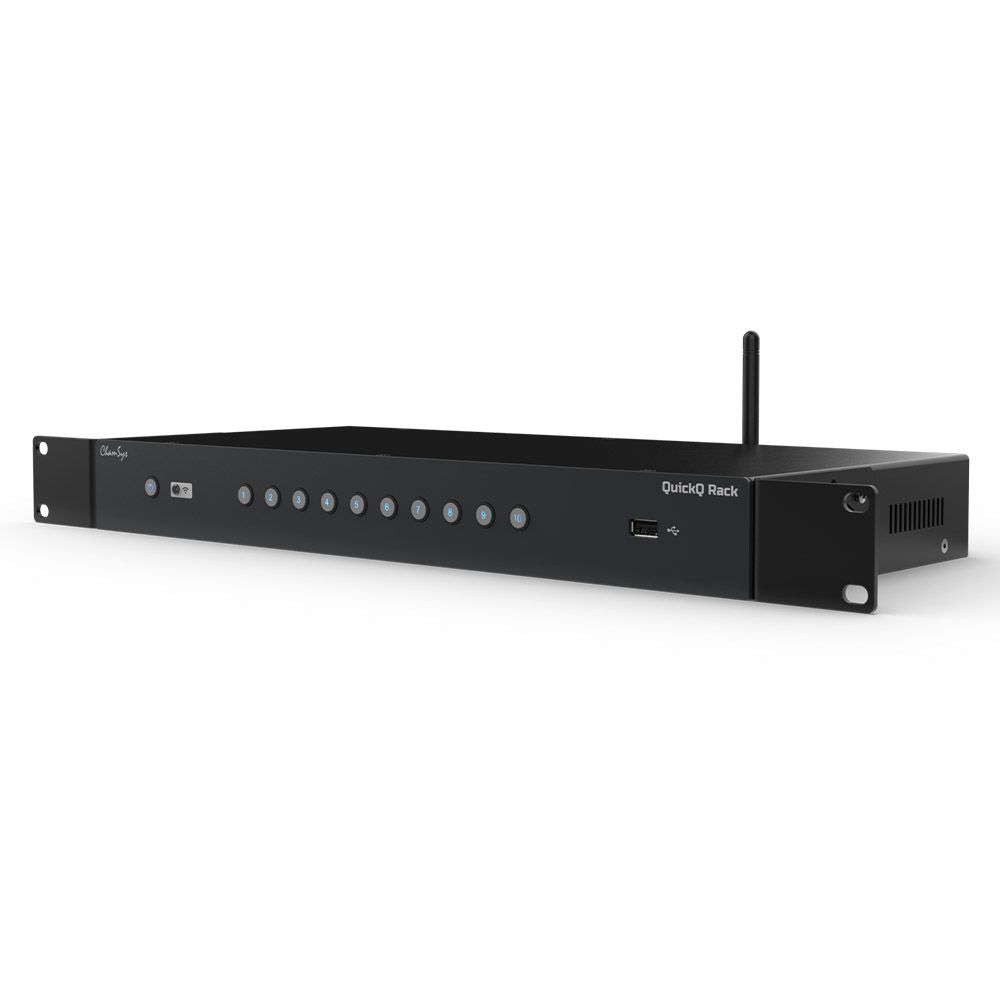

Chamsys QuickQ Rack is a small rack-mountable lighting controller designed for installations and architectural settings. It uses the same operating system as QuickQ series consoles and operates as a remote system without physical user control. The unit provides four Universes of DMX output through two RDM enabled 5-pin DMX connectors, plus inbuilt Wi-Fi for programming and remote control. It also includes ten buttons for activation of Cues and Playbacks, four 10Scene ports for up to forty 10Scene wall plates, and a Hot-Takeover mode for external console control.
Chamsys QuickQ Rack Lighting Controller
RRP: $3,699.00 ex. GST
Key Features:
- Four Universes of DMX output
- Two RDM enabled 5-pin DMX connectors
- Inbuilt Wi-Fi for programming and remote control
- Ten buttons for activation of Cues and Playbacks
- Four 10Scene ports for connection of up to forty 10Scene wall plates
- Simple Hot-Takeover mode allowing an external console to take control
- Features the same intuitive software as QuickQ Consoles
Technical Data
| Universes supported | 4 |
| Direct DMX Outputs 5-Pin XLR | 2 |
| 10Scene buttons | 10 |
| External Monitor | 1920 x 1080 HDMI |
| Inbuilt Wi-Fi | Yes |
| Network Port | 1 |
| USB Ports | 2 |
| Audio Input | 1 |
| Audio Output | 1 |
| MIDI Ports in/out | Yes |
| TrueCon Power Input | 90-250v AC |
| Max Power Consumption (mains) | 60w |
| Max Number of DMX Channels | 2048 |
| Max Number of Fixtures Supported | 2048 |
| Max Number of Scenes | 10 |
| Midi & Midi Timecode Supported | Yes |
| OSC Supported | Yes |
| RDM Autopatch for fast show patching | Yes |
| Fixture library of over 30,000 fixture files | Yes |
| Built in FX generator | Yes |
| Colour picker and Gel inbuilt Gel library | Yes |
| Offline designer software available for Windows and Mac | Yes |
| Supported fixtures | All – LEDs, Dimmers & Moving Lights |
| Width (without ears) | 403mm (15.8 inches) |
| Depth | 195mm (7.7 inches) |
| Height | 45mm (1.8 inches) |
| Weight | 3.1kg (6.8 lb) |
| Boxed Width | 480mm (18.9 inches) |
| Boxed Depth | 330mm (13.0 inches) |
| Boxed Height | 150mm (5.9 inches) |
| Boxed Weight | 4kg (8.81 lb) |
