The Chamsys QuickQ 20+ is a lighting control console for dimmer, LED colour mixing and moving light fixtures. It supports four universes via Art-Net/sACN and provides two direct DMX outputs through 5-pin XLR connections. The console includes an inbuilt 11.6” multi-touch display, dual network ports, inbuilt Wi-Fi and RDM autopatch for fast show patching. It also supports offline designer software for Windows and Mac, with a fixture library of over 60,000 fixture files.

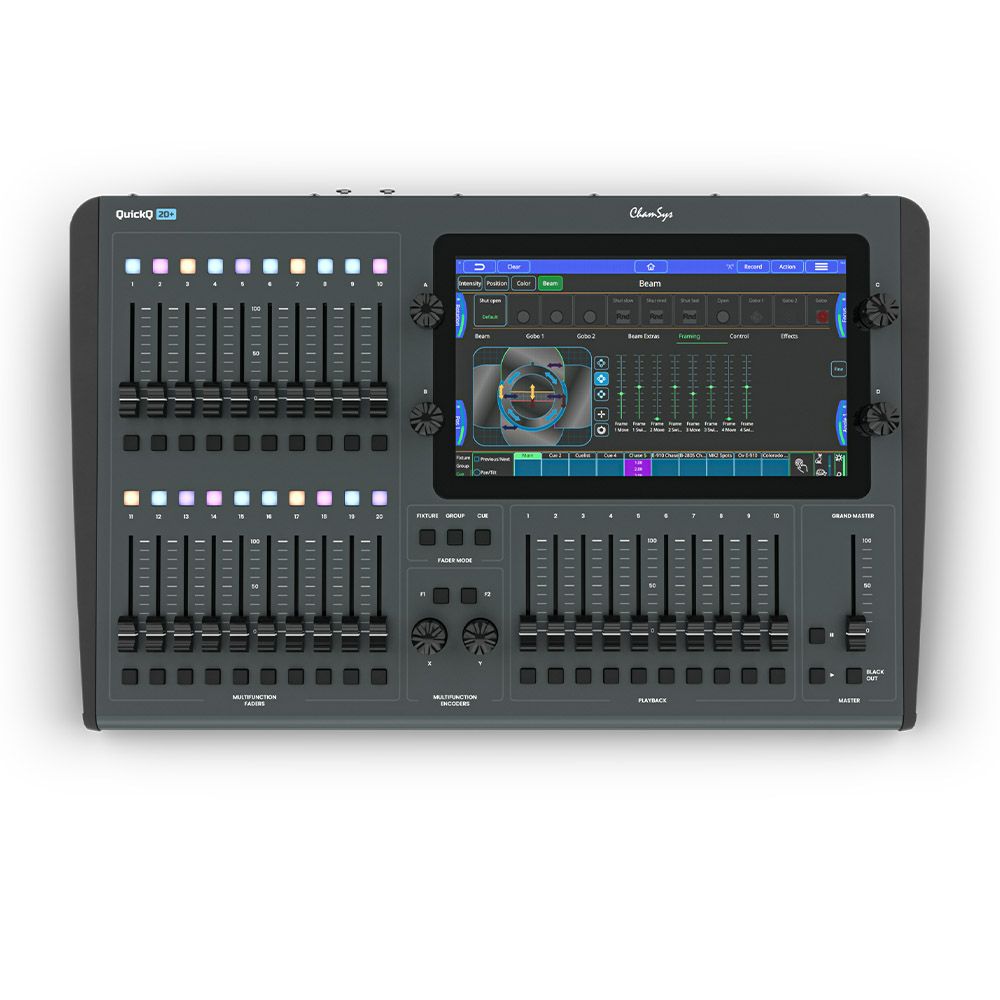

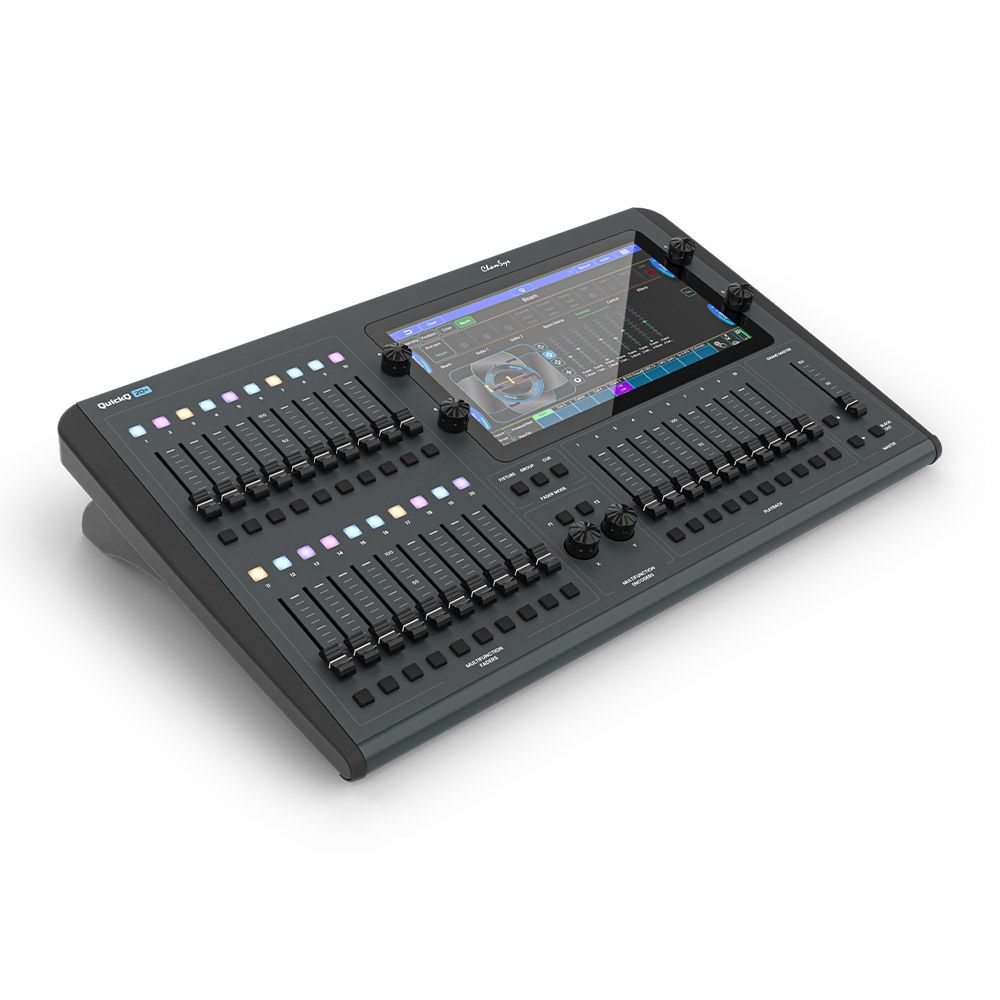

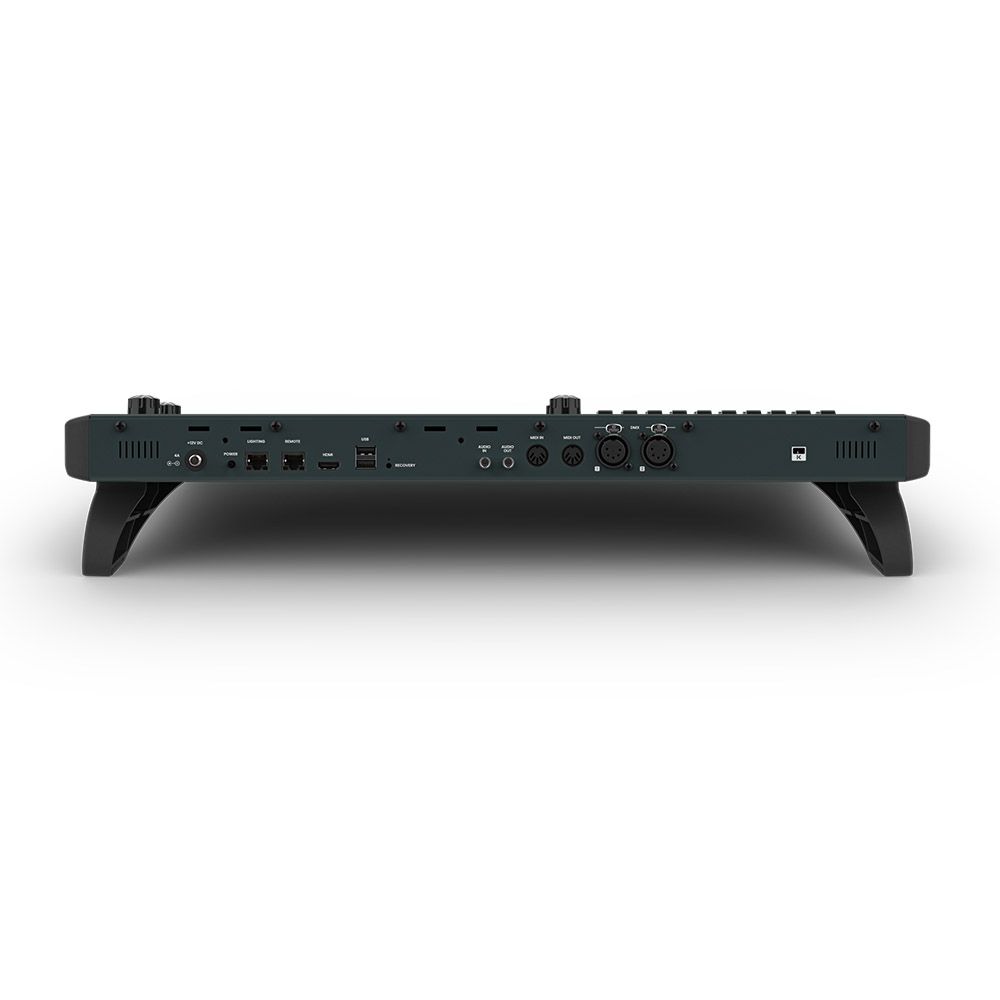

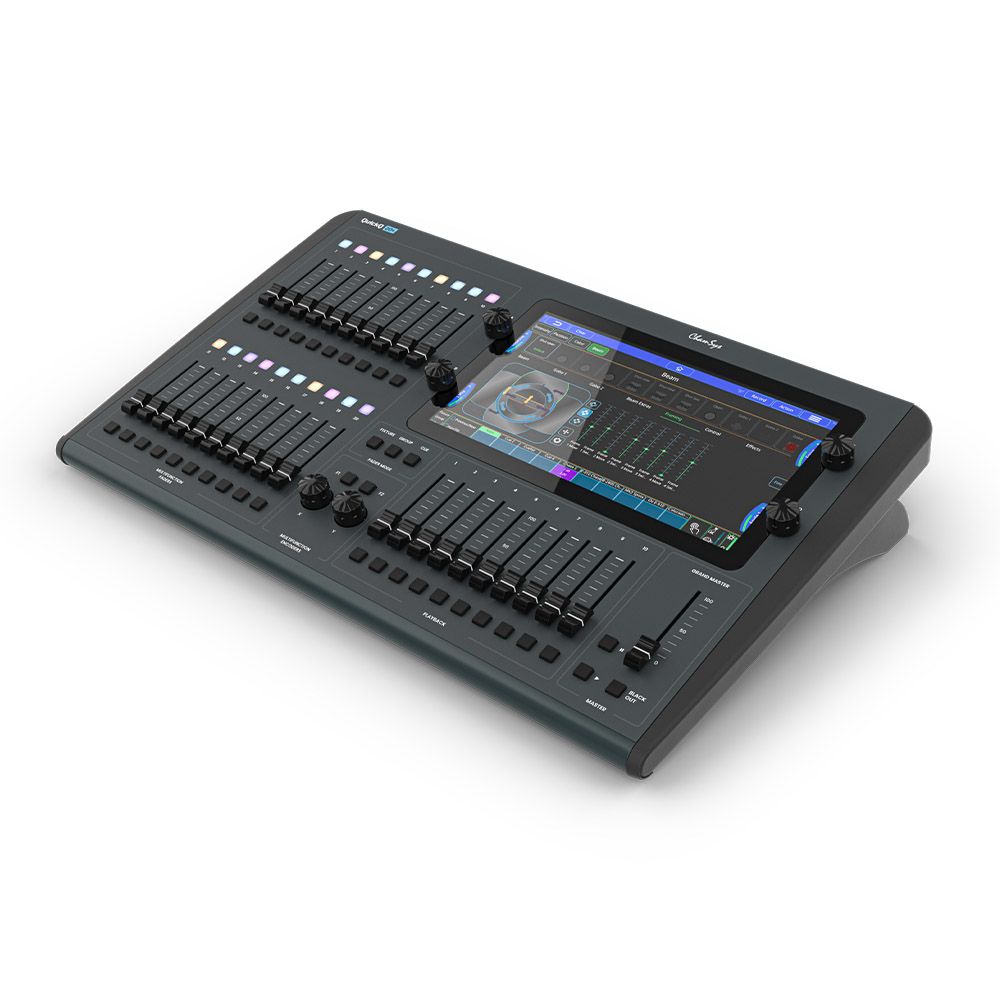

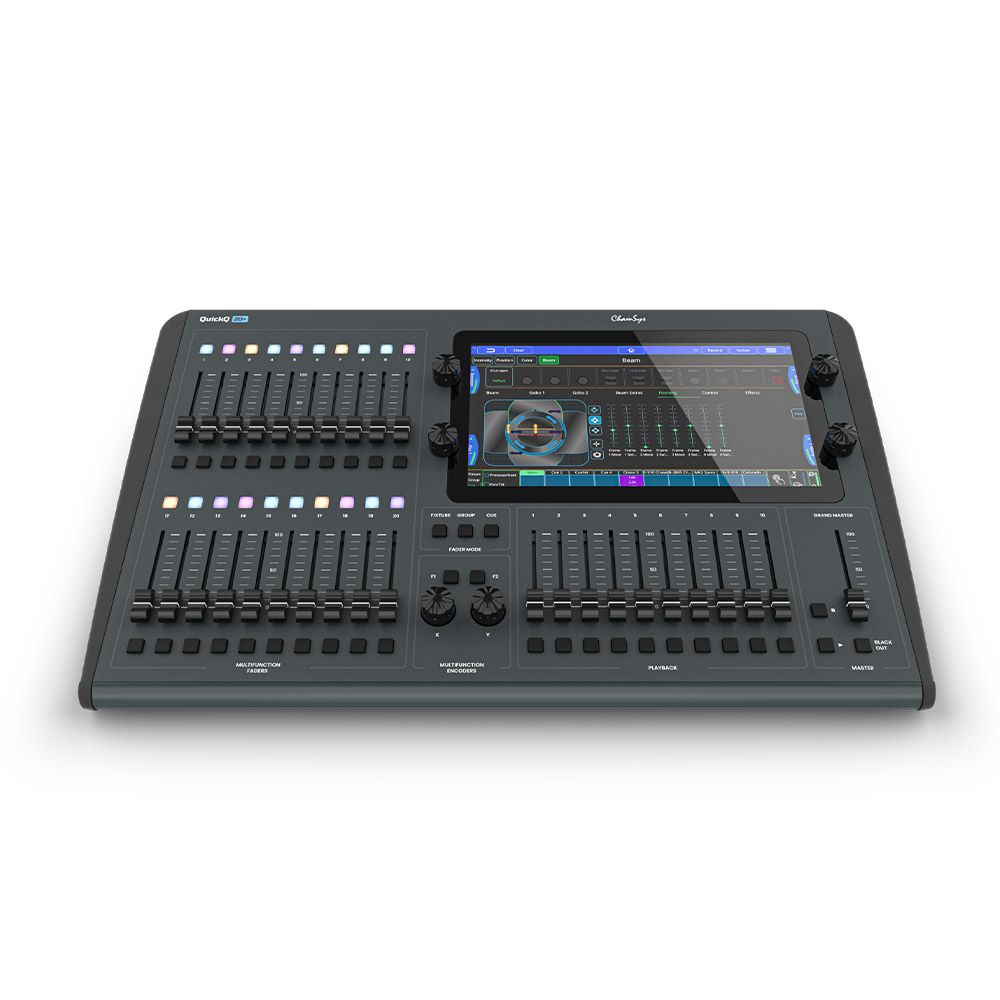

Chamsys QuickQ 20+ Lighting Control Console
RRP: $5,899.00 ex. GST
Key Features:
- 4 Universe output via Art-Net/sACN
- 2 RDM Enabled DMX Outputs
- User Interface Modelled on smartphone icon interfaces for ease of use
- In-Built Wi-Fi for easy connection to the remote app on iOS & Android devices
- Intuitive interface allowing simple control of all fixture attributes
- Dual Network ports allowing separation of Lighting and Control Data
Technical Data
Width570mm
| Universes supported | 4 |
| Direct DMX Outputs 5-Pin XLR | 2 |
| Master Playback Faders | 10 |
| Multifunction Fixture Faders | 20 |
| Bump Buttons | Yes |
| Attribute Encoders | 4 |
| Multifunction Encoders | 2 (Colour/Intensity/Position control options) |
| Inbuilt 11.6” Multi-touch Display | Yes |
| External Monitor | 1920 x 1080 HDMI |
| Inbuilt Wi-Fi | Yes |
| Network Port | 2 |
| USB Ports | 2 |
| Audio Input | 1 |
| Audio Output | 1 |
| MIDI Ports in/out | Yes |
| Max Power Consumption (mains) | 60w |
| Max Number of DMX Channels | 2048 |
| Max Number of Fixtures Supported | 2048 |
| Max Number of Cue Stacks | 2000 |
| Max Number of Chases | 2000 |
| Midi & Midi Timecode Supported | Yes |
| OSC Supported | Yes |
| RDM Autopatch for fast show patching | Yes |
| Fixture library of over 60,000 fixture files | Yes |
| Built in FX generator | Yes |
| Colour picker and Gel inbuilt Gel library | Yes |
| Offline designer software available for Windows and Mac | Yes |
| Included Accessories | 1x USB Desk light 1x Dust cover 1x Tablet stand 1x 12V power supply 1x IEC power cable |
| Depth | 350 mm |
| Height | 106mm |
| Weight | 5.2kg |
