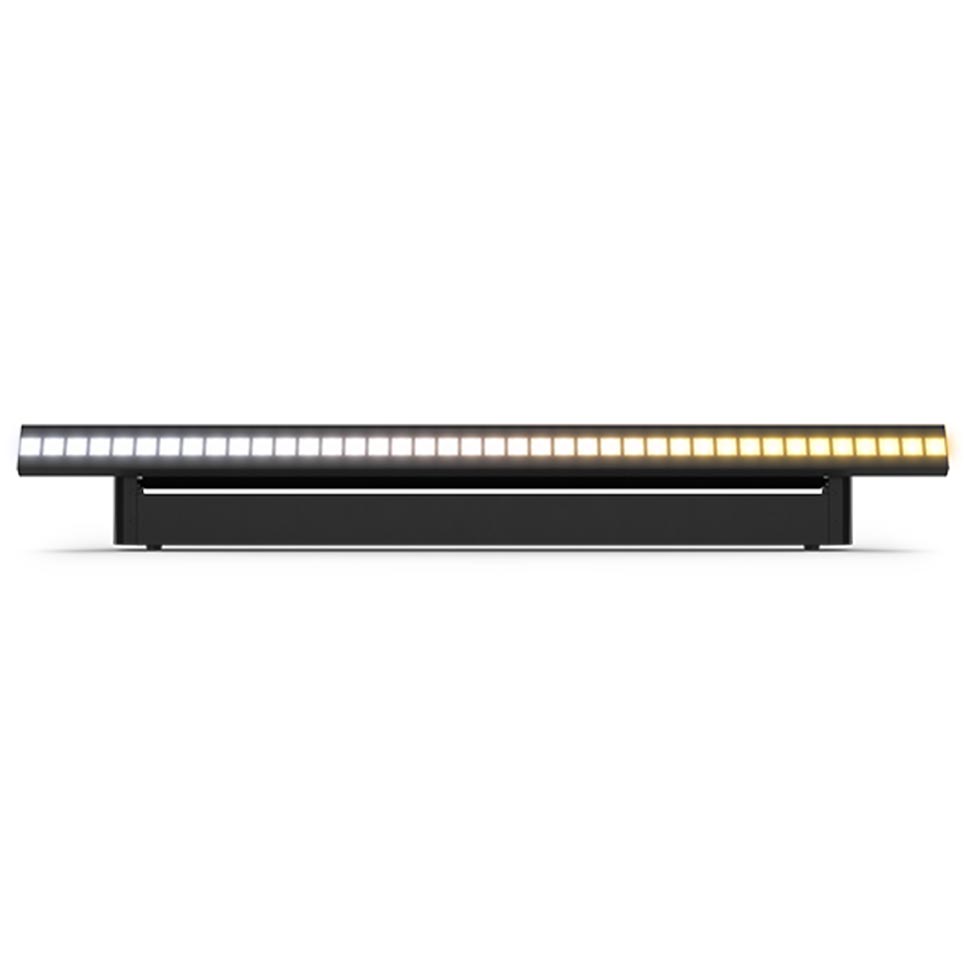

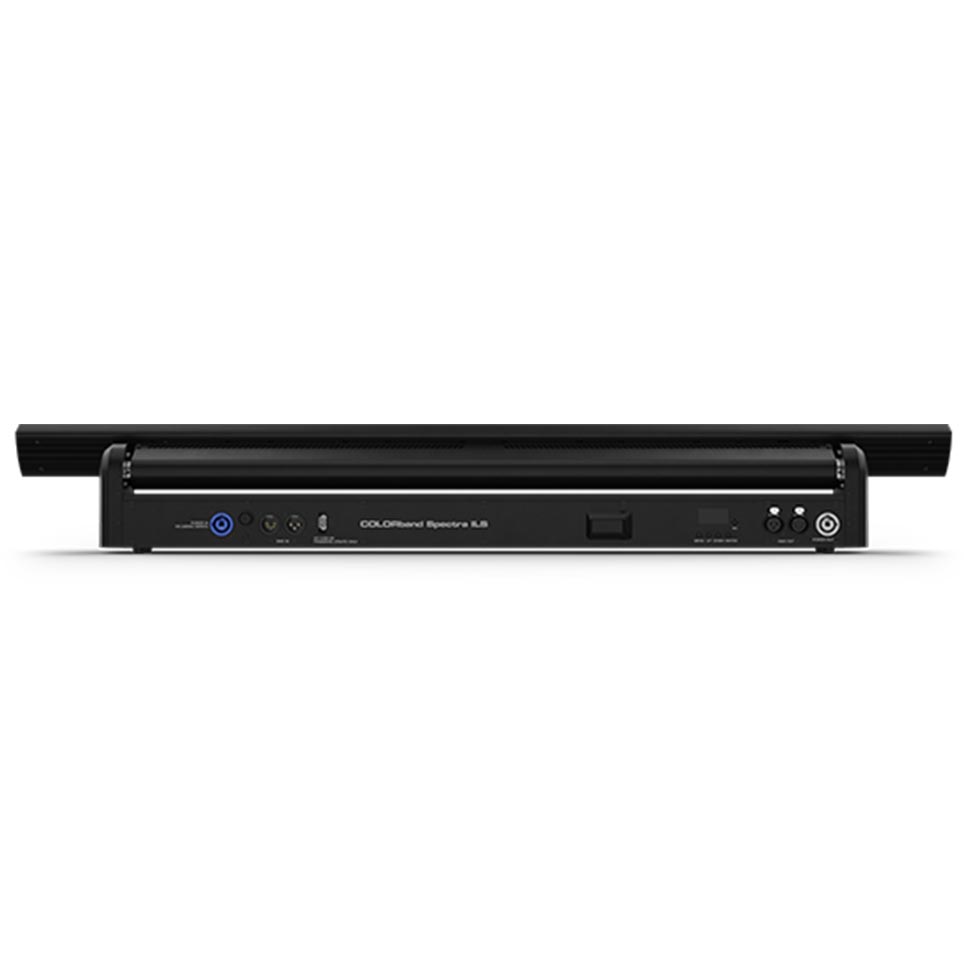

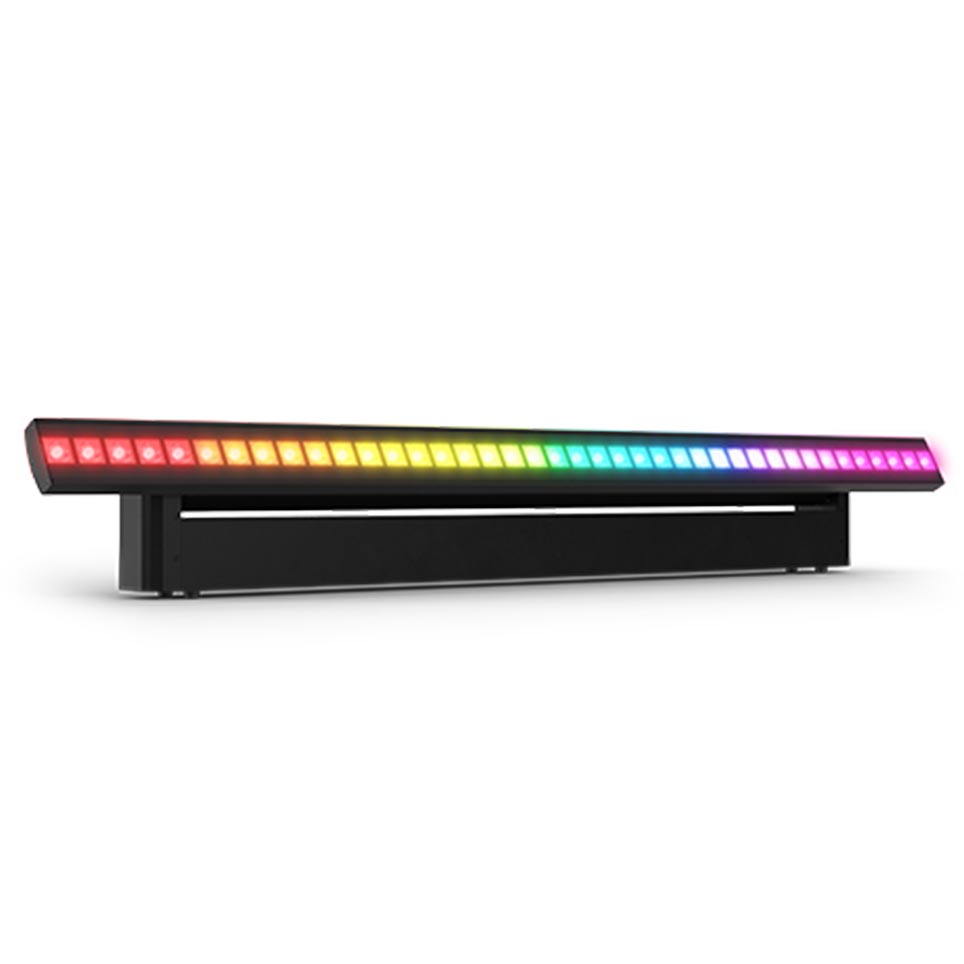

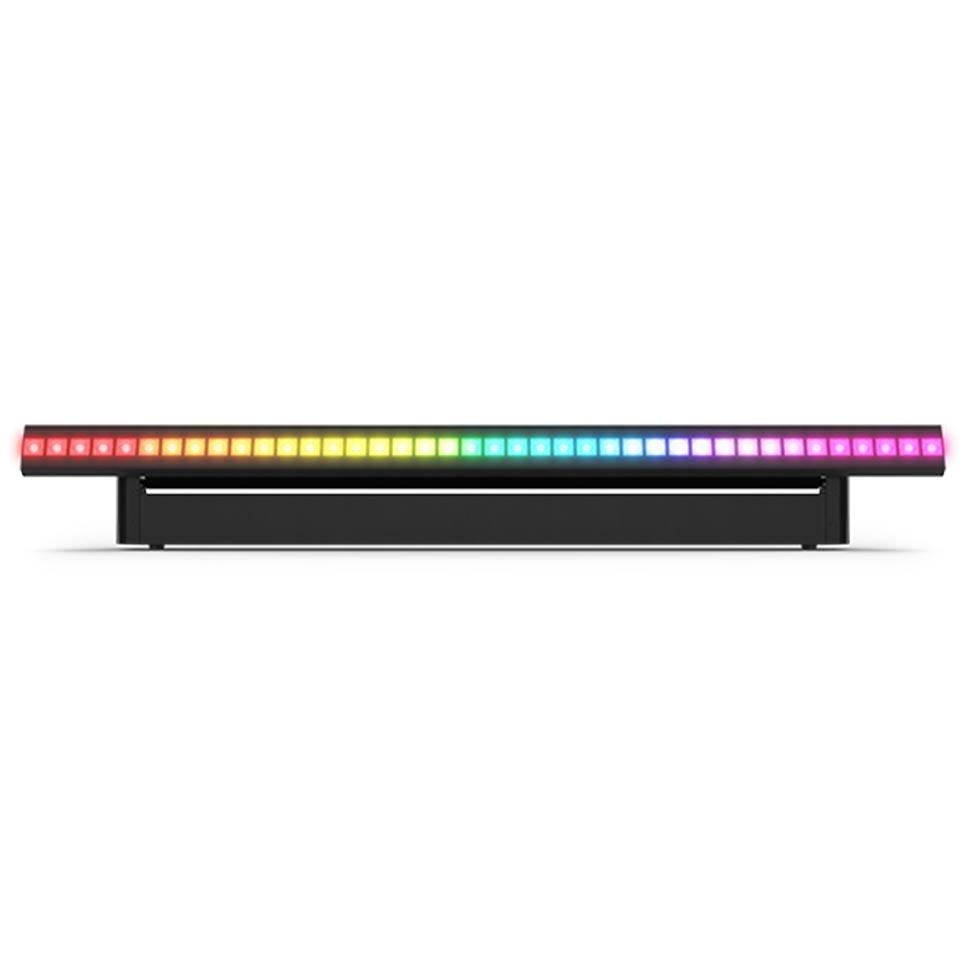

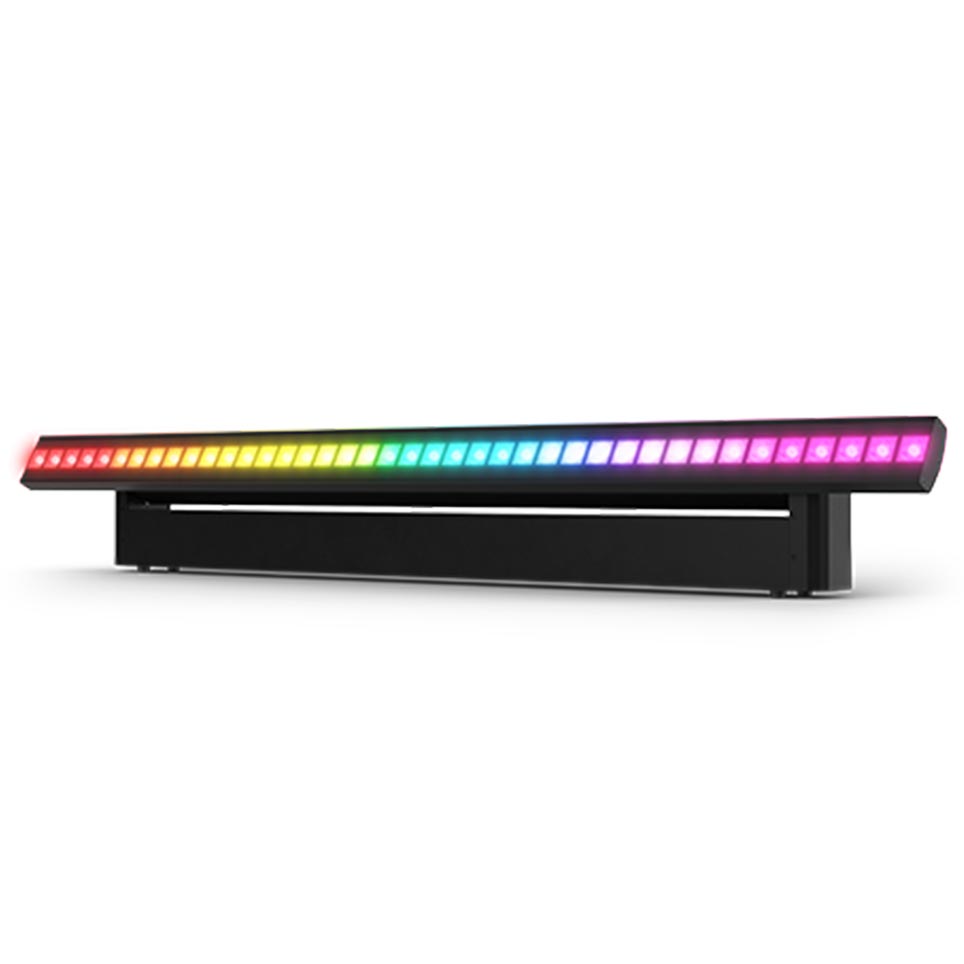

Chauvet DJ Colorband Spectra ILS – Motorized Pixel Strip Light

SKU: COLORBANDSPECTRA-ILS Categories: , , Tags ,

RRP: $999.00 ex. GST

Key Features:
  • Motorized strip light with dynamic sweeping effects
  • 40 individually mappable LEDs for pixel chases and animations
  • 180° tilt for flexible positioning and movement
  • Tunable white and vibrant color mixing
  • DMX, ILS, RF, and master/slave control options
  • D-Fi USB compatible for wireless DMX or master/slave control
  • 3-pin and 5-pin DMX connectors
  • powerCON®-compatible power input/output for linking
  • Fits CHS-60 VIP Gear Bag

Animate your lighting with the CHAUVET DJ COLORband Spectra ILS, a low-profile motorized strip light built to transform any space with motion, color, and precision. Designed to blend seamlessly into event setups, it comes alive with sweeping beams, powerful blinder hits, and eye-catching pixel chases driven by 40 individually mappable LEDs. Built-in motors deliver up to 180° of tilt, allowing dynamic movement and creative positioning for stages, dance floors, and architectural accents. From elegant, tunable warm whites to bold, high-impact colors, Spectra ILS adapts effortlessly to weddings, clubs, and live productions. As part of the CHAUVET DJ ILS ecosystem, it enables synchronized light shows across compatible fixtures, while offering flexible control via DMX, RF, master/slave, or wireless D-Fi USB. Compact, powerful, and versatile, it’s a creative lighting tool that makes a big visual statement without visual clutter.

Technical Data

Beam Angle 15°
Field Angle 26°
Illuminance 3,872 lux @ 2 m
Lumens 1,938
Color Temperature Range 3,000 K – 14,000 K
Power Linking 9 units @ 120 V / 16 units @ 230 V
Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power & Current 86 W, 1.3 A @ 120 V, 60 Hz
72 W, 0.8 A @ 230 V, 50 Hz
Control Modes DMX, ILS, RF, Master/Slave
DMX Connectors 3-pin and 5-pin XLR
Weight 10 lbs (4.6 kg)
Dimensions 39.4 × 2.4 × 5.6 in (1000 × 60 × 142 mm)
Approvals CE, RoHS
Optional Controllers RFC, RFC-XL, ILS Command

Related Documents

COLORband Spectra ILS User Manual
