Chauvet DJ FXPar 6 is a compact effect par combining RGBW wash LEDs with an RGB outer ring in one fixture. The wash LEDs and outer ring can be controlled independently, with six zones of control available for programmed effects. Control options include DMX, sound-activated and automated programs, and the optional IRC-6 remote. The fixture provides flicker-free video operation suitable for on-camera use and supports power linking multiple units.

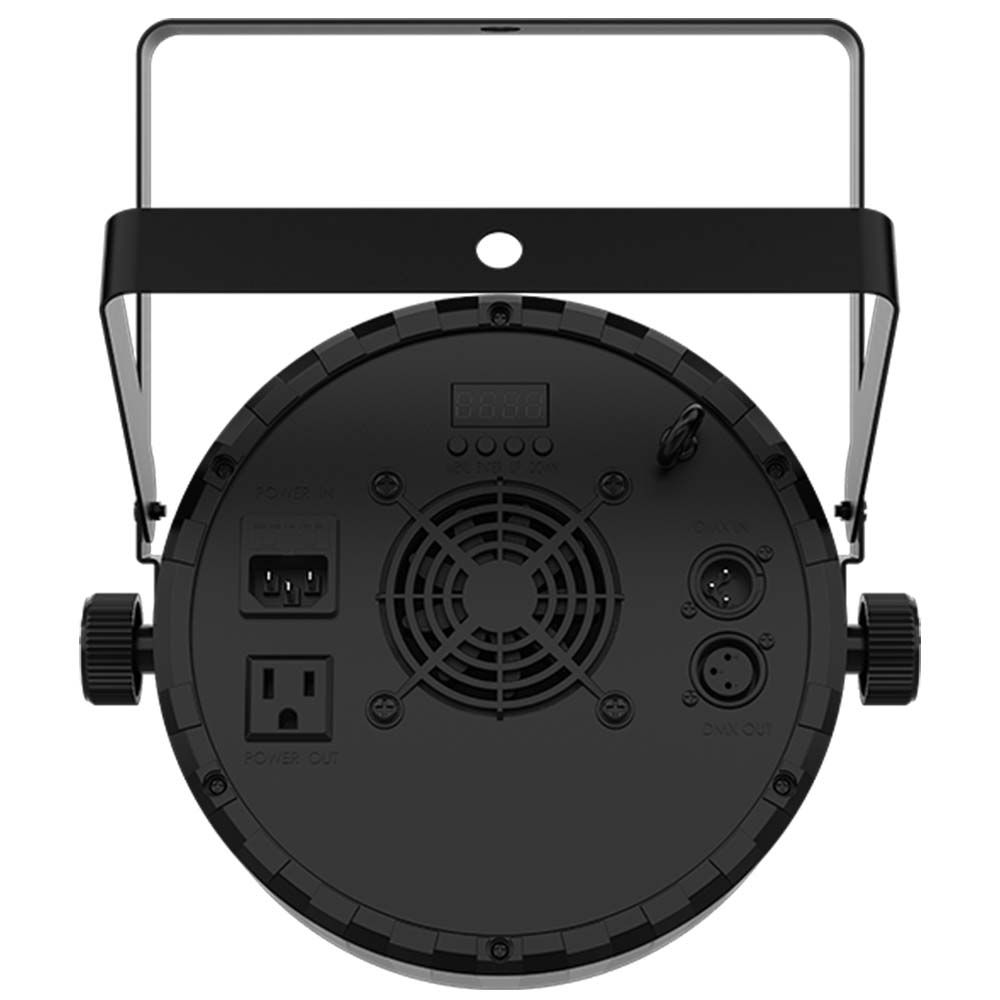

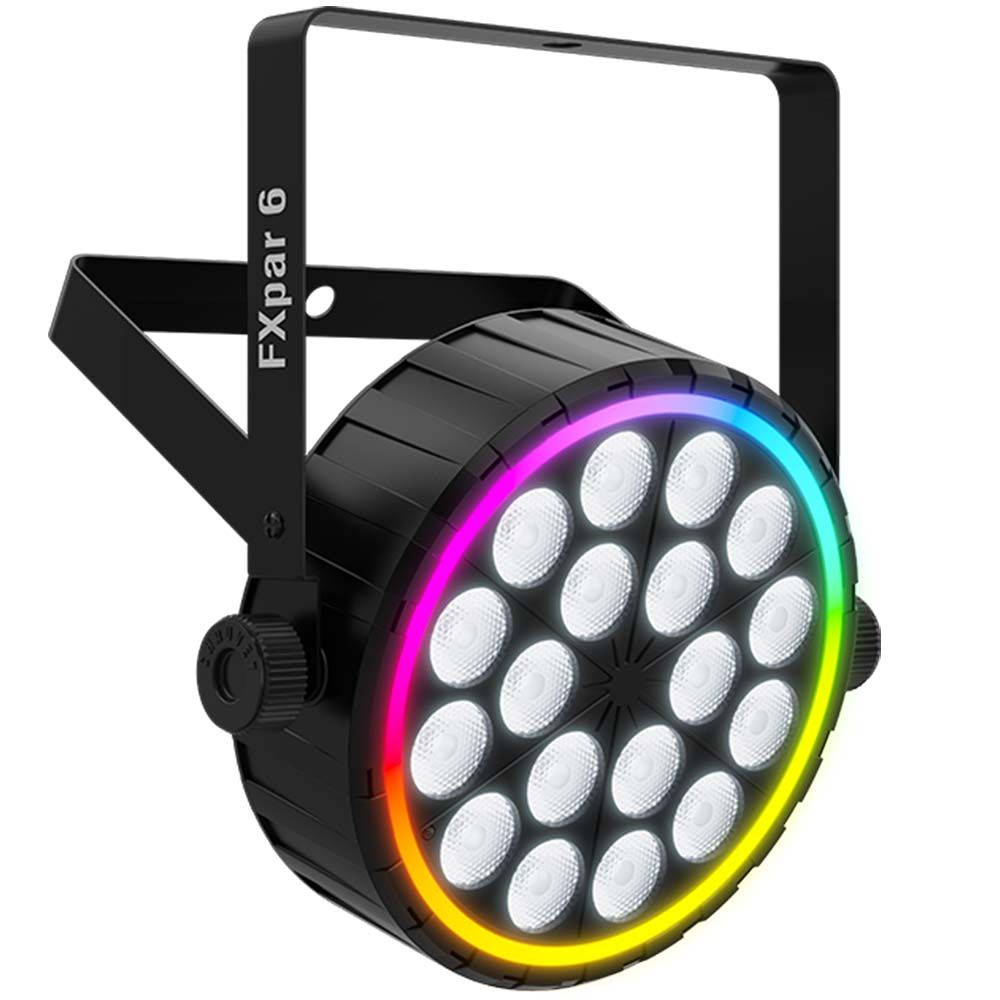

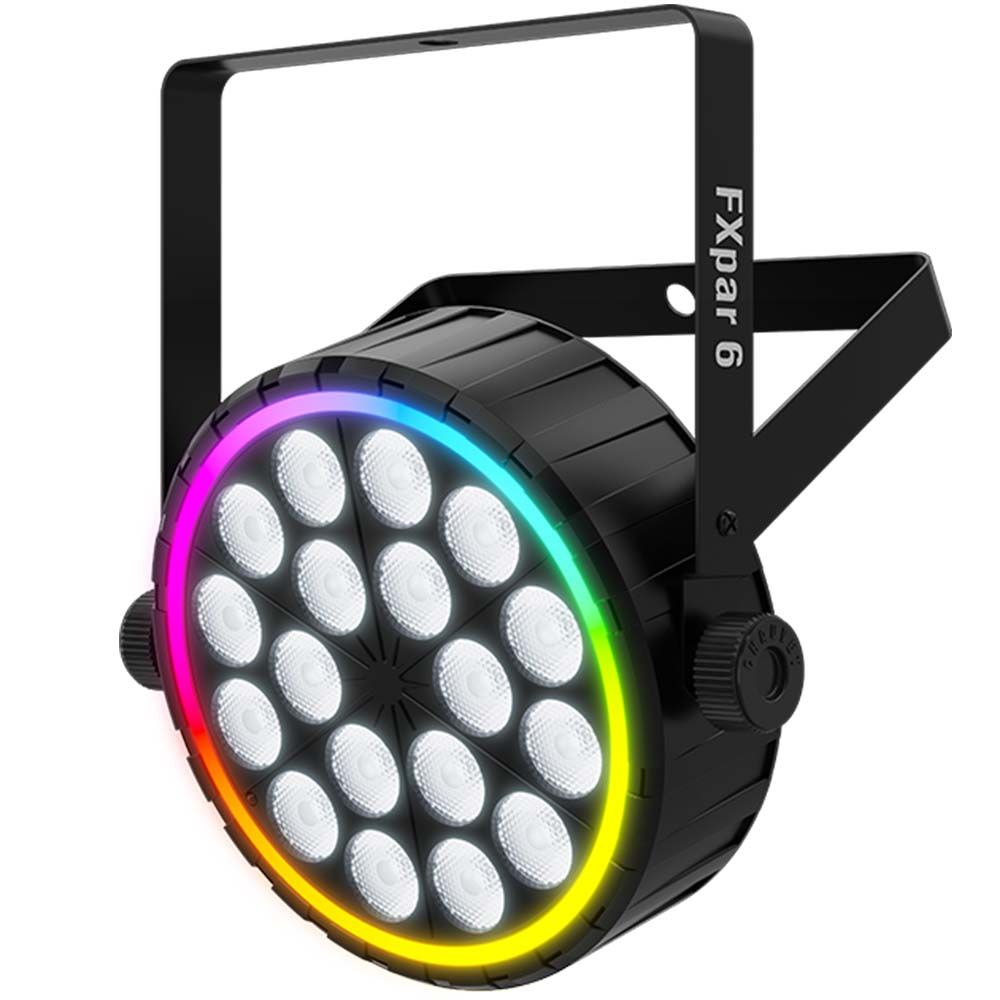

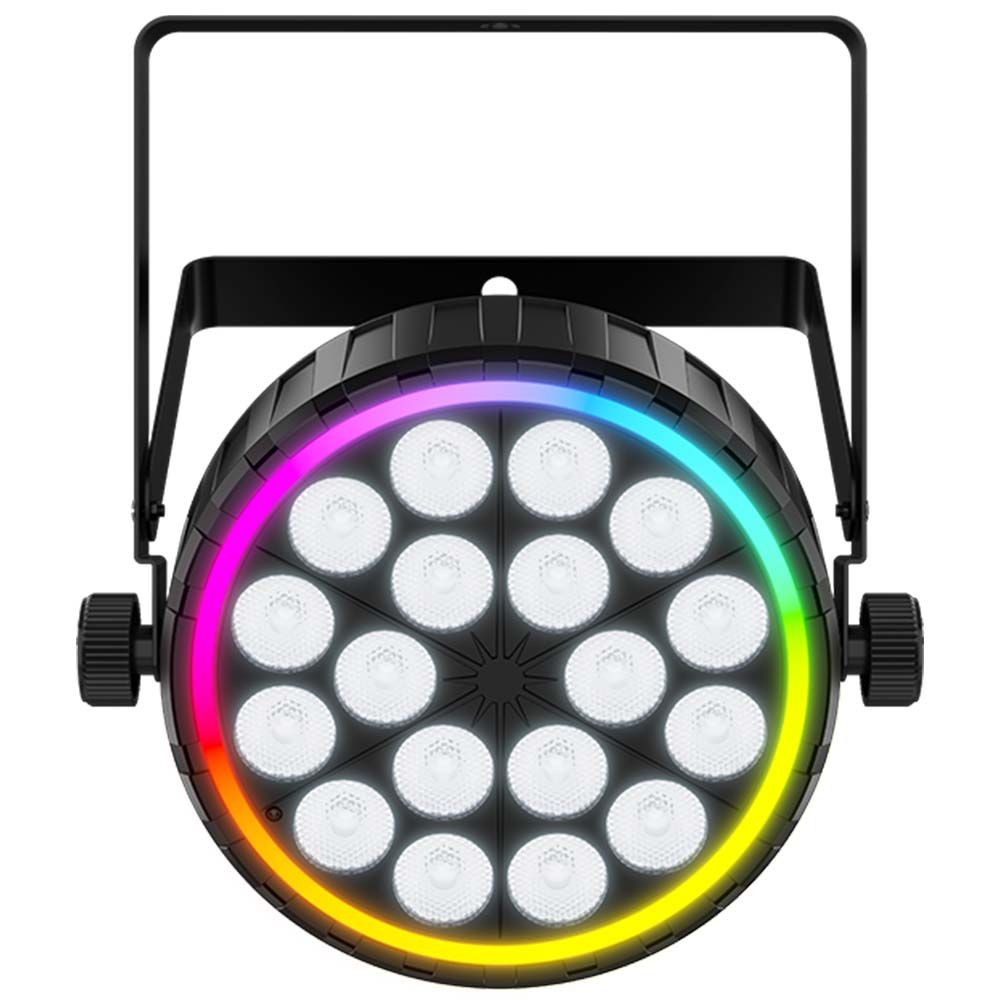

Chauvet DJ FXPar 6
RRP: $249.00 ex. GST
Key Features:
- Compact effect par with multiple technologies in a single fixture
- Independent control of the wash RGBW wash LEDs and RGB outer ring
- Create effects with 6 zones of control
- Sound-activated and automated programs
- DMX control with 3, 6, or 11 channels
- Flicker-free video operation suitable for on-camera use
- Power linking: 8 units @ 120 V; 12 units @ 230 V
- Fits best in the CHS-40 VIP Gear Bag
Technical Data
| DMX Channels | 3, 6, or 11 |
| DMX Connectors | 3-pin XLR |
| Beam Angle | 20° |
| Field Angle | 36° |
| Illuminance | 5,657 lux @ 2 m |
| Lumens | 3,239 |
| Power Linking | 8 units @ 120 V; 12 units @ 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current (120 V) | 63 W, 0.9 A @ 120 V, 60 Hz |
| Power and Current (230 V) | 62 W, 0.6 A @ 230 V, 50 Hz |
| Weight | 3.0 lb (1.3 kg) |
| Size | 10.8 x 2.7 x 12 in (275 x 69 x 305 mm) |
| Approvals | CE, RoHS |
| Light Source | 18 LEDs (quad-color RGBW) 52 W, (1 A), 50,000 hours life expectancy |
| Light Source (ring) | 51 LEDs (RGB) 6 W, (0.5 A), 50,000 hours life expectancy |
| Strobe Rate | 0 to 20 Hz |
| Bracket Mounting Hole | 13 mm |
| Optional Controllers | IRC-6 |
