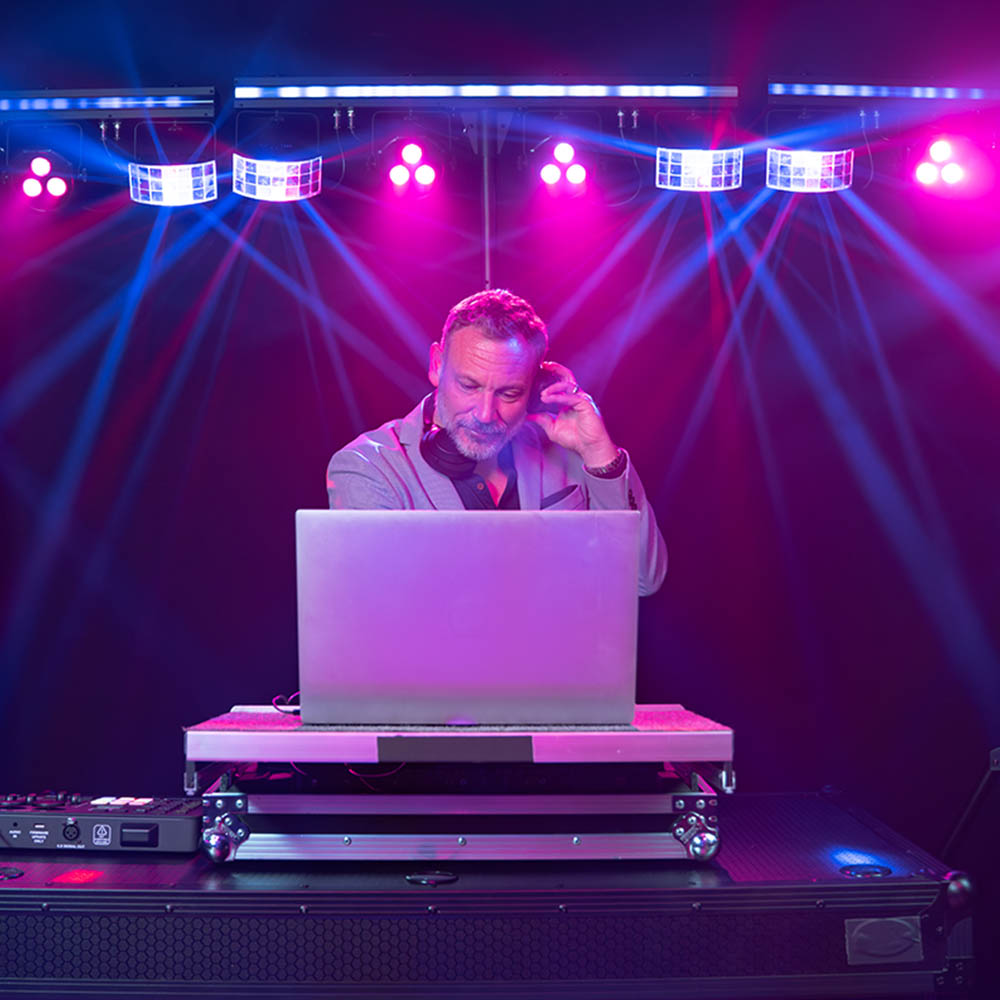

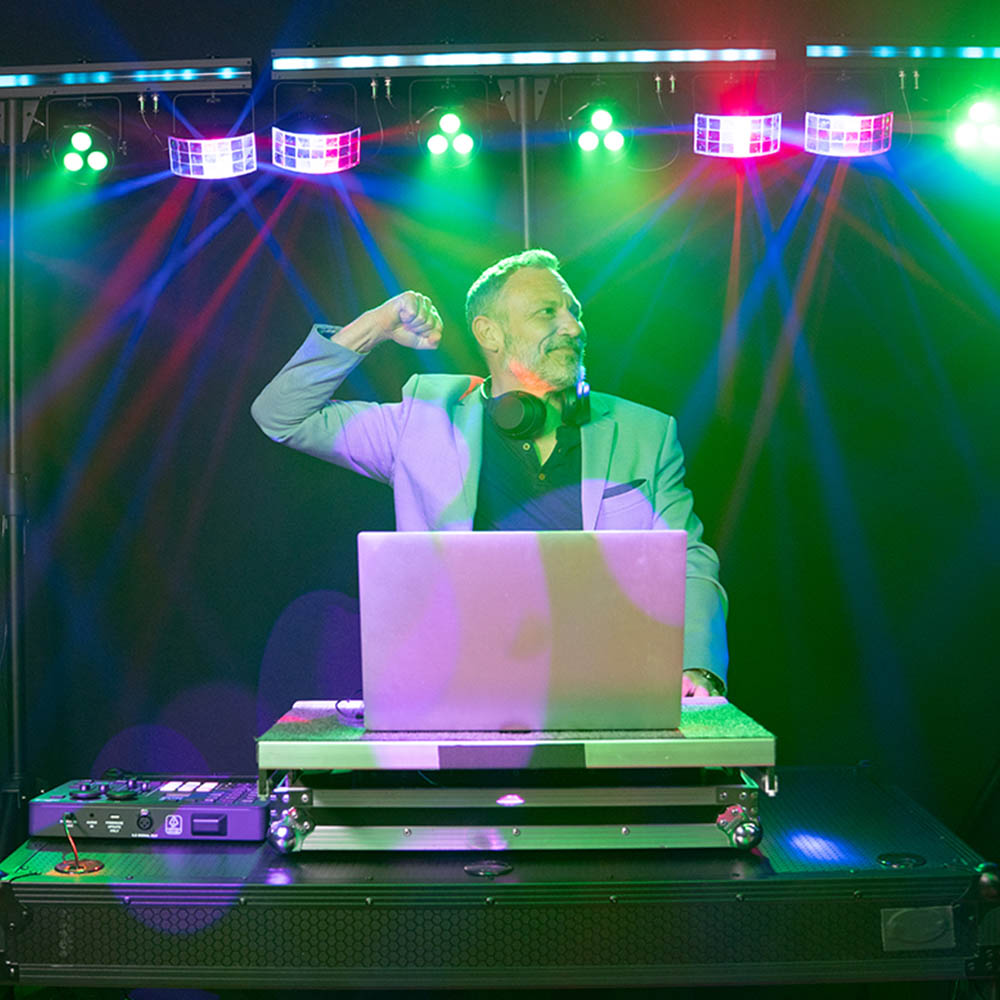

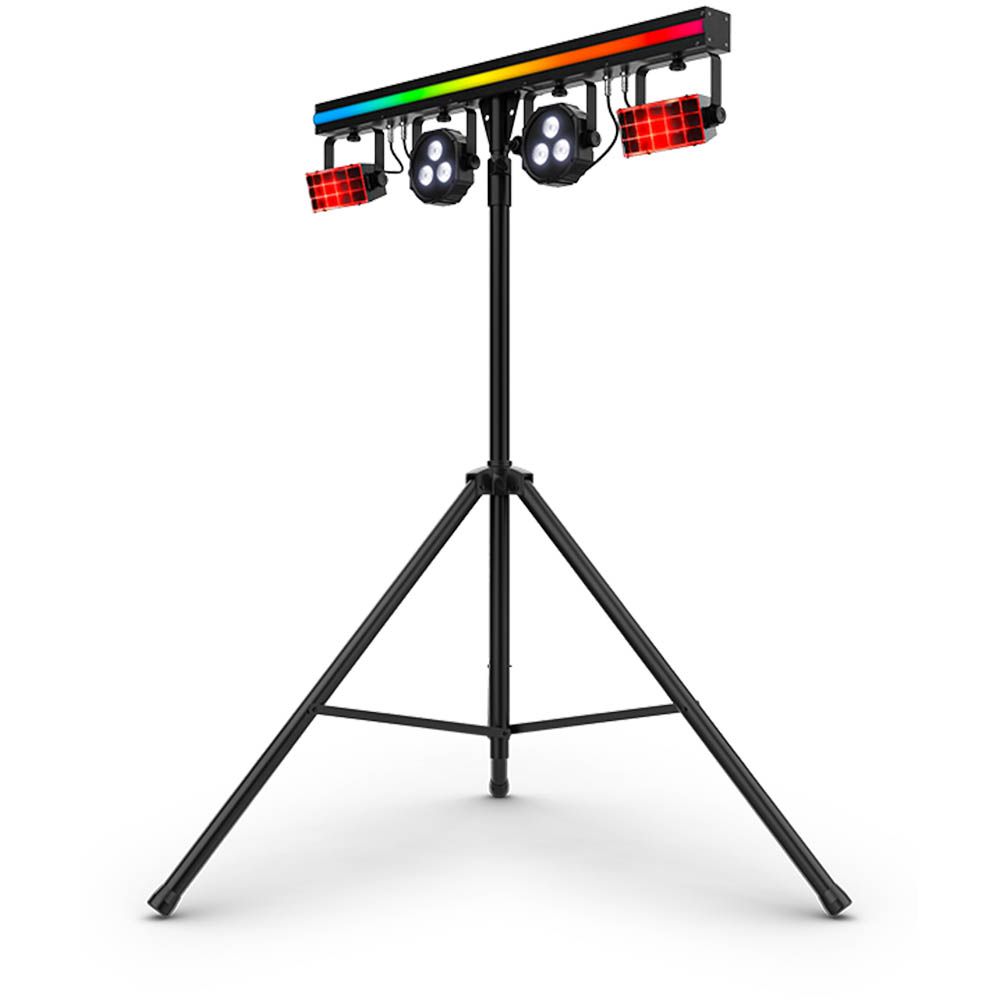

The Chauvet DJ GigBAR 3 ILS (3-in-1 Lighting System) integrates LED derbies, LED pars and an LED strip into one portable bar lighting fixture designed for professional event and mobile lighting applications. Featuring Instant Light Show technology, it enables wireless syncing of multiple units without cables, facilitating quick setup and complex light shows. It includes tripod mounting, wireless footswitch control, and carrying bags for convenient transport and deployment. The lighting effects cover wide angles, producing multicoloured chasing beams, colour washes, and eye-catching strip effects suitable for a variety of event environments.
Chauvet DJ GigBAR 3 ILS (3-in-1 Lighting System)
RRP: $999.00 ex. GST
Key Features:

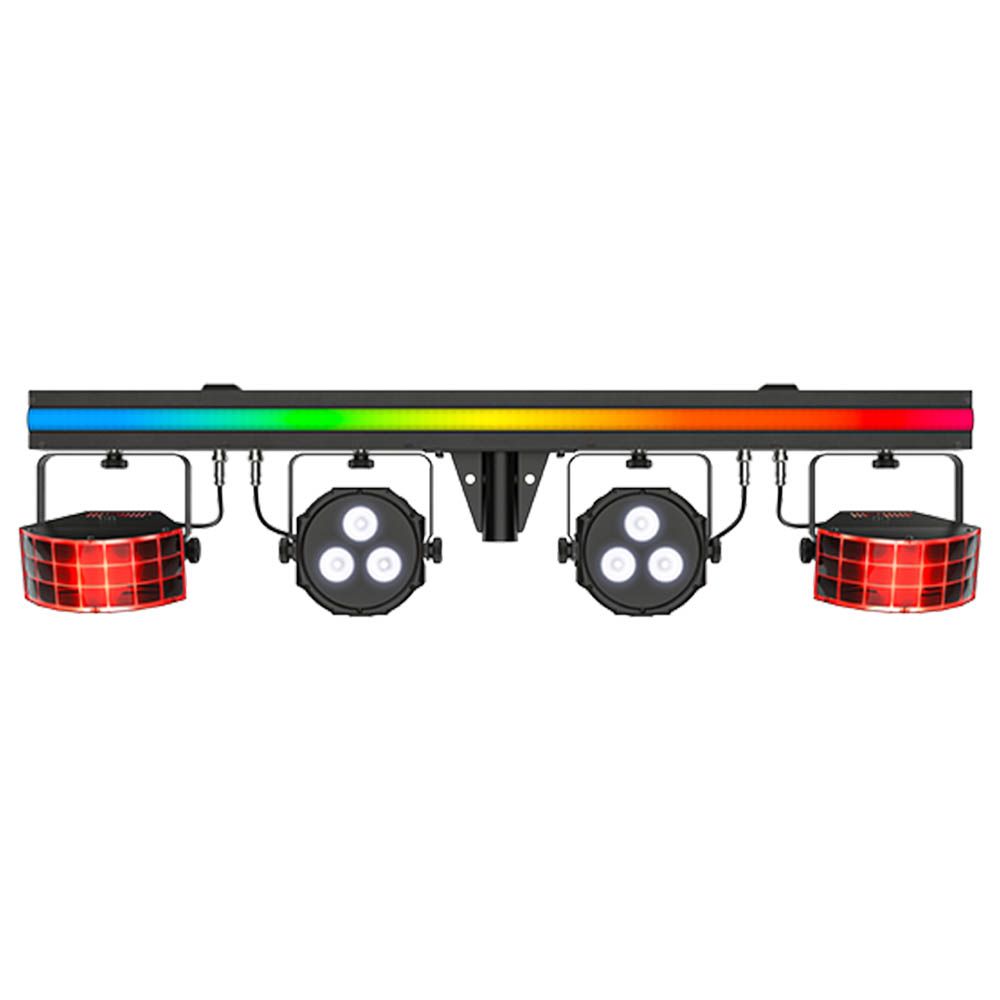

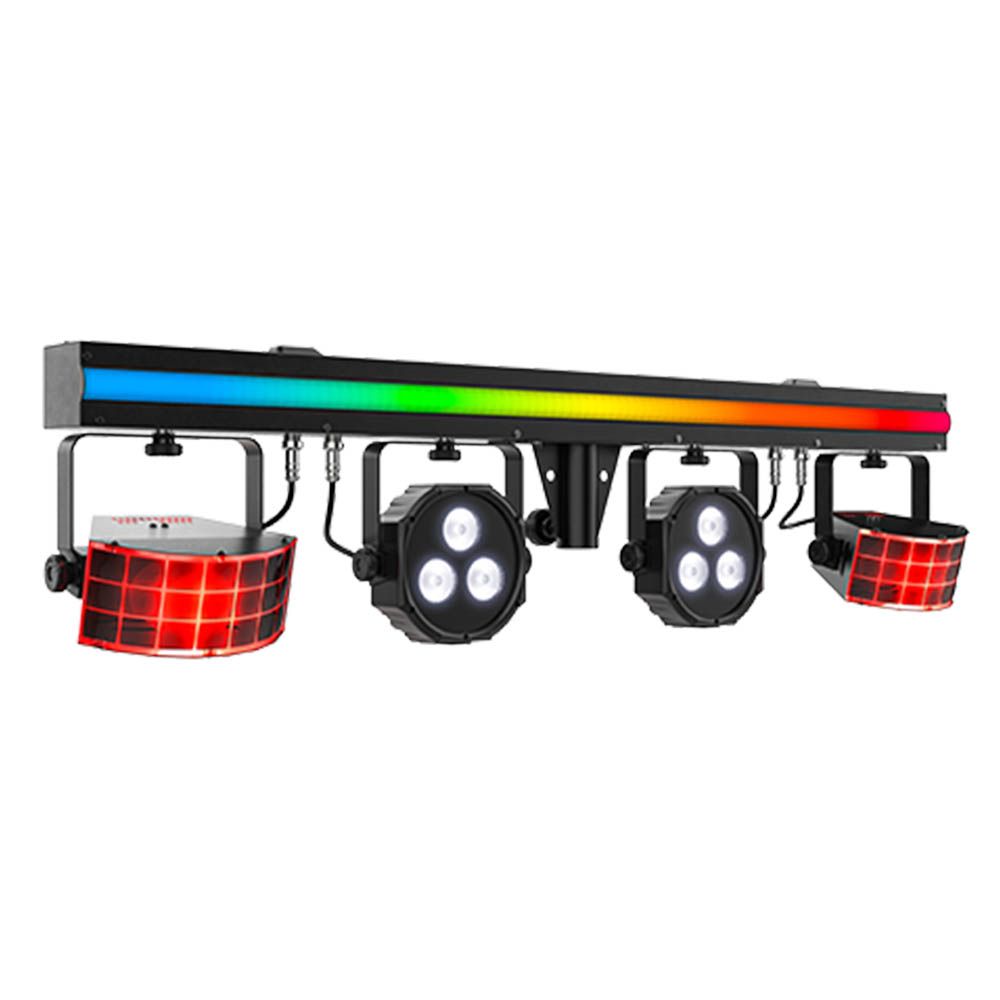

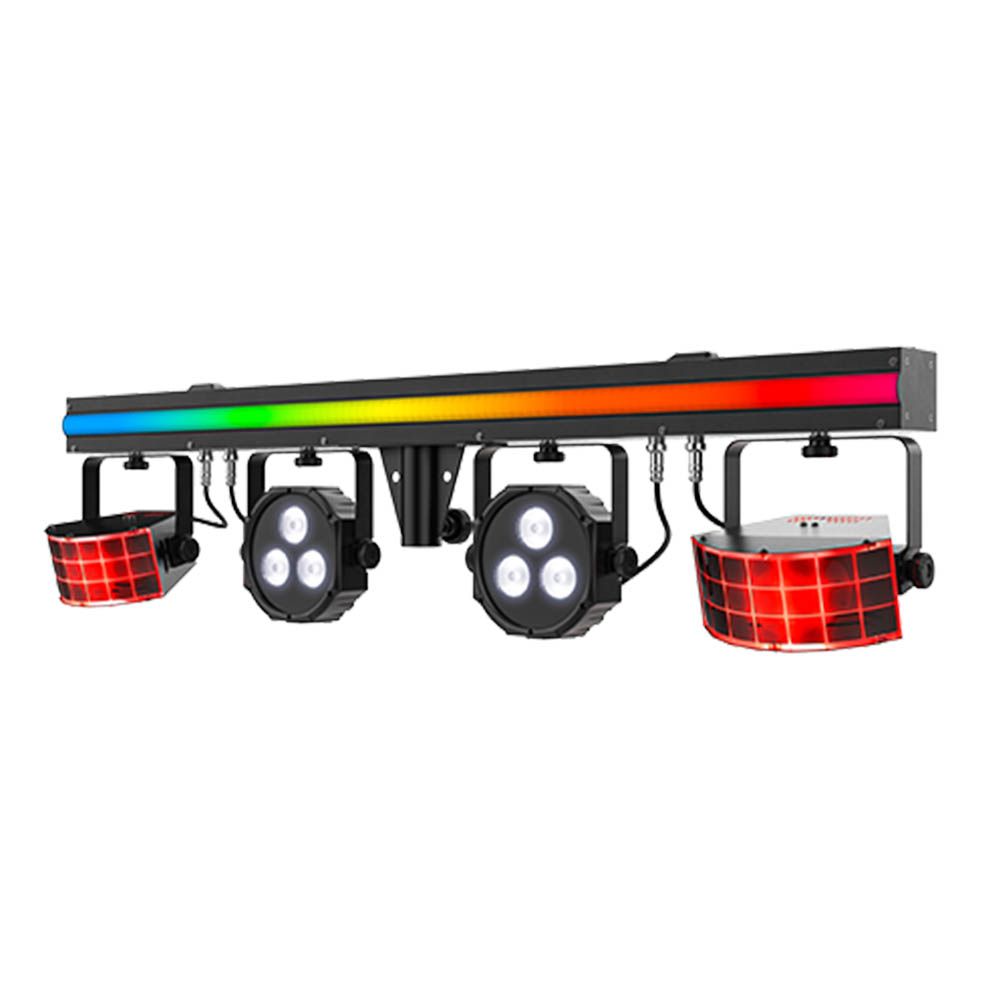

- 3-in-1 lighting combining LED derbies, LED pars, and an LED strip on a single bar
- Instant Light Show (ILS) compatibility for wireless multi-fixture syncing
- Built-in D-Fi transceiver for wireless DMX or ILS communication
- Supports mounting up to 4 additional fixtures for expanded setups
- Reversible tripod bracket for standard or upside down mounting

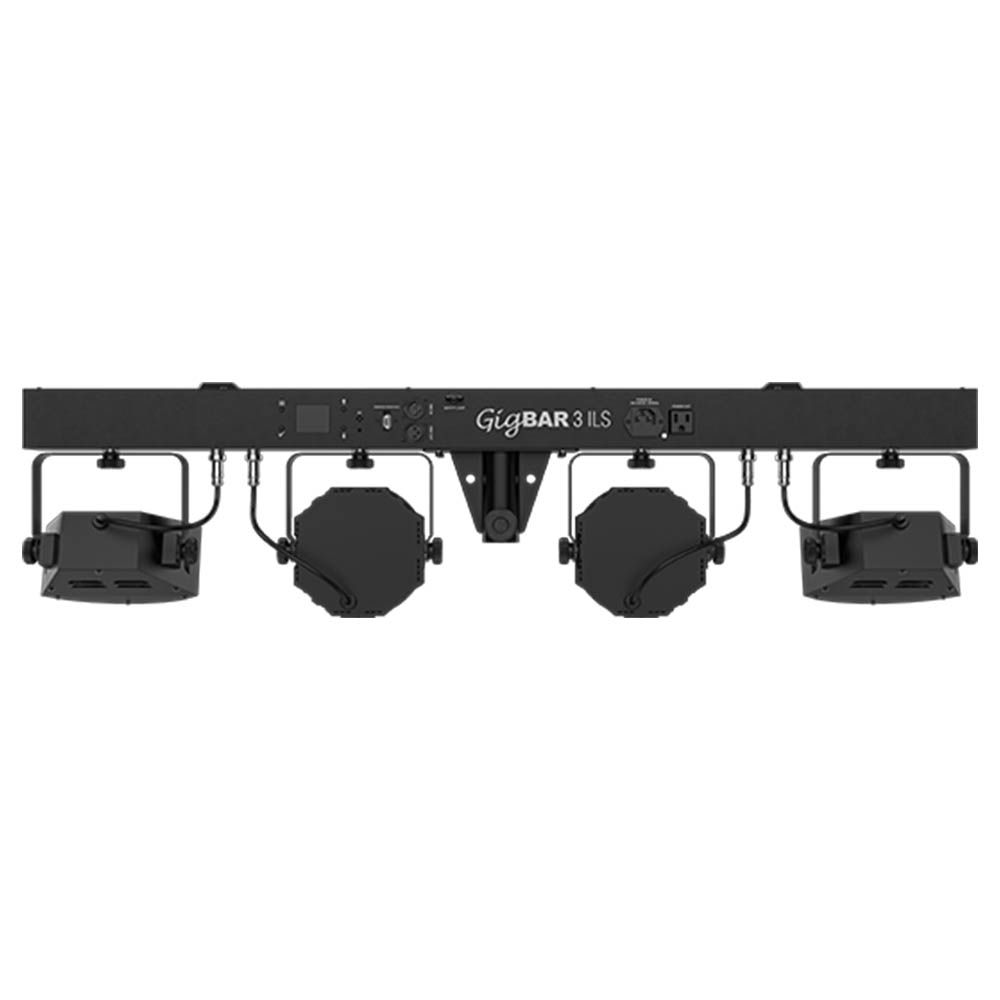

- Full-color LCD display for configuration and control
- Includes tripod, wireless footswitch, RF remote, and carrying bags for fast setup and transport
- Automated, sound-activated programs combining all effects for complete shows
- Control options include display, RF remote, wireless footswitch, or DMX
- Power linking capability for connecting multiple units without extra cables
Technical Data
| DMX Channels | 2, 21, or 132 |
|---|---|
| DMX Connectors | 3-pin XLR |
| Strobe Rate | 0 to 20 Hz |
| Operating Frequency | 2.412 to 2.484 GHz |
| Power Linking | 11 units 120 V; 18 units 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 47 W, 0.7A 120 V, 60 Hz; 45 W, 0.4 A 230 V, 50 Hz |
| Weight | 13.2 lbs. (6 kg) |
| Size | 41.2 x 3.7 x 10.7 in (1047 x 94.5 x 272 mm) |
| Approvals | CE, ROHS, FCC |
| Light Source (pars) | 6 LEDs (quad-color RGB + UV) 3.7 W (1A), 50,000 hours life expectancy |
| Light Source (LED Strip) | 74 LEDs (red, green, blue) 5 W (0.03 A), 50,000 hours life expectancy |
| Light Source (derby) | 6 LEDs (2 red, 2 green, 2 blue) 3 W (0.6 A), 50,000 hours life expectancy |

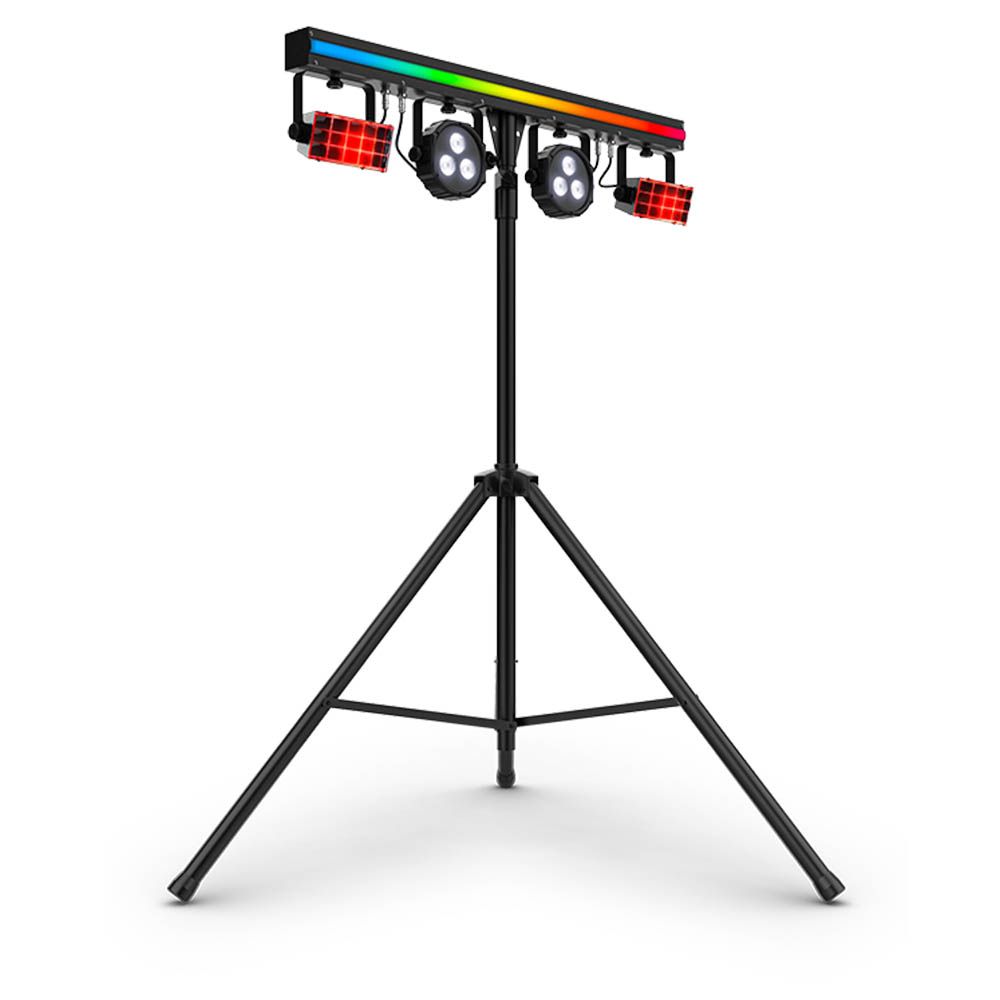

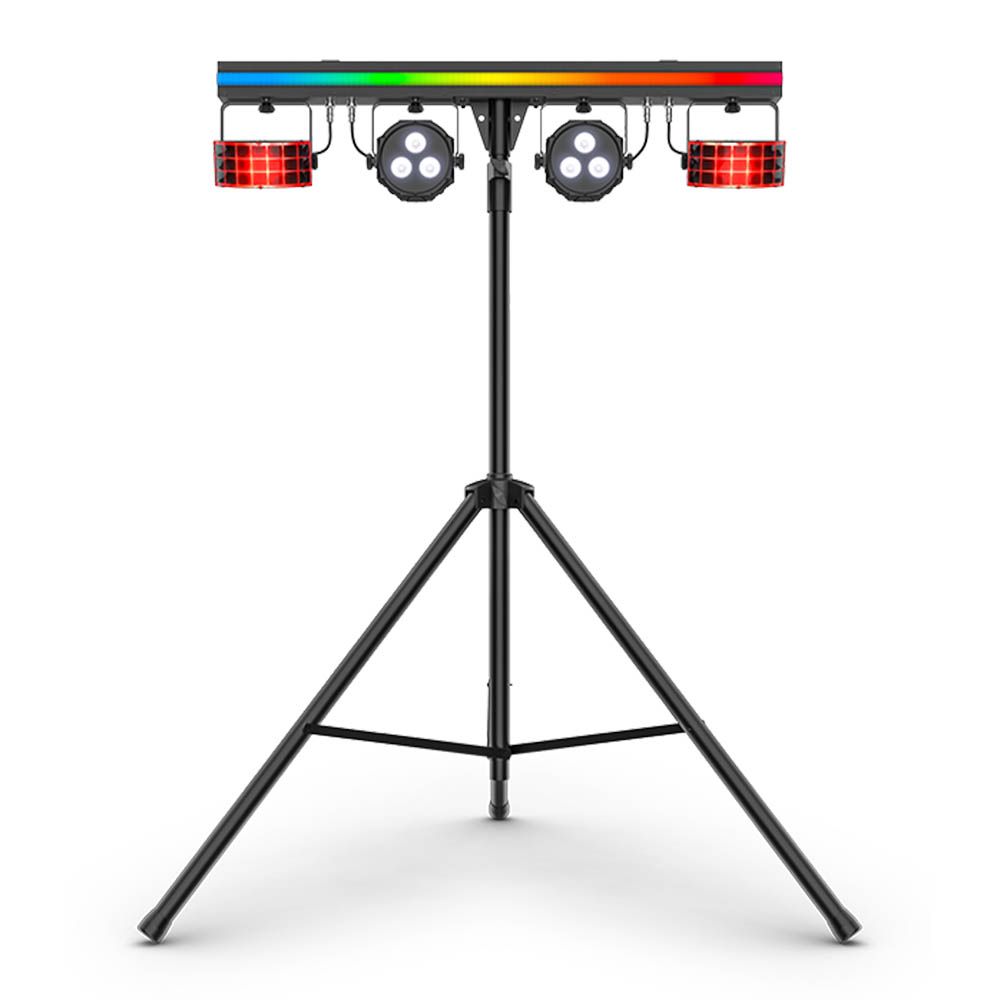

| Stand Height | 4.8 ft to 7.8 ft (1.5 to 2.4 m) |
| Tripod Leg Width | 3.9 ft (1.2 m) |
| Fits Tripod Size | 1.5 in (37.4 mm) |
| Beam Angle (pars) | 13° |
| Field Angle (pars) | 24° |
| Coverage Angle (Derby) | 114° |
| Coverage Angle (LED Strip) | 174° |
| Cable Length | 9 ft (2.844 m) |
| Foot Switch Operating Frequency | 433 MHz |
| Foot Switch Max Unobstructed Distance | 100 ft (30.5 m) |
| Footswitch Battery | 9 V 300mA |
| Optional Controllers | ILS Command, RF Remote |
