The Chauvet DJ Shocker FX is a compact LED lighting fixture that combines strobe, blinder and wash functions with built-in eye candy effects. Its 12 controllable sections comprise eight RGB sections and four white sections for zone control and special effect macros. Automated programs can be triggered through Master/Slave, DMX mode or an optional IRC-6 remote. The fixture supports power linking for multiple units and offers DMX operation in 8, 18, 30 or 43 channels.

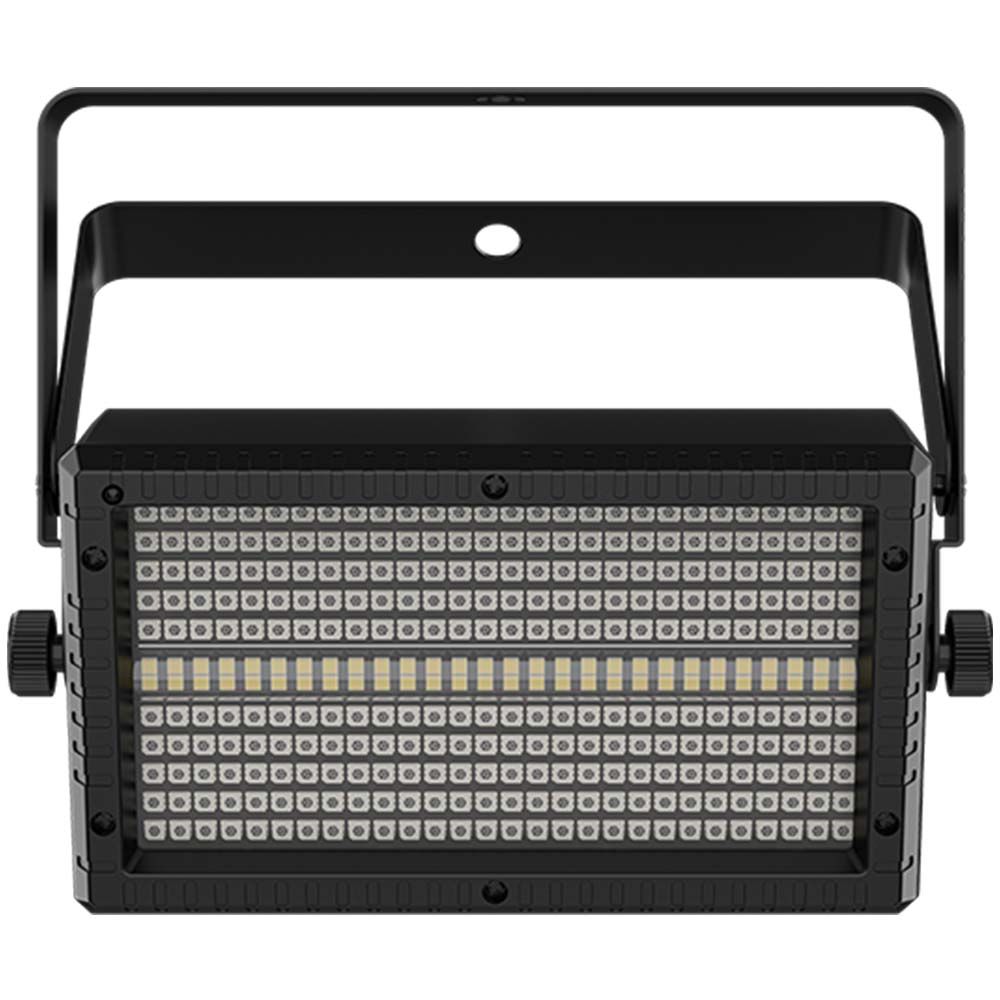

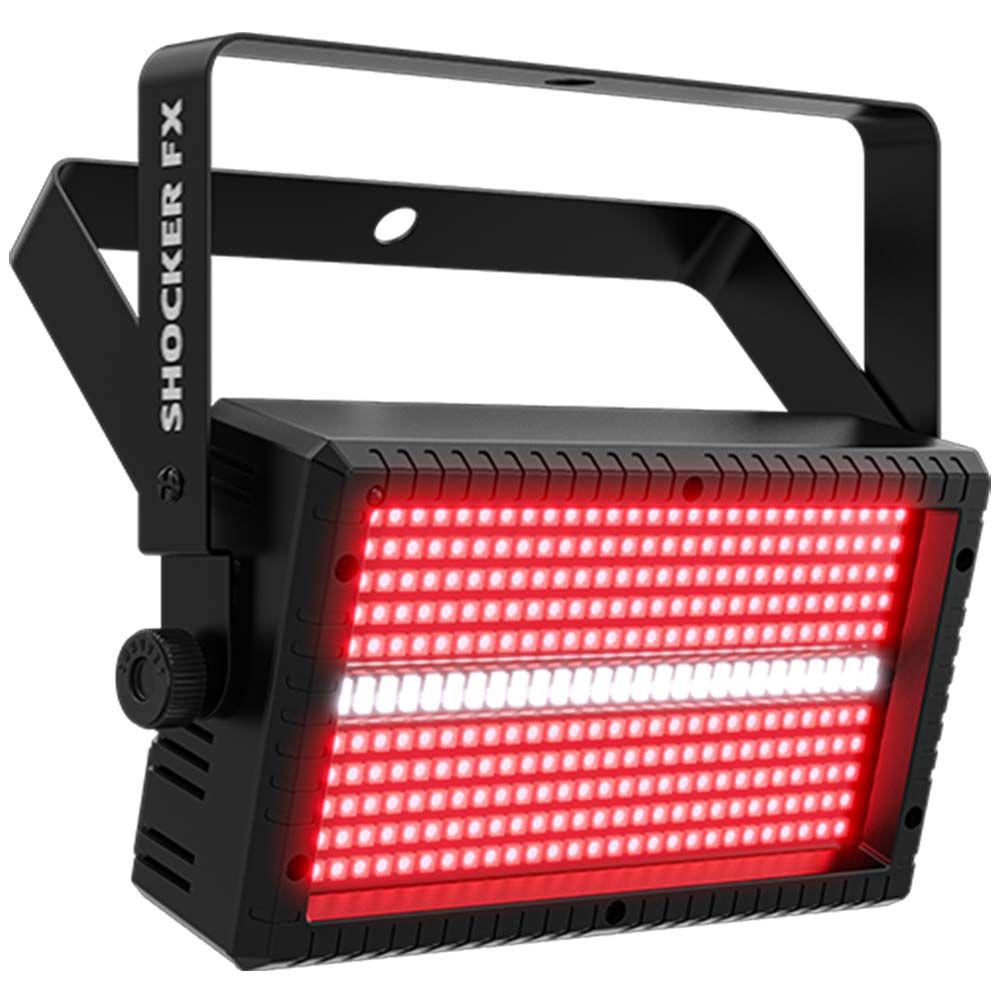

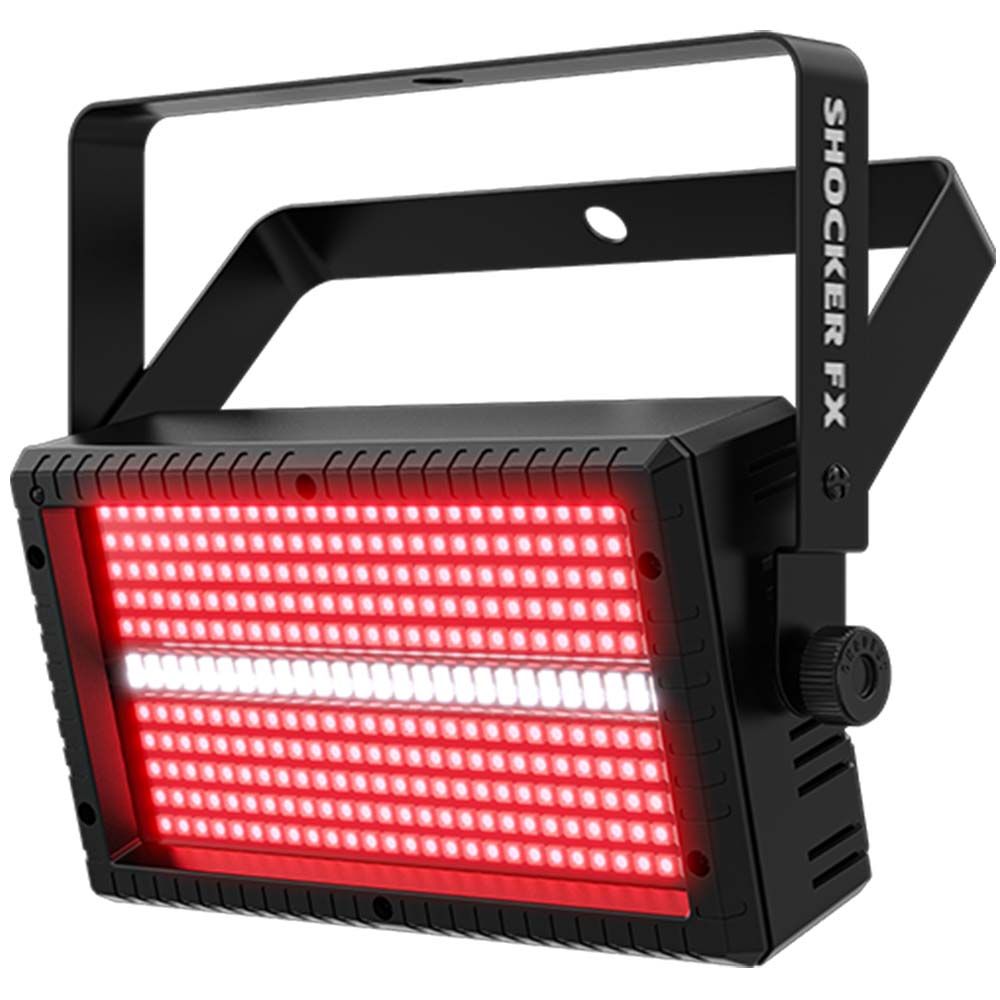

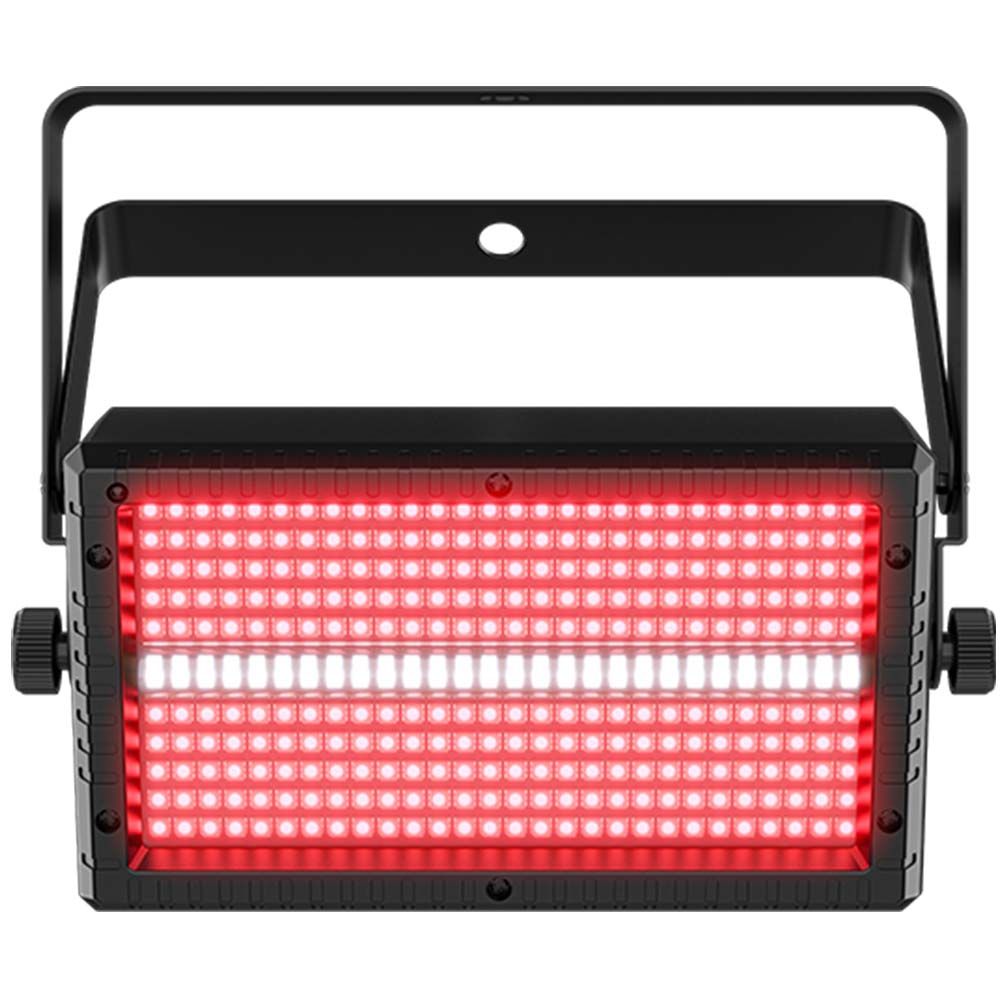

Chauvet DJ Shocker FX LED Strobe, Blinder and Wash Light
RRP: $179.00 ex. GST
Key Features:
- Versatile blinder, wash and strobe light with brilliant eye candy effects
- 12 controllable sections: 8 RGB and 4 white
- Built-in automated programs via Master/Slave, DMX mode or optional IRC-6 remote
- Combine zone control and special effect macros
- Power linking for up to 12 units at 120 V or 20 units at 230 V
Technical Data
| DMX Channels | 8, 18, 30, or 43 |
| DMX Connectors | 3-pin XLR |
| Light Source | 280 LEDs (tri-color) 50 W, (1.5 A), 50,000 hours life expectancy |
| Light Source (cool white) | 56 LEDs (cool white), 11 W (.8 A), 50,000 hours life expectancy |
| Strobe Rate | 0 to 20 Hz |
| Beam Angle | 97° |
| Field Angle | 139° |
| Illuminance | 219 lux @ 2 m |
| Lumens | 1,981 |
| Power Linking | 12 units @ 120 V; 20 units @ 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 45 W, 0.4 A @ 230 V, 50 Hz |
| Power and Current (120 V) | 45 W, 0.6 A @ 120 V, 60 Hz |
| Weight | 2.0 lb (1.0 kg) |
| Size | 10.2 x 3.25 x 5.1 in (260 x 82.6 x 129 mm) |
| Approvals | CE, ROHS |
