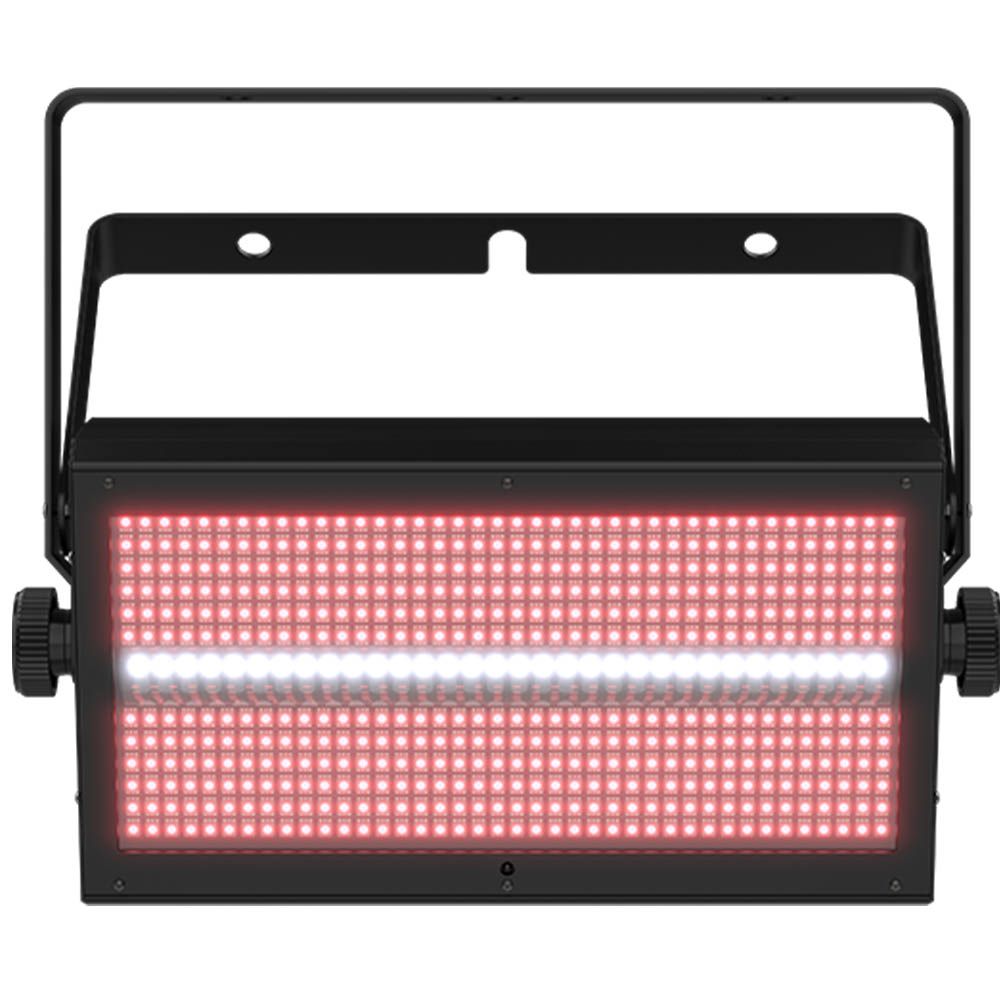

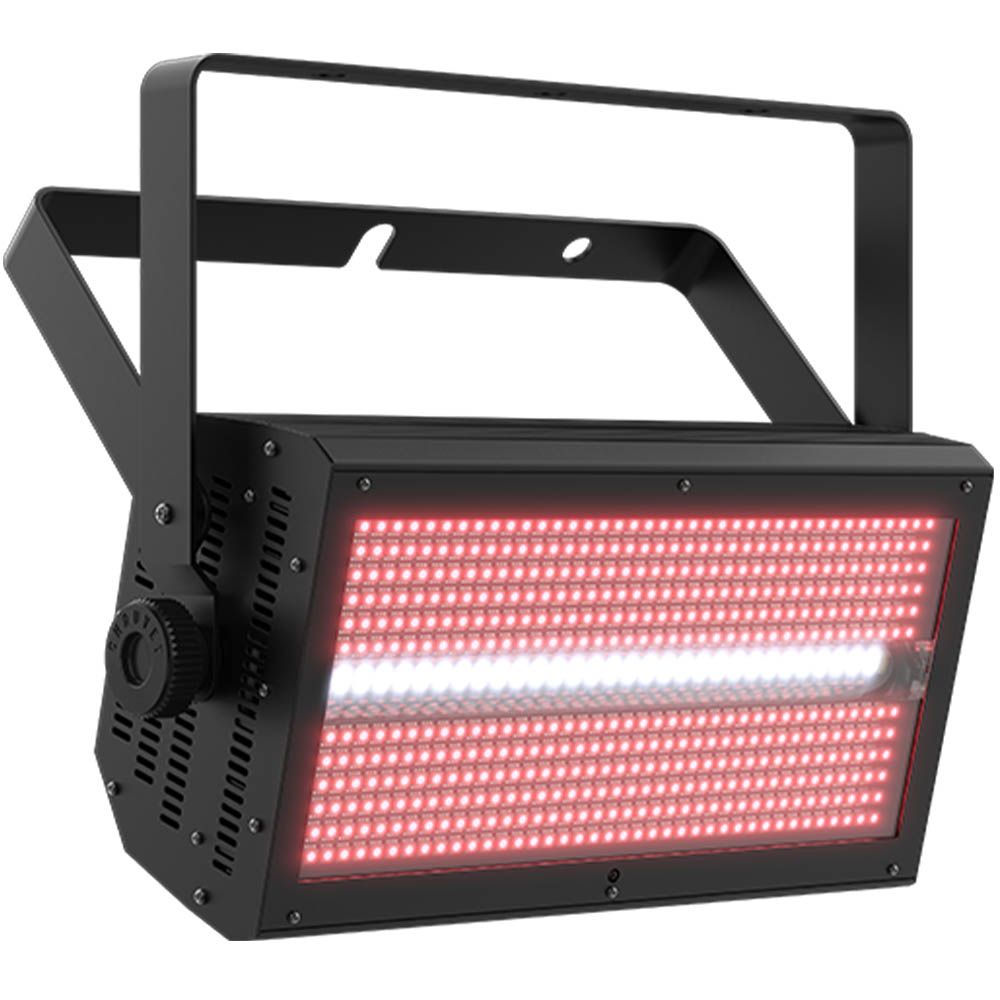

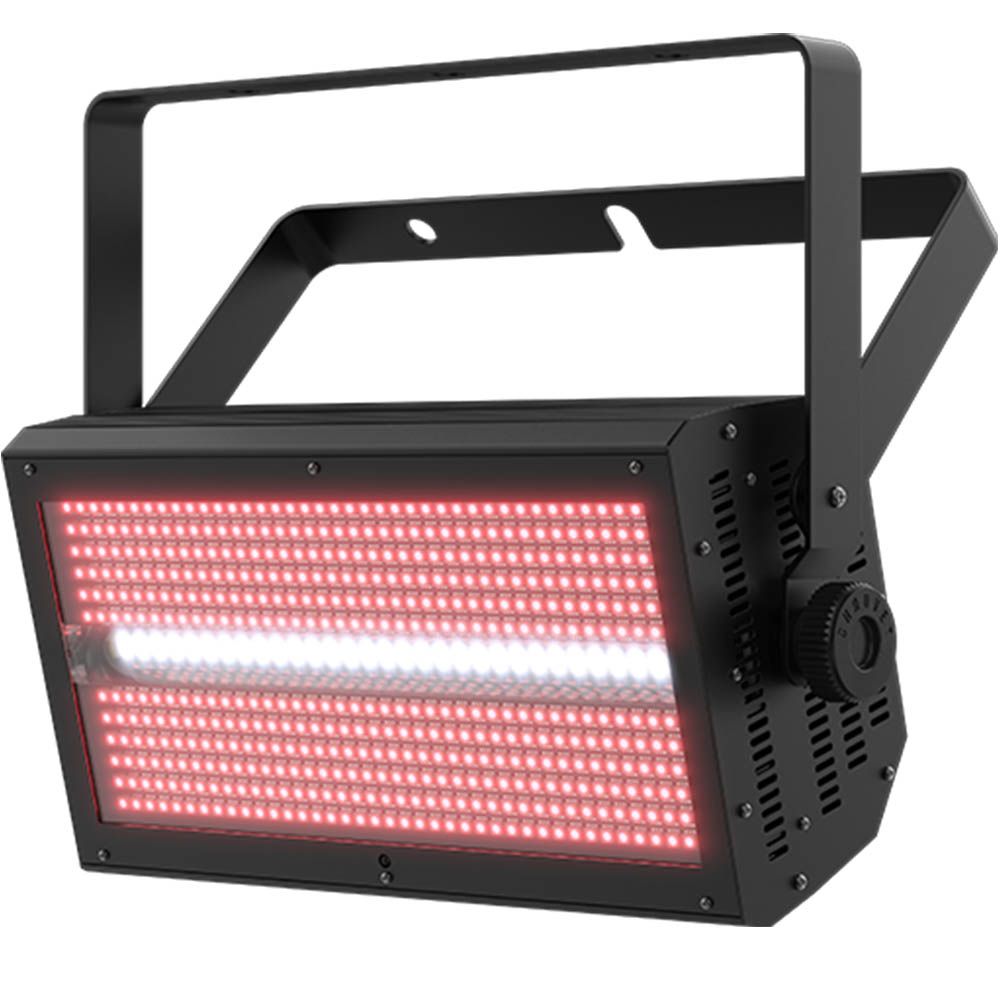

The Chauvet DJ Shocker Panel FX is a versatile lighting fixture combining strobe, wash, and blinder functions in a rugged, compact design. It features 16 mappable sections comprising 8 RGB and 8 white LED zones for enhanced programming flexibility and dynamic lighting effects. Powered by 512 LEDs, it delivers high-intensity output and fast transitions ideal for mobile applications. The fixture supports powerCON-compatible power linking and is designed for easy transport in an optional gear bag, making it suitable for mobile DJs and entertainers.

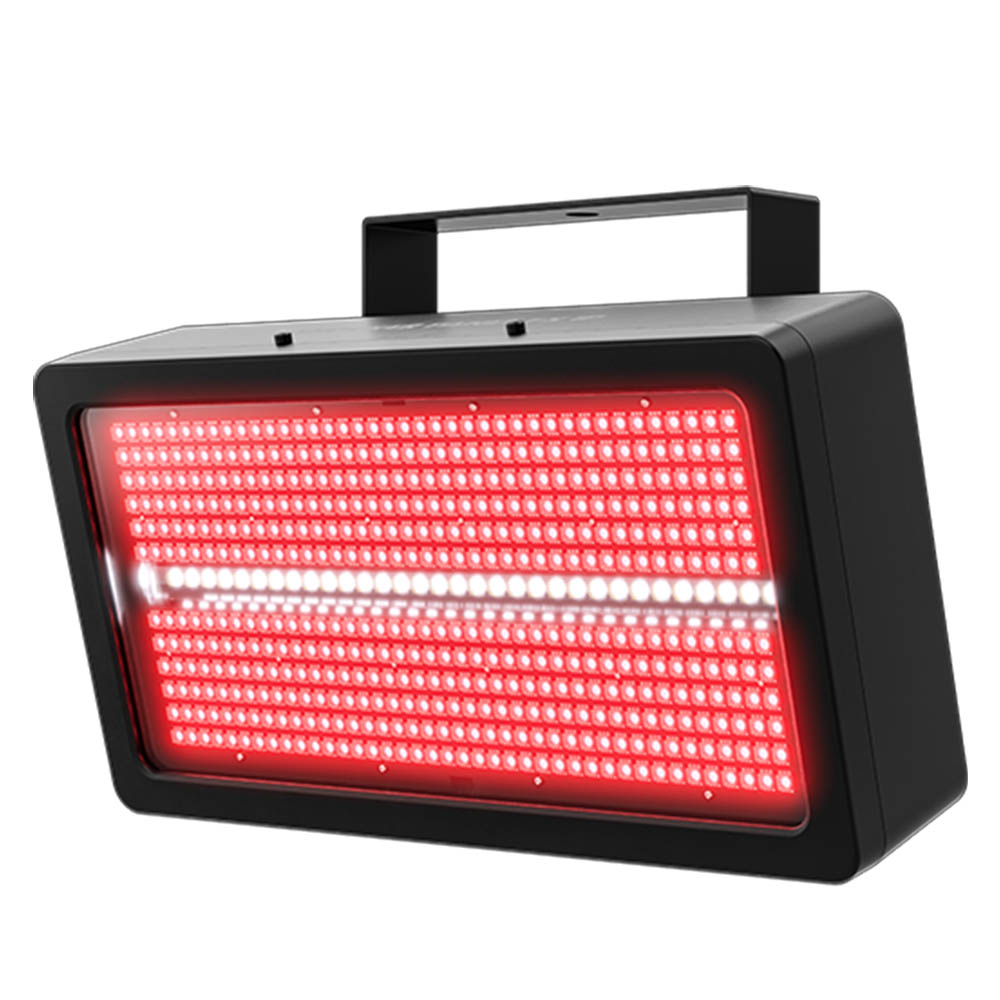

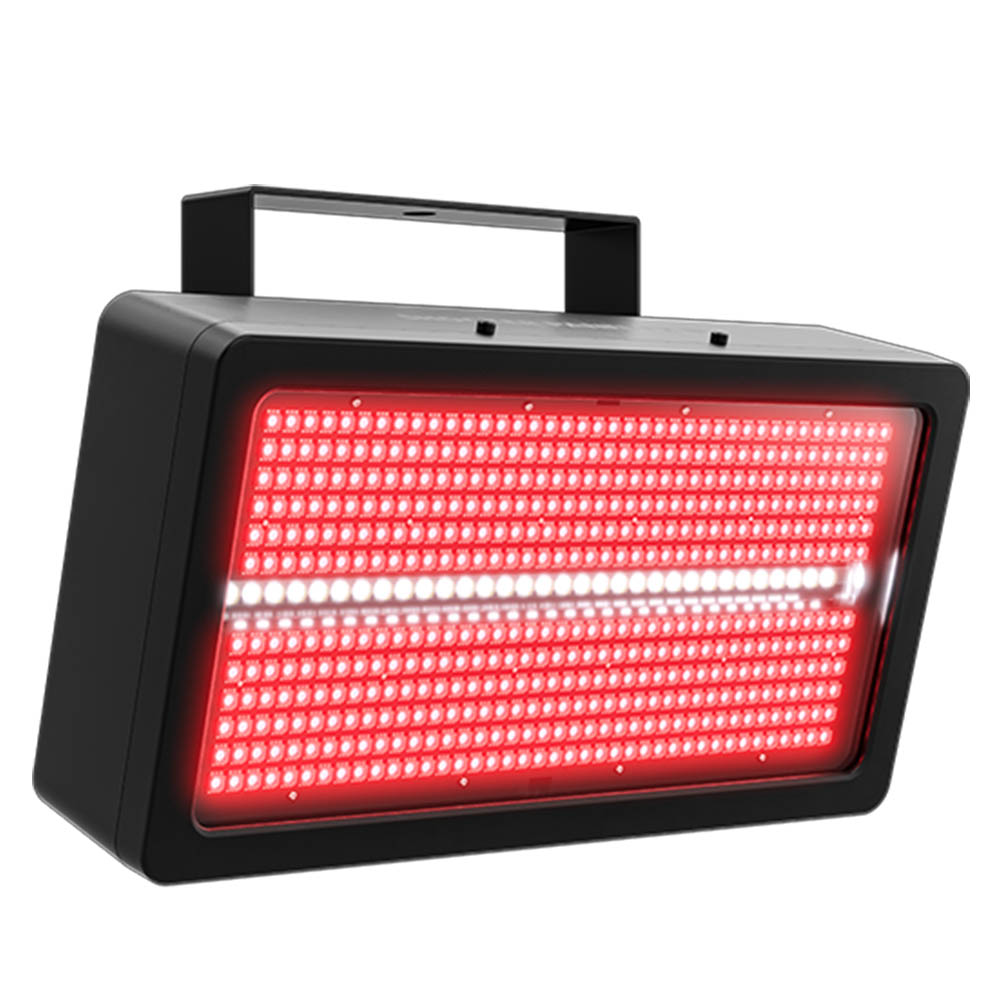

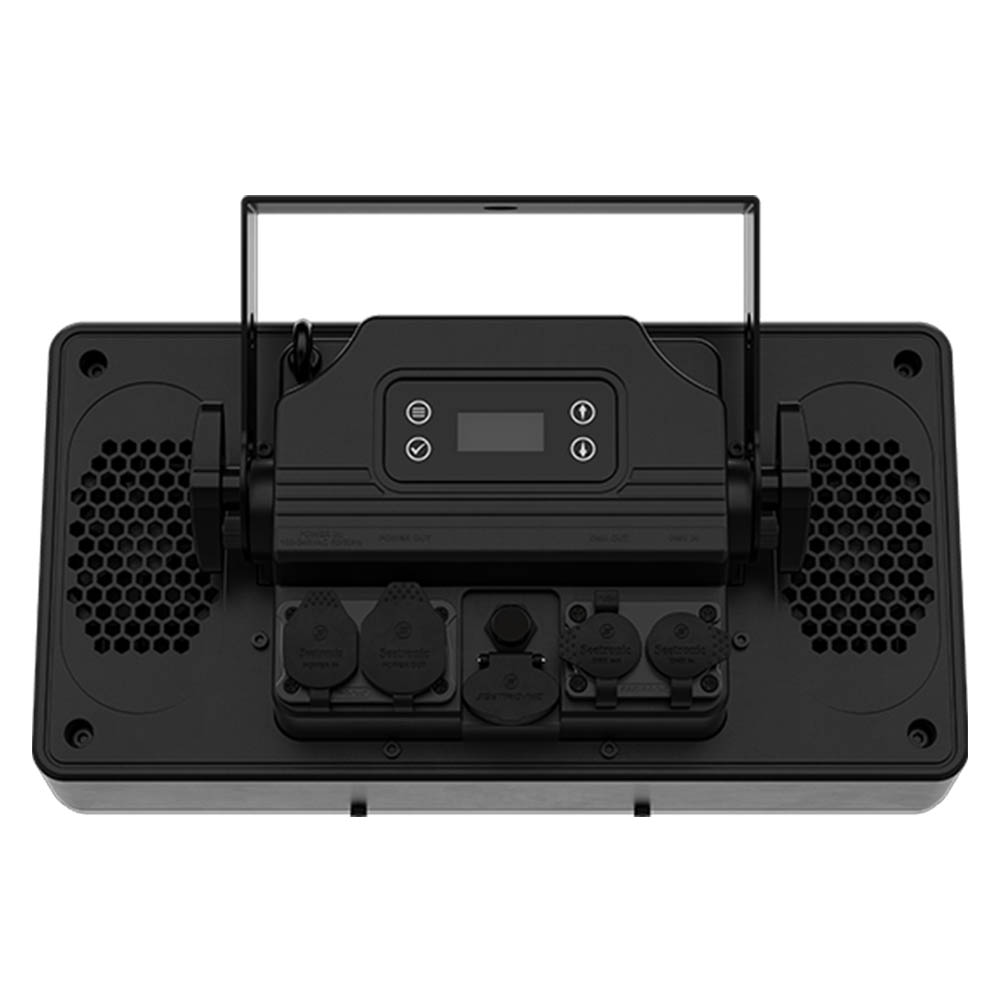

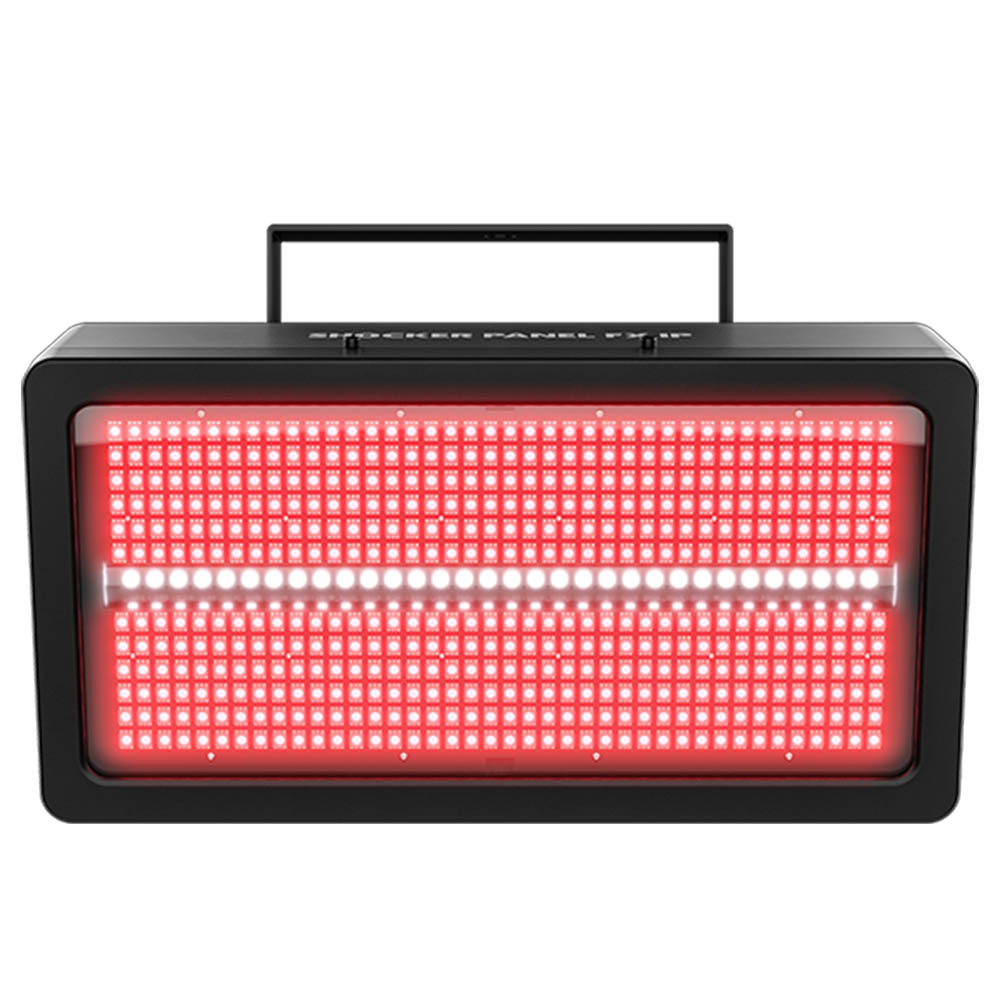

Chauvet DJ Shocker Panel FX Effect Lighting with IP Rating
RRP: $599.00 ex. GST
Key Features:
- Versatile blinder, wash and strobe light with brilliant eye candy effects
- 16 controllable sections (8 RGB + 8 white) allows for creative programming flexibility
- Rugged, all-metal housing makes it ideal for mobile application
- Trigger eye-catching built-in macros via the display or DMX

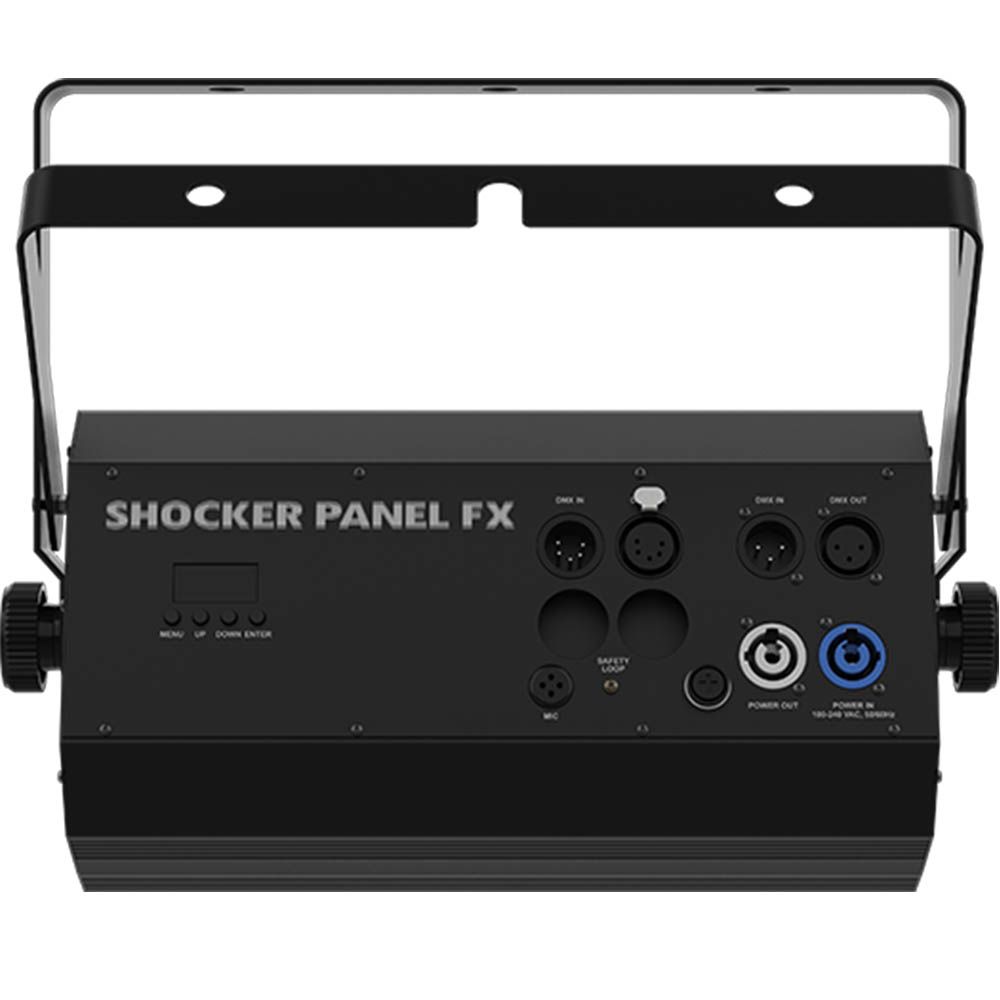

- powerCON®-compatible power input/output connections for power linking
Technical Data
| DMX Channels | 8, 18, 34 or 47 |
| DMX Connectors | 3- and 5-pin XLR |
| Light Source | 480 LEDs (tri-color) 2 W, (1 A), 50,000 hours life expectancy; 32 LEDs (cool white) 1.1 W (0.4 A), 50,000 hours life expectancy |
| Strobe Rate | 0 to 20 Hz |
| Beam Angle | 119° |
| Field Angle | 158° |
| Illuminance | 1,131 lux @ 2 m |
| Lumens | 13,626 |
| Power Linking | 5 units @ 120 V; 10 units @ 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 296 W, 2.5 A @ 120 V, 60 Hz; 281 W, 1.3 A @ 230 V, 50 Hz |
| Weight | 8.6 lb (3.9 kg) |
| Size | 12.63 x 4.3 x 6.7 in (310 x 110 x 170 mm) |
| Approvals | CE, UKCA, ROHS |
