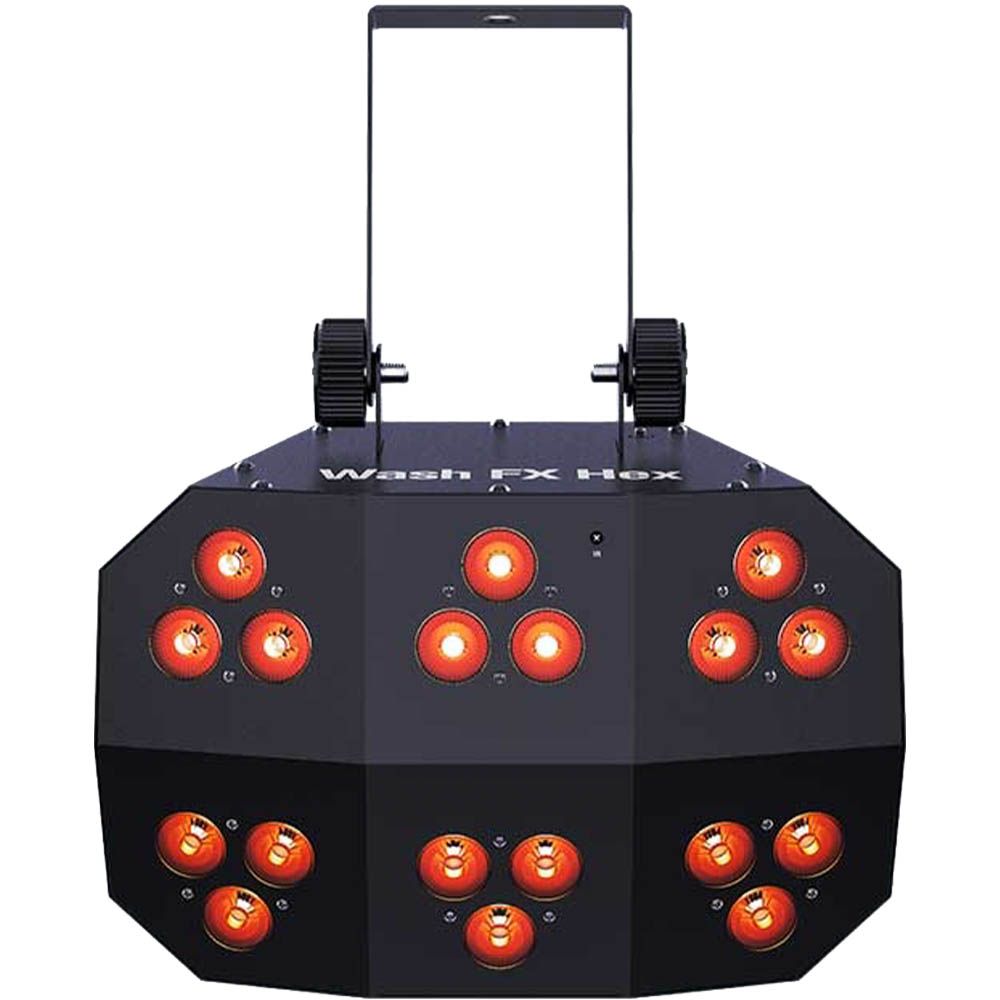

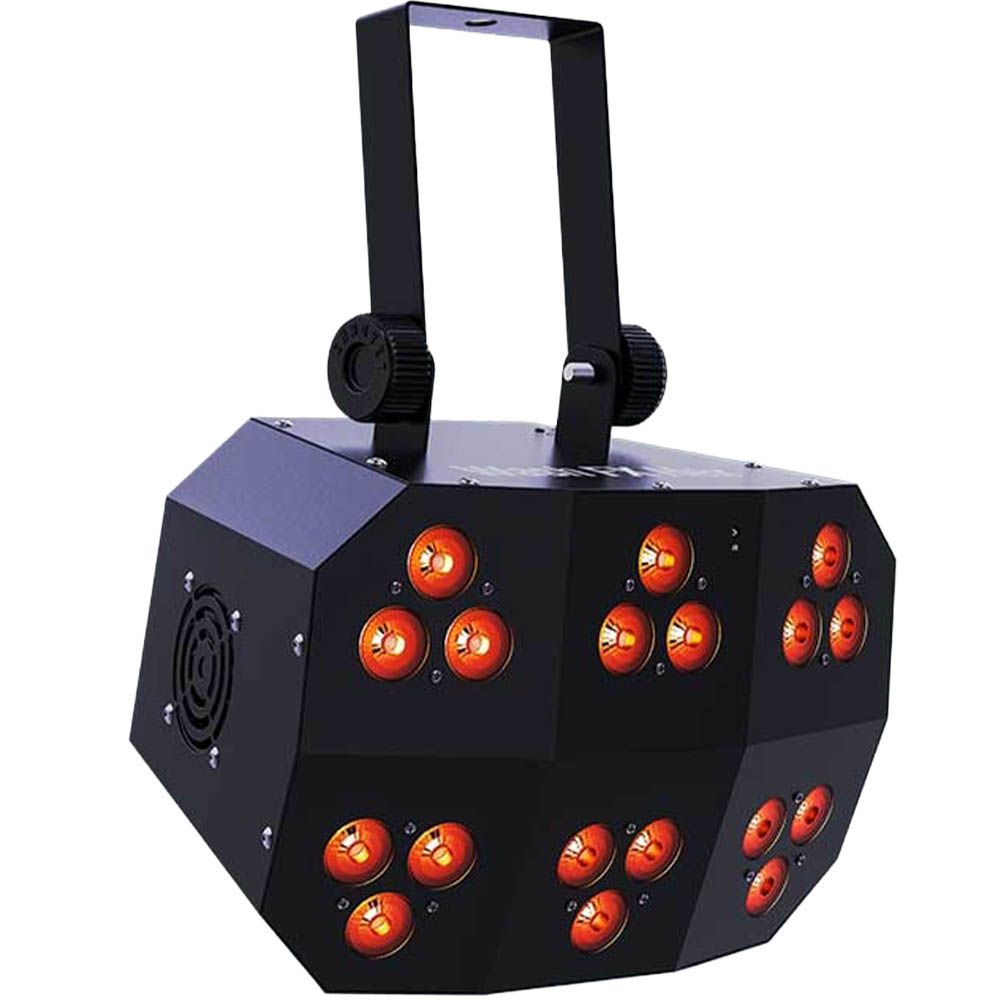

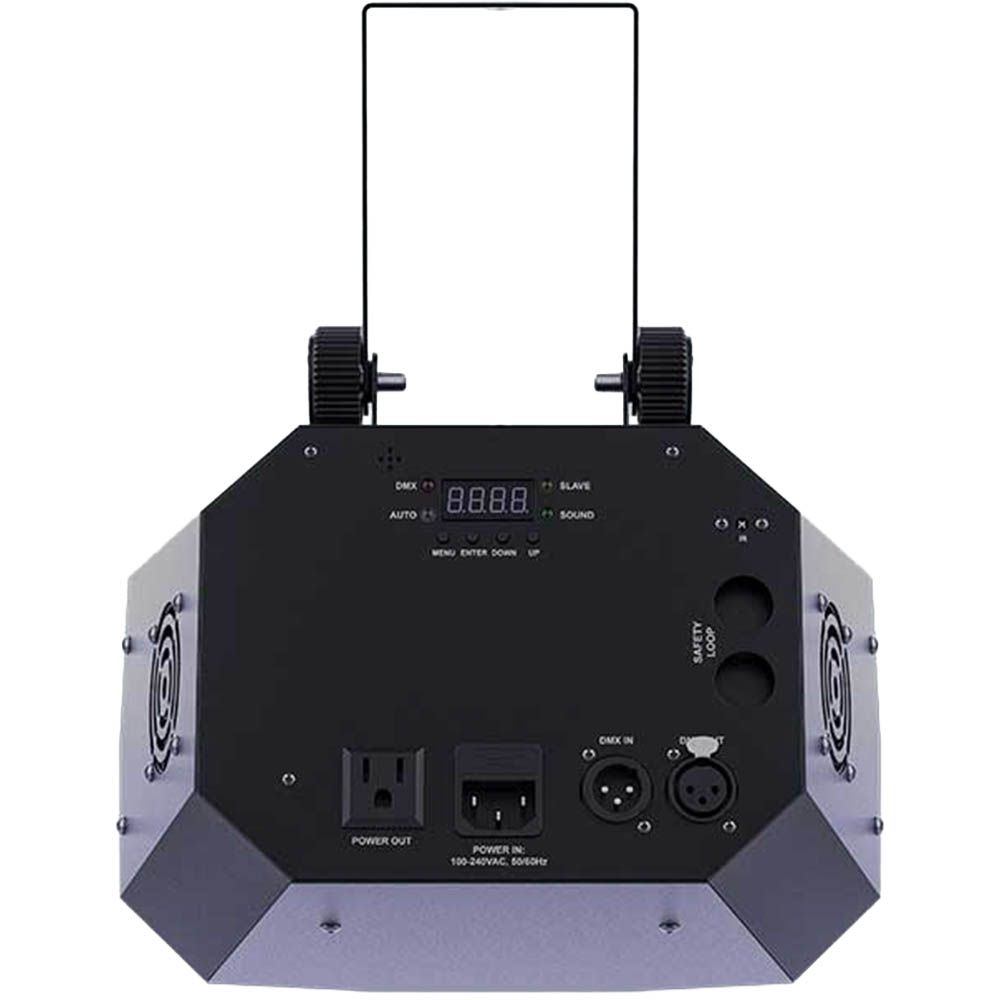

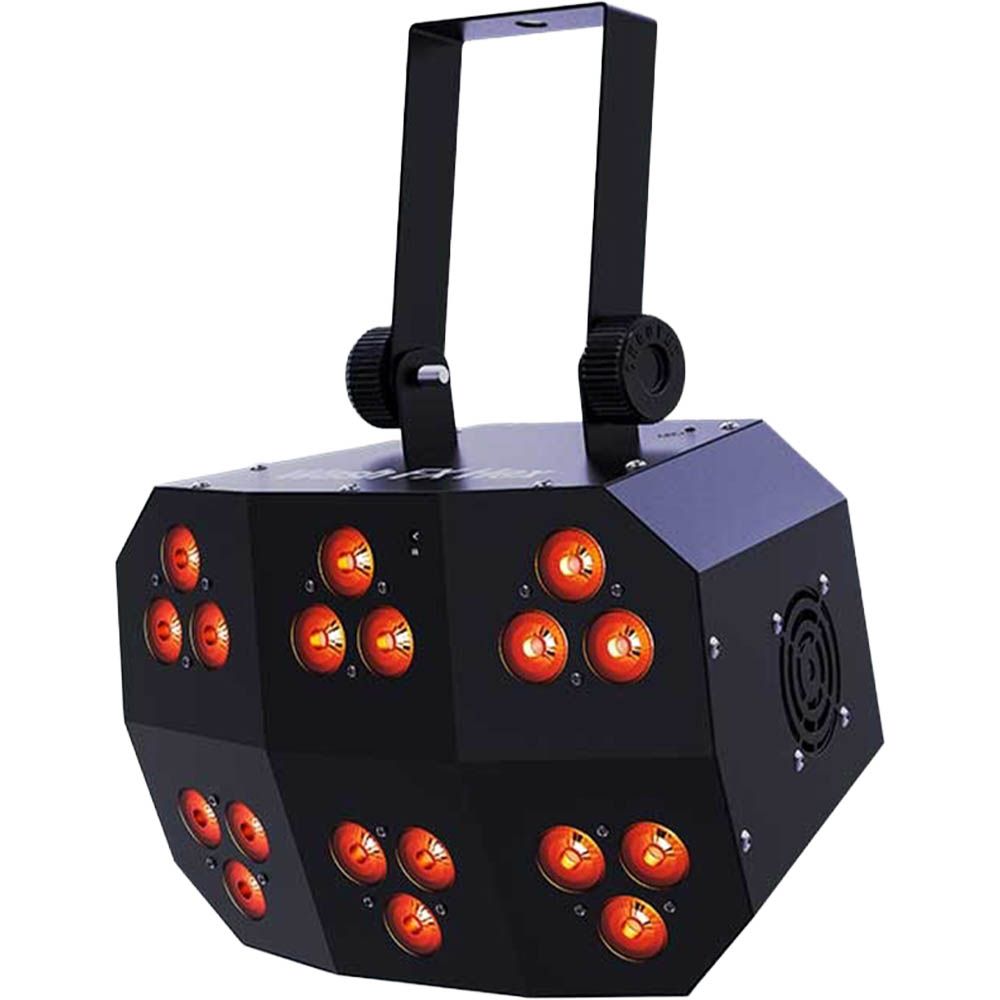

Chauvet DJ Wash FX Hex ILS Multi-purpose LED Effect Light

SKU: WASHFXHEXILS Category:

RRP: $349.00 ex. GST

Key Features:
  • Multi-purpose effect light functions as chase effect, blinder, or a wash light
  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with Hex color LEDs
  • Advanced master/slave feature allows you to mirror effect between units
  • Use as a regular wash light or eye-candy effect with 6 chasing zones
  • Multiple control options include stand-alone, DMX, IR, or master/slave
  • Compatible with the IRC-6 wireless remote for wireless triggering
  • Power linking saves time running cables
  • Fits best in the CHS-40 VIP gear bag

The Chauvet DJ Wash FX Hex is a professional multi-purpose lighting fixture designed for dynamic stage and event illumination. It utilizes 18 hex-color RGBAW+UV LEDs to produce a broad spectrum of colors and natural color temperatures. This fixture can operate as a chase effect, blinder, or wash light with 6 chasing zones and advanced master/slave capabilities to synchronize multiple units. Power linking and compatibility with multiple control methods including DMX, IR, and an optional wireless remote provide flexible installation and operation options.

Technical Data

DMX Channels 3, 6, 11 or 40
DMX Connectors 3-pin XLR
Light Source 18 LEDs (hex-color RGBAW+UV) 8 W, 2.8 A, 50,000 hours life expectancy
Strobe Rate 0 to 24 Hz
Beam Angle 41°
Field Angle 68°
Illuminance 2,422 lux @ 2 m
Power Linking 3 units @ 120 V; 5 units @ 230 V
Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current 200 W, 2.5 A @ 120 V, 60 Hz; 194 W, 1.5 A @ 230 V, 50 Hz
Weight 7.0 lbs (3.2 kg)
Size 11.2 x 6.3 x 13 in (285 x 160 x 330 mm)
Approvals CE
Optional Controllers IRC-6
Wavelength 380 to 400 nm

Related Documents

Wash FX Hex ILS User Manual
