The Chauvet Pro COLORado 2-Quad Zoom is an IP65-rated wash light for productions, events, and architectural installations. It uses fourteen 15W quad-color RGBW LEDs and provides motorized zoom from 7° to 45°. The fixture supports DMX and RDM protocols, 16-bit dimming, selectable dimming curves, color temperature presets, and built-in automated programs. Its double-bracketed yoke supports truss mounting or floor-stand use.

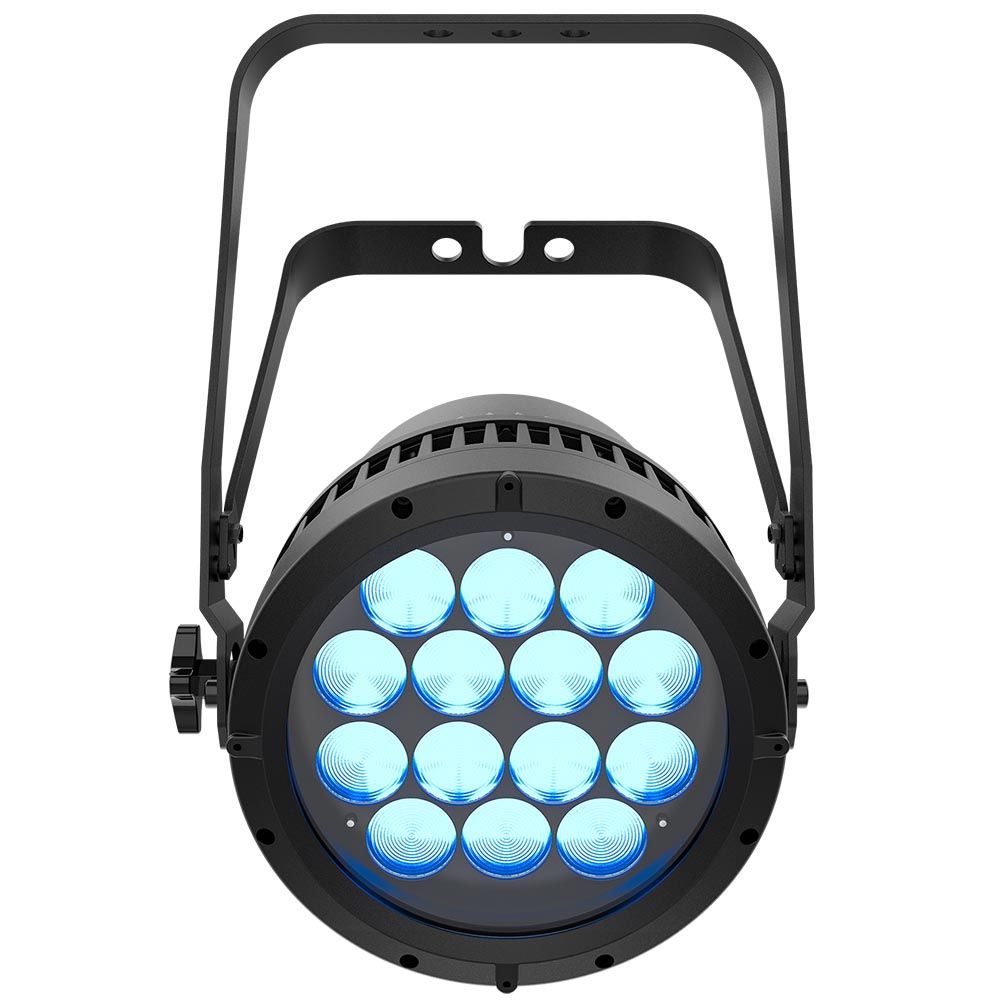

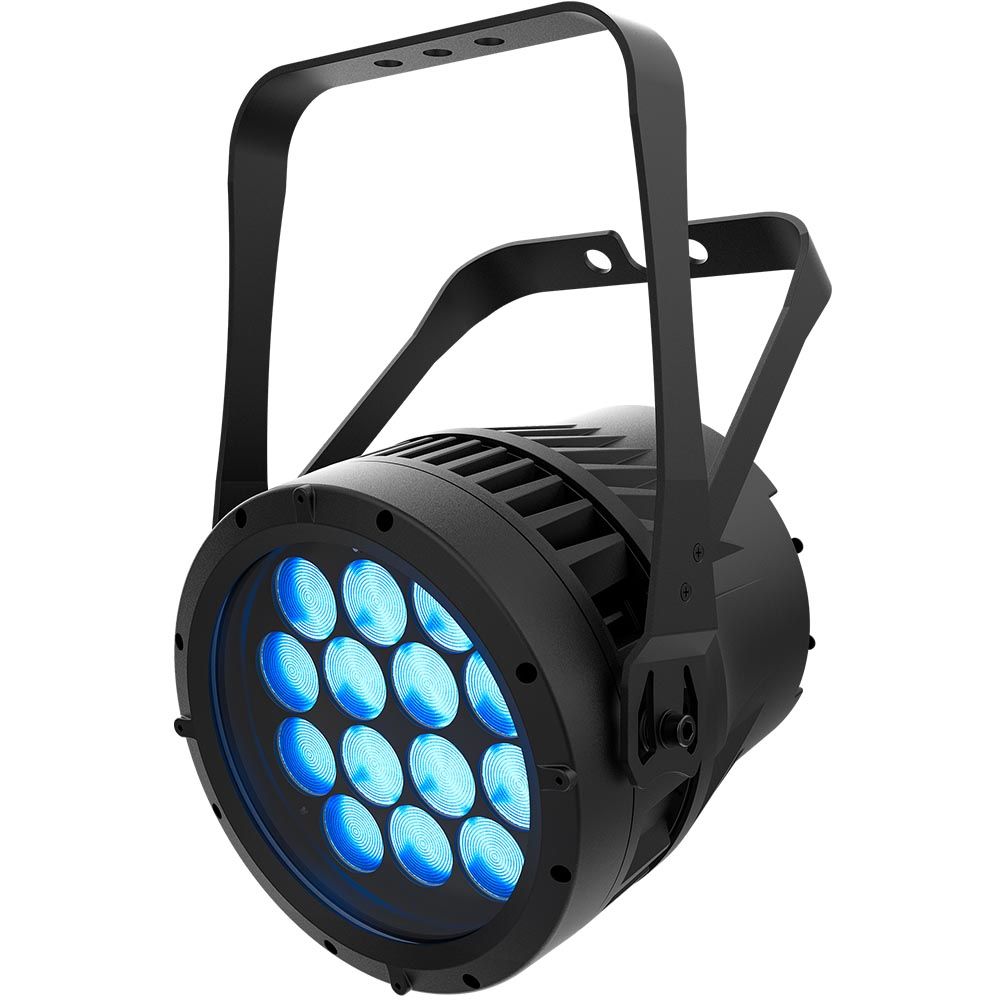

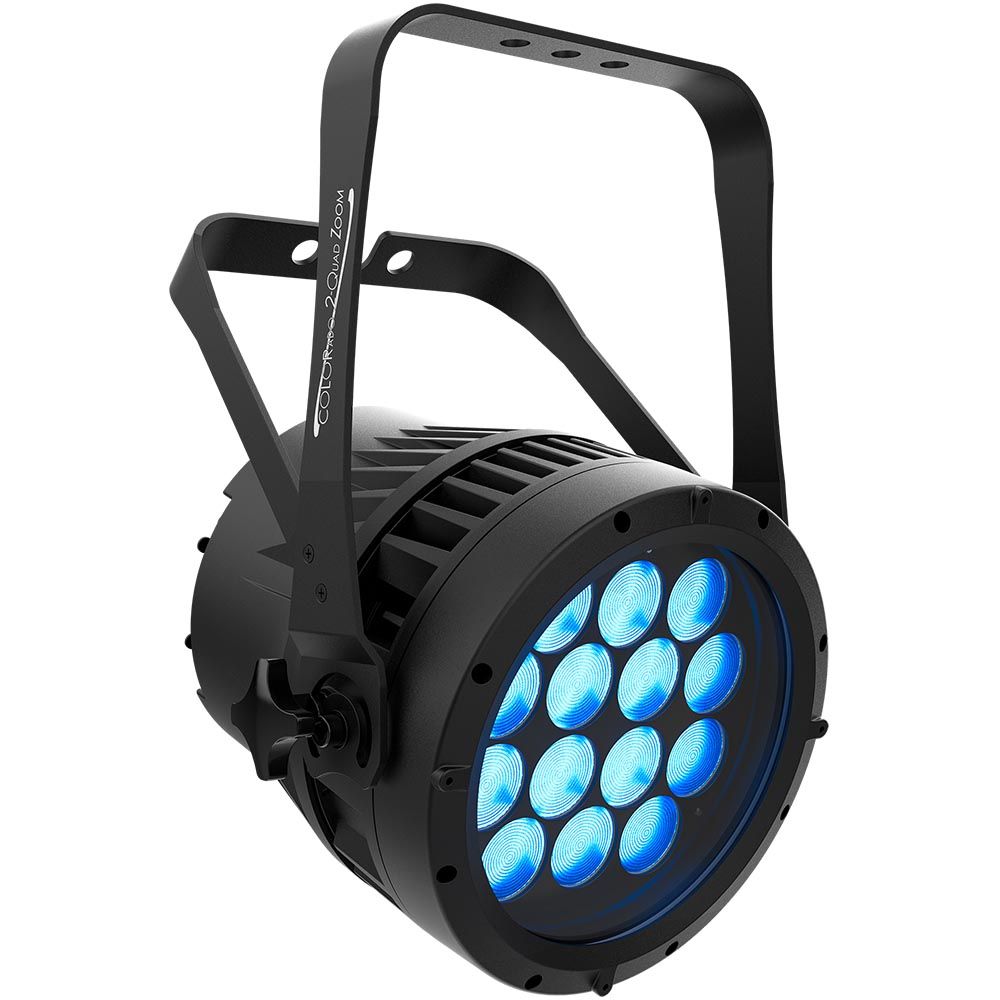

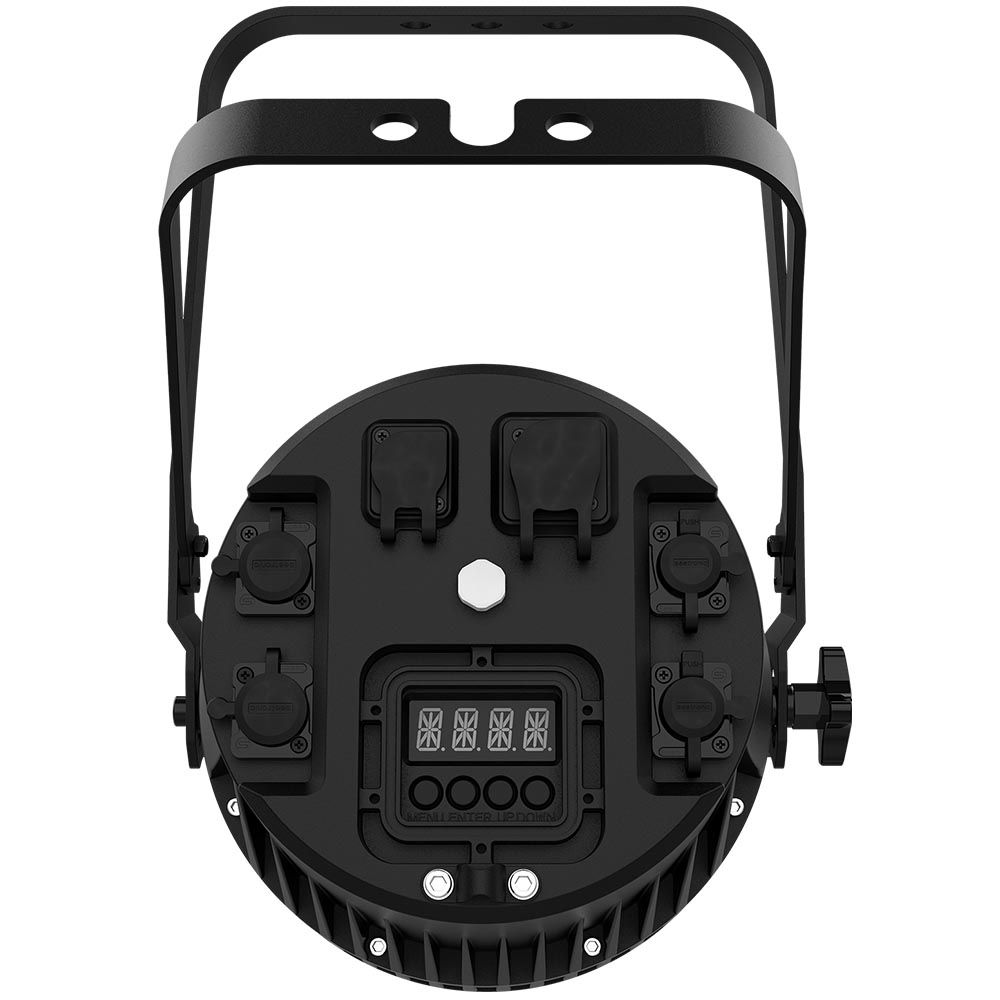

Chauvet Pro COLORado 2-Quad Zoom IP65 LED Wash Light
RRP: $2,632.00 ex. GST
Key Features:
- Fourteen 15W quad-color RGBW LEDs
- Motorized 7° to 45° zoom range
- 2,800 to 10,000 K color temperature range
- 16-bit dimming with 5 dim modes and 4 dim curves
- DMX and RDM control with 10 personalities
- IP65, temporary outdoor/wet use
- Double-bracketed yoke for truss mounting or floor stand use
Technical Data
| Light Source | 14 LEDs (quad-color RGBW) 15 W, (985 mA), 50,000 hours life expectancy |
| Color Temperature (range) | 2,800 to 10,000 K |
| Beam Angle | 7° to 29° |
| Field Angle | 14° to 44° |
| Zoom Range | 7° to 45° |
| PWM Frequency | 1,200 Hz |
| Color Macros | 20 macros |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Zoom | Motorized |
| Strobe Rate | 0 to 20 Hz |
| Standalone Color Mixing | Yes |
| Color Temperature Presets | Yes |
| Dim Modes | 5 |
| Dim Curves | 4 |
| Built-in Automated Programs | Yes |
| Customizable Programs | Yes |
| Recall Custom Programs | Yes |
| Dimensions | 12.9 x 11.1 x 9.2 in (330 x 284 x 236 mm) |
| Weight | 18.8 lb (8.6 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum die-cast |
| Accessory Holder/Gel Frame Size | 9 in (229 mm) |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 3- and 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | DMX, RDM |
| DMX Channels | 3, 4, 5, 6, 7, 12 or 17 |
| Modes/Personalities | 10 personalities (HSV, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, TOUR, TR16, STD.Y) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V |
| Power and Current | 201 W, 1.668 A @ 120 V, 60 Hz |
| Power and Current | 208 W, 1.02 A @ 208 V, 60 Hz |
| Power and Current | 208 W, 0.932 A @ 230 V, 50 Hz |
| Certifications | CE, MET |
| IP Rating | IP65, temporary outdoor/wet use |
