The Chauvet Pro COLORado Panel Q40 RGBW Wash Light is an IP65-rated rectangular wash light using 40 quad-color RGBW 15 W LEDs. It provides adjustable beam options through its installed optics and included magnetic flood filter, with color temperature control from 2800 to 10000 K. Control is available through DMX, W-DMX and RDM, while selectable PWM supports flicker-free performance for on-camera use. The unit includes power linking for multiple units and an OLED touchscreen display for setup.

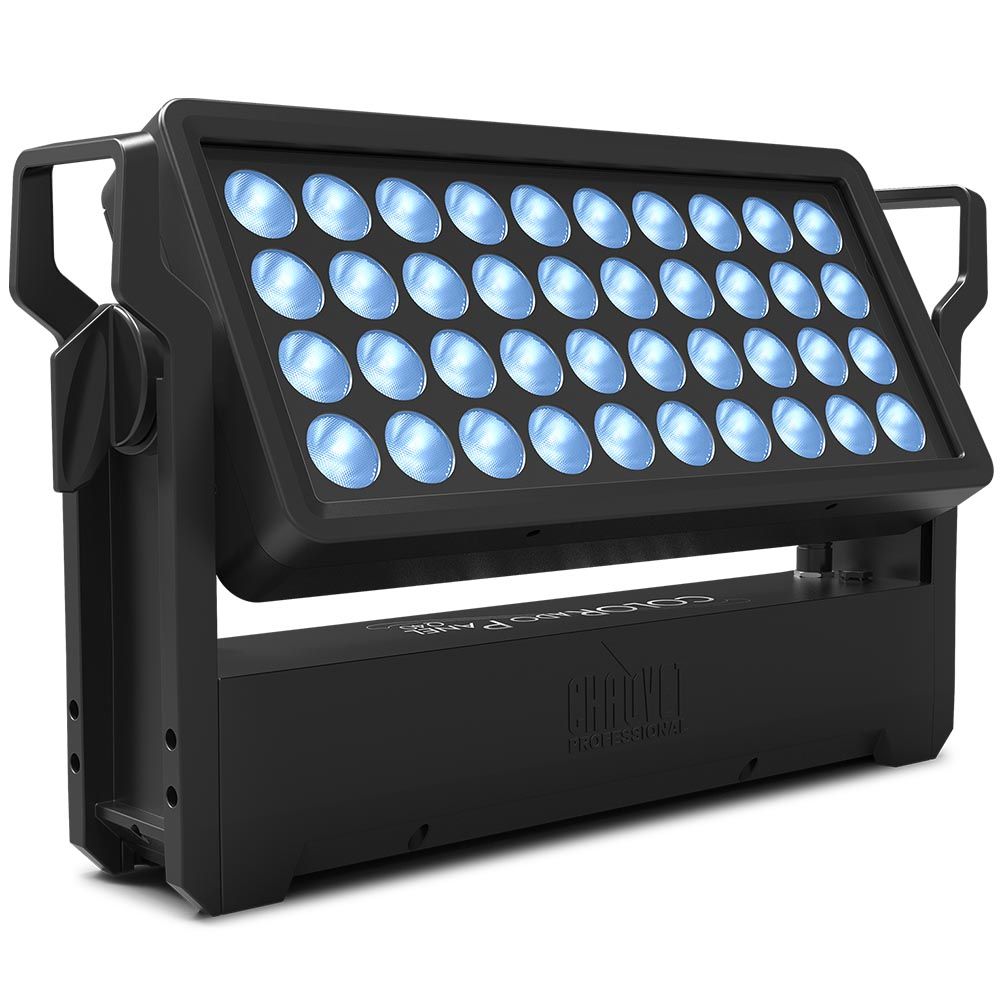

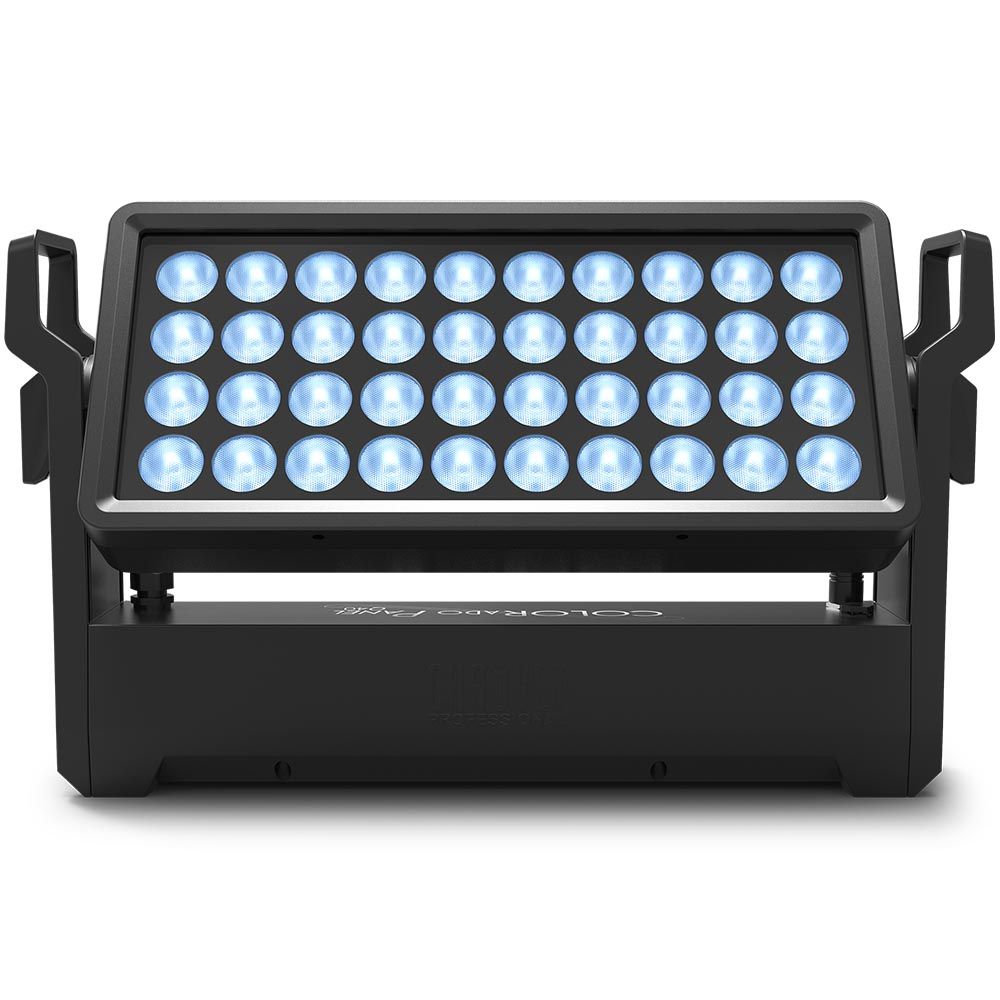

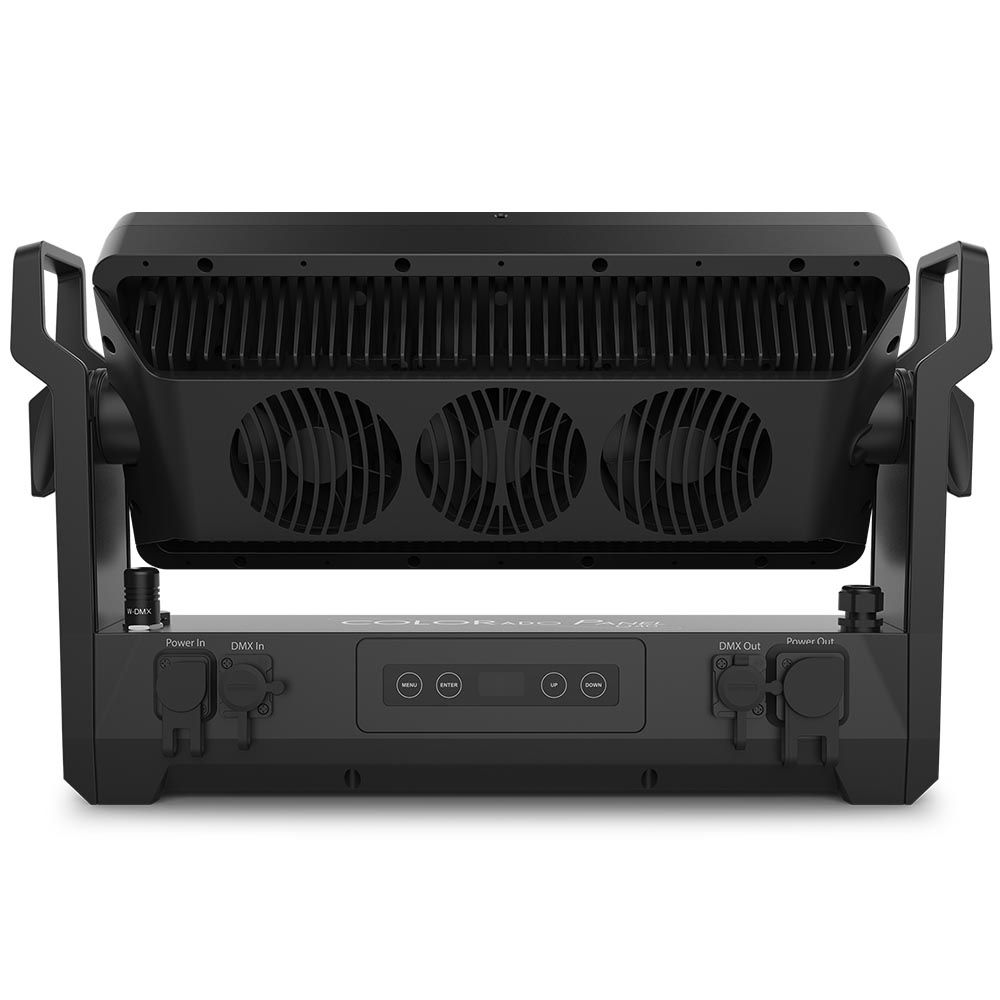

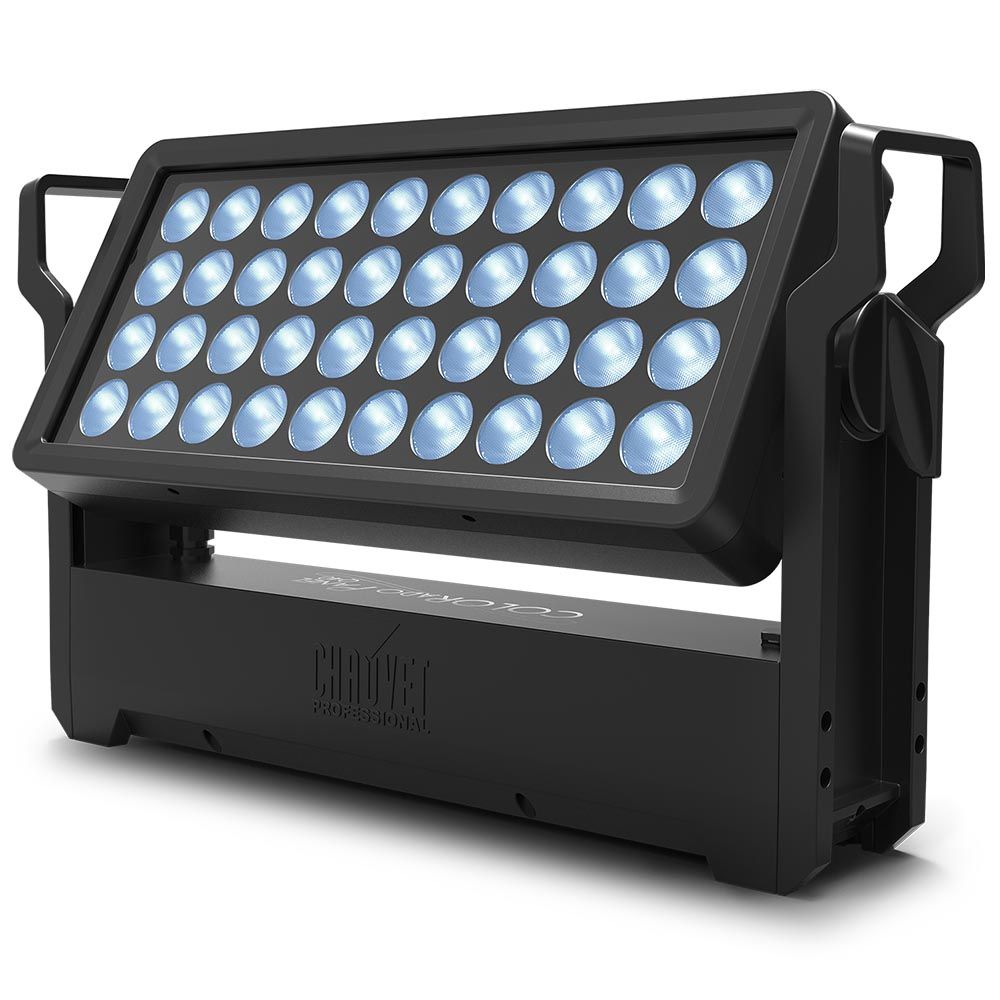

Chauvet Pro COLORado Panel Q40 IP65 RGBW Wash Light
RRP: $5,926.00 ex. GST
Key Features:
- 40 LEDs (quad-color RGBW) 15 W
- IP65-rated
- Adjustable beam
- Onboard W-DMX and RDM
- Selectable PWM
- Magnetic flood filter
- Smooth dimming curves
- OLED touchscreen display
- Power linking for multiple units
Technical Data
| Light Source | 40 LEDs (quad-color RGBW) 15 W, (970 mA), 50,000 hours life expectancy |
| Color Temperature (range) | 2800 to 10000 K |
| Installed Optics | 15° |
| Beam Angle (w/o filter) | 20.4° |
| Beam Angle (w/filter) | 24.6° |
| Field Angle (w/o filter) | 33.8° |
| Field Angle (w/ filter) | 50.4° |
| Lumens | 29,407 |
| Lumens (w/filter) | 17,992 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz |
| Tilt Ranges | 0° to 150° |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 27 Hz |
| Standalone Color Mixing | Yes |
| Color Temperature Presets | Yes |
| Dim Modes | 4 |
| Built-in Automated Programs | Yes |
| Dimensions | 20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm) |
| Weight | 28.2 lb (12.8 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum alloy, Aluminum die-cast |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP65 XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | DMX, W-DMX, RDM |
| DMX Channels | 4, 7, 11, 16 or 22 |
| Modes/Personalities | 5 personalities (4ch, 7ch, 11ch, 16ch, 23ch) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V |
| IP Rating | IP65, outdoor/wet, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
| Certifications | CE, MET, FCC |
