Chauvet Pro COLORado PXL Curve 12 is a motorized RGBW LED batten with twelve independent 45 W heads. Each head provides individual control of color, zoom, and tilt, with a 5.7° to 36.3° zoom range and a 200° tilt range. The built-in effects engine includes virtual gobos and movement macros, while full pixel mapping supports complex animations. Control protocols include Art-Net, sACN, DMX, RDM, and Klingnet, with IP65-rated connections for temporary outdoor and touring use.

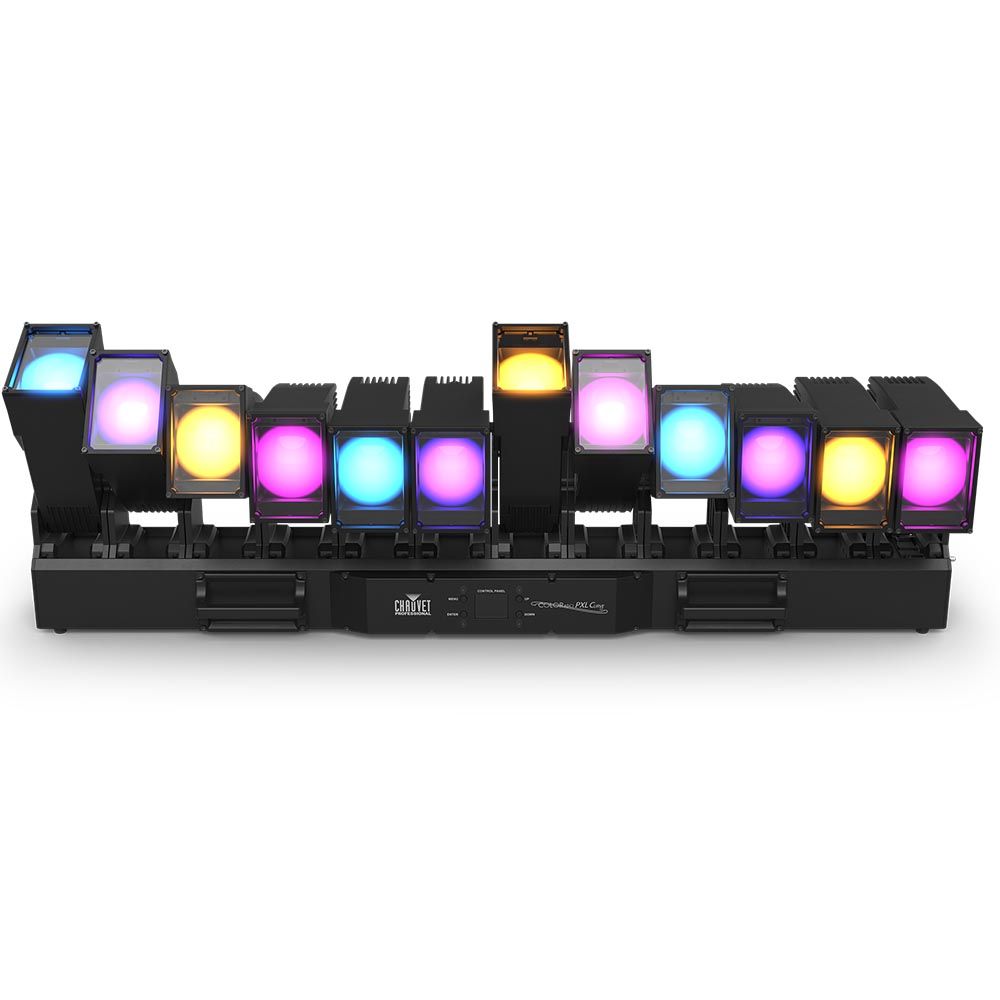

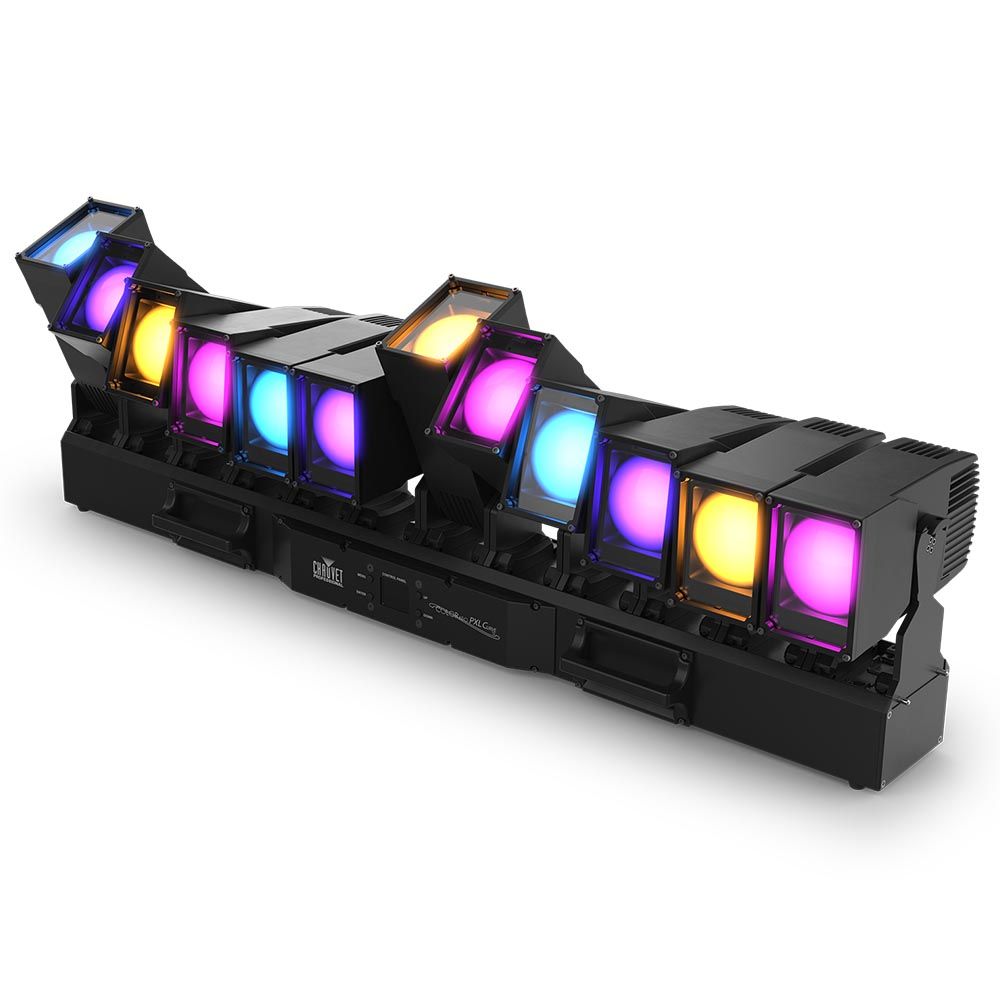

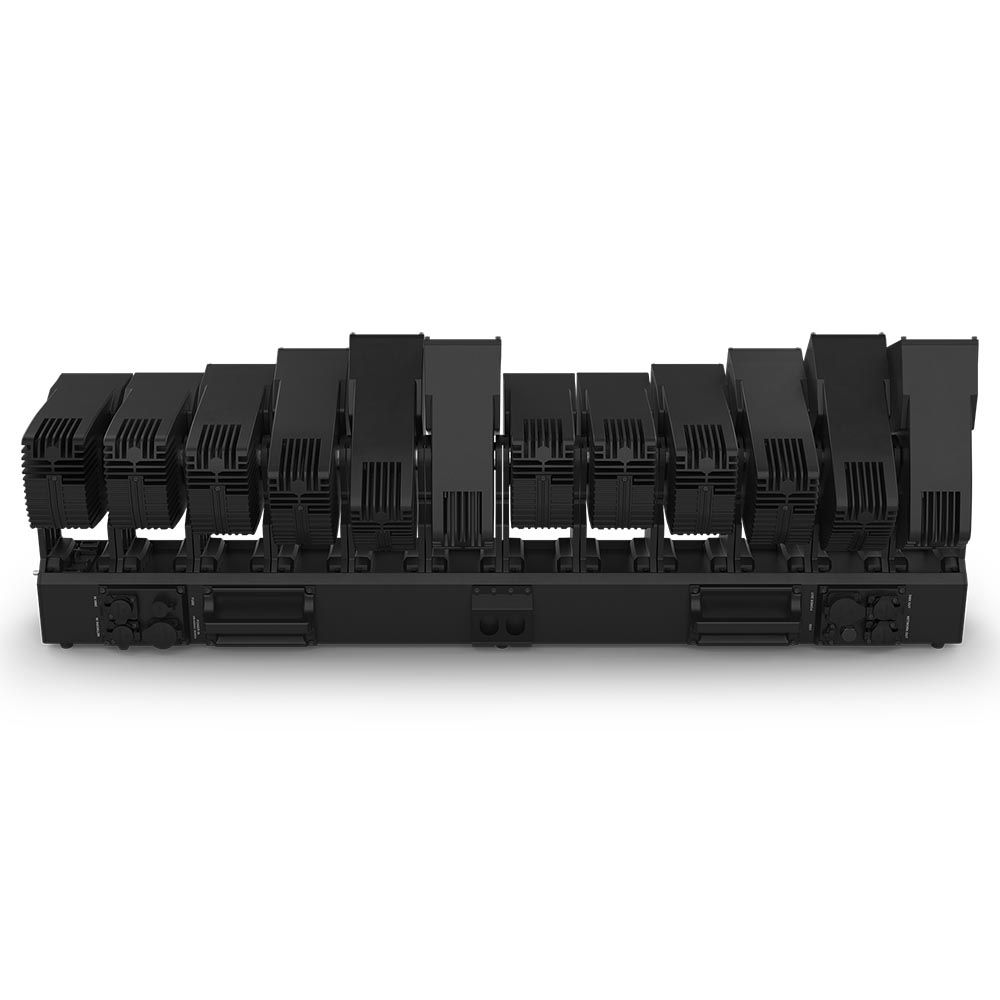

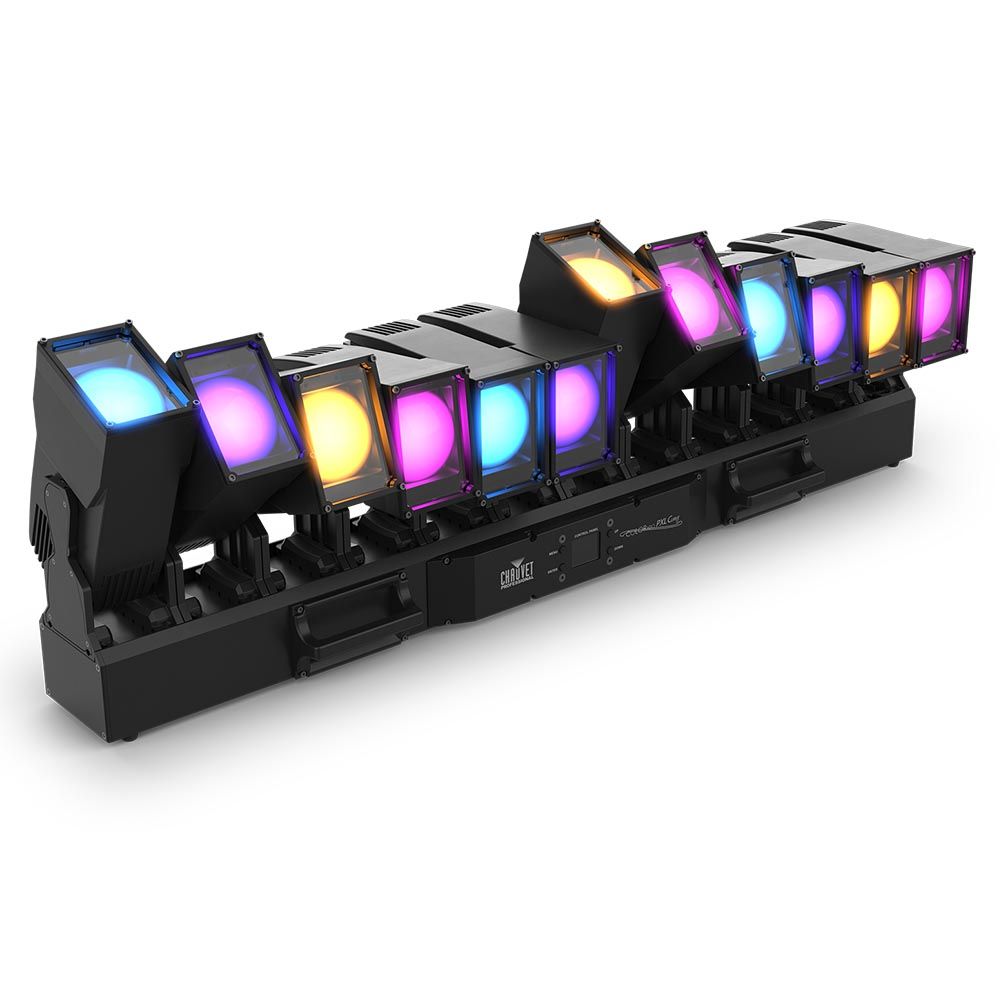

Chauvet Pro COLORado PXL Curve 12 IP65 RGBW LED Batten
RRP: $12,260.00 ex. GST
Key Features:
- 12LEDs (RGBW) 45 W
- Full Pixel Mapping
- Individual Zoom Control
- Individual Tilting Heads
- Zoom Range: 5.7° to 36.3°
- Built-In Effects Engine
- Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
- IP65 Rated Connections
Technical Data
| Light Source | 12LEDs (RGBW) 45 W, (2.96 A) 50,000 hours life expectancy |
| Color Temperature (range) | 2700 to 8000 K |
| Zoom Range | 5.7° to 36.3° |
| Lumens | 5,807 lm |
| Tilt Range | 60°, 180°, 200° |
| Strobe Rate | 0 to 20Hz |
| Dimensions | 39.21 x 7.09 x 12.80 in (996 x 180 x 325 mm) |
| Weight | 76 lb (34.5 kg) |
| Exterior Color | Black |
| Control Protocol | Art-Net, sACN, DMX, RDM, Klingnet |
| DMX Channels | 20ch, 53ch, 101ch, 155ch, 179ch |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 790 W, 6.70 A @ 120 V, 60 Hz |
| IP Rating | IP65, temporary outdoor/wet use |
| Temperature (Ambient) | 14 °F to 113 °F (-10 °C to 45 °C) |
