The Chauvet Pro COLORado Solo Bar 4 is an IP65-rated RGBwWL LED batten with 16 homogenized LED engines. It is suited to touring, festivals, theatrical productions and televised productions, with silent operation and 18-bit dimming. The fixture provides plus/minus green adjustment, emulated red-shift and a color temperature range of 2800 to 8000 K. Control protocols include DMX, RDM, Art-Net, sACN and CRMX, with adjustable mounting brackets and pins for end-to-end alignment.

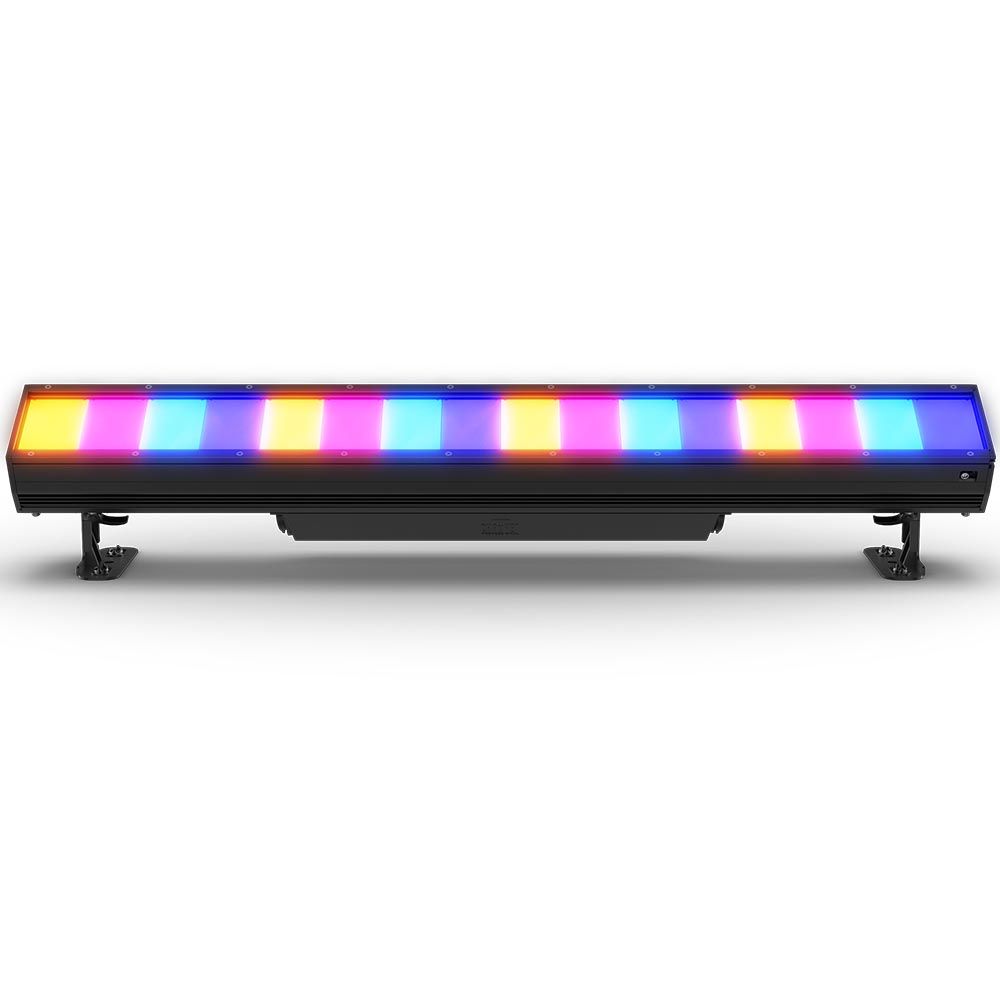

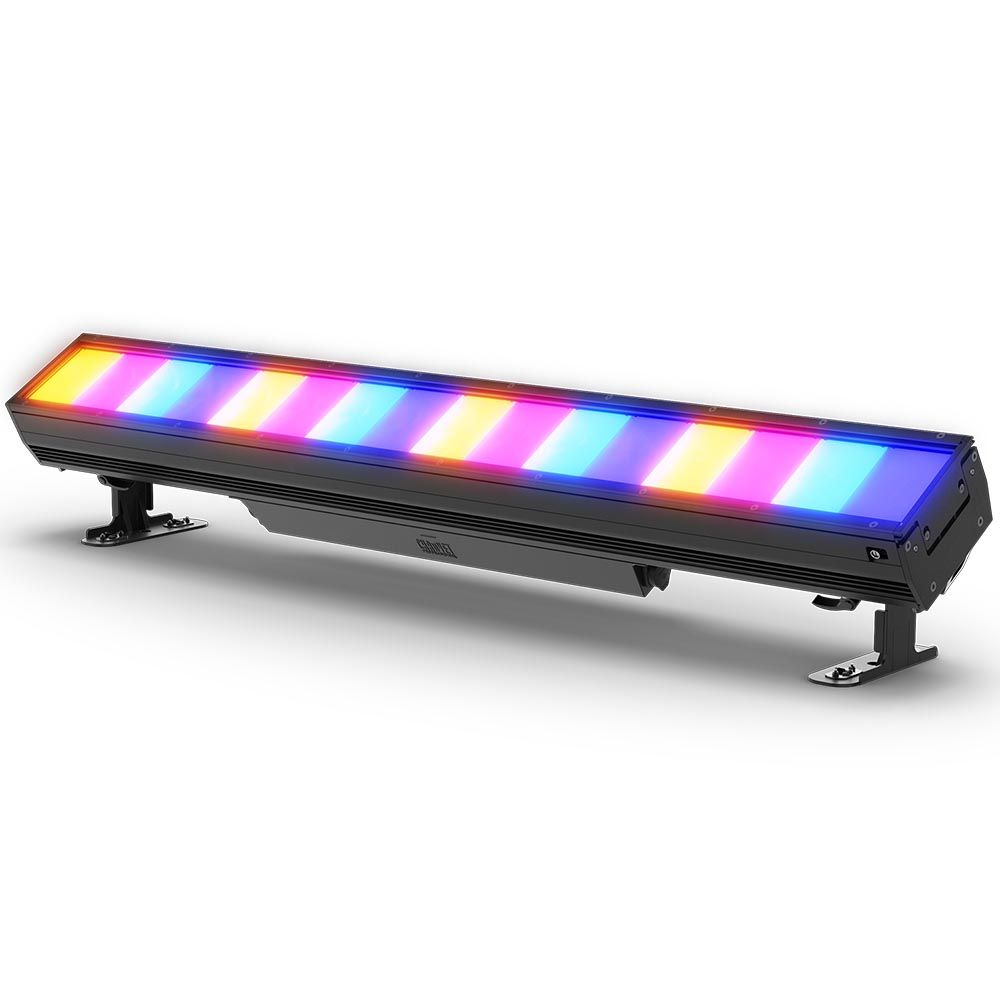

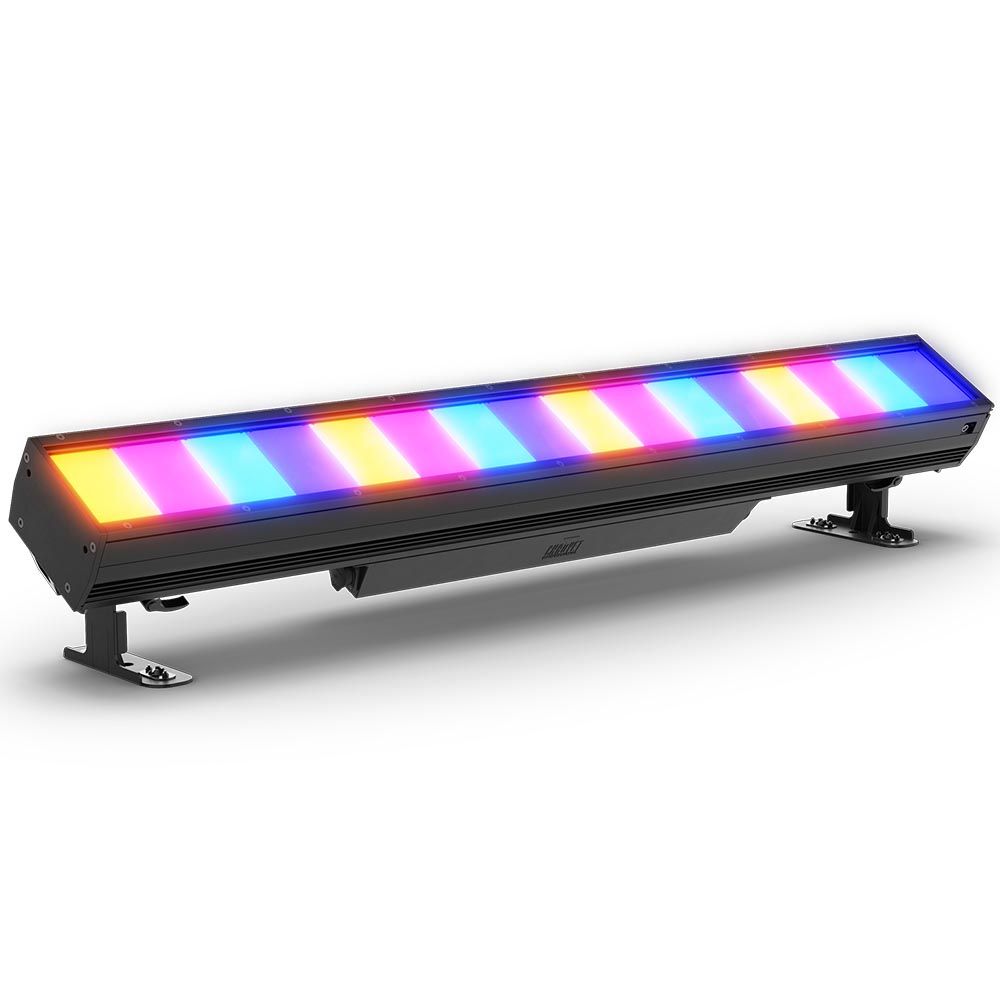

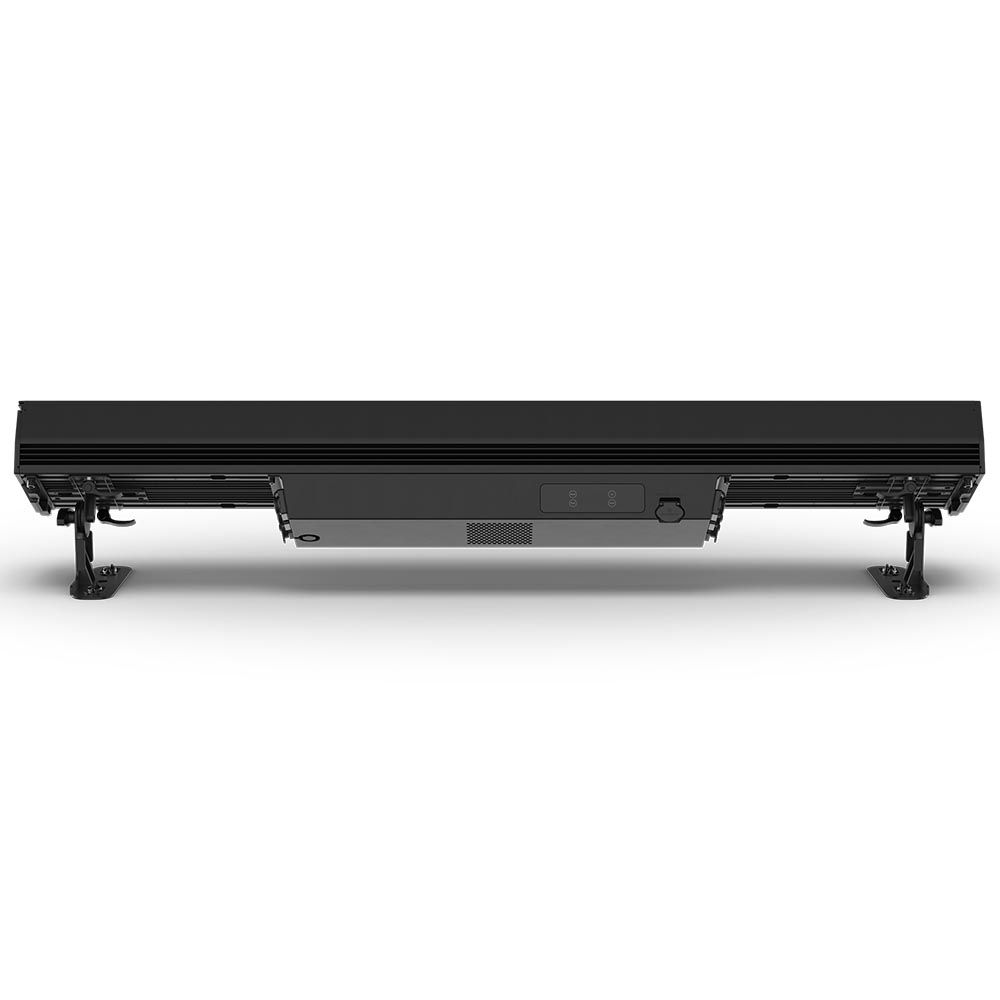

Chauvet Pro COLORado Solo Bar 4 RGBwWL IP65 LED Batten
RRP: $8,279.00 ex. GST
Key Features:
- 16 (RGBWwL) LED Engines
- IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
- Selectable PWM: 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz
- Ultra-smooth 18-bit dimming
- Plus/minus green adjustment and emulated red-shift
- Control protocols: Art-Net, sACN, DMX, CRMX, RDM

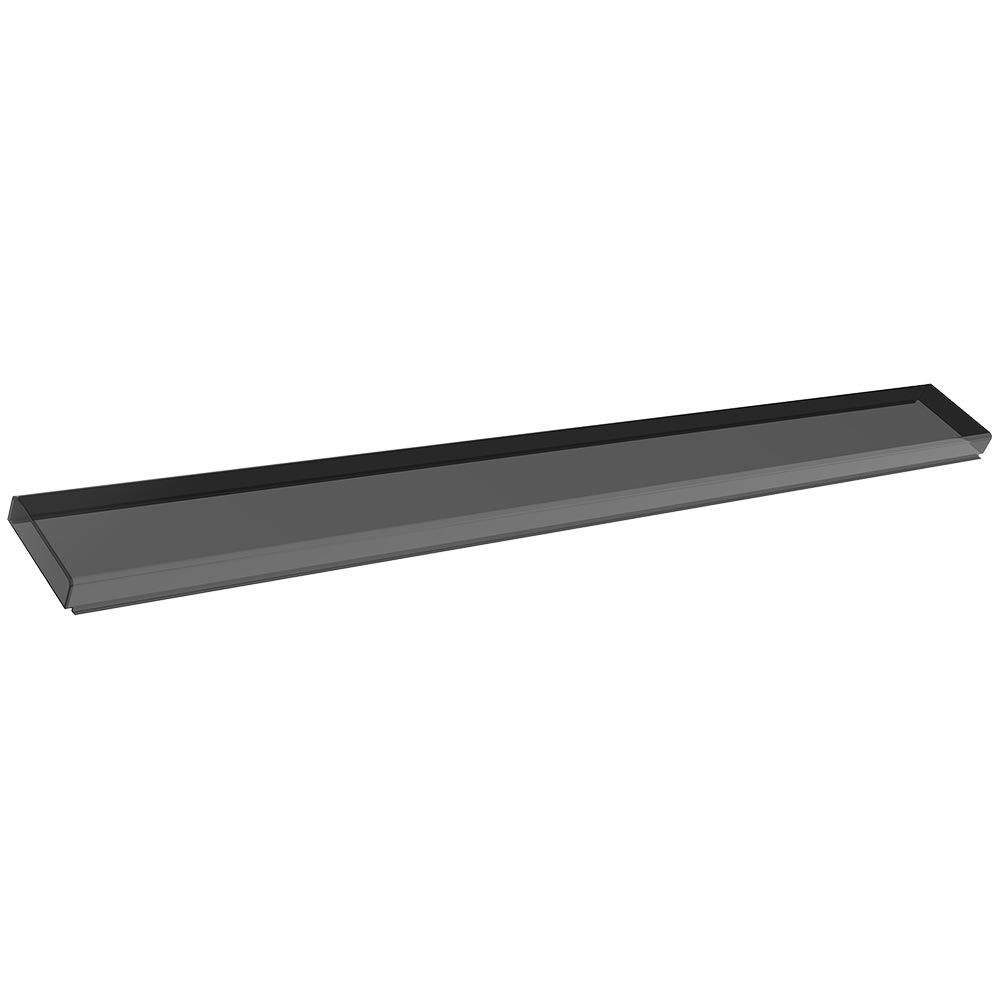

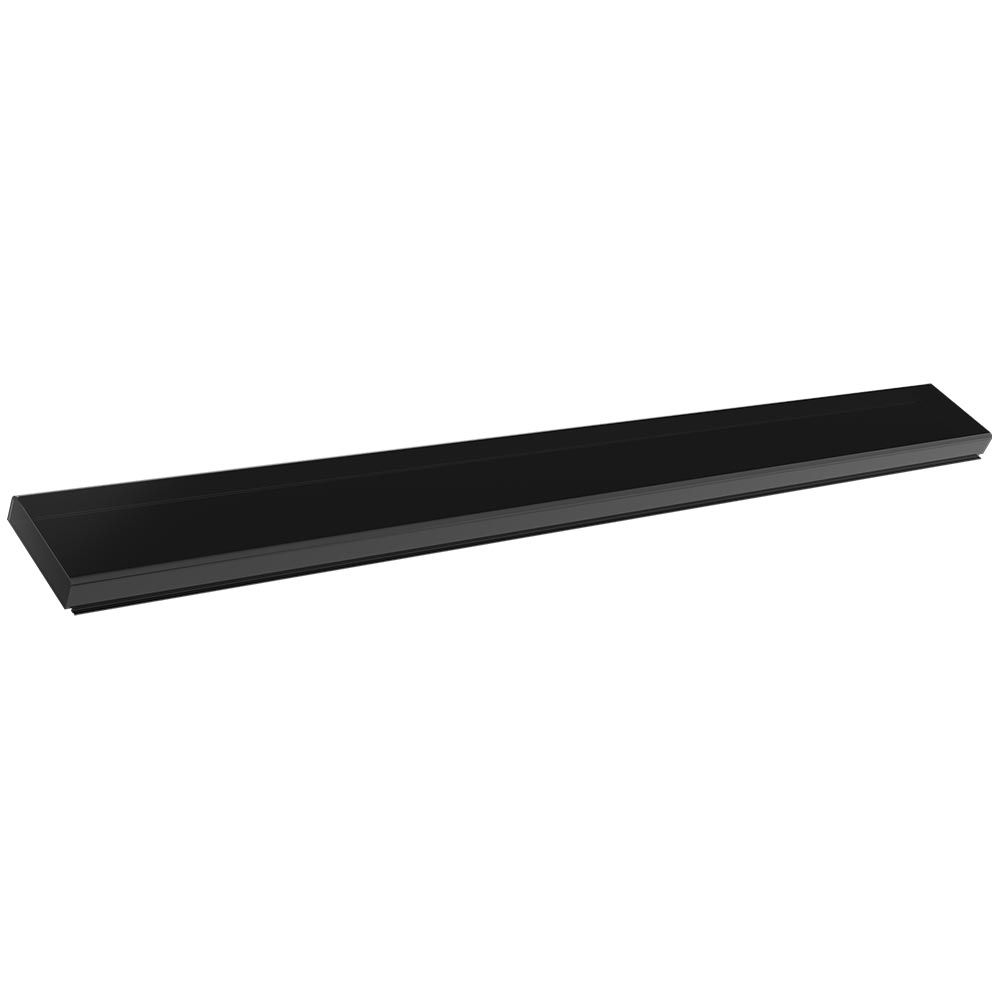

- Integrated filter slot and stowable glare shield
- Adjustable mounting brackets and pins for easy end-to-end alignment
Technical Data
| Light Source | 16 (RGBWwL) LED Engines |
| Color Temperature (range) | 2800 to 8000 K |
| Color Temperature (at full) | 8,810 K |
| CRI | 95 |
| Beam Angle | 17.4° |
| Field Angle | 38.8° |
| Lumens | 17,090 |
| Illuminance | 3,339 lux @ 5 m |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 30 Hz |
| Standalone Color Mixing | Yes |
| Color Temperature Presets | Yes |
| Dim Modes | 4 |
| Dim Curves | 4 |
| Built-in Automated Programs | Yes |
| Dimensions | 46.63 x 7.87 x 8.36 in (1184.5 x 200 x 212.4 mm) |
| Weight | 38.0 lb (17.0 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum diecast, aluminum profile |
| Data Connectors | 5-pin IP65 XLR, Seetronic etherCON® compatible |
| Control Protocol | Art-Net, sACN, DMX, CRMX, RDM |
| Modes/Personalities | 52 personalities |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 3 units @ 100 V; 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V, 7 units @ 240 V |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP65, temporary outdoor use, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
