The Chauvet Pro COLORado Solo Bar 6 is an IP65-rated RGBWwL LED batten with 24 LED engines for full-spectrum colour and high-quality whites. It is specified for touring, festivals, broadcast, theatrical applications, and temporary or permanent installations. The fixture provides 95 CRI, linear colour-temperature presets from 2800 to 8000 K, and control through DMX, RDM, CRMX, Art-Net, and sACN. Beam-shaping filters, an integrated glare shield, 18-bit dimming, silent operation, adjustable mounting brackets, and guide pins support optical control, broadcast use, and end-to-end alignment.

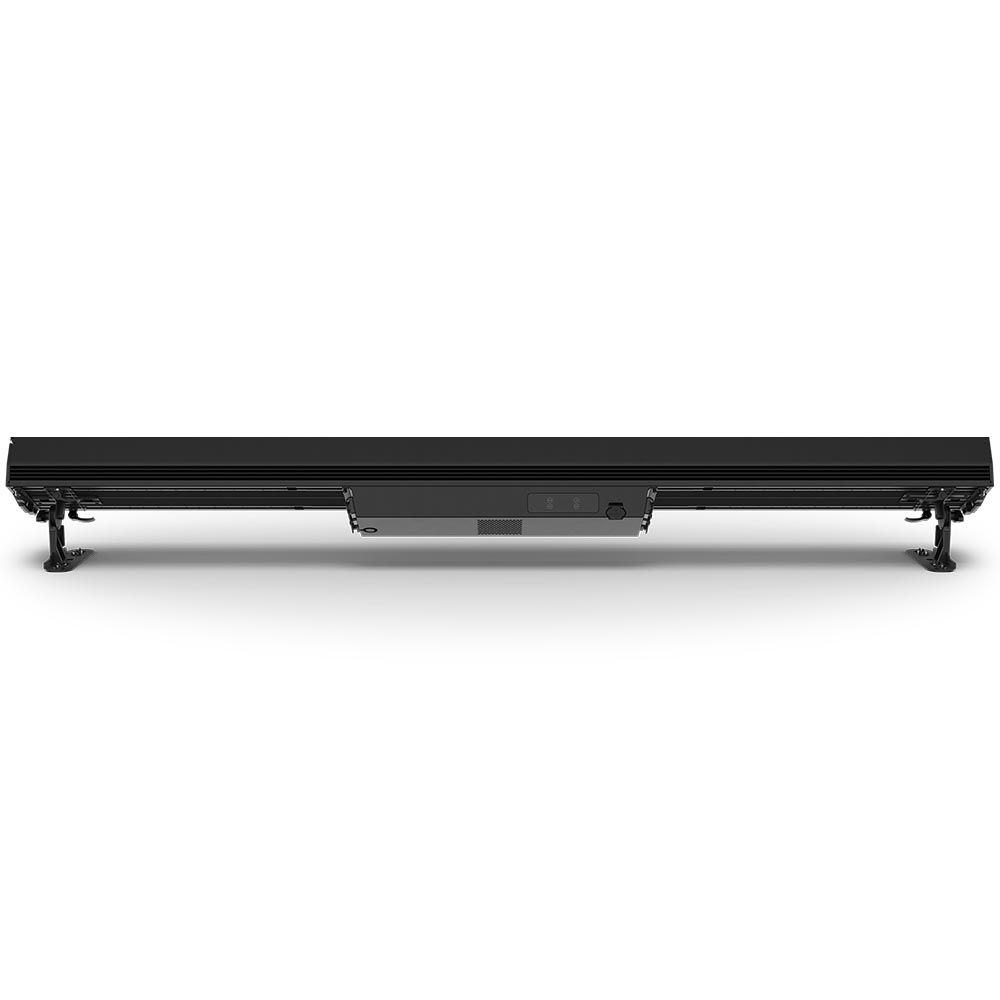

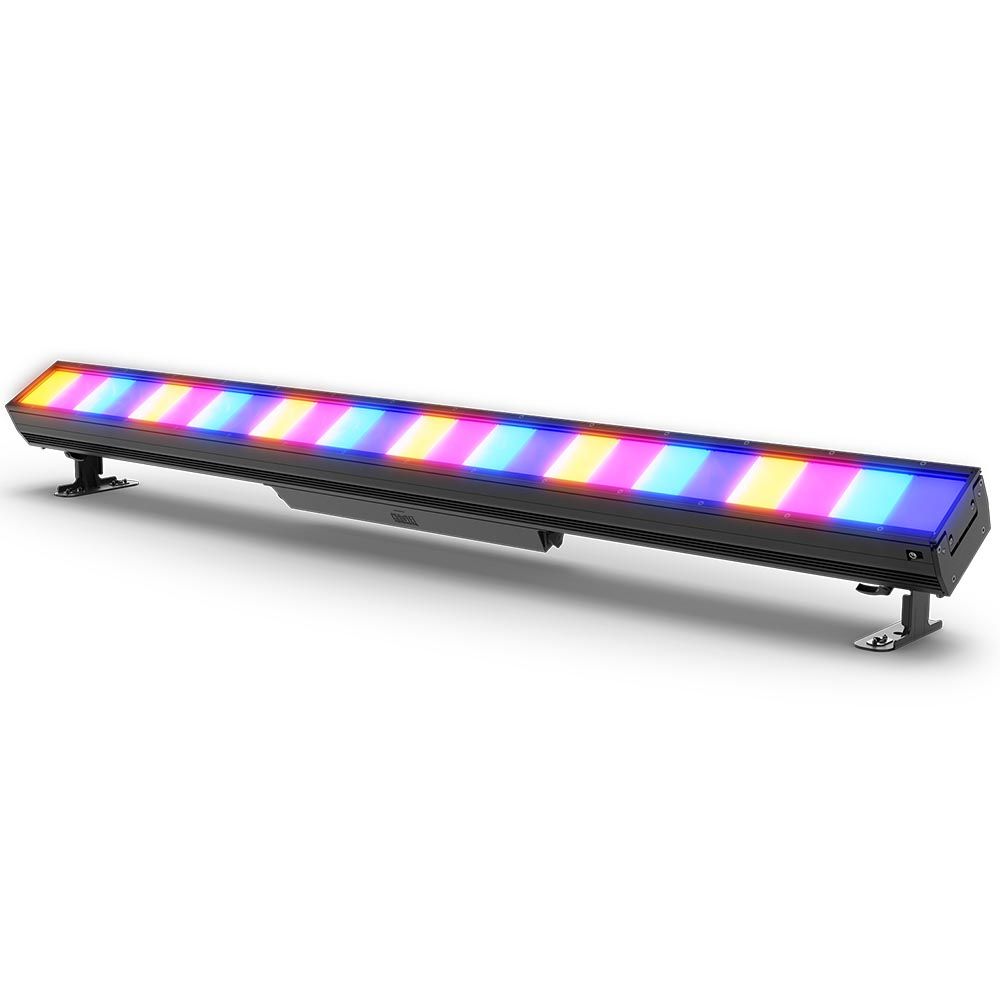

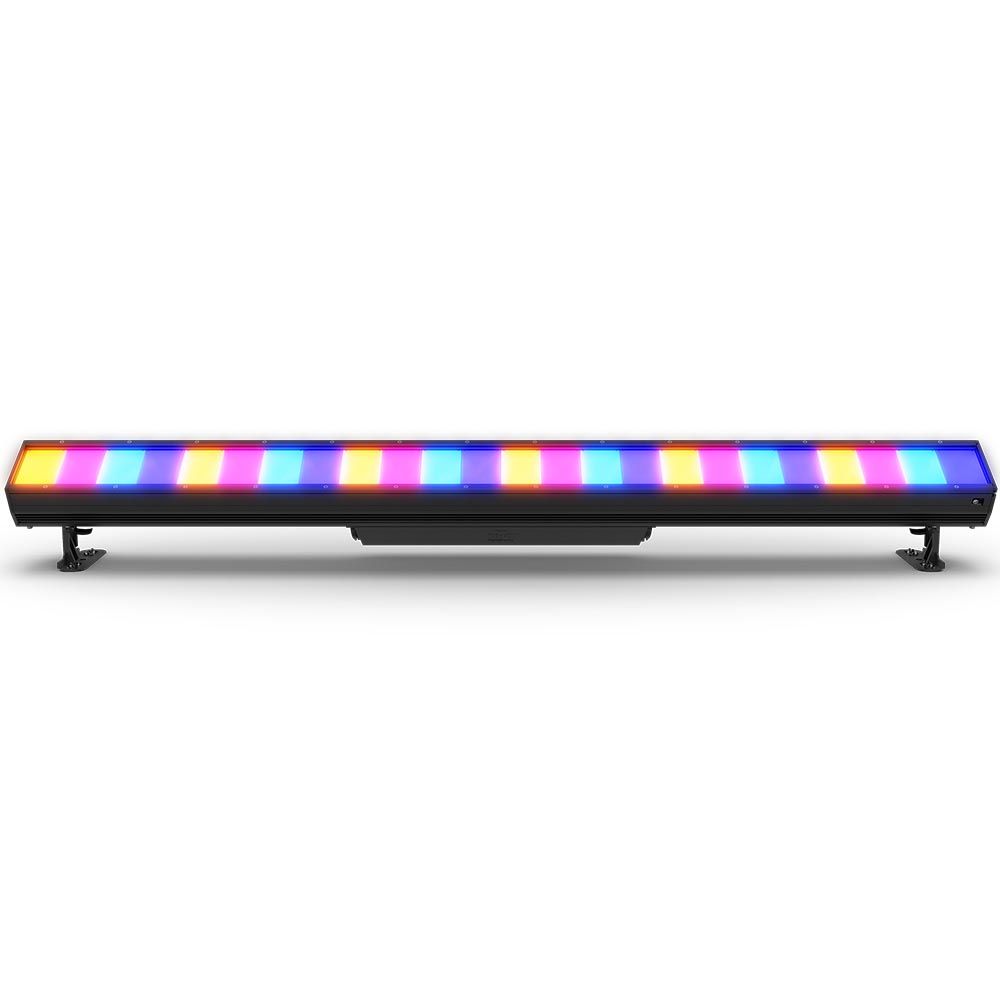

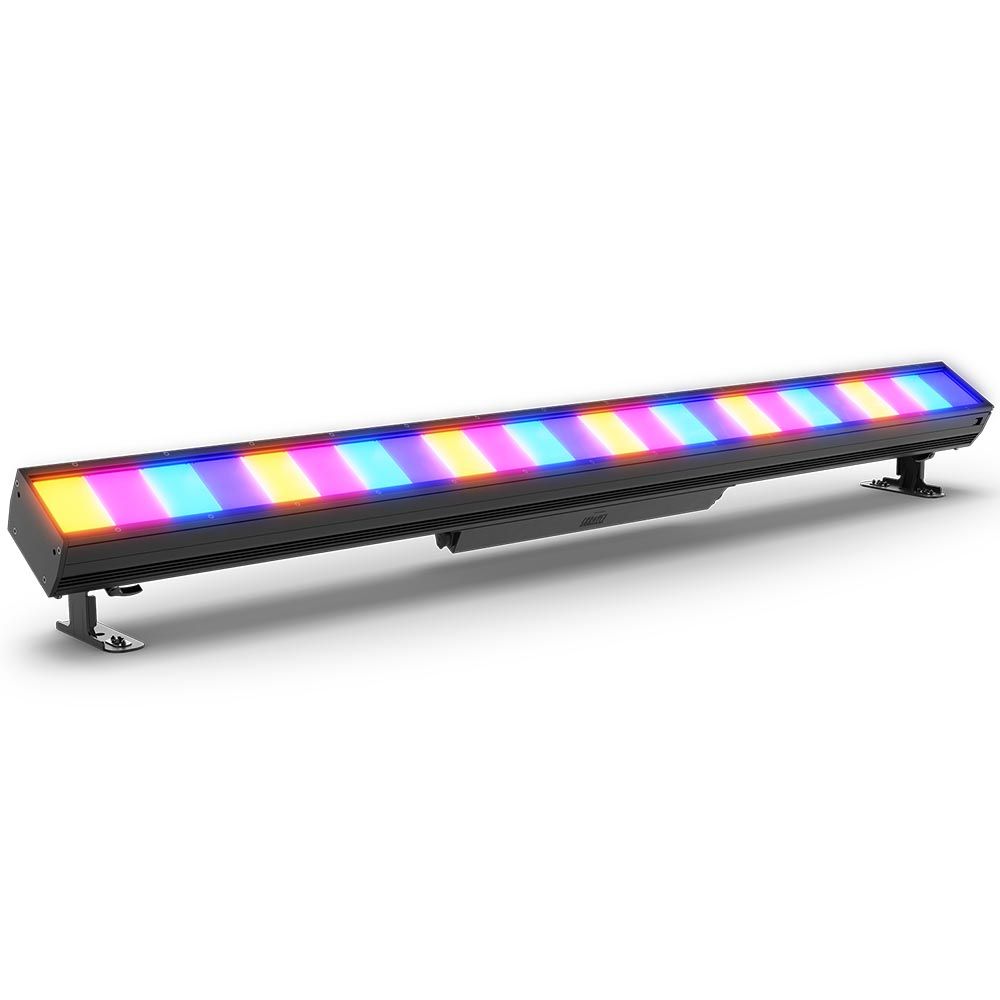

Chauvet Pro COLORado Solo Bar 6 RGBWwL IP65 LED Batten
RRP: $10,979.00 ex. GST
Key Features:
- 24 (RGBWwL) LED Engines with 95 CRI and colour temperature range of 2800 to 8000 K
- IP65-rated housing for temporary outdoor use and permanent installations
- Supports Art-Net, sACN, DMX, CRMX, and RDM control protocols

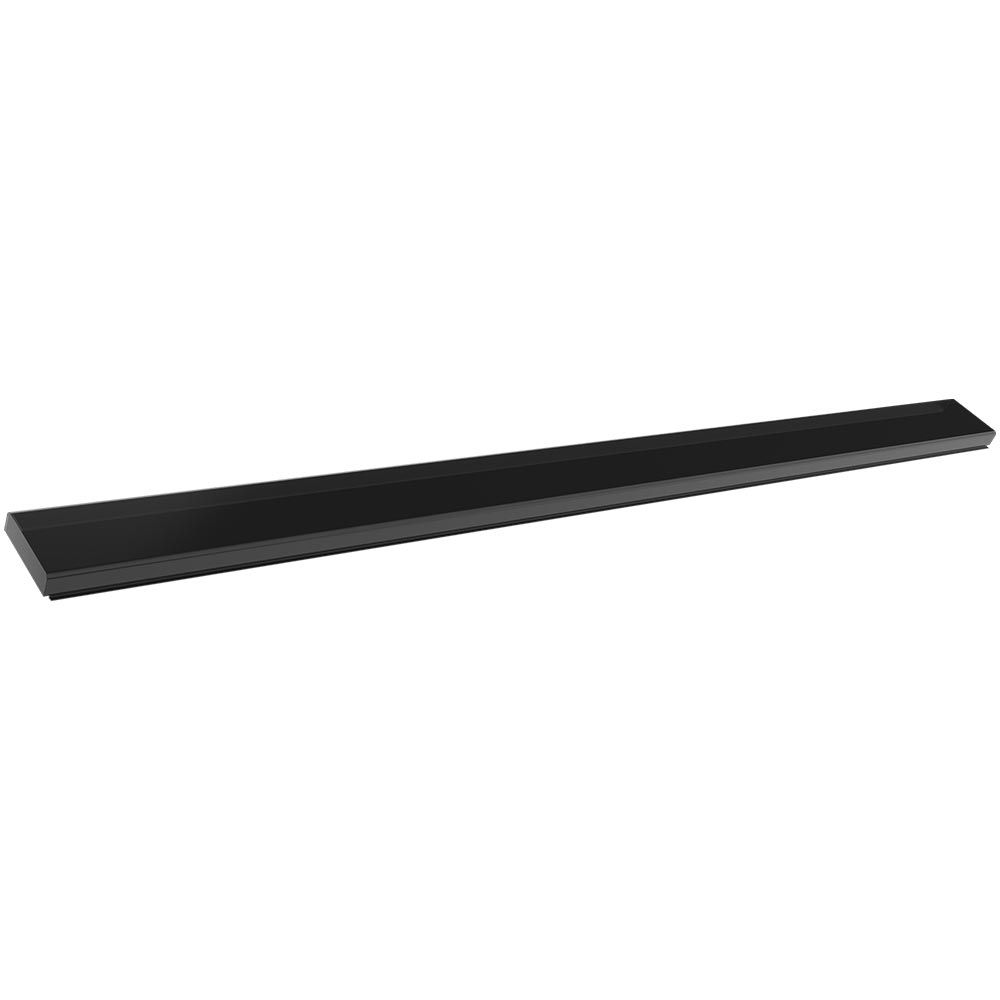

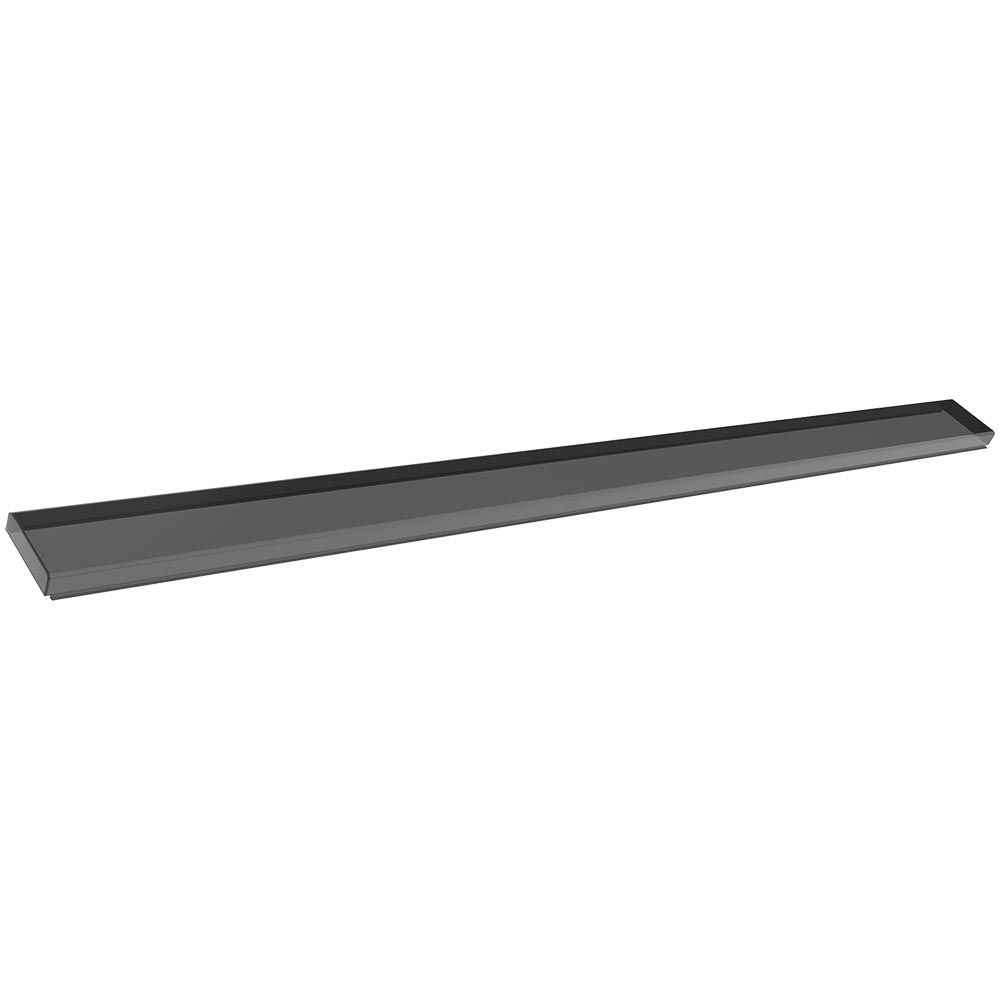

- Beam shaping filters and integrated glare shield
- Smooth 18-bit dimming and silent operation
- Adjustable mounting brackets and guide pins for end-to-end alignment
Technical Data
| Light Source | 24 (RGBWwL) LED Engines, L70 rating: 36,000 hours under LED manufacturers test conditions (LM-80: 6,000hrs). |
| Color Temperature (range) | 2800 to 8000 K |
| Color Temperature (at full) | 9167 K |
| CRI | 95 |
| Beam Angle | 16.7° |
| Beam Angle (w/CYC Diffusion) | 40.7° |
| Beam Angle (w/Half Diffusion) | 18.9° |
| Beam Angle (w/Stealth Diffusion) | 25° |
| Field Angle | 36.1° |
| Lumens | 25,198 |
| Illuminance | 5,834 lux @ 5 m |
| Selectable PWM | 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 30 Hz |
| Color Temperature Presets | Yes |
| Dim Modes | 4 |
| Dim Curves | 4 |
| Built-in Automated Programs | Yes |
| Dimensions | 69.61 x 7.87 x 8.36 in (1768 x 200 x 212.4 mm) |
| Weight | 49 lb (22.3 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum diecast, aluminum profile |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP65 XLR, Seetronic etherCON® compatible |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | USB |
| Control Protocol | Art-Net, sACN, DMX, CRMX, RDM |
| Modes/Personalities | 72 personalities |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 0 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V, 4 units @ 240 V |
| Power and Current | 610 W, 6.10 A @ 100 V, 60 Hz [10 A inrush] 600 W, 4.98 A @ 120 V, 60 Hz [12 A inrush] 590 W, 2.78 A @ 208 V, 60 Hz [17 A inrush] 575 W, 2.55 A @ 230 V, 50 Hz [34 A inrush] 573 W, 2.50 A @ 240 V, 60 Hz [27 A inrush] |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP65, temporary outdoor use, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
