Chauvet Pro COLORado Solo Edge 1 is a low-profile 0.5-meter LED footlight for stage-edge lighting in theatre, touring, and broadcast applications. Its 56-LED quintuple-color RGBWL source produces full-color output and high-quality white light through a single-source lens for smooth, even output. Six additional tri-color RGB LEDs provide fully controllable marker lights for cueing talent or marking the stage edge. The fixture supports seamless end-to-end alignment and includes a stealth filter, covered display, IP66-rated construction, and Art-Net, sACN, DMX, and RDM control.

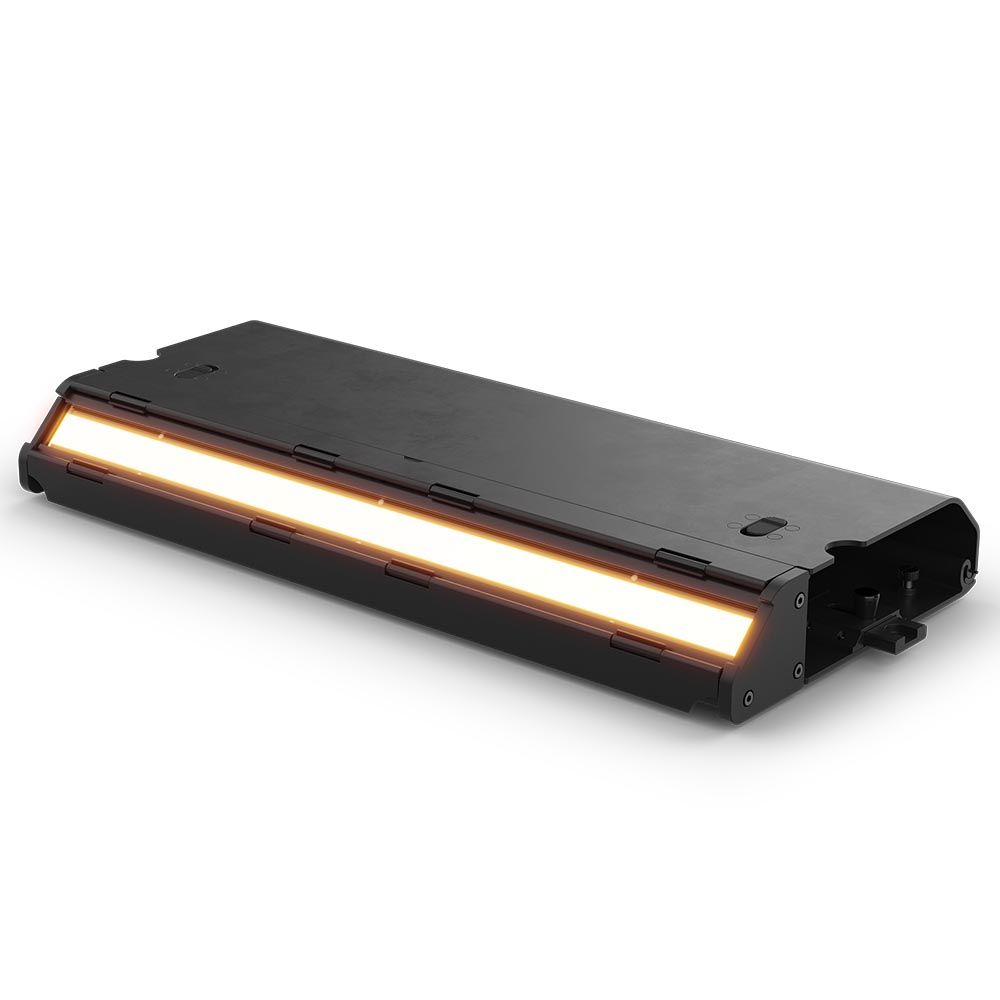

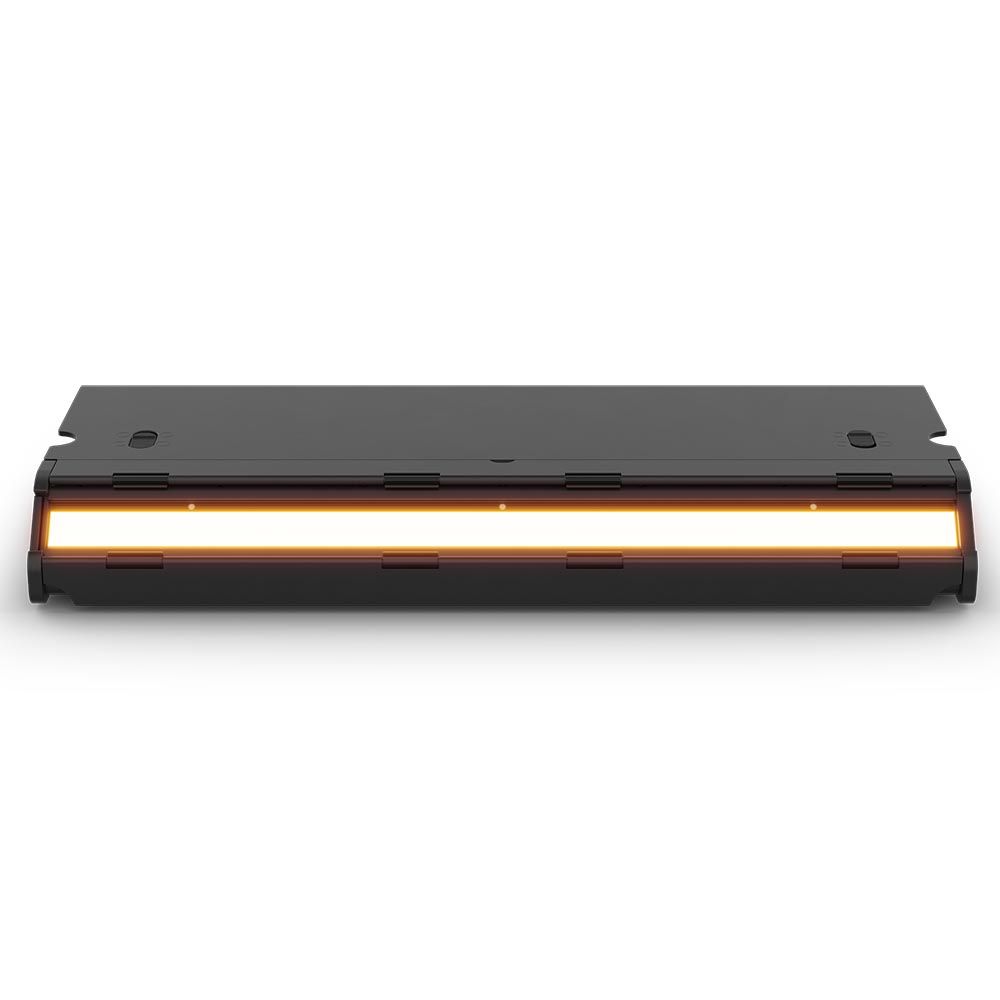

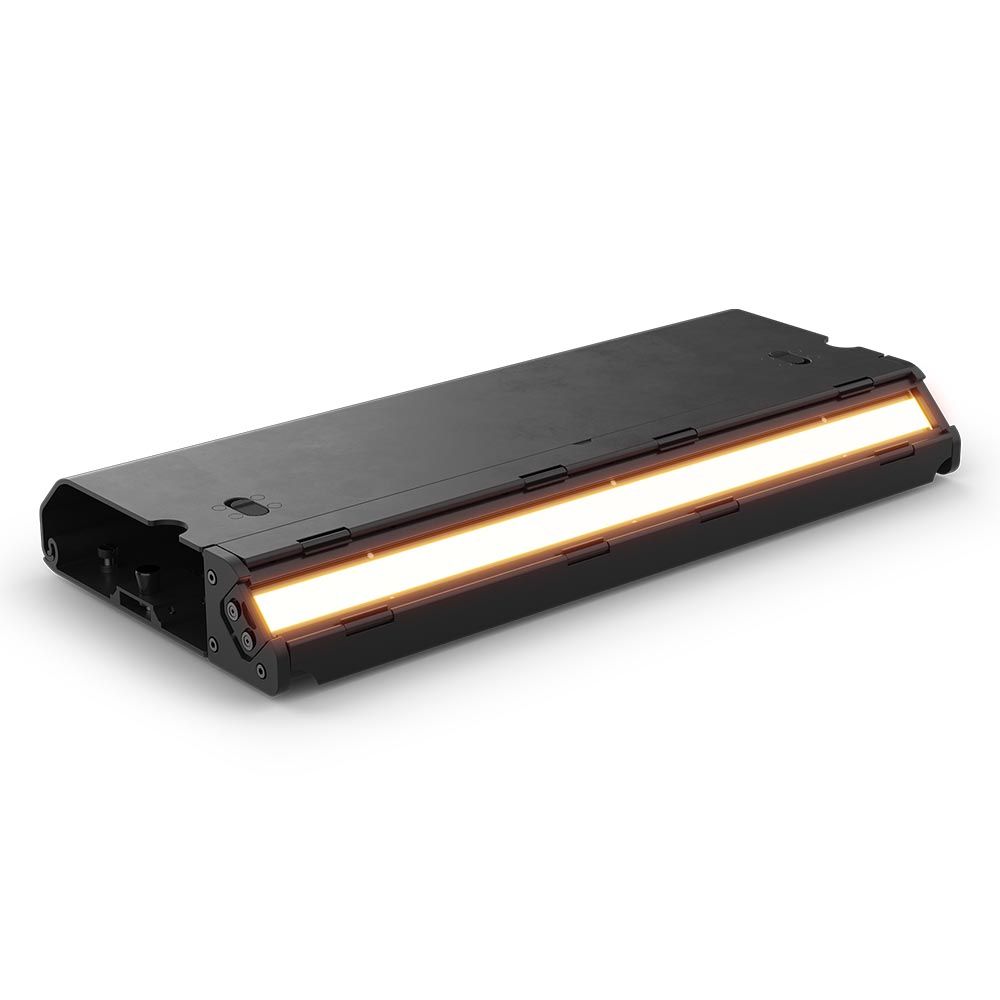

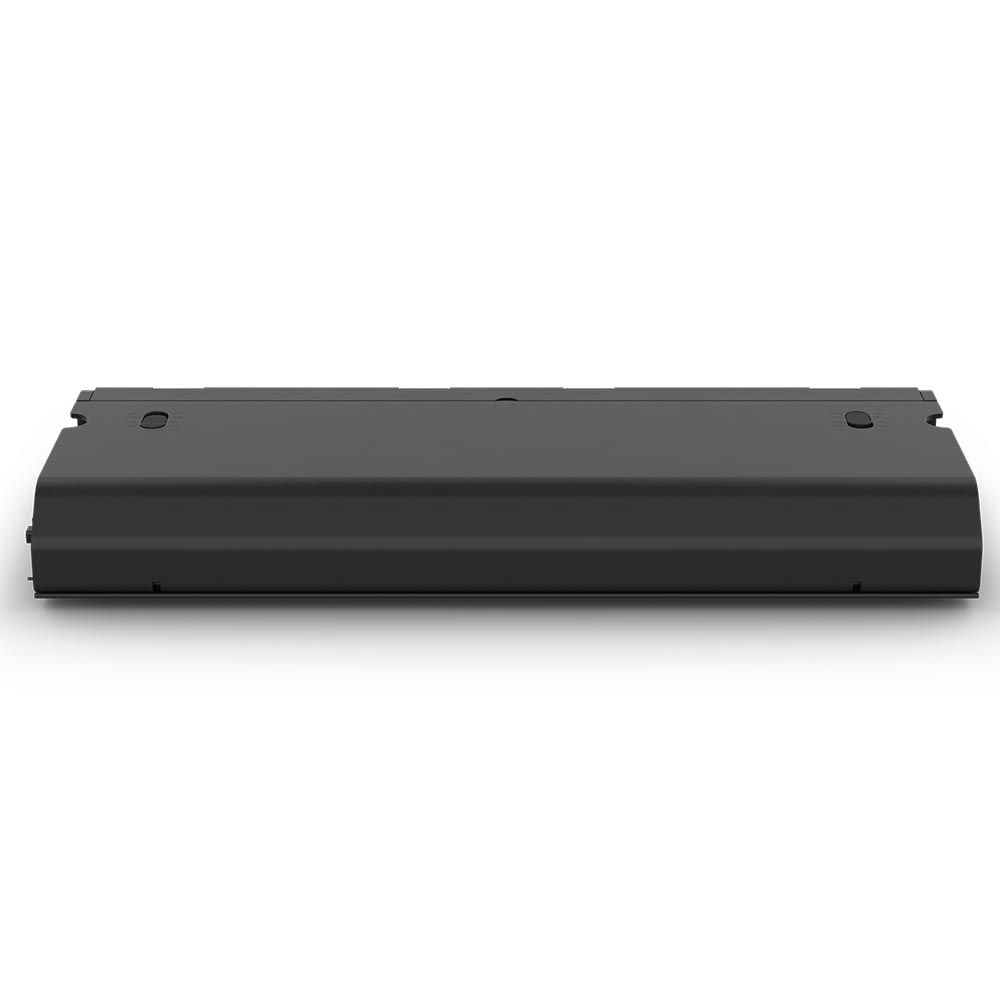

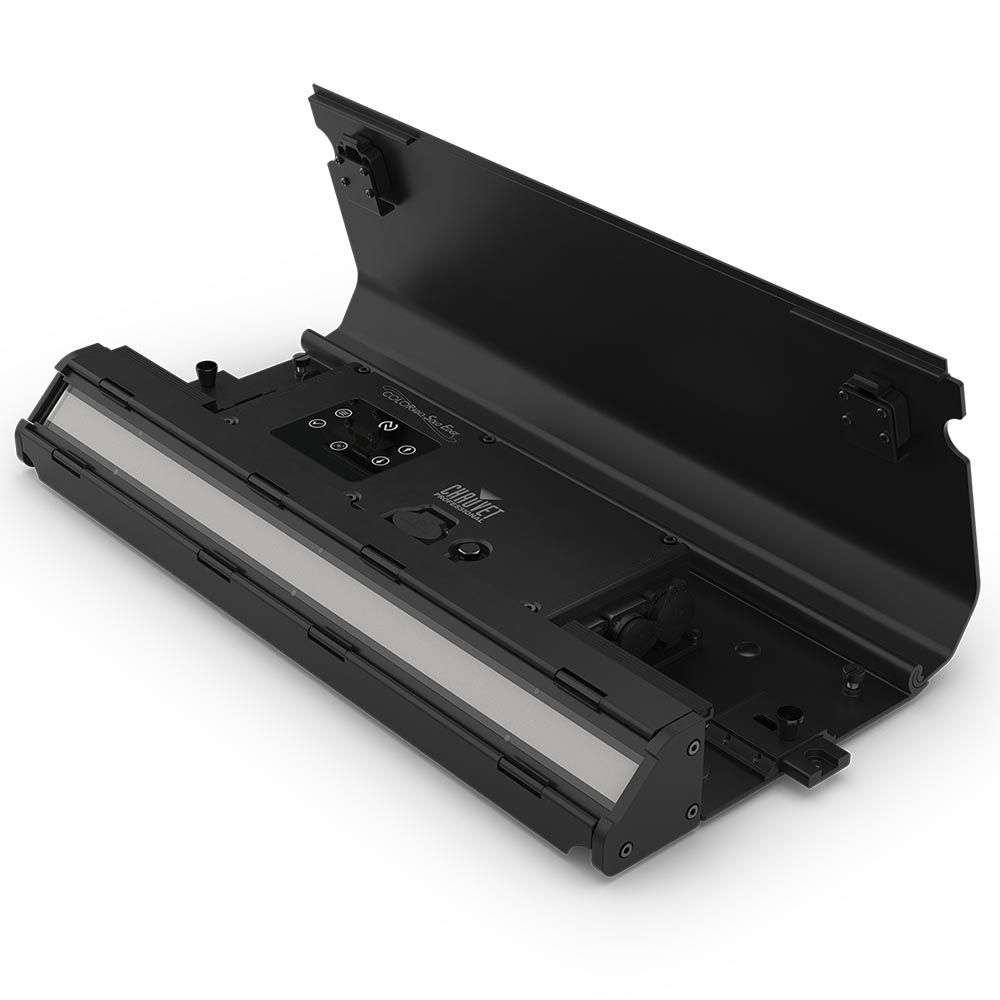

Chauvet Pro COLORado Solo Edge 1 IP66 RGBWL LED Footlight
RRP: $3,652.00 ex. GST
Key Features:
- Low-profile, 0.5m IP65 rated footlight with full-color and high-quality white light
- Single-source lens for smooth, even output with no distracting points of light
- Additional, fully controllable RGB marker lights can be used to cue talent or mark the edge of a stage
- Designed for end-to-end use with no gaps or distracting cable mess
- Stealth filter helps the fixture disappear when off
Technical Data
| Light Source Primary | 56 LEDs (Quintuple-color RGBWL) |
| RGB Markers | 6 LEDs (Tri-color RGB) |
| Color Temperature (range) | 2800 to 8000 K |
| Color Temperature (at full) | 6516 K |
| CRI @ 3200K | 93.1 |
| Strobe Rate | 0 to 30Hz |
| Standalone Color Mixing | Yes |
| Color Temperature Presets | Yes |
| Dim Modes | 4 |
| Dim Curves | 4 |
| Built-in Automated Programs | Yes |
| Customizable Programs | Yes |
| Dimensions | 19.68 x 8.85 x 2.51 in (500 x 225 x 64 mm) |
| Weight | 12.52 lb (5.68 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum alloy and Aluminum die-cast |
| IP Rating | IP66 |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP65 XLR, Seetronic etherCON |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | USB, Ethernet (RJ45) |
| Control Protocol | Art-Net, sACN, DMX, RDM |
| Personalities | 22 |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V; |
| Power and Current | 126 W, 1.05 A @ 120 V, 60 Hz |
| Power and Current | 125 W, 0.61 A @ 208 V, 60 Hz |
| Power and Current | 125 W, 0.55 A @ 230 V, 50 Hz |
| Battery Type | Lithium Ion |
| Rechargeable | Yes |
| Compliance | CE, MET, ROHS |
| MET Listing Number | [E113093-1110, E113093-1125] |
| US Safety | [UL 60950-1] |
| Canadian Safety | [CSA C22.2 No. 60950-1] |
| Temperature (Ambient) | -4 °F to 122 °F (-20 °C to 50° C) |
