The Chauvet Pro COLORdash Accent 5X IP Hex-Color LED Wash Fixture is a compact wash fixture for broadcast, event, and architectural accent lighting. Its single 40 W hex-color RGBWA+UV LED provides saturated colors, pastels, and ultraviolet effects. The IP65-rated housing supports temporary outdoor and wet use, while DMX, RDM, built-in automated programs, and five dimming modes support professional control. The included replaceable filter expands the beam angle from 11.4° to 21.5°.

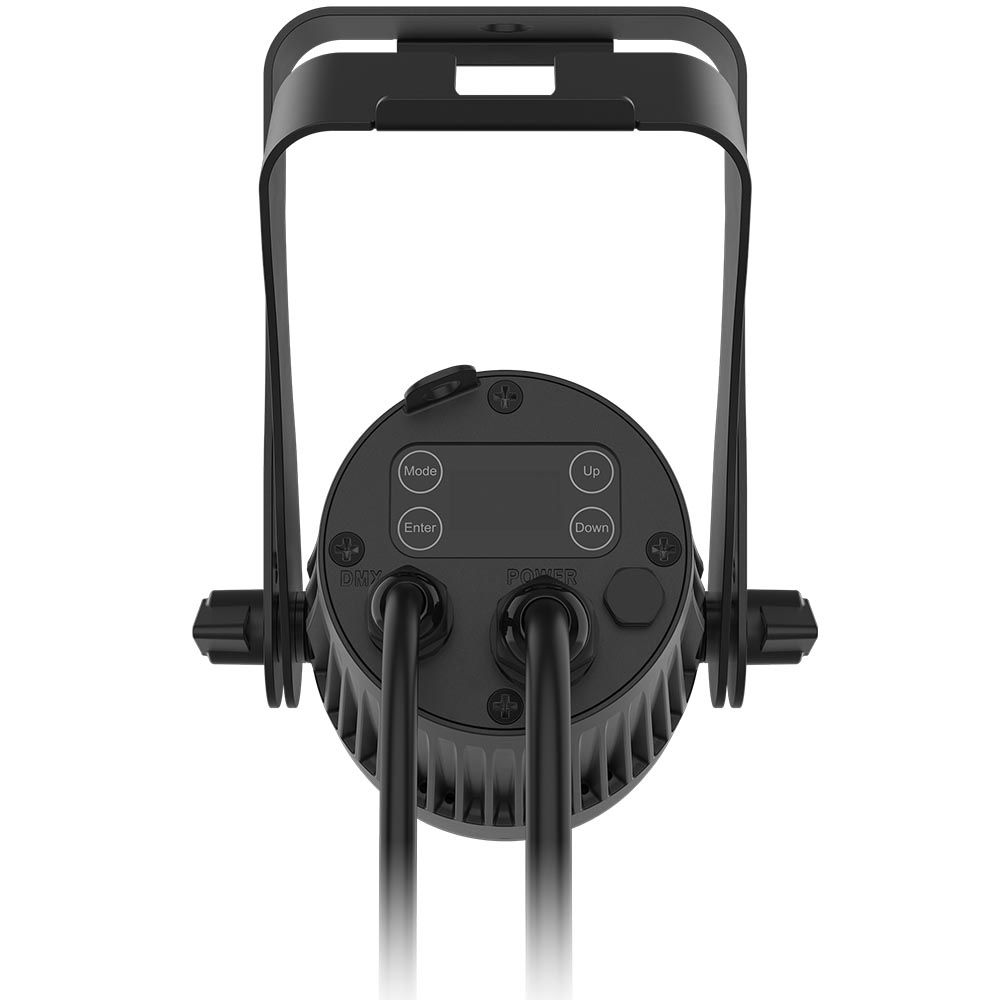

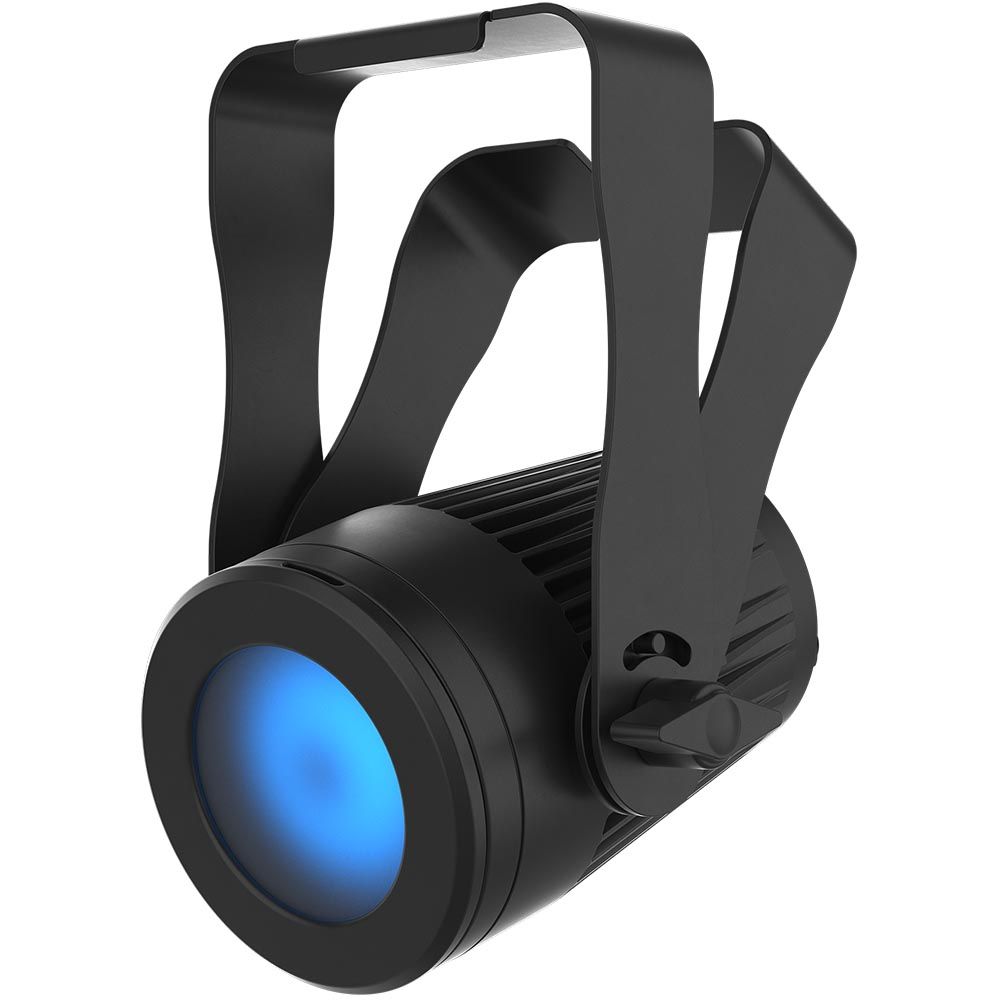

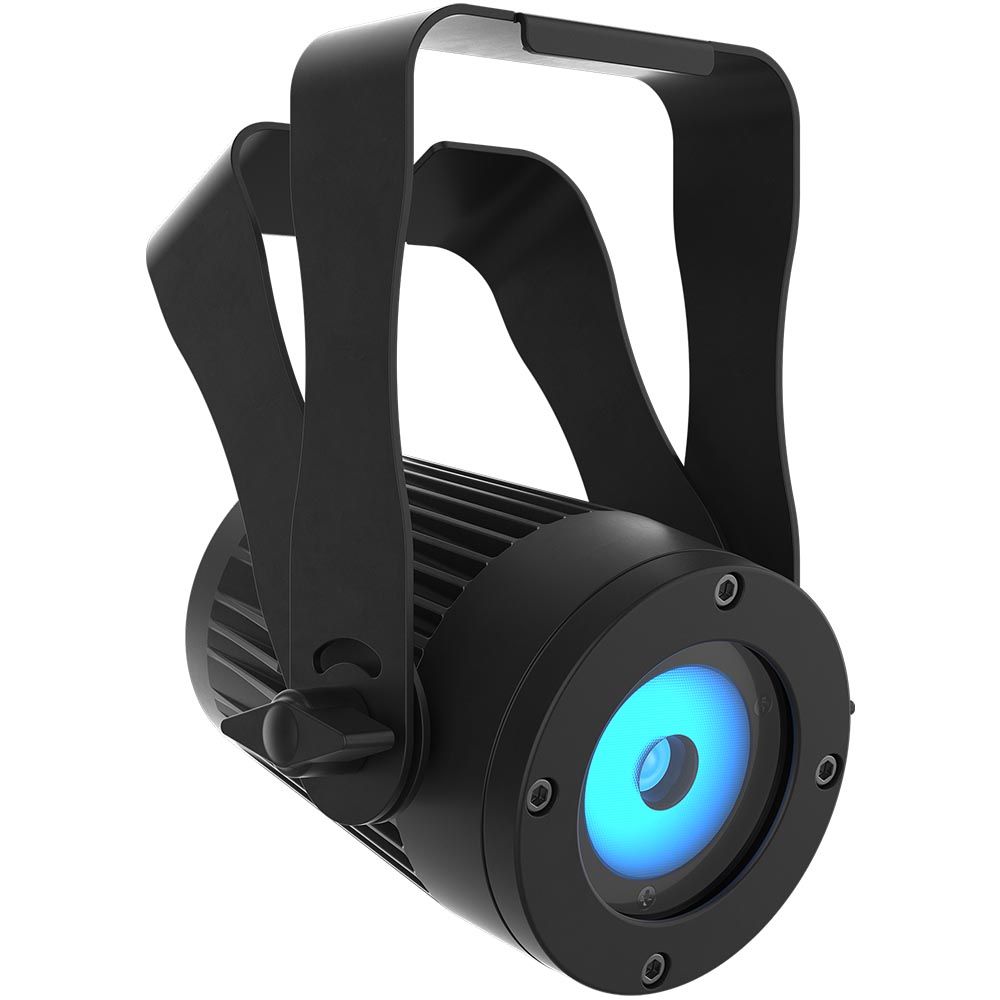

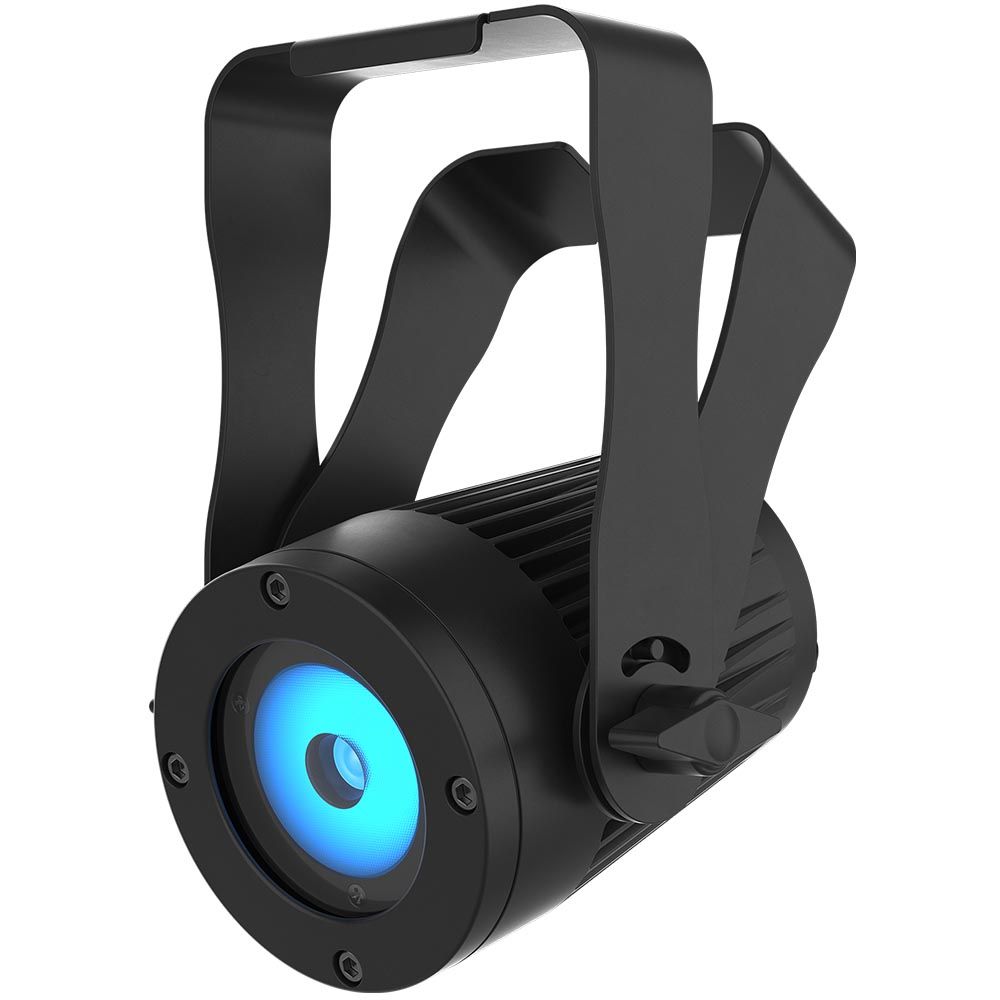

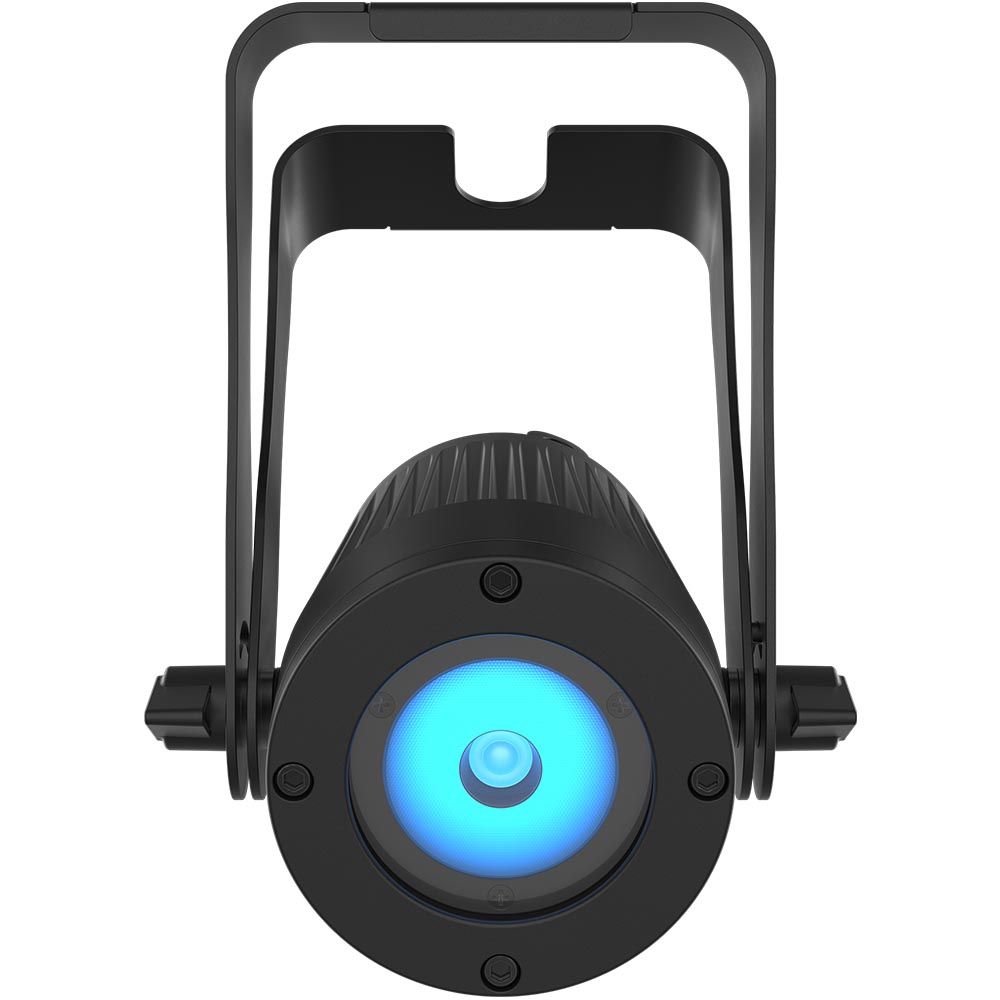

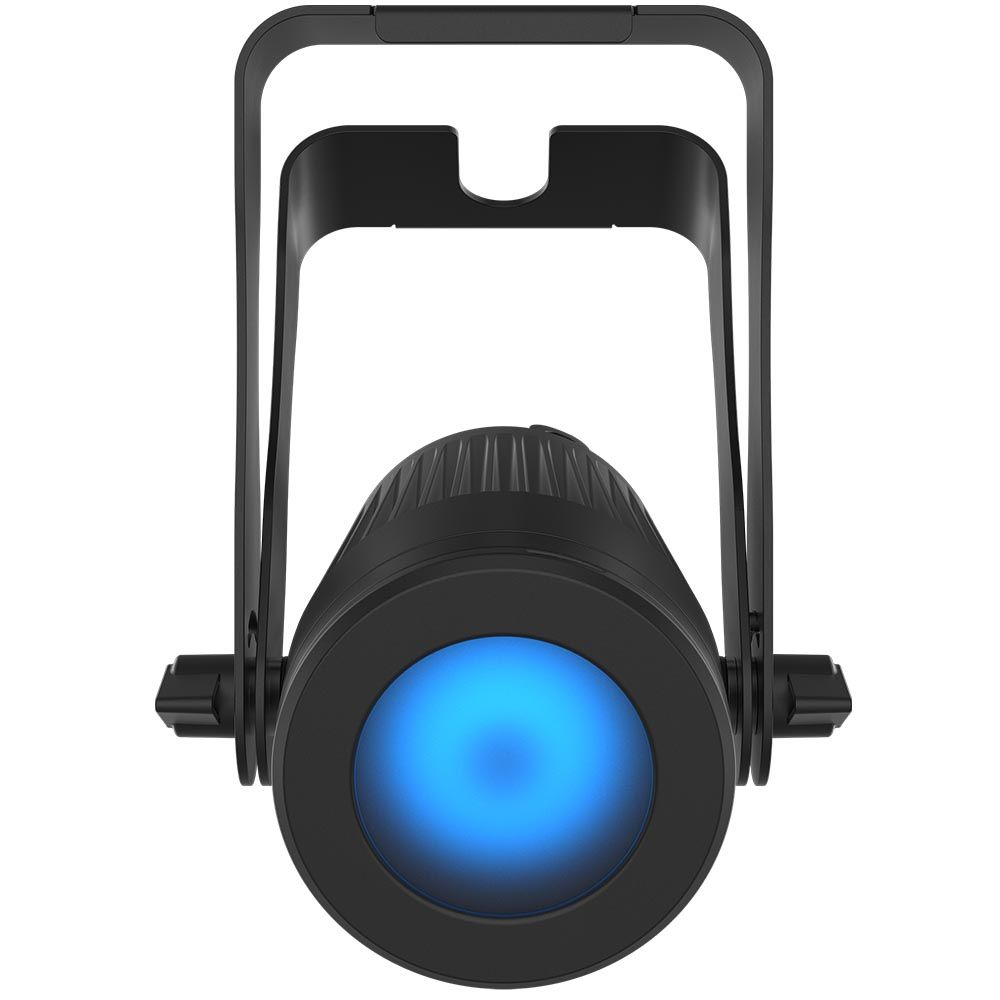

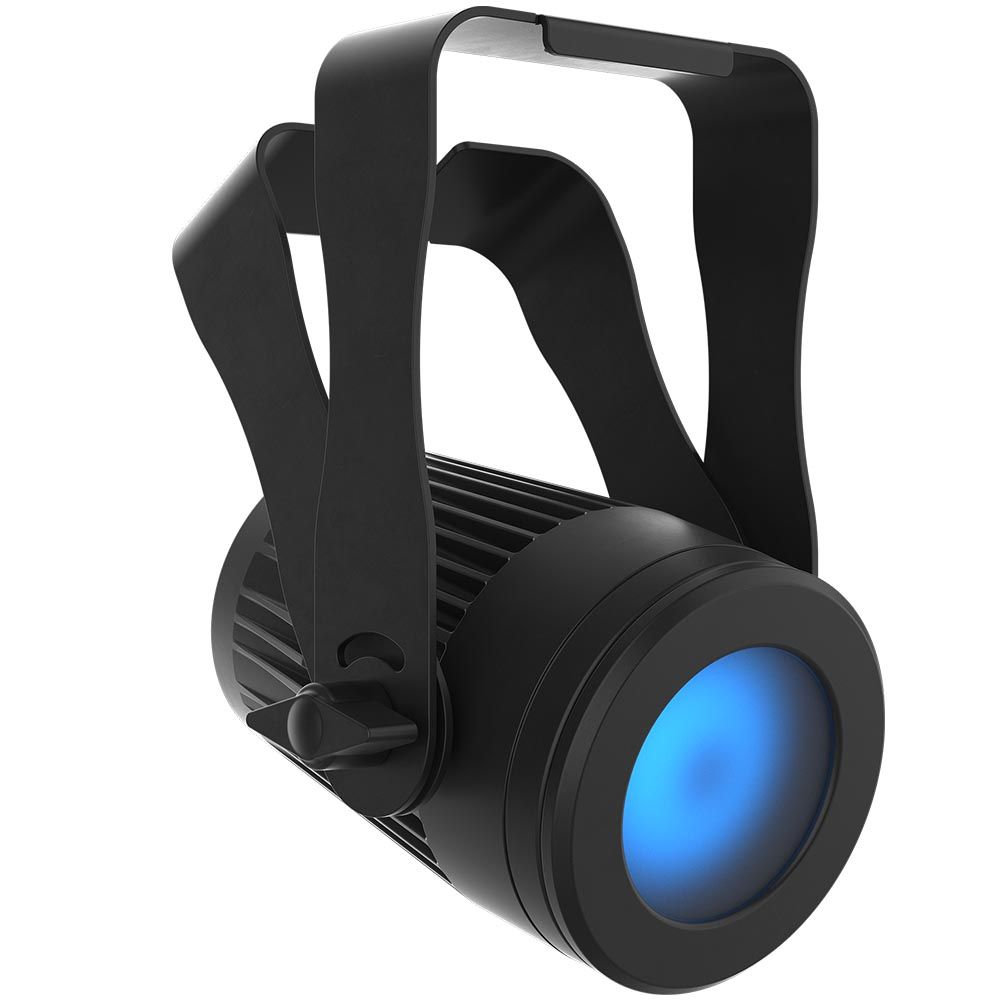

Chauvet Pro COLORdash Accent 5X IP Hex-Color LED Wash Fixture
RRP: $584.00 ex. GST
Key Features:
- Hex-color RGBWAUV compact LED wash with 1 LED, 40 W source
- IP65-rated versatility for temporary outdoor and wet use
- Variable electronic dimmer from 0–100% with 5 dim modes
- DMX and RDM control with 6, 8, 9, 13 or 14 channel personalities
- Double-bracketed yoke doubles as a floor stand
- Replaceable filter for additional beam angles
- Built-in auto programs recalled via DMX or Master/Slave
- OLED digital display
Technical Data
| Light Source | 1 LED (Hex-color RGBWA+UV) 40 W, (950 mA), 50,000 hours life expectancy. |
| Beam Angle w/ filter | 21.5° |
| Field Angle w/ filter | 47.1° |
| Beam Angle w/o filter | 11.4° |
| Field Angle w/o filter | 20.4° |
| Lumens w/o filter | 890 lm |
| Lumens w/ filter | 733 lm |
| Illuminance (total) w/ filter | 126 lux 5 m |
| Illuminance (total) w/o filter | 618 lux @ 5 m |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 20 Hz |
| Standalone Color Mixing | Yes |
| Dim Modes | 5 |
| Built-in Automated Programs | Yes |
| Dimensions | 7.24 x 5.70 x 3.46 in (184 x 145 x 88 mm) |
| Weight | 2.8 lb. (1.3 kg) |
| Exterior Color | Black |
| Power Connection | Edison plugs to hard-wired |
| Power Input | Hard-wired |
| Data Connectors | 5-pin XLR DMX input and output cable whips |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | DMX, RDM |
| DMX Channels | 6, 8, 9, 13 or 14 |
| Modes/Personalities | 5 personalities (6, 8, 9, 13 or 14) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current @ 120 V, 60 Hz | 44 W, 0.68 A |
| Power and Current @ 208 V, 60 Hz | 44 W, 0.48 A |
| Power and Current @ 230 V, 50 Hz | 43 W, 0.44 A |
| Certifications | CE, MET, FCC, RoHS |
| IP Rating | IP65, temporary outdoor/wet use with pressure equalizing M6 GORE valve |
| Temperature (Ambient) | 14 °F to 113 °F (-10 °C to 45 °C) |
| Compatible Accessories | Professional Clamps: CTC-50HC, CTC-50HCN; 5-pin DMX Cables |
