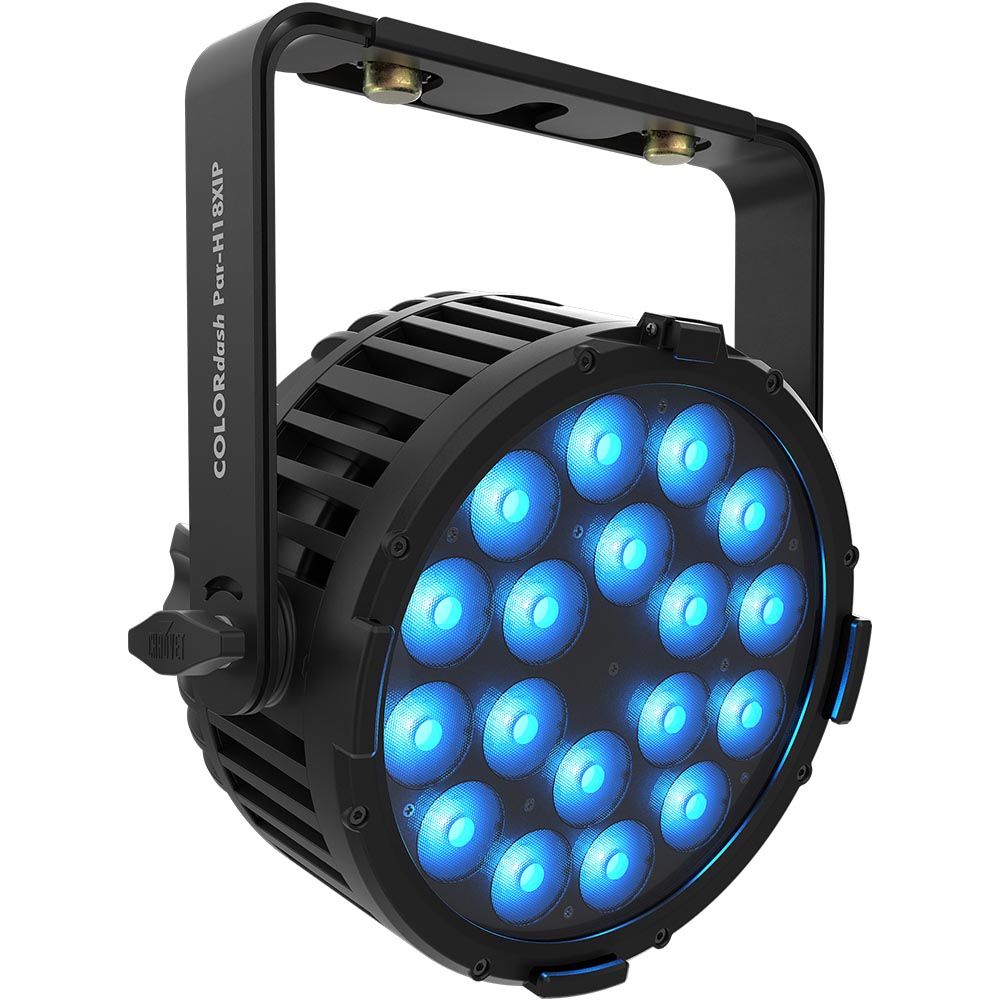

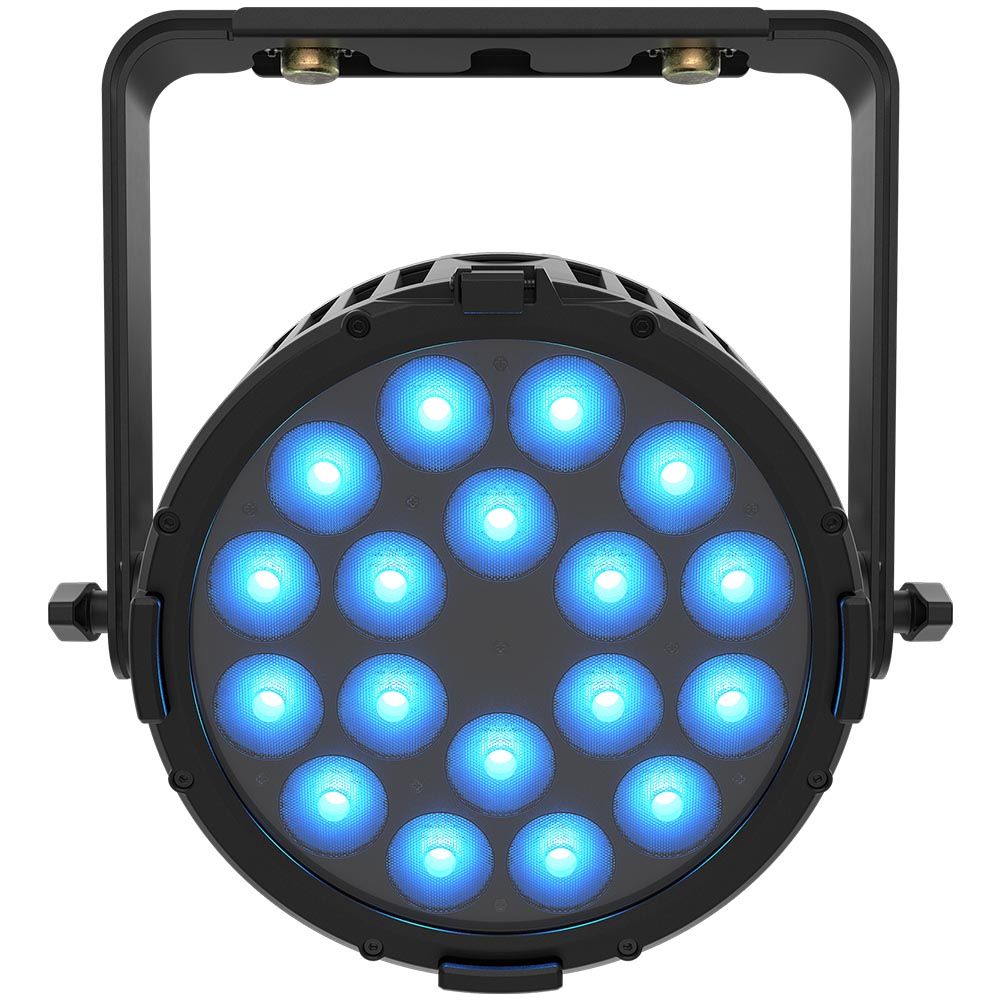

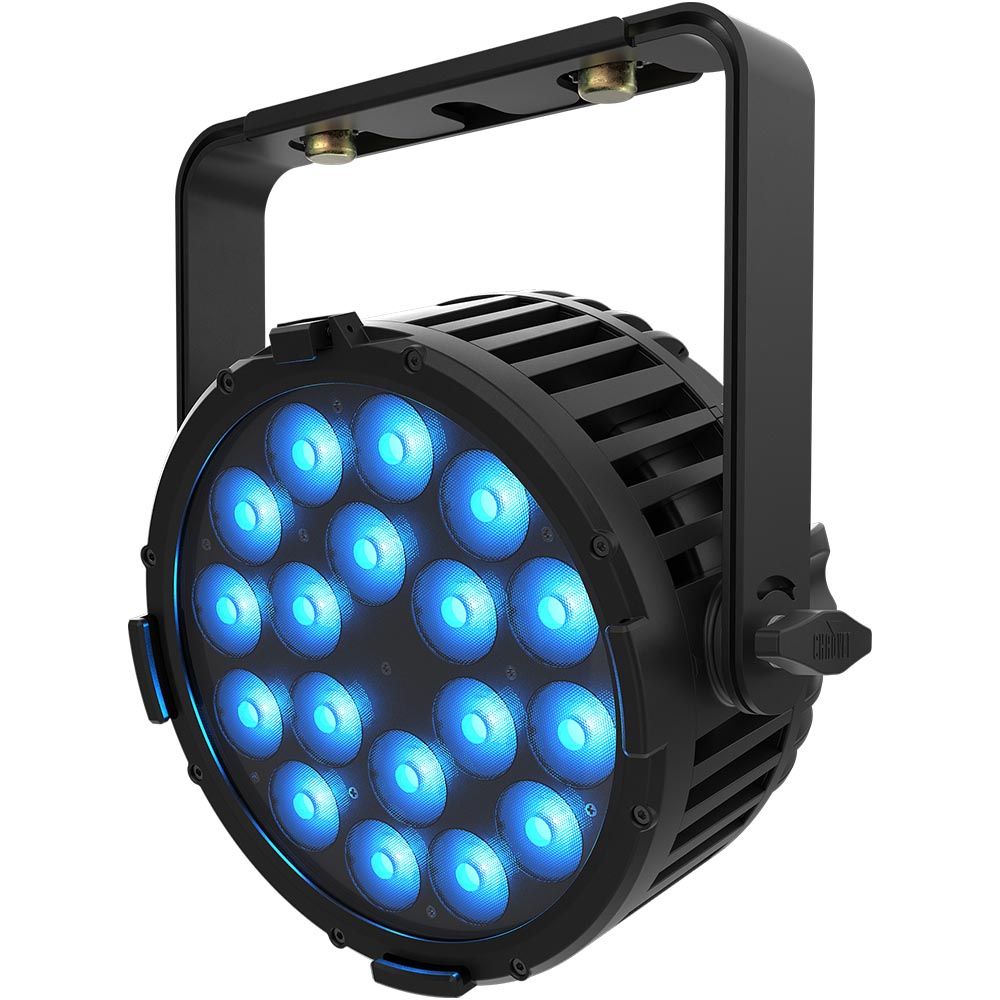

The Chauvet Pro COLORdash PAR H18 XIP RGBAWUV LED Wash Light is a rugged indoor/outdoor LED wash fixture for stage productions, architectural facades, live events and on-camera use. Its 18 RGBAWUV LEDs provide standalone color mixing and a 2,800 to 10,000 K color temperature range, with a 25.4° beam angle and 39° field angle. Selectable PWM frequencies support flicker-free output, while four dimming modes provide smooth 16-bit fades. DMX and RDM control, a password-protected OLED touchscreen display, and the double-bracketed yoke with omega bracket support installation and floor-standing applications.
Chauvet Pro COLORdash PAR H18 XIP RGBAWUV LED Wash Light
RRP: $1,382.00 ex. GST
Key Features:
- Rugged RGBWA-UV LED wash with 18 HEX-color RGBAWUV LEDs
- IP65 rating with IP-rated power and DMX connections
- Selectable PWM frequencies from 600 Hz to 25,000 Hz
- DMX and RDM control with five selectable personalities
- Four selectable dimming modes for smooth 16-bit fades
- Password-protected OLED touchscreen display
- Color temperature range of 2,800 to 10,000 K
- Double-bracketed yoke with omega bracket that doubles as a floor stand
Technical Data
| Light Source | 18 LEDs (HEX-color RGBAWUV) |
| Color Temperature (range) | 2,800 to 10,000 K |
| Color Temperature (at full) | 8,439 K |
| Beam Angle | 25.4° |
| Field Angle | 39° |
| Lumens | 5,567 lm |
| Illuminance (total) | 1,106 lux @ 5 m |
| Selectable PWM | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 20 Hz |
| Standalone Color Mixing | Yes |
| Color Temperature Presets | Yes |
| Dim Modes | 4 |
| Built-in Automated Programs | Yes |
| Dimensions | 13.58 x 12.89 x 6.23 in (344.8 x 327.4 x 158.2 mm) |
| Weight | 14.4 lb (6.6 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum diecast |
| Accessory Holder/Gel Frame Size | 9.5 in (241.3 mm) |
| Power Connection | Edison (local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 3- and 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Update | USB-C |
| Control Protocol | DMX, RDM |
| DMX Channels | 6, 8, 9, 13 or 14 |
| Modes/Personalities | 5 personalities (6ch, 8ch, 9ch, 13ch, 14ch) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V |
| Power and Current | 150 W, 0.66 A @ 230 V, 50 Hz |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP65, temporary outdoor/wet use |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
