The Chauvet Pro COLORdash PAR H18X is an RGBWAUV LED wash light for touring, broadcast and live event applications. It produces 5,736 lumens from 18 hex-color RGBWAUV LEDs and provides a 2800 to 10,000K color temperature range. Adjustable PWM frequencies support flicker-free on-camera operation, while DMX and RDM control provide fixture configuration and multiple channel modes. The double-bracketed yoke also functions as a floor stand for floor or rigged use.

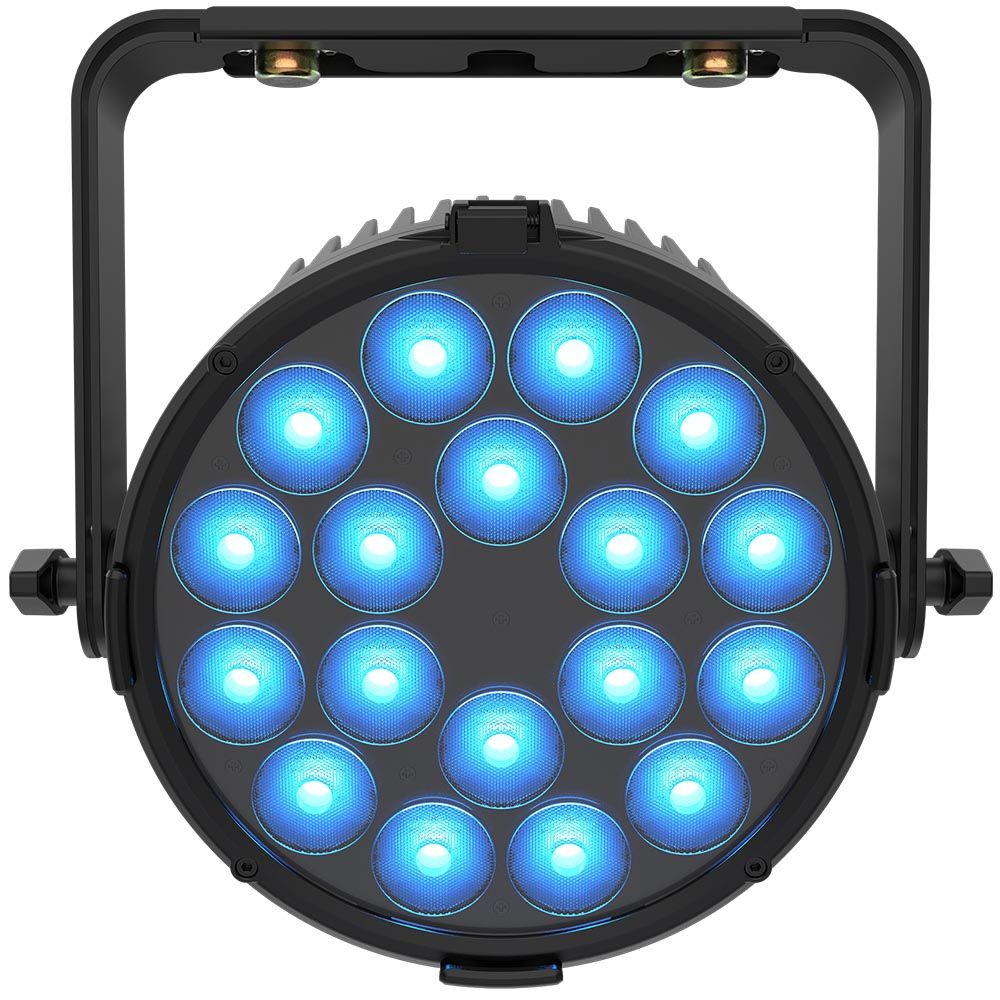

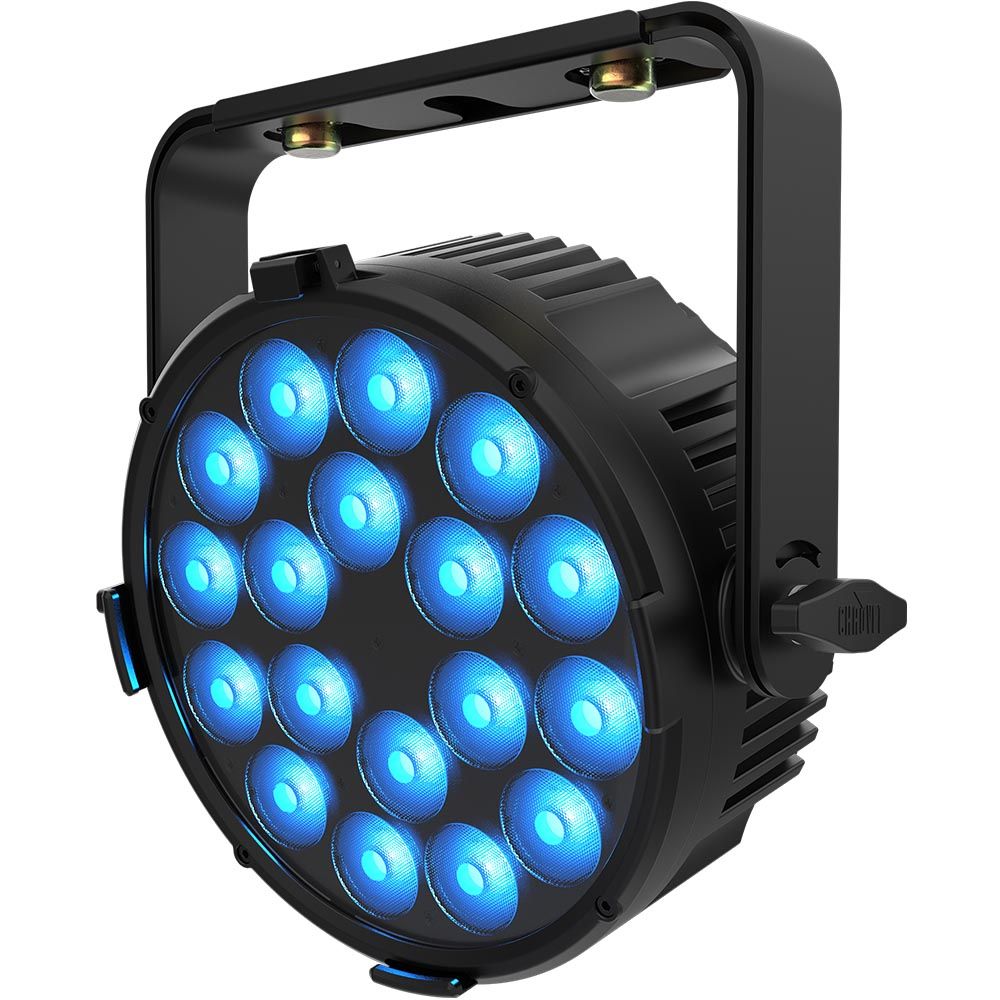

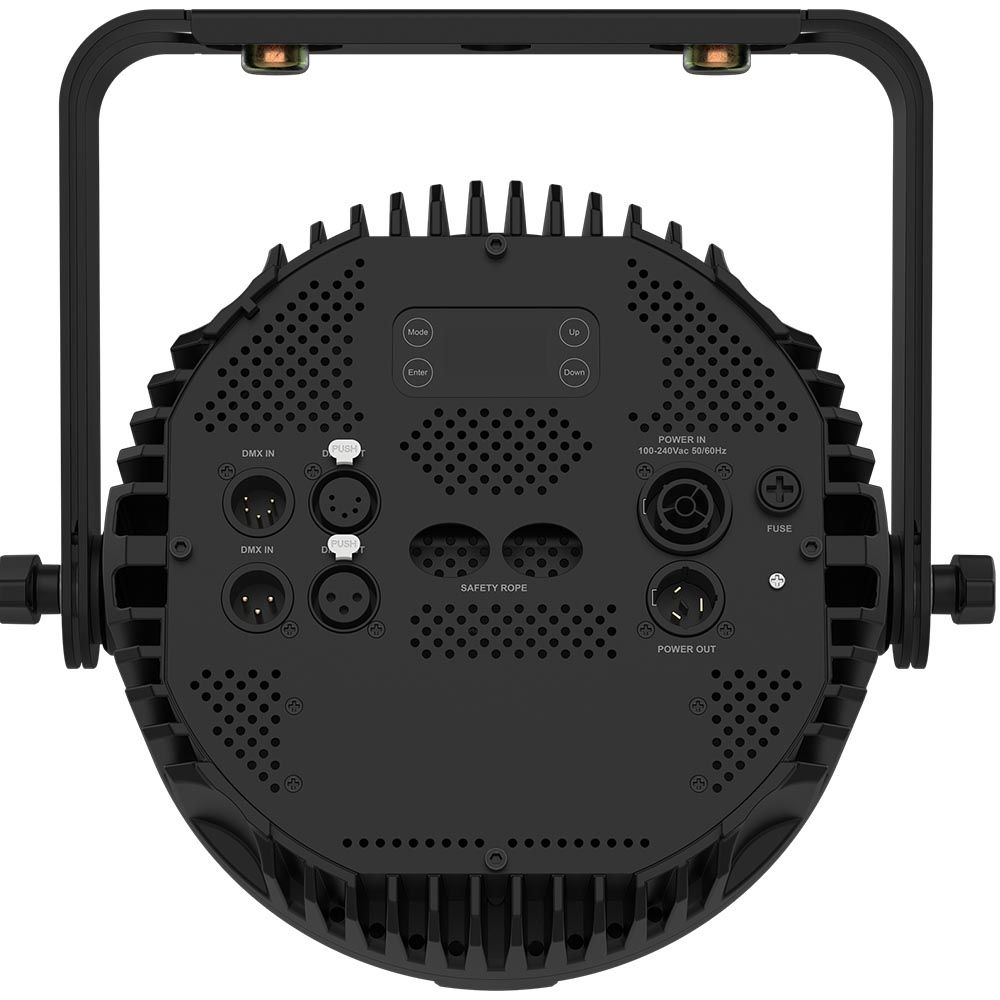

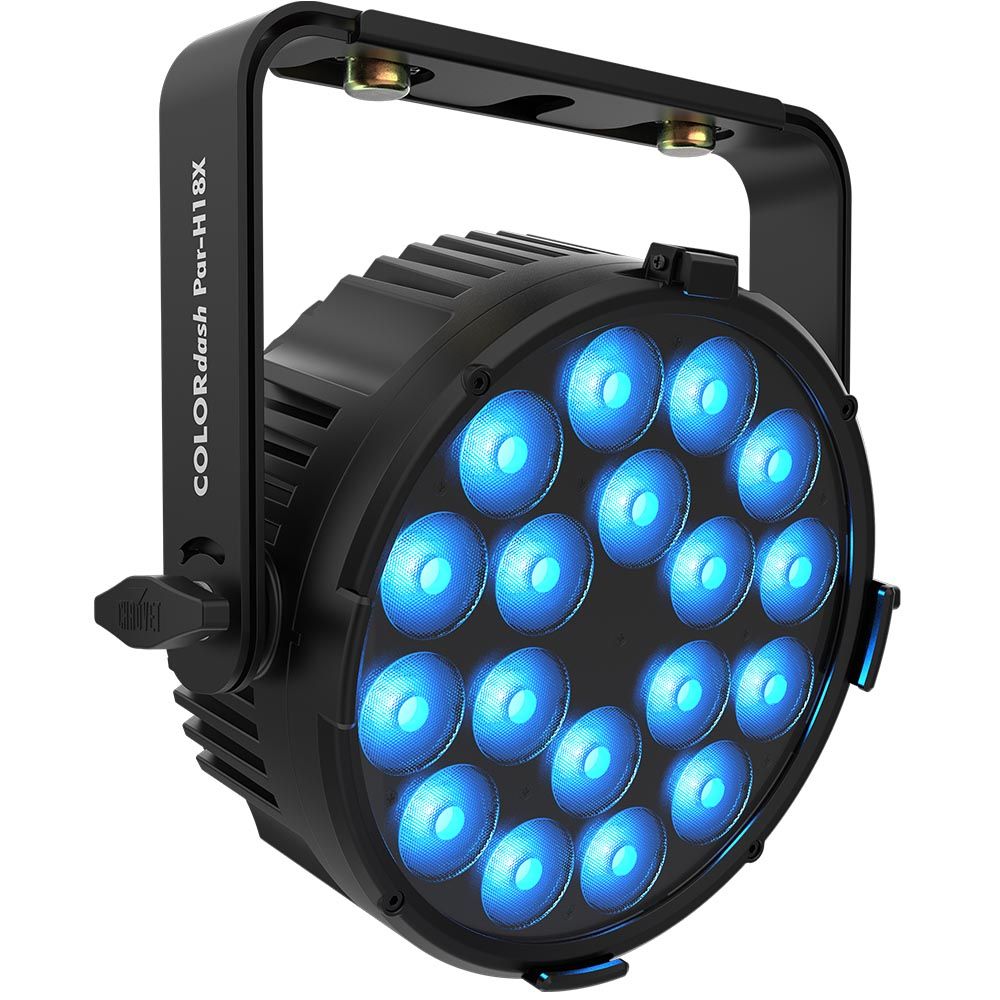

Chauvet Pro COLORdash PAR H18X RGBWAUV LED Wash Light
RRP: $1,057.00 ex. GST
Key Features:
- 5,736 lumens from 18 hex-color RGBWAUV LEDs
- 2800 to 10,000K CCT range
- Adjustable PWM frequencies from 600 Hz to 25,000 Hz
- DMX and RDM control with 6, 8, 9, 13 or 14 channels
- Fixed 23.6° beam angle and 38.6° field angle
- Double-bracketed yoke also functions as a floor stand
Technical Data
| Light Source | 18 LEDs (HEX-color RGBWAUV) 150 W, (550 mA), 50,000 hours life expectancy. |
| Color Temperature (range) | 2800 to 10,000K |
| Color Temperature (at full) | 9507K |
| Beam Angle | 23.6° |
| Field Angle | 38.6° |
| Lumens | 5,736 |
| Illuminance | 1,207 lux @ 5 m |
| Selectable PWM | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 20 Hz |
| Standalone Color Mixing | Yes |
| Color Temperature Presets | Yes |
| Dim Modes | 4 |
| Built-in Automated Programs | Yes |
| Dimensions | 12.45 x 4.38 x 8.68 in (316.4 x 111.5 x 220.7 mm) |
| Weight | 10.4 lb (4.7 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum die-cast |
| Accessory Holder/Gel Frame Size | 9.25 in (235 mm) |
| Power Connection | Edison (local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 3- and 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | DMX, RDM |
| DMX Channels | 6, 8, 9, 13 or 14 |
| Modes/Personalities | 3 personalities (6ch, 8ch, 9ch, 13ch, 14ch) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 9 units @ 120 V; 15 units @ 208 V; 17 units @ 230 V |
| Power and Current @ 120 V | 155 W, 1.305 A |
| Power and Current @ 208 V | 153 W, 0.773 A |
| Power and Current @ 230 V | 152 W, 0.704 A |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
