The Chauvet Pro COLORdash PAR H7X is a lightweight LED wash light with seven 84 W hex-color RGBAW+UV LEDs. It provides a broad saturated color palette, adjustable color temperature from 2800 to 10,000 K, and smooth 16-bit dimming for live, broadcast, and theatrical use. Adjustable PWM settings support flicker-free on-camera operation, while DMX and RDM provide control and remote configuration. The aluminum die-cast housing and double-bracketed yoke support portable installation and flexible mounting.

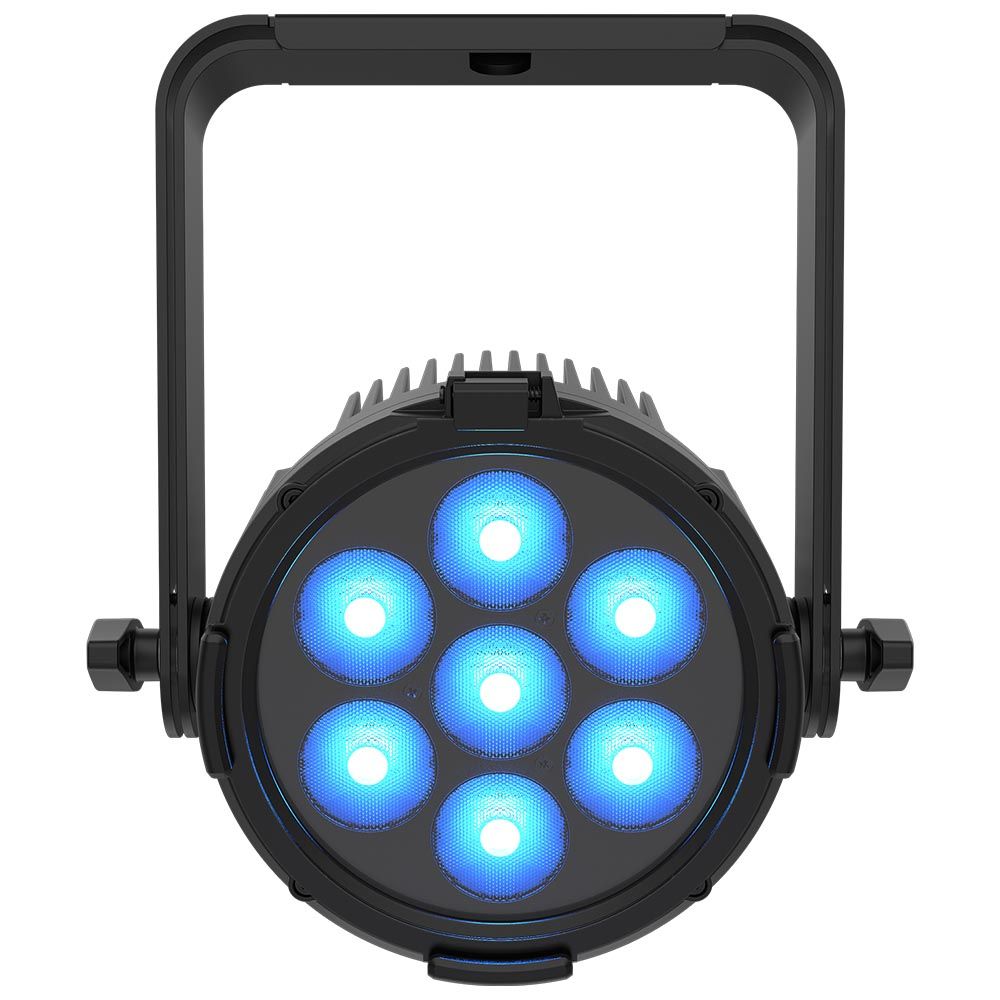

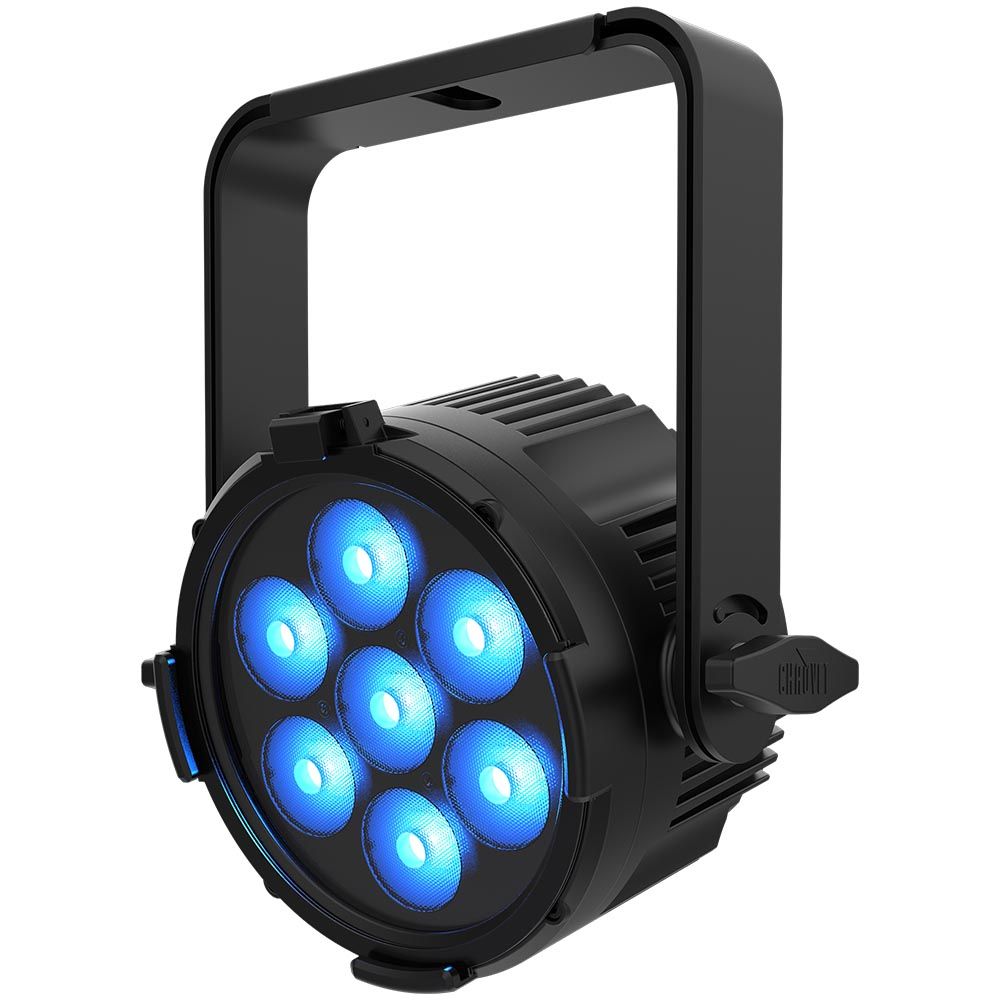

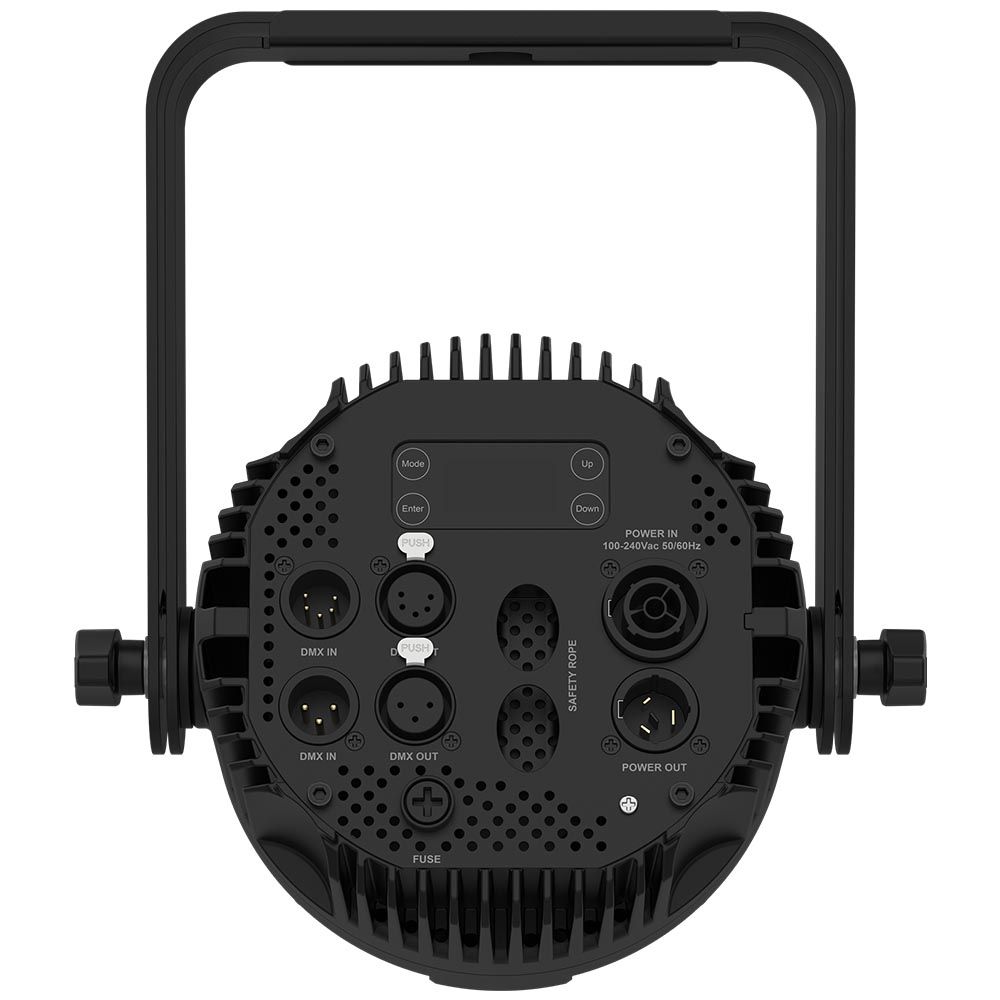

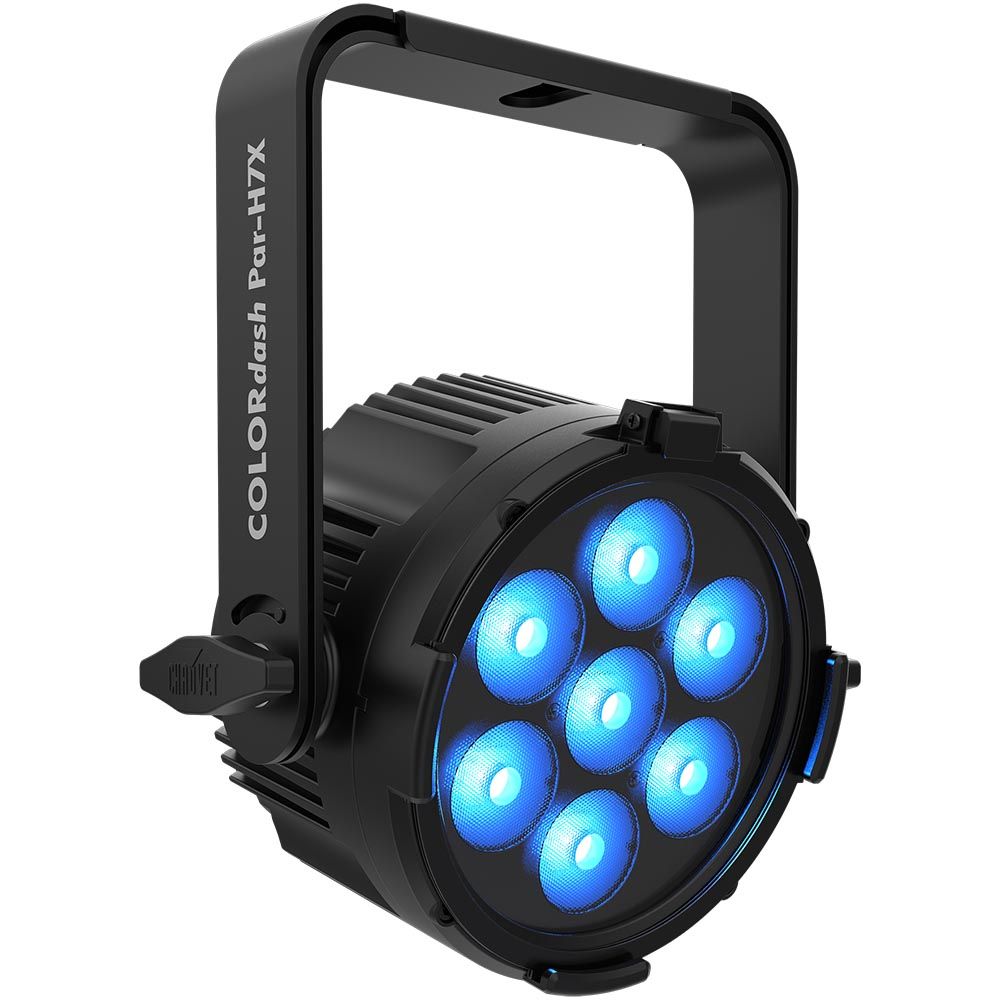

Chauvet Pro COLORdash PAR H7X 7-Color LED Wash Light
RRP: $891.00 ex. GST
Key Features:
- Seven 84W hex-color RGBAW+UV LEDs
- Adjustable color temperature range from 2800 to 10,000 K
- Four selectable dimming curves
- Adjustable PWM settings from 600 Hz to 25K Hz
- DMX and RDM control with five personalities
- Lightweight aluminum die-cast body with double-bracketed yoke
Technical Data
| Light Source | 7 LEDs (hex-color RGBAW+UV) 84 W, (505 mA), 50,000 hours life expectancy |
| Color Temperature (range) | 2800 to 10,000 K |
| Color Temperature (at full) | 14,329 K |
| Beam Angle | 22.7° |
| Field Angle | 37.6° |
| Lumens | 2738 |
| Illuminance (total) | 522 lux @ 5 m |
| Selectable PWM | 600 Hz, 1.2K Hz, 2K Hz, 4K Hz, 6K Hz, 25K Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 20 Hz |
| Standalone Color Mixing | Yes |
| Color Temperature Presets | Yes |
| Dim Modes | 4 |
| Built-in Automated Programs | Yes |
| Customizable Programs | No |
| Dimensions | 10.16 x 9.45 x 4.57 in (258 x 240 x 116 mm) |
| Weight | 6 lb (2.7 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum alloy, Aluminum die-cast |
| Accessory Holder/Gel Frame Size | 6.5 in (165 mm) |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 3- and 5-pin XLR, 3- and 5-pin IP65 XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | DMX, RDM |
| DMX Channels | 6ch ,8ch ,9ch ,13ch, or 14ch |
| Modes/Personalities | 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 20 units @ 120 V; 34 units @ 208 V; 38 units @ 230 V |
| Power and Current (120V) | 70 W, .592 A @ 120 V, 60 Hz |
| Power and Current (208V) | 67 W, .344 A @ 208 V, 60 Hz |
| Power and Current (230V) | 67 W, .312 A @ 230 V, 50 Hz |
| Certifications | CE, MET, FCC, UKCA, FCC |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
